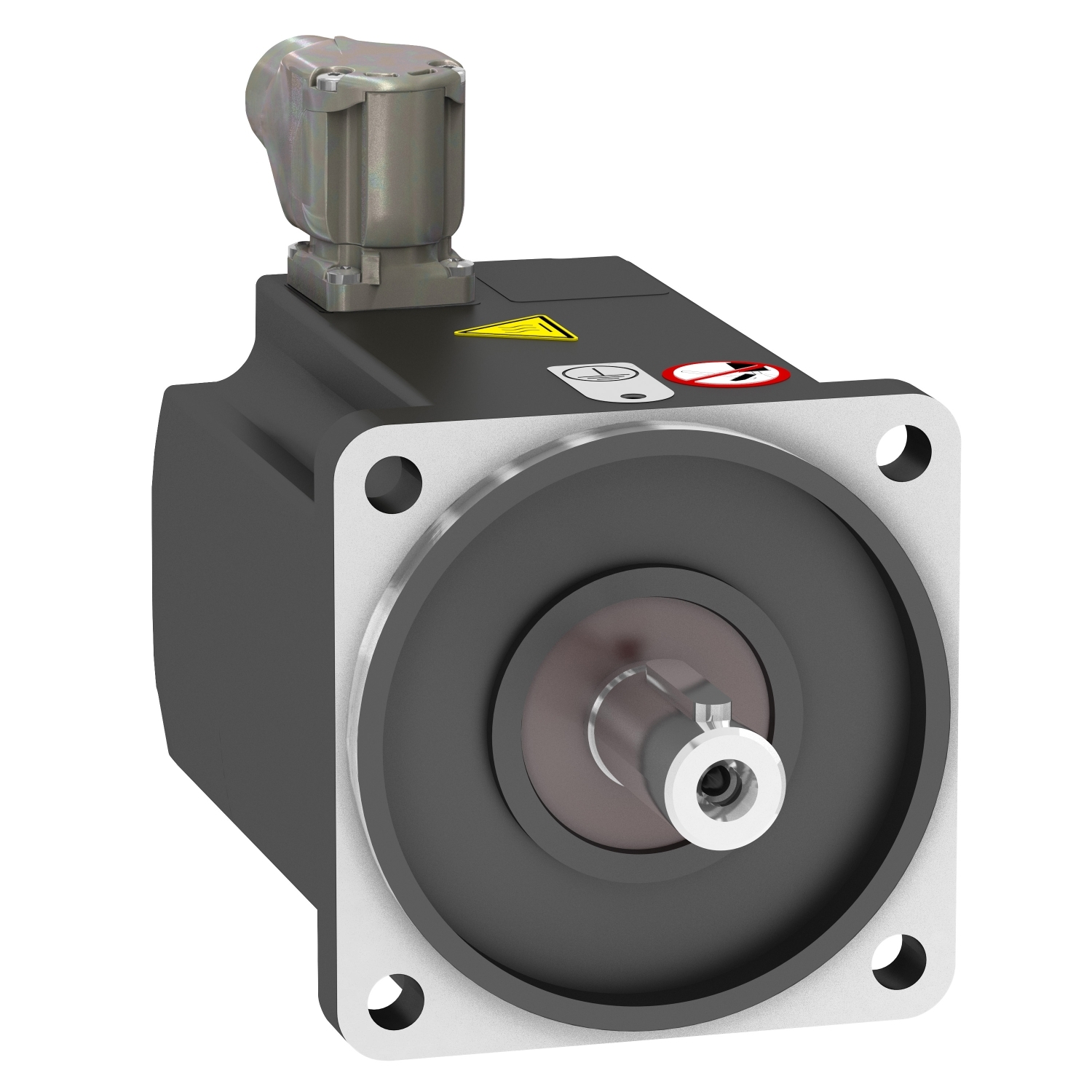

This product belongs to Altivar 32, a range of variable speed drives. This BMP synchronous motor has a power rating of 0.95kW and works at a rated supply voltage 480V. Its nominal speed is 3000rpm. Its shaft end is keyed. It is equipped with a rotatable right-angled connector. It has no holding brake. This AC synchronous motor features High power density, and High energy efficiencys. It is a synchronous motor with a medium moment of inertia. Its shaft end is IP65 standard rating and IP67 rating with a kit. This motor has a 100mm flange, with a 19mm shaft diameter, and 40mm shaft length. It weighs 3.34kg. BMP motor/Altivar 32 speed drive combination is made for hoisting machines, material handling machines, textile machines, wood-working machines. BMP motors are certified by UL, cUL, DESINA, and have CE declaration of conformity. This BMP motor with single cable connectivity is compatible with Altivar 32 and Altivar Machine 320 variable speed drives. All mounting positions are permitted, horizontal mounting (IMB5), vertical mounting (IMV1 and IMV3) in accordance with IEC 60034-7. Altivar 32 are drives for complex machines 0.18 to 15 kW. With its extra-slim format, Altivar 32 offers numerous advantages in the control of asynchronous and synchronous motors operating in open loop mode.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | BMP |
| Nominal torque | 2.39 N.m with drive ATV320 at 1.1 kW 400 V three phase, 2.39 N.m with drive ATV320 at 0.75 kW 400 V three phase, 2.39 N.m with drive ATV32 at 1.1 kW 400 V three phase, 2.39 N.m with drive ATV32 at 0.75 kW 400 V three phase |
| Electrical connection | rotatable right-angled connector |
| Nominal speed | 3000 rpm with drive ATV320 at 1.1 kW 400 V three phase, 3000 rpm with drive ATV320 at 0.75 kW 400 V three phase, 3000 rpm with drive ATV32 at 1.1 kW 400 V three phase, 3000 rpm with drive ATV32 at 0.75 kW 400 V three phase |
| Shaft end | keyed |
| IP degree of protection | IP67 with IP67 kit, IP65 standard |
| Nominal output power | 750 W with drive ATV320 at 1.1 kW 400 V three phase, 750 W with drive ATV320 at 0.75 kW 400 V three phase, 750 W with drive ATV32 at 1.1 kW 400 V three phase, 750 W with drive ATV32 at 0.75 kW 400 V three phase |
| Product or component type | synchronous motor |
| Holding brake | without |
| Mounting support | international standard flange |
| Maximum mechanical speed | 3600 rpm |
| Product compatibility | variable speed drive ATV320 at 1.1 kW 380...500 V three phase, variable speed drive ATV320 at 0.75 kW 380...500 V three phase, variable speed drive ATV32 at 1.1 kW 400 V three phase, variable speed drive ATV32 at 0.75 kW 400 V three phase |
| Complementary | |
| Torque constant | 1.71 N.m/A at 40 °C |
| Nominal operating frequency | 250 Hz with drive ATV320 at 1.1 kW 400 V three phase, 250 Hz with drive ATV320 at 0.75 kW 400 V three phase, 250 Hz with drive ATV32 at 1.1 kW 400 V three phase, 250 Hz with drive ATV32 at 0.75 kW 400 V three phase |
| Range compatibility | Altivar Machine ATV320, Altivar 32 |
| Stator resistance | 4.54 Ohm at 40 °C |
| Maximum operating frequency | 300 Hz with drive ATV320 at 1.1 kW 400 V three phase, 300 Hz with drive ATV320 at 0.75 kW 400 V three phase, 300 Hz with drive ATV32 at 1.1 kW 400 V three phase, 300 Hz with drive ATV32 at 0.75 kW 400 V three phase |
| Type of cooling | natural convection |
| Mounting holes diameter | 9 mm |
| Minimum operating frequency | 25 Hz with drive ATV320 at 1.1 kW 400 V three phase, 25 Hz with drive ATV320 at 0.75 kW 400 V three phase, 25 Hz with drive ATV32 at 1.1 kW 400 V three phase, 25 Hz with drive ATV32 at 0.75 kW 400 V three phase |
| Shaft diameter | 19 mm |
| Key width | 6 mm |
| Number of mounting holes | 4 |
| [Us] rated supply voltage | 480 V |
| Motor flange size | 100 mm |
| Stator inductance | 13.28 mH for d-axis winding at 40 °C, 15.3 mH for q-axis winding at 40 °C |
| Centring collar diameter | 95 mm |
| Net weight | 3.34 kg |
| Maximum current Irms | 4.5 A with drive ATV320 at 1.1 kW 400 V three phase, 3.5 A with drive ATV320 at 0.75 kW 400 V three phase, 4.5 A with drive ATV32 at 1.1 kW 400 V three phase, 3.5 A with drive ATV32 at 0.75 kW 400 V three phase |
| Length | 128.6 mm |
| Network number of phases | three phase |
| Shaft length | 40 mm |
| Centring collar depth | 3.5 mm |
| Maximum axial force Fa | 0.2 x Fr |
| Number of motor poles | 5 |
| Rotor inertia | 3.19 kg.cm² |
| Number of motor stacks | 1 |
| Maximum radial force Fr | 570 N at 4000 rpm, 630 N at 3000 rpm, 720 N at 2000 rpm, 900 N at 1000 rpm |
| Circle diameter of the mounting holes | 115-115 mm |
