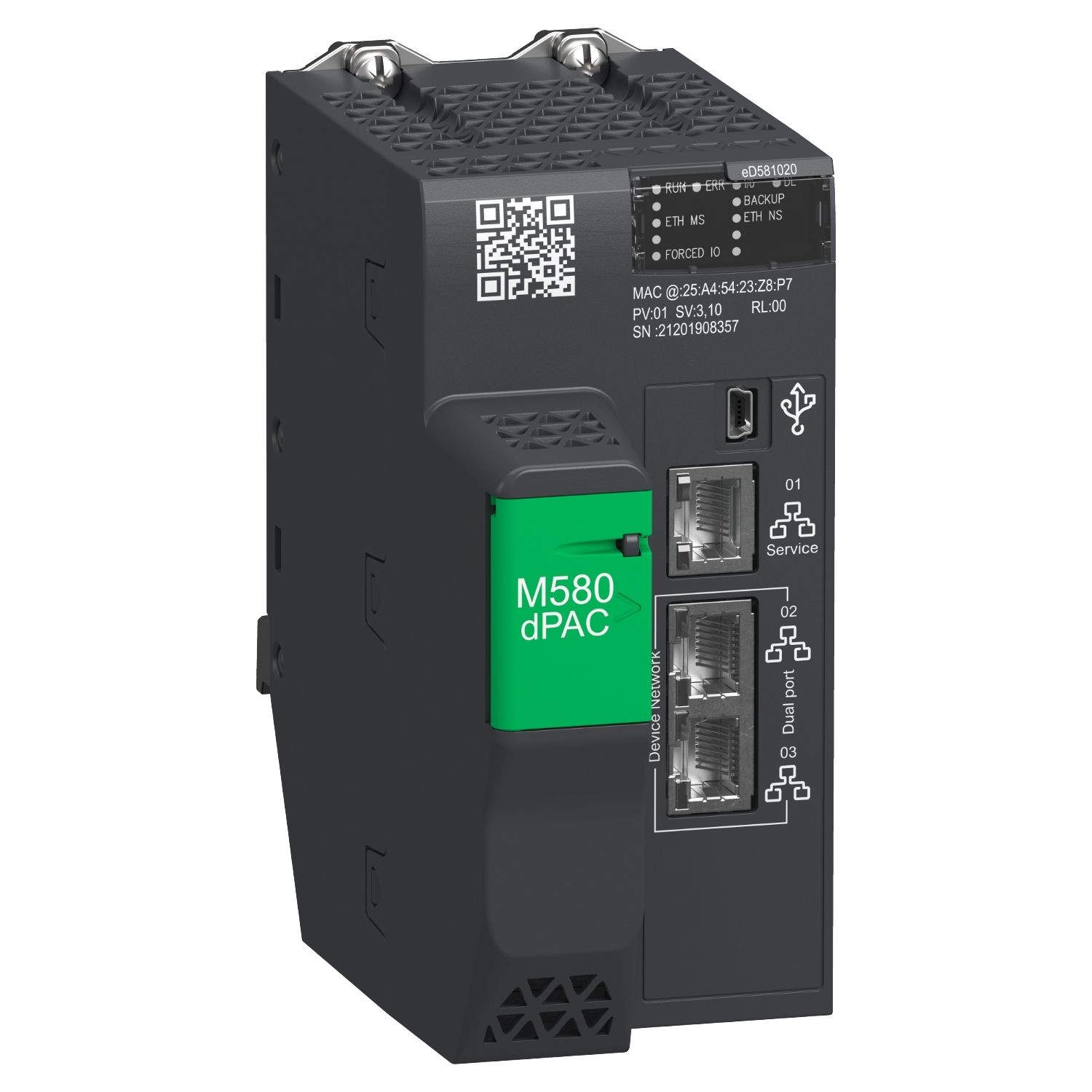

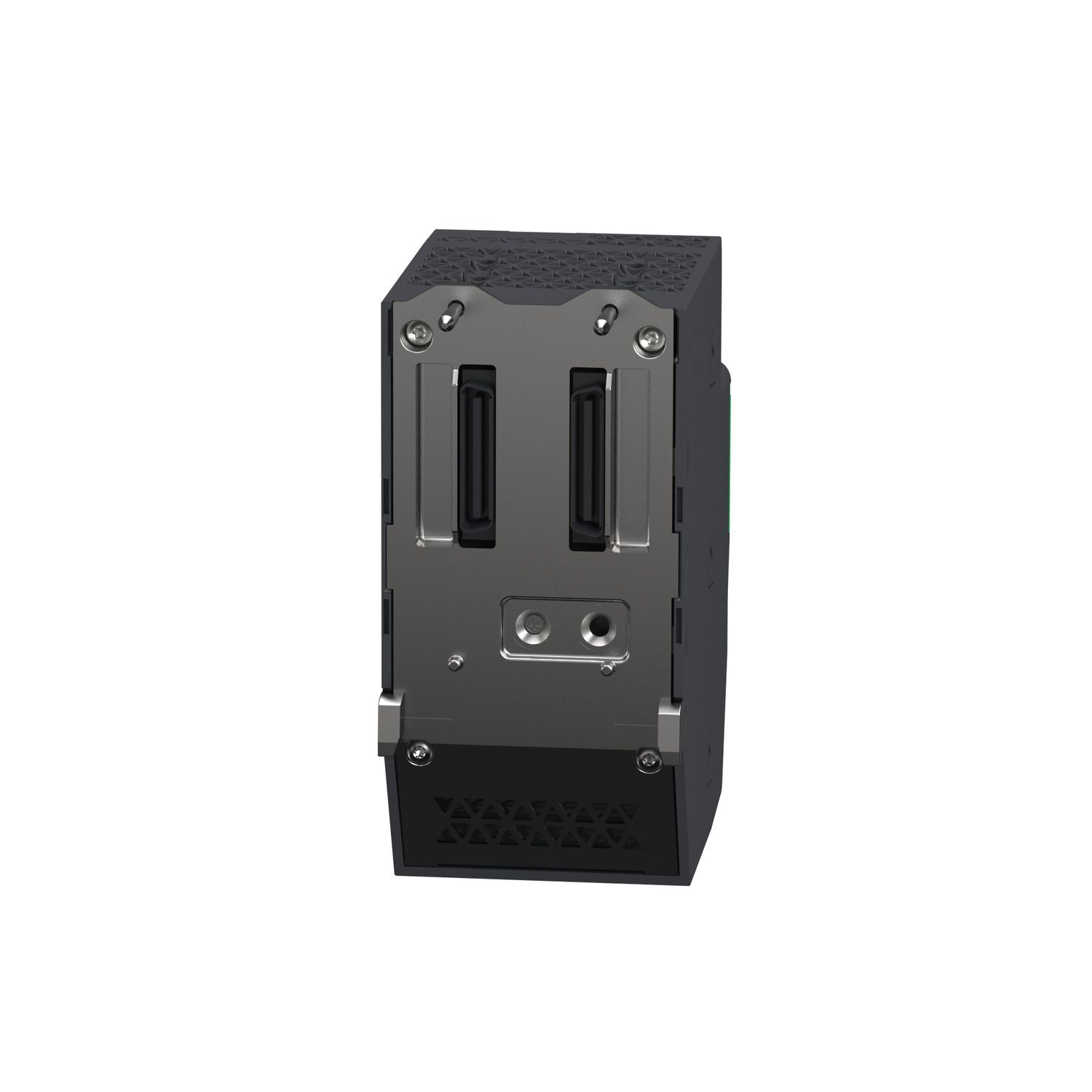

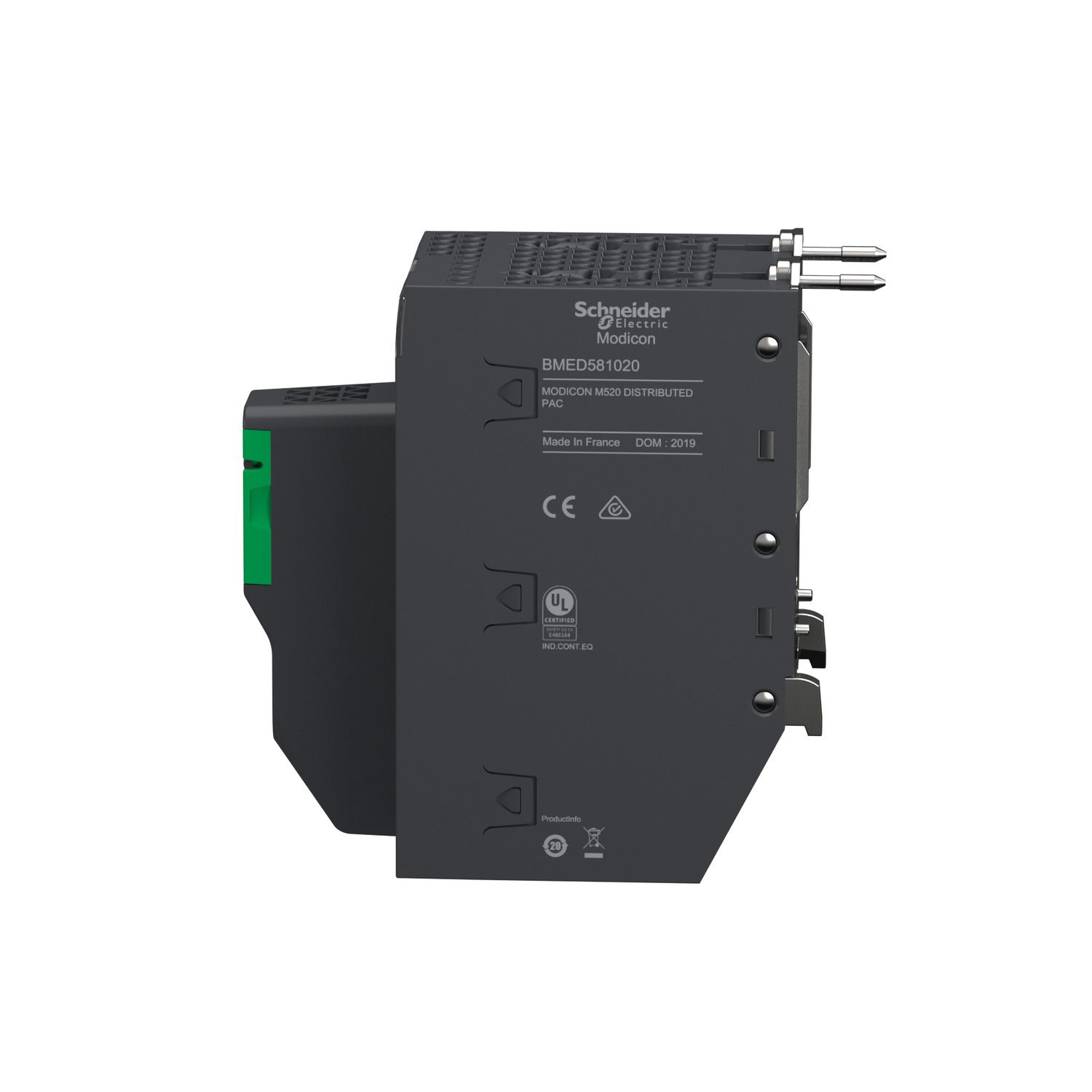

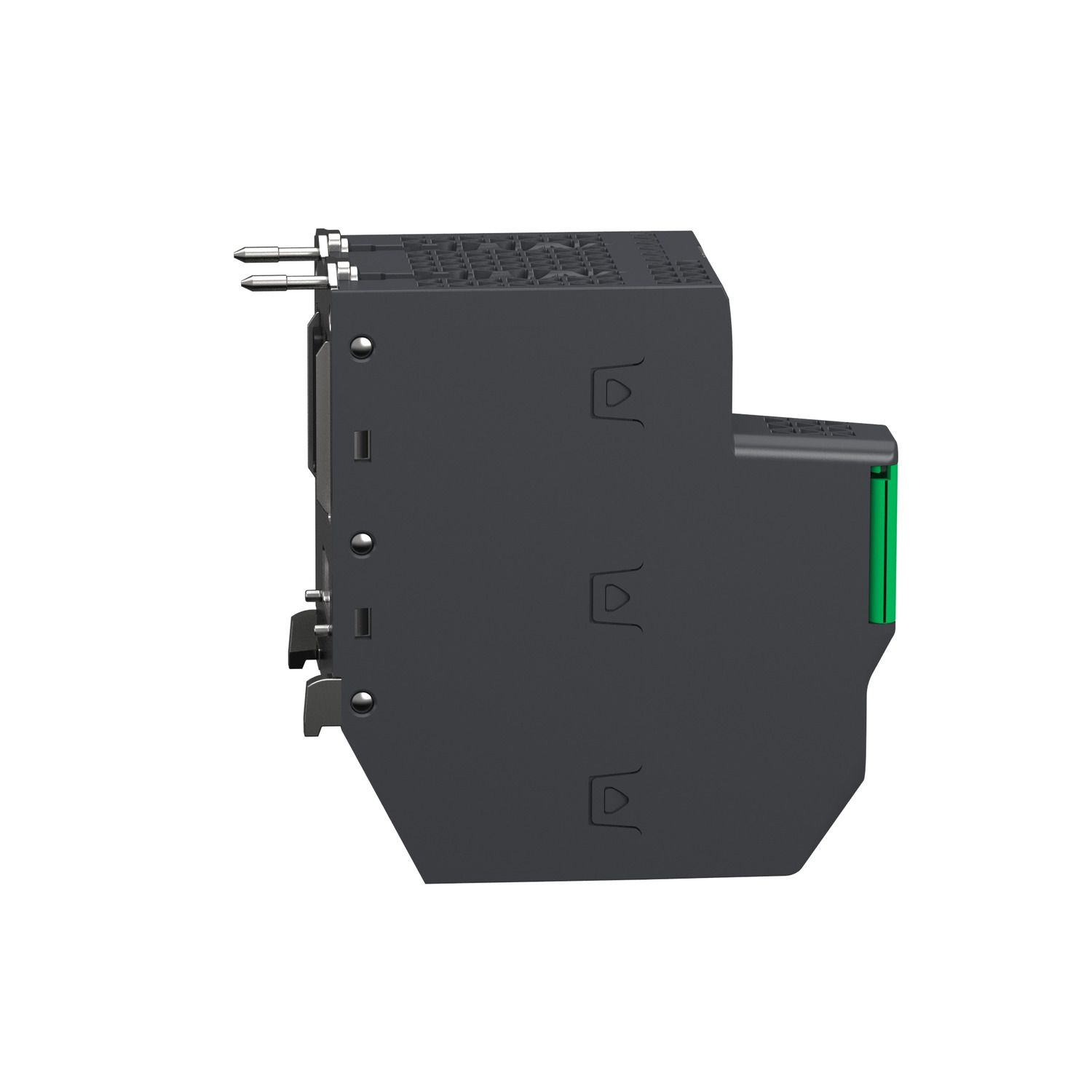

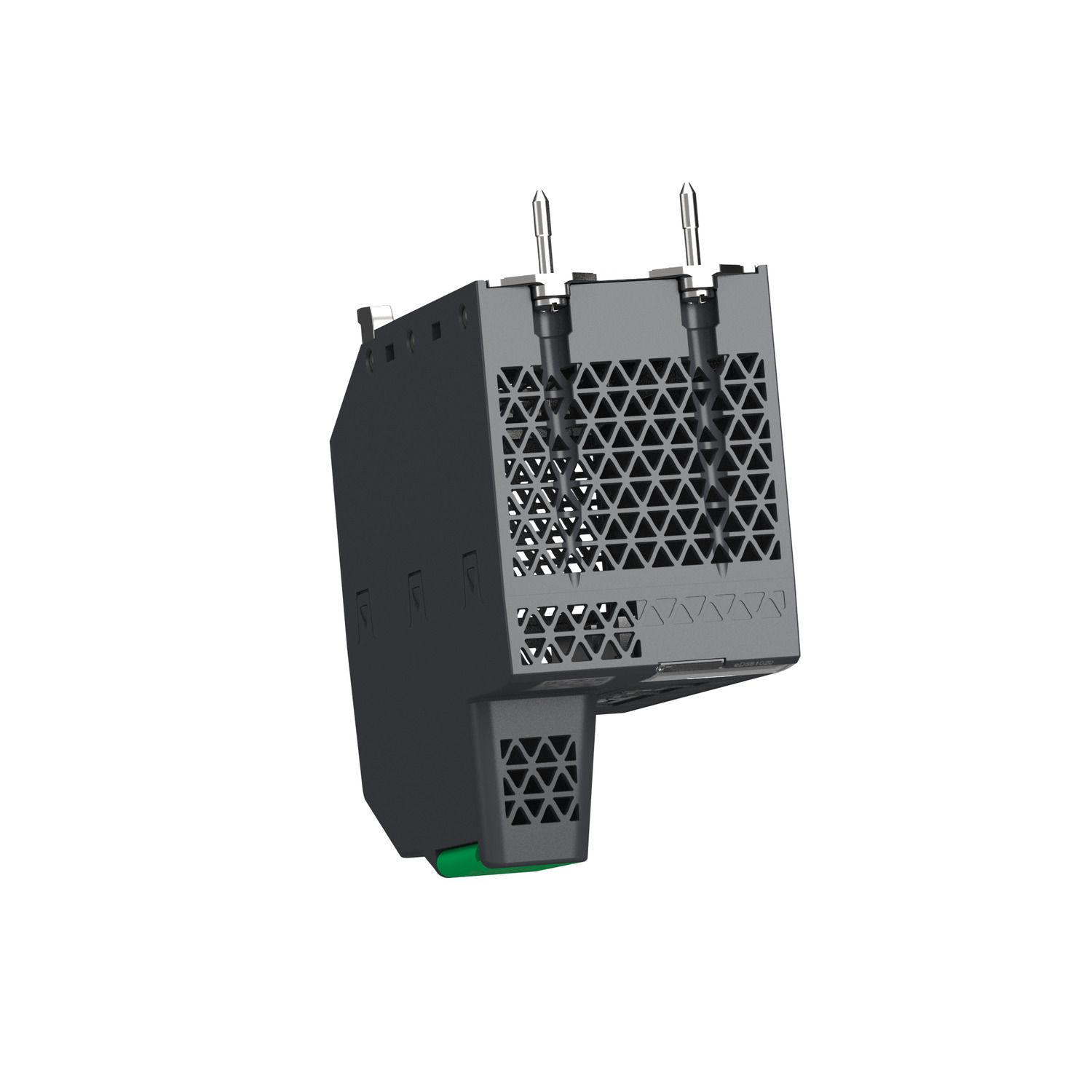

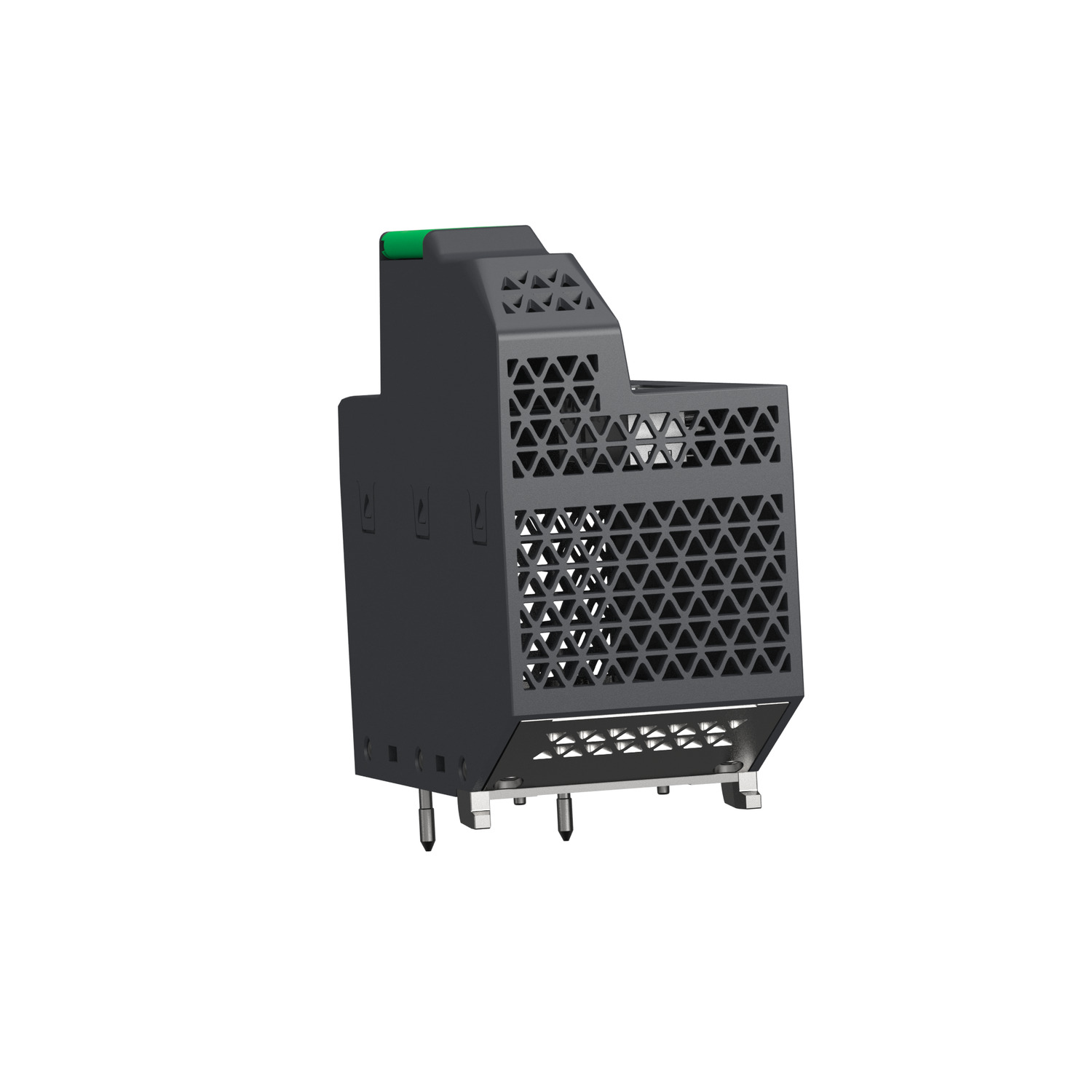

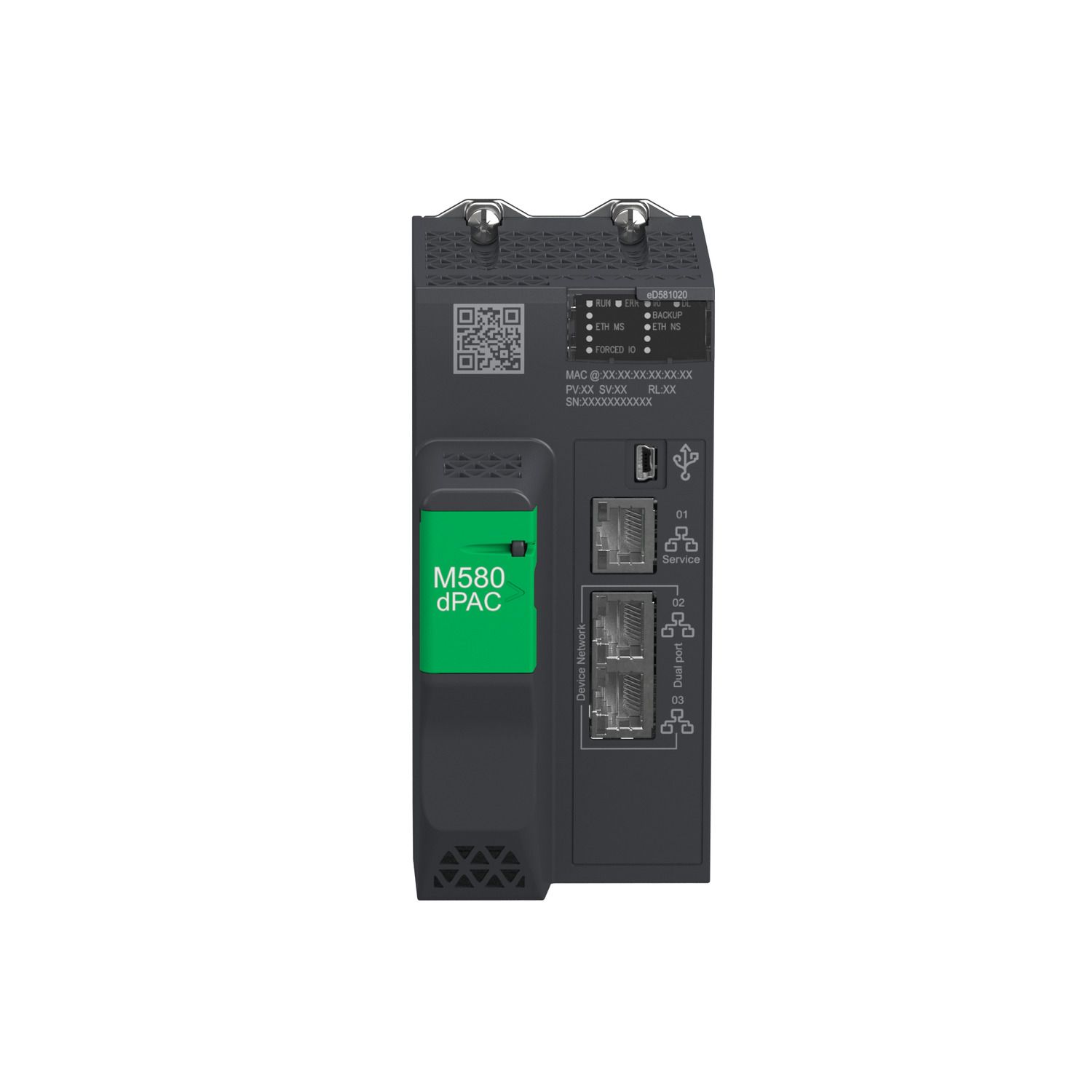

The Modicon M580 dPAC is part of the EcoStructure Automation Expert hardware controller range. It is a high performance dPAC controller that supports the Modicon X80 I/O catalog. The controller supports up to 1024 discrete I/O channels, 256 analogue I/O channels and 4 local racks of Modicon X80 I/O. It is a high-performance, IEC 61499 compliant field controller based on the widely successful Modicon M580 ePAC. It includes 64MB ECC RAM for programs and data and supports Modbus/TCP, Ethernet/IP and OPC UA and auto discovery. The controler is compatible with most Modicon X80 racks, power supplies and I/O. It weighs 0.85kg (1.9lb). EcoStruxure Automation Expert is a new category of software defined automation, enabling next generation integrated architectures and Industry 4.0 solutions. It complies with IEC/EN 61131-2 and IEC/EN/UL/CSA 61010-2-201, IEC/EN 61000-6-5, IEC/EN 61850-3, EN 50155/IEC 60571, CE ATEX (2014/34/EU), 2014/35/EU, 2014/30/EU and 2006/42/EC standards.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Modicon M580 |
| Product or component type | processor module |
| Complementary | |
| Memory description | integrated RAM, 64 MB for program and data |
| Analogue I/O processor capacity | 64 I/O |
| Marking | CE |
| Number of racks | 4 |
| Number of distributed equipment | 64 |
| MTBF reliability | 600000 H |
| Discrete I/O processor capacity | 1024 I/O |
| Integrated connection type | 2 Ethernet TCP/IP for device network, 1 Ethernet TCP/IP for service port |
| Current consumption | 295 mA at 24 V DC |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2006/42/EC - machinery, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Product certifications | EAC, CSA, UL, CE |
| Standards | IACS E10, UL 61010-2-201, IEC 61010-2-201, IEC 61131-2 |
| Status LED | 1 LED (green/red) Eth NS (Ethernet network status), 1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (red) I/O values overrided by user (FORCED IO), 1 LED (green) download in progress (DL), 1 LED (red) I/O module fault (I/O), 1 LED (red) processor or system fault (ERR), 1 LED (green) processor running (RUN) |
| Ambient air temperature for operation | 0-60 °C |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Net weight | 0.849 kg |
| Vibration resistance | 3 gn |
| Environmental characteristic | hazardous location class I division 2 |
| Shock resistance | 30 gn |
| Supply | internal power supply via rack |
