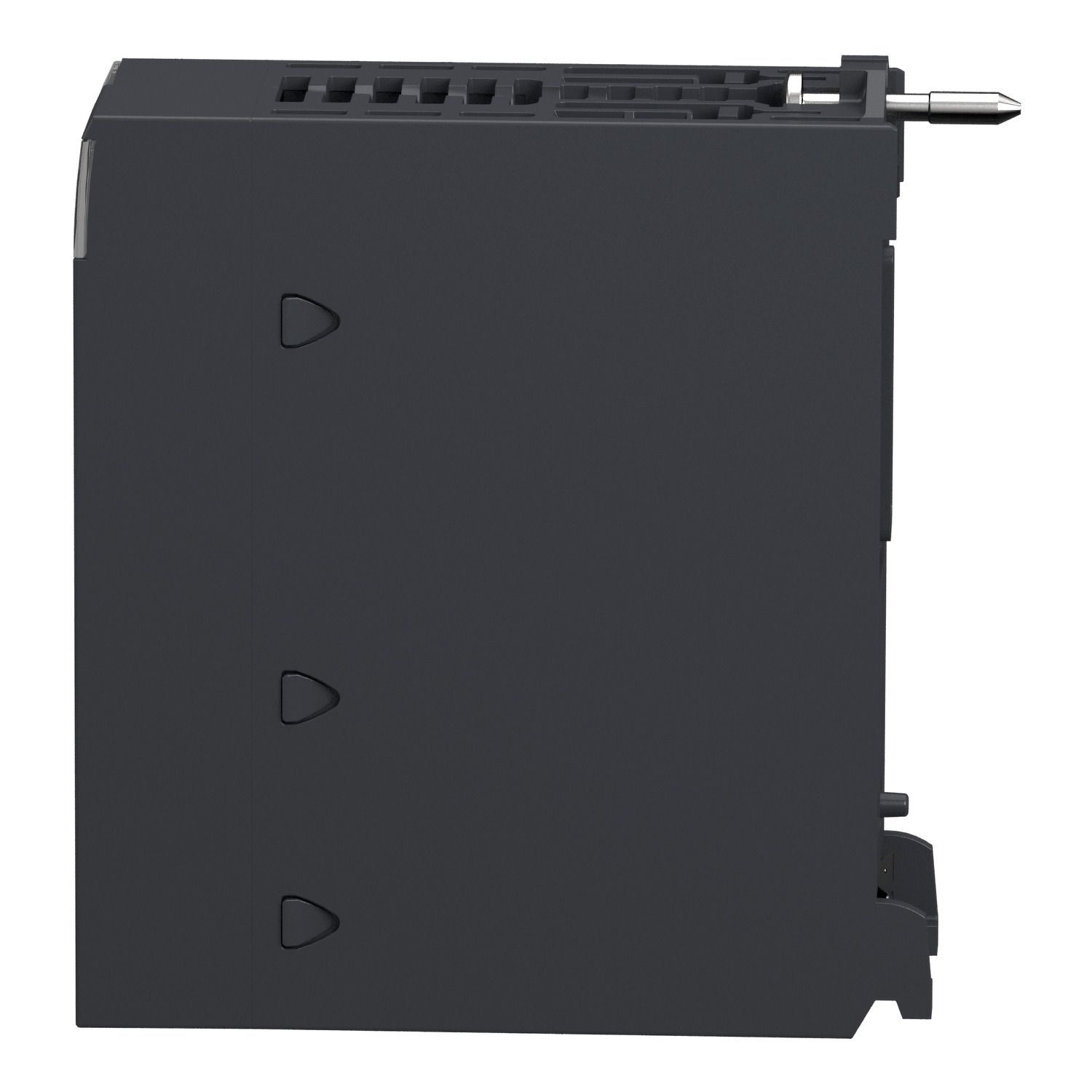

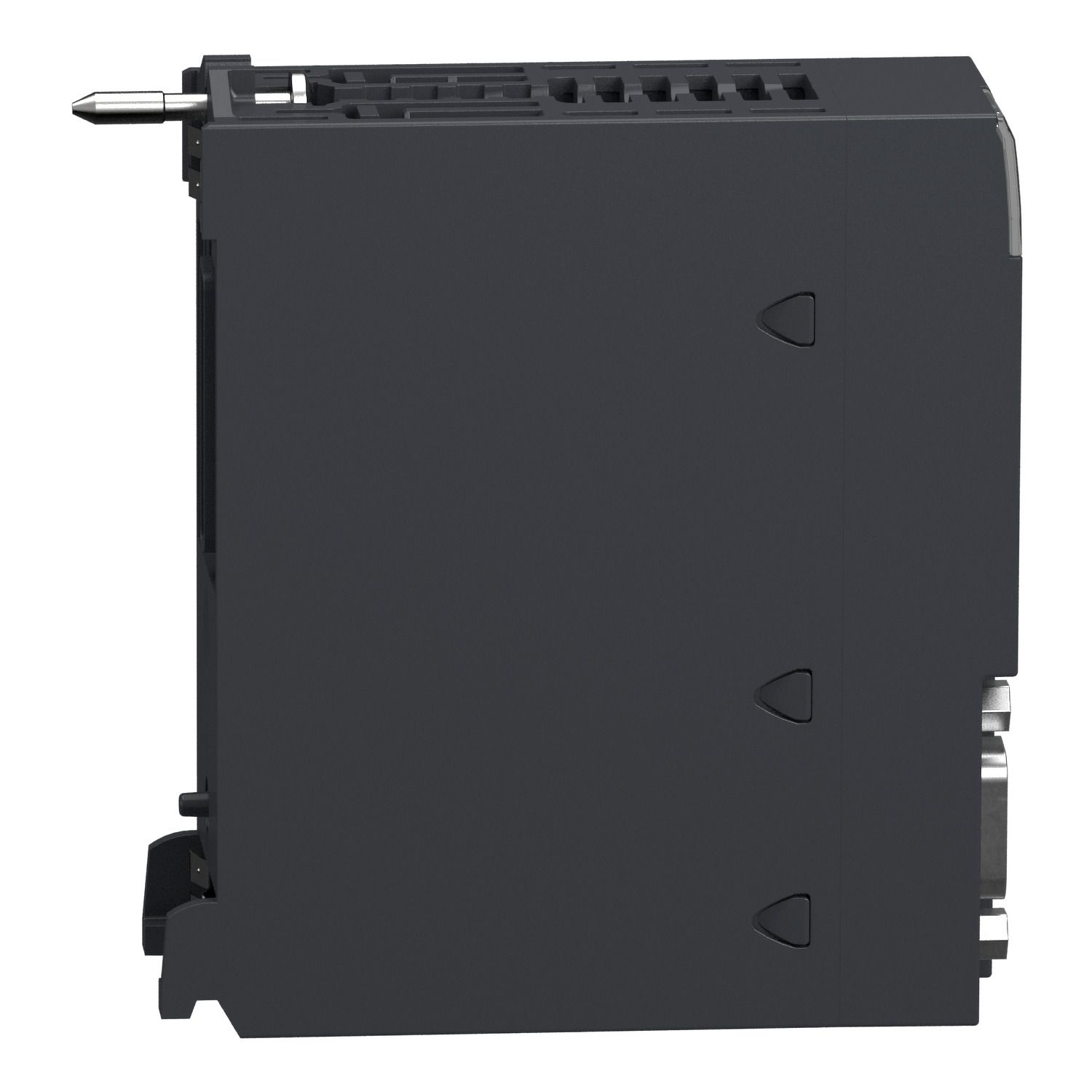

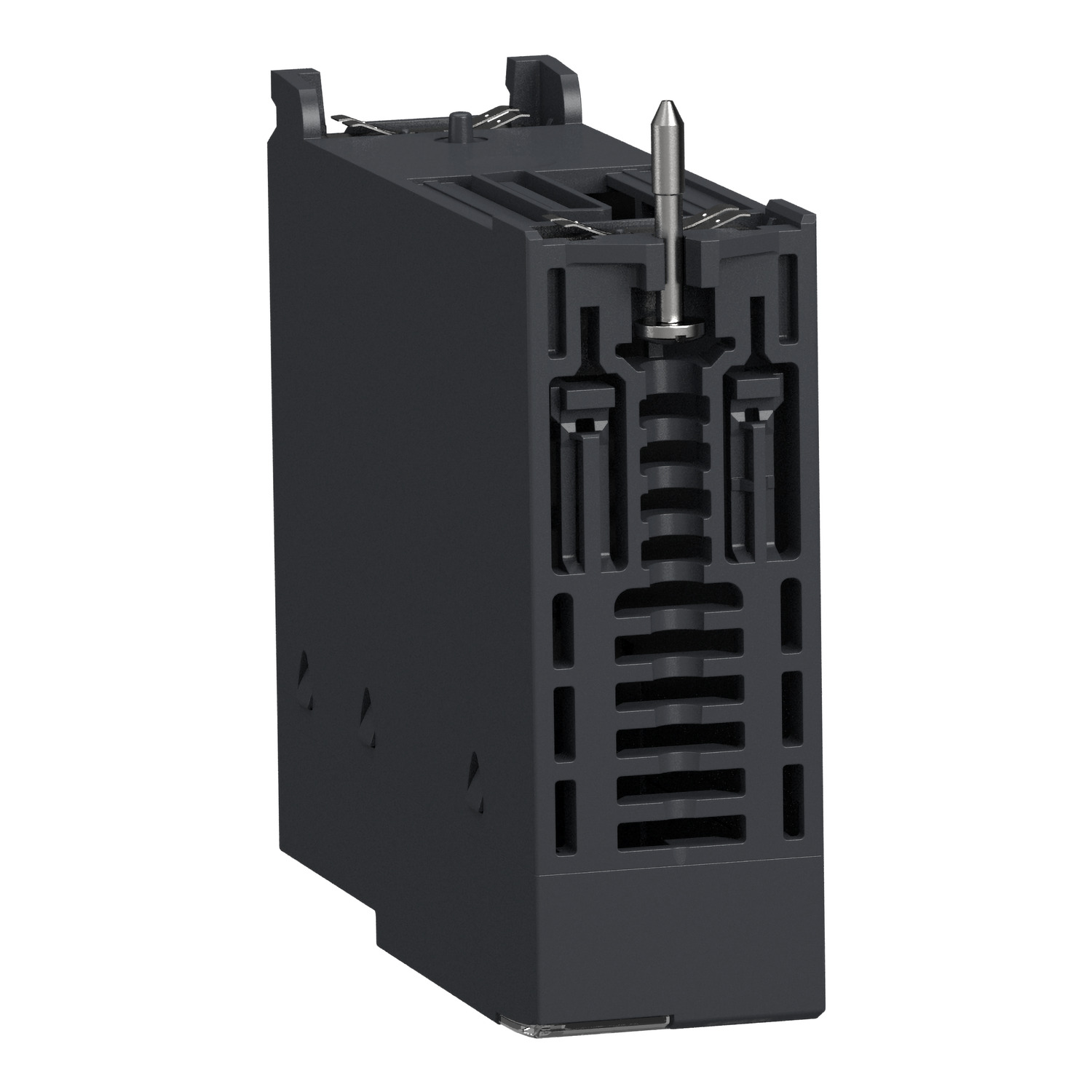

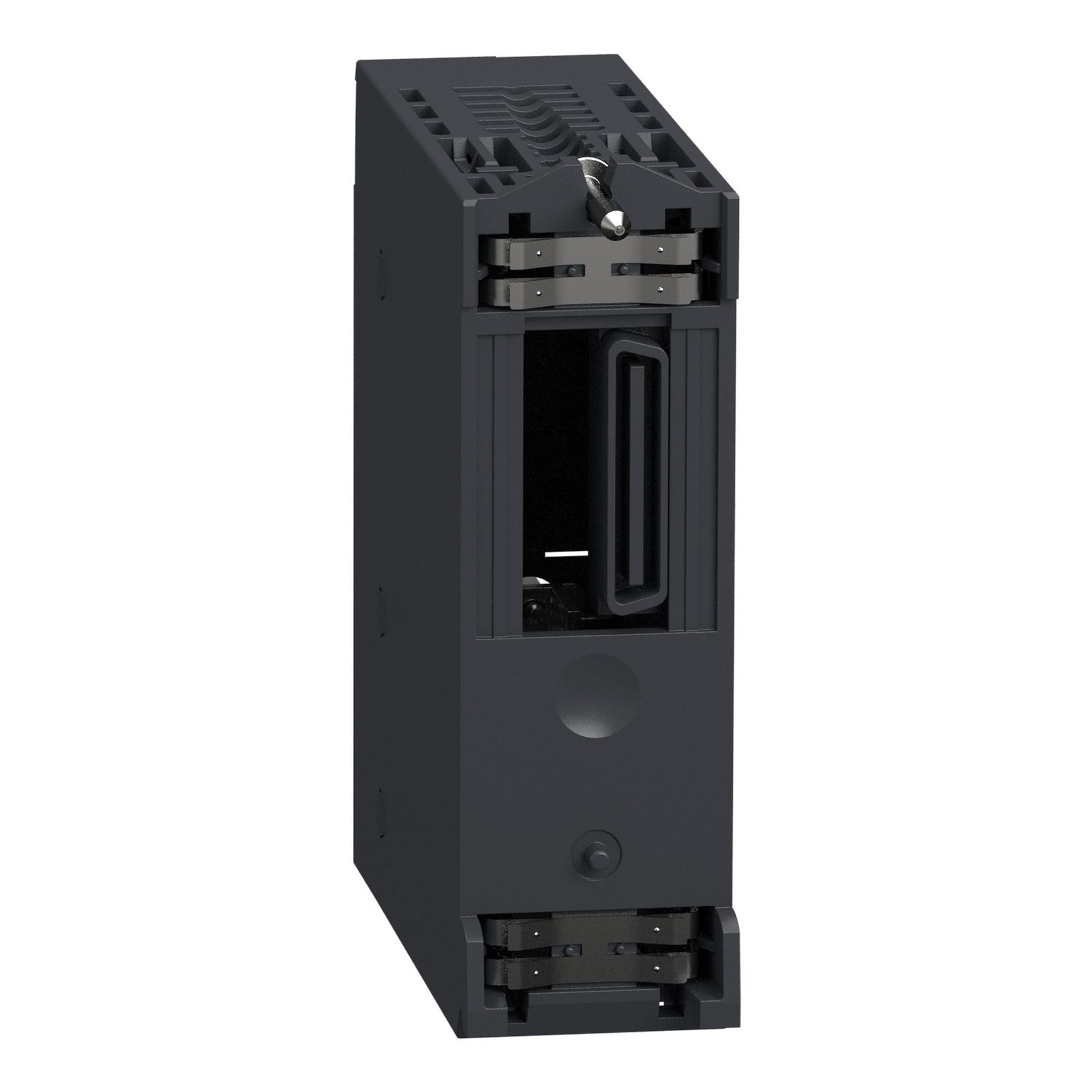

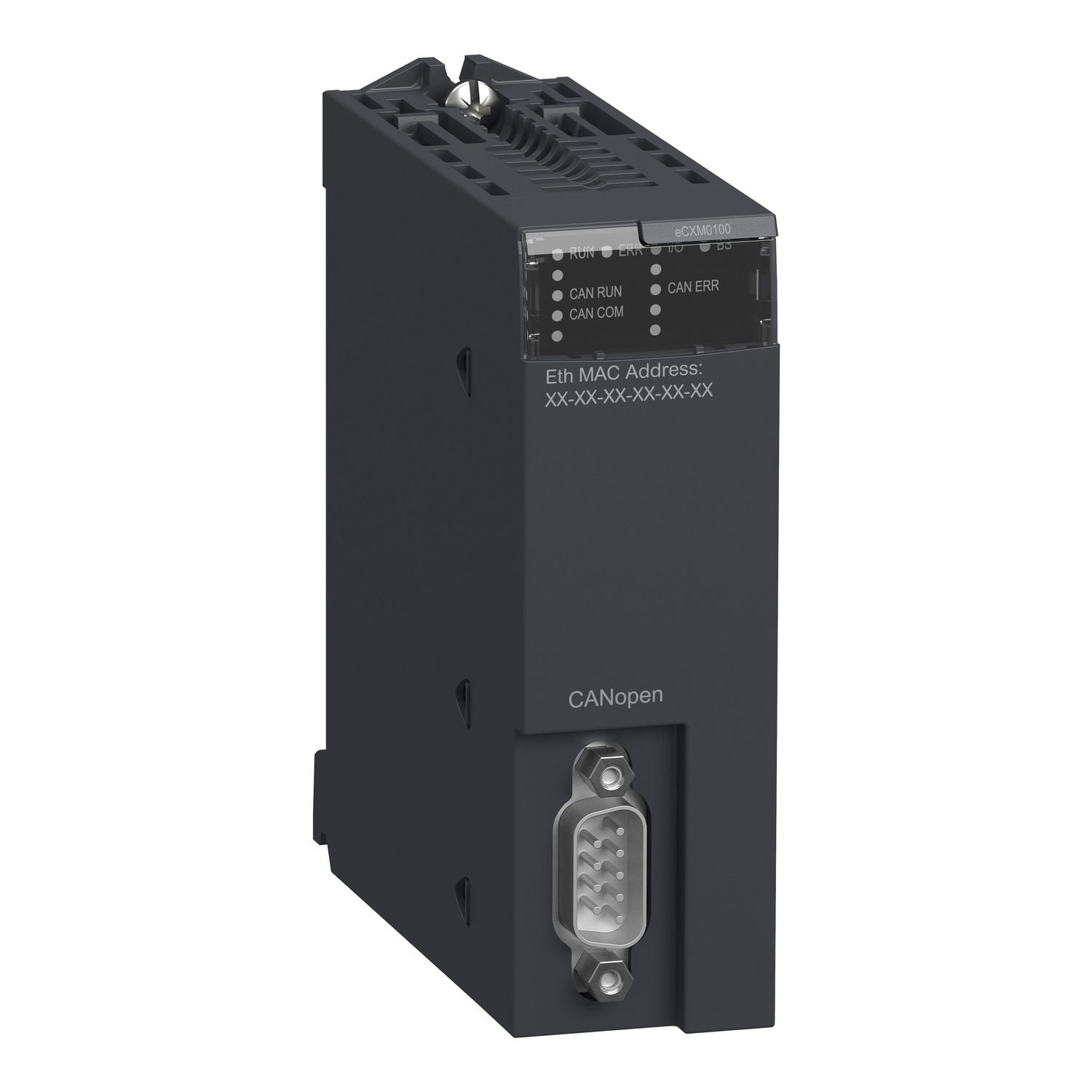

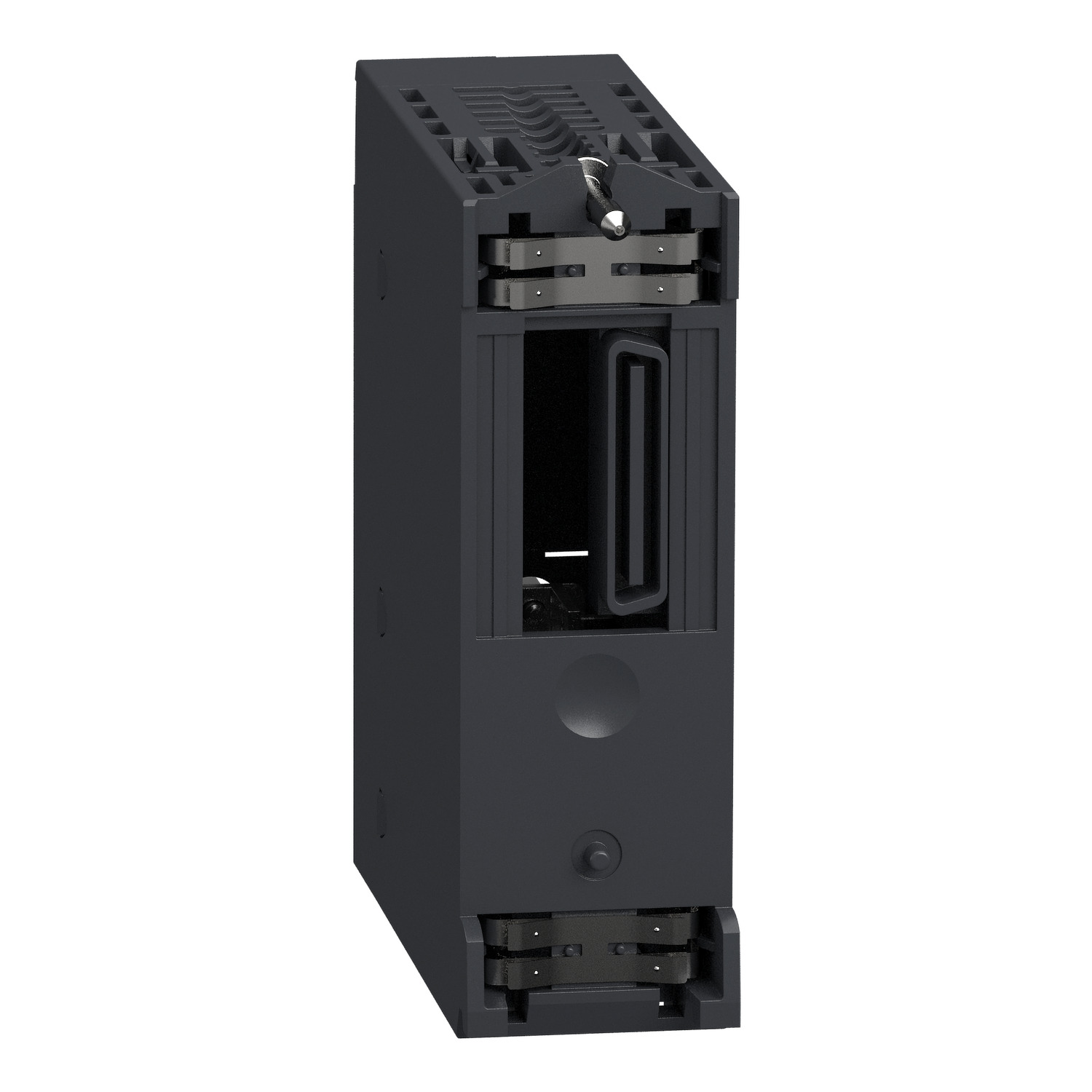

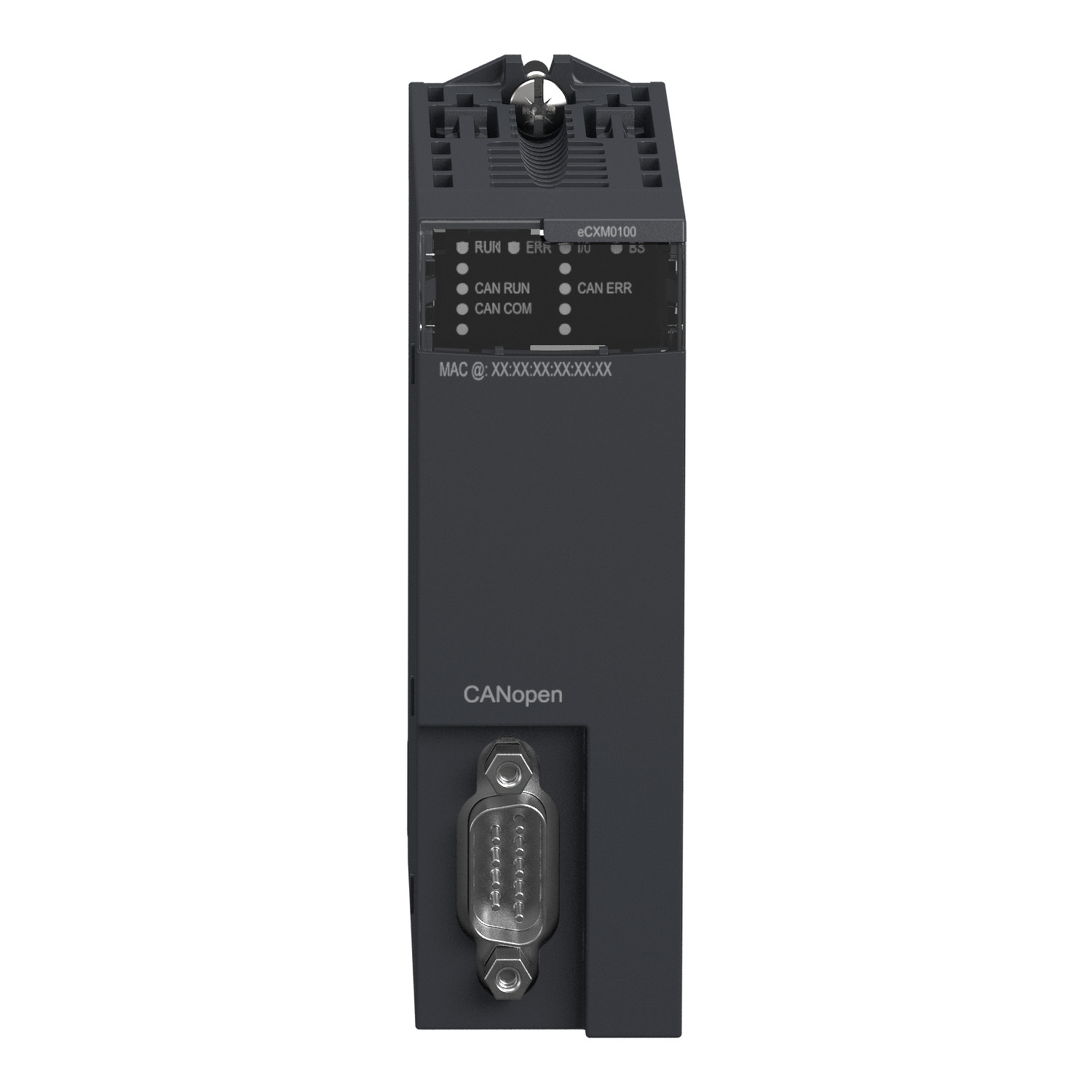

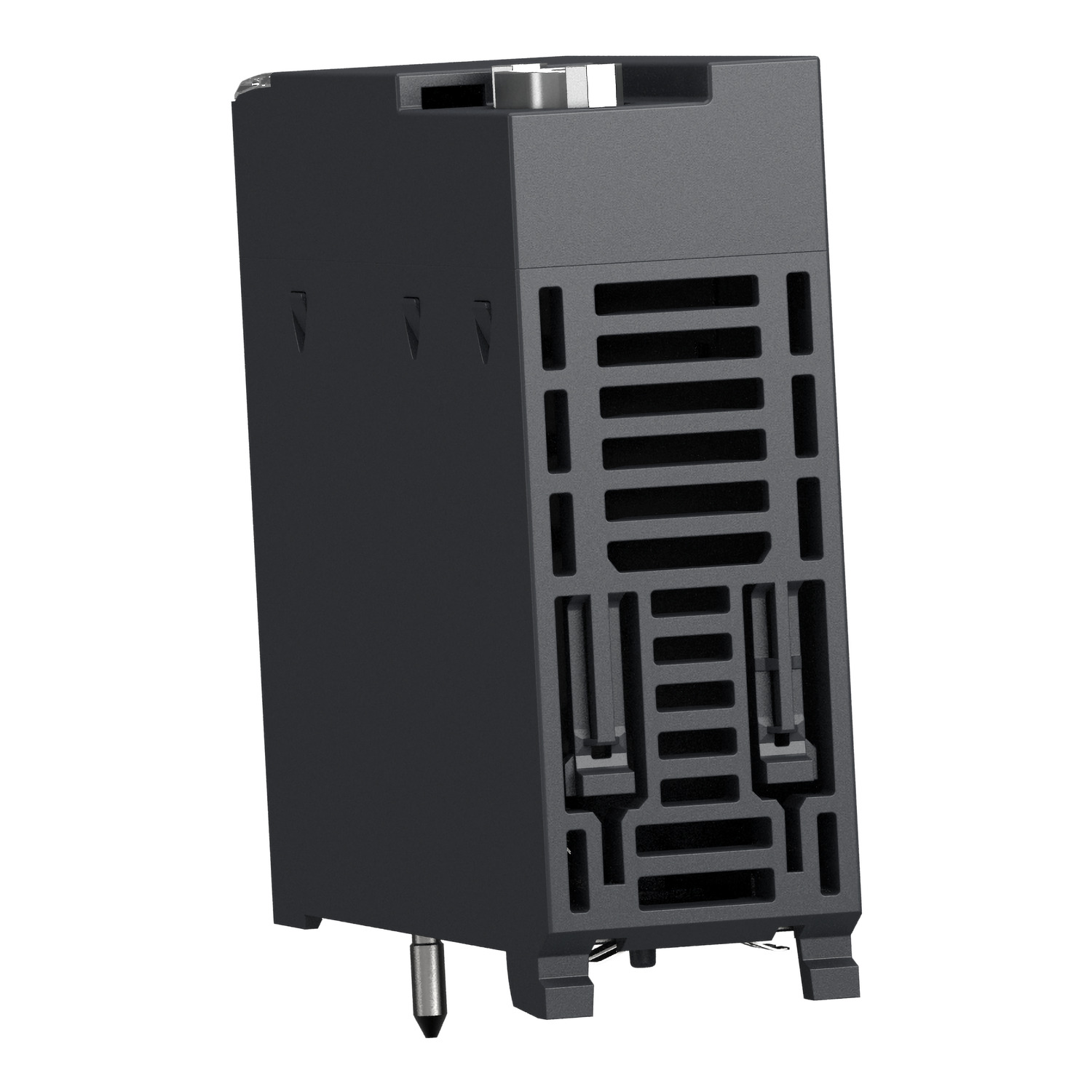

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This CANopen communication module has 63 slaves, DB9 connector interface. It is a communication module which support CANopen twisted shielded pairs cable as transmission medium. It supports 10/100Mbps transmission rate, maximum cable distance between devices is 100m. This product is robust, high quality and based on the latest innovative technology. The communication service is CiA DSP 301 V4.02 with standard module format. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with M580 Programmable Logic Controllers (PLC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Structure type | open industrial fieldbus |
| Range of product | Modicon X80 |
| Product or component type | CANopen communication module |
| Complementary | |
| Product compatibility | M580 PLC |
| Module format | standard |
| Physical interface | DB9 connector |
| Number of slave | 63 |
| Transmission rate | 1 Mbit/s, 20 m bus without repeater, 500 kbit/s, 100 m bus without repeater, 250 kbit/s, 250 m bus with repeater, 125 kbit/s, 500 m bus with repeater, 50 kbit/s, 1000 m bus with repeater, 20 kbit/s, 2500 m bus for CANopen with repeater |
| Mode of transmission | NRZ |
| Method of access | CSMA/CA CANopen |
| Communication service | CiA DSP 301 V4.02 |
| Current consumption | 100 mA |
| Transmission support medium | CANopen twisted shielded pairs cable |
| [Us] rated supply voltage | 24 V DC internal |
| Environment | |
| Relative humidity | 10-95 % without condensation |
| Ambient air temperature for storage | -45-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Ambient air temperature for operation | 0-60 °C |
| Operating altitude | <= 2000 m |
