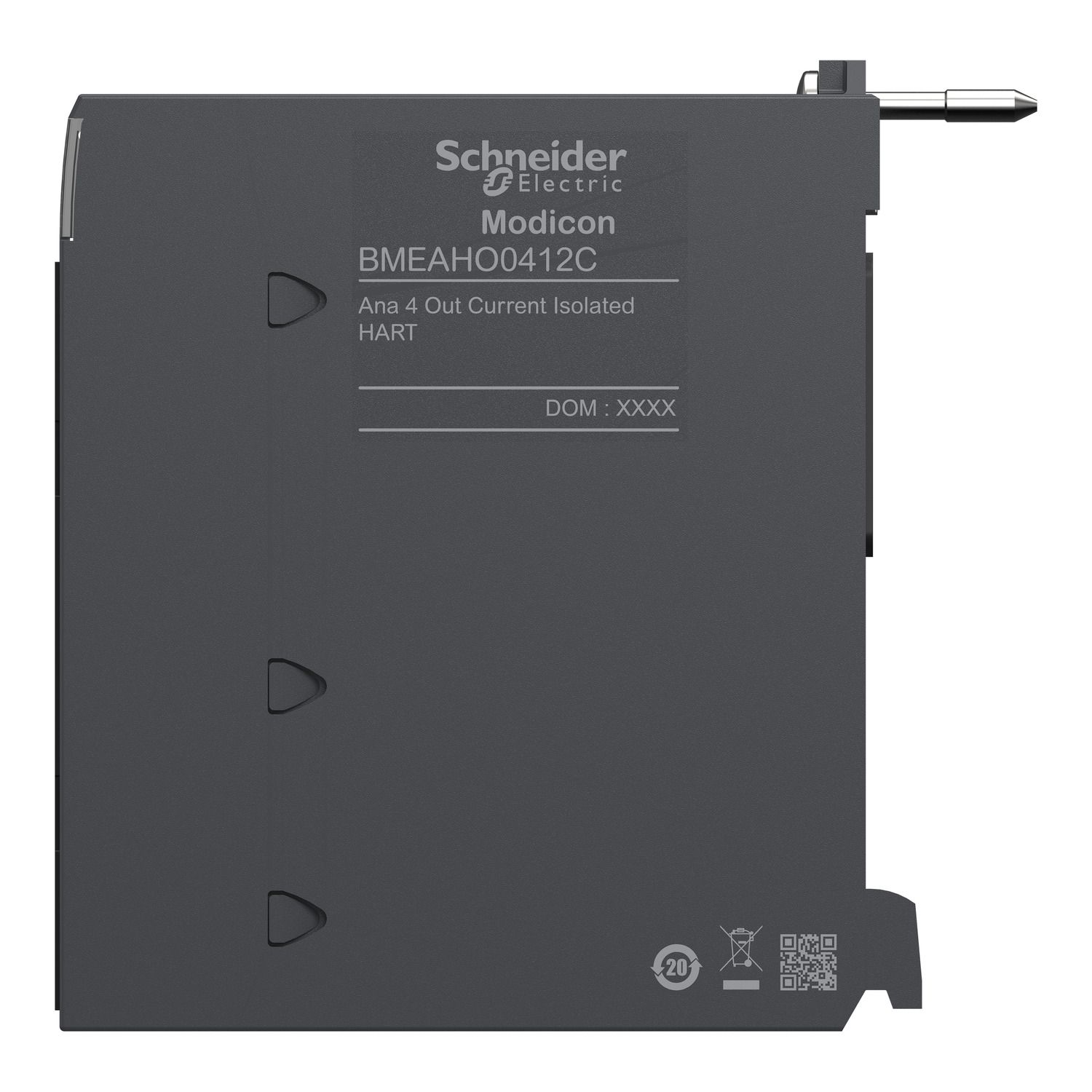

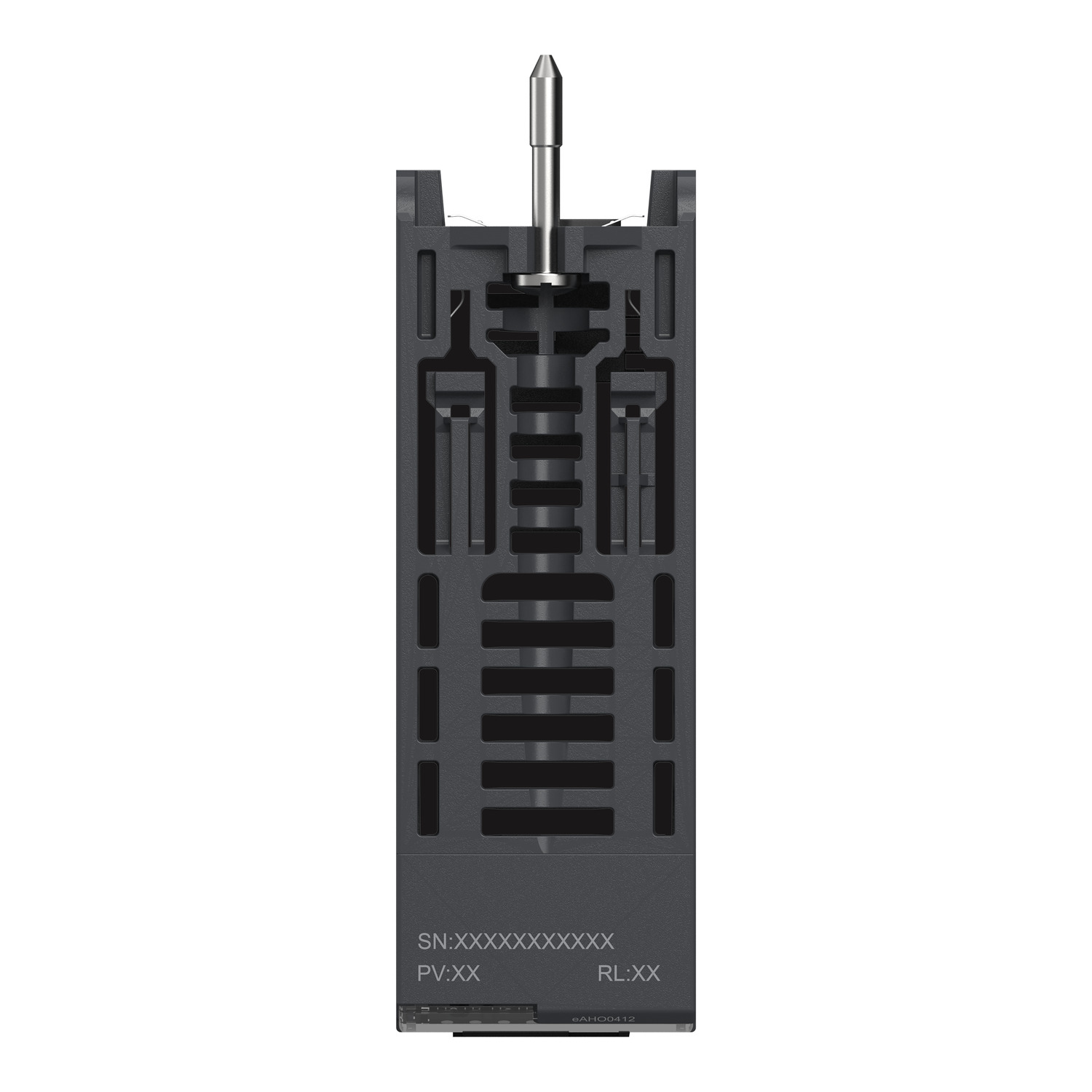

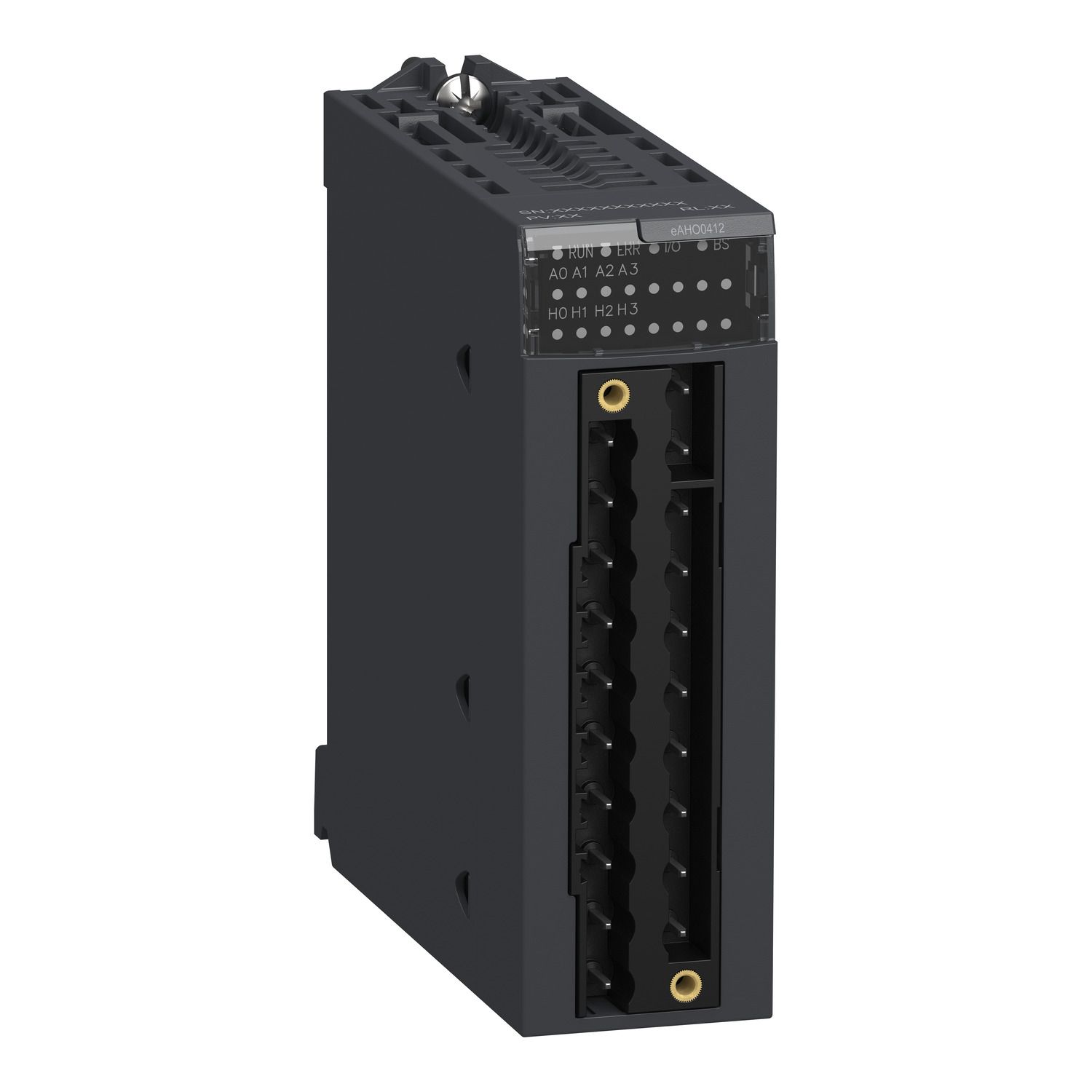

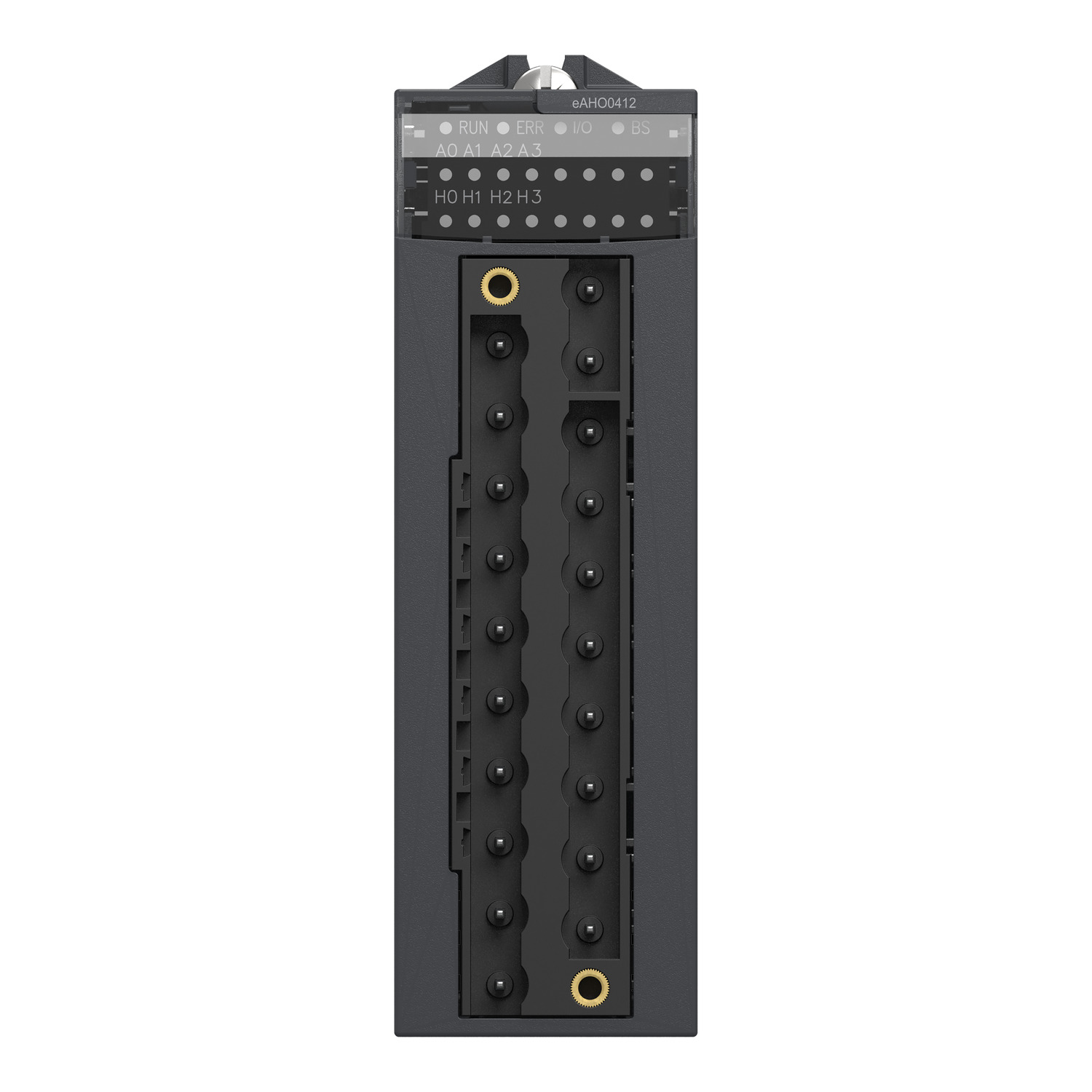

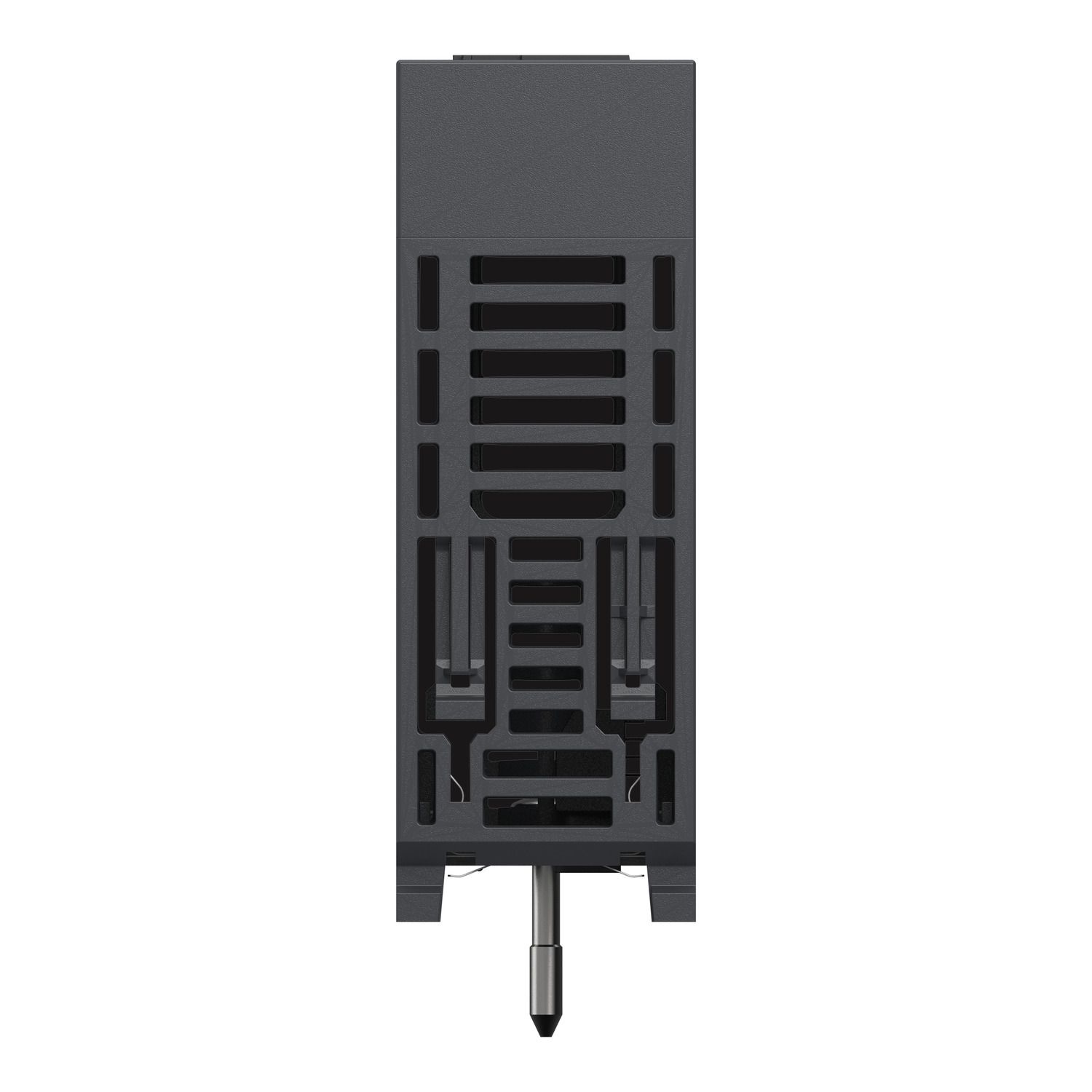

This HART analog isolated output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 4 output channels. Thanks to a protective coating on its circuit board, this product can be used in harsh environments with a temperature range from -25°C to +60°C/-13°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 848454 hours of MTBF. This analog module has a weight of 0.223kg and dimensions of 32x100x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product or component type | analog output module |
| Range of product | Modicon X80 |
| Complementary | |
| Checks | broken wire detection |
| Product compatibility | BMXFTB20... terminal block, head module BMECRA31210, ABE7CPA21, BMEXBP... backplane, BMEP58... processor |
| Analogue output resolution | 15 bits + sign |
| Application specific I/O | HART |
| Load impedance ohmic | 570 Ohm 0...21 mA, 600 Ohm 0...20 mA |
| Analogue output number | 4 |
| Function available | I/O mapping |
| Isolation voltage | 1400 V DC for 60 s between channels and bus, 1400 V DC for 60 s between channels and ground, 1000 V DC for 60 s between channels |
| Input output isolation | isolated |
| Topology | point-to-point |
| Electrical connection | Telefast, 20 ways terminal block |
| Net weight | 0.223 kg |
| Analogue output type | current: 4...20 mA |
| Temperature drift | 45 ppm/°C |
| Measurement error | 0.45 % of full scale - 25...60 °C, 0.1 % of full scale 25 °C |
| Environment | |
| Protective treatment | conformal coating |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/34/EU - ATEX directive, 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Environmental characteristic | hazardous location class I division 2, fungal spore resistant class 3B2 conforming to IEC 60721-3-3, mold growth resistant class 3B2 conforming to IEC 60721-3-3, salt resistant level 2 conforming to IEC 68252, sand resistant class 3S4 conforming to IEC 60721-3-3, dust resistant class 3S4 conforming to IEC 60721-3-3, gas resistant class 3C4 conforming to IEC 60721-3-3, gas resistant class Gx conforming to ISA S71.04 |
| Product certifications | IECEx zone 2/22, ATEX zone 2/22, Merchant Navy, EAC, RCM, CSA, UL, CE |
| Standards | EN/IEC 60079-0, EN/IEC 61850-3, location G, EN/IEC 61000-6-5, interface type 1 and type 2, IACS E10, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2 |
| Ambient air temperature for operation | -25-60 °C |
