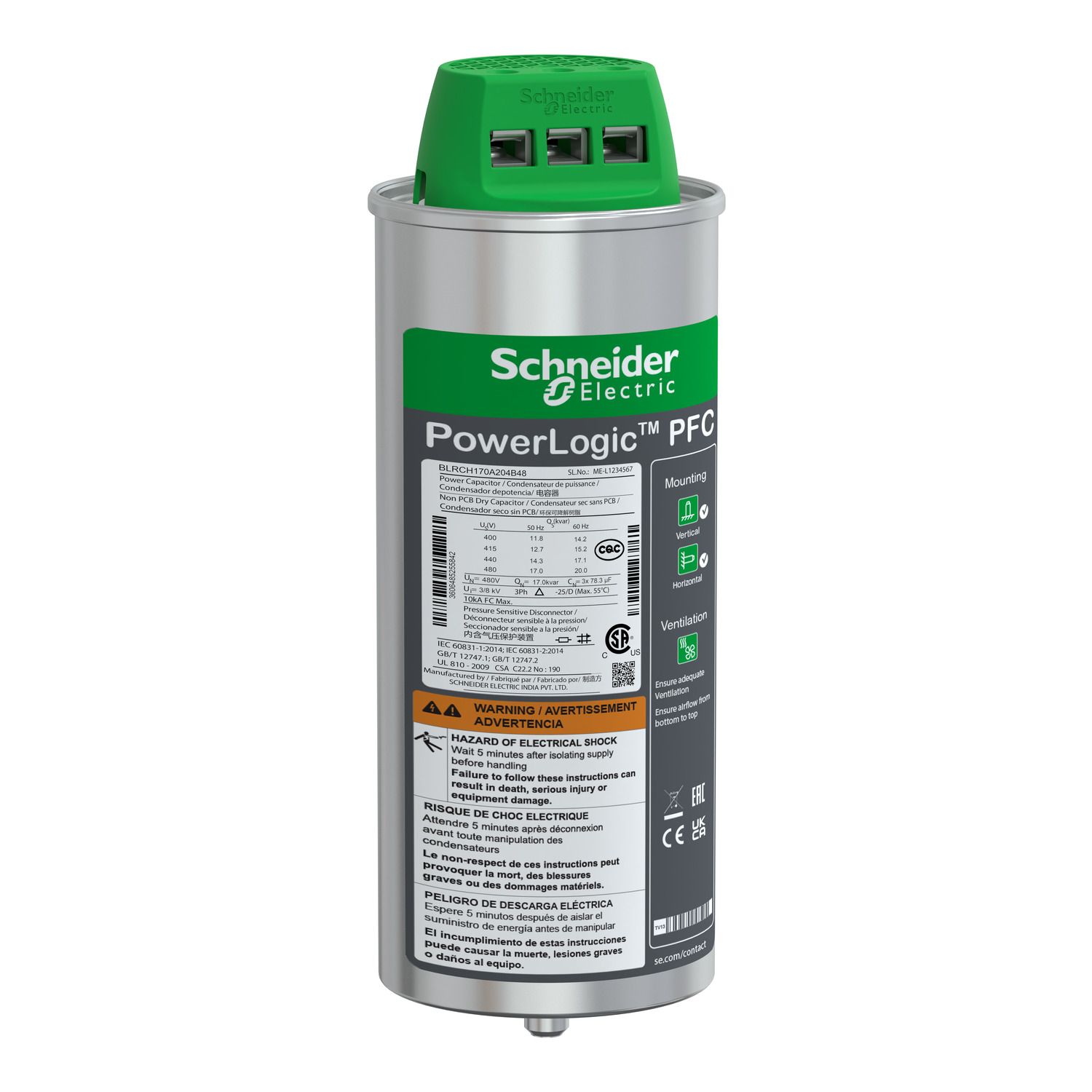

VarPlus Can capacitor are a reliable and flexible solution for power factor correction in stringent operating conditions. These capacitors are particularly used for higher voltage disturbances or when a few non-linear loads are present. The rated current of the capacitors must be in increased in order to cope with the circulation of the harmonic current. This capacitor provides a rated output power of 17 kVar at 480V AC, 50 Hz. Fastening assured by a ClampTite terminal. This component meet the standards IEC 60831-1 and IEC 60831-2. The case product weight is 1.6 kg.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Rated voltage | 480-480 V AC 50/60 Hz |
| [Imp] maximum permanent current | 1.8 x In |
| Maximum permissible voltage | 1.1 x Un (8 hours over 24 hours) |
| Network harmonic content | <= 20 % |
| Series name | HDuty |
| Range | PowerLogic |
| Product name | PowerLogic PFC Capacitor |
| Product or component type | heavy duty capacitor |
| Range of product | PowerLogic |
| Reactive power rating | 20.4 kvar 480 V 60 Hz, 17 kvar 480 V 50 Hz |
| Network frequency | 50/60 Hz |
| Complementary | |
| Service life in hours | 130000 h |
| Mounting mode | upright/horizontal |
| Power losses | < 0.5 W/kVAr |
| Connections - terminals | ClampTite terminal |
| Type of installation | indoor installation |
| Net weight | 1.6 kg |
| Dielectric losses | < 0.2 W/kvar |
| Voltage test | >= 660 V - 6 kV AC between terminal and container for 10 s, <= 660 V - 3 kV AC between terminal and container for 10 s, 2.15 x Un AC between terminals for 10 s |
| Impregnation material | biodegradable, non-PCB dry PUR resin |
| Maximum switching operation per year | 7000 |
| Capacitance tolerance | - 5 % to 10 % |
| Dielectric material | metallized polypropylene film with Zn/Al alloy, special resistivity & profile, special edge (wave cut) |
| Inrush current | 250 x In |
| Diameter | 90 mm |
| Height | 242 mm |
| Environment | |
| Operating altitude | 2000 m |
| Relative humidity | 95-95 % |
| IP degree of protection | IP20 |
| Temperature class | D |
| Ambient air temperature for operation | -25-55 °C |
| Standards | IEC 60831-1, IEC 60831-2 |
Only registered users can write reviews
Related products

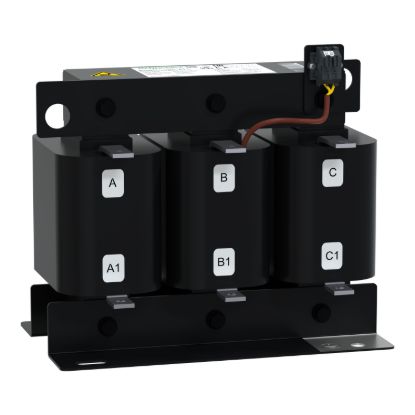

Anti Harmonic PowerLogic PFC detuned reactor, 12.5kvar 210Hz (4.2) 5.7% 50Hz 400V
