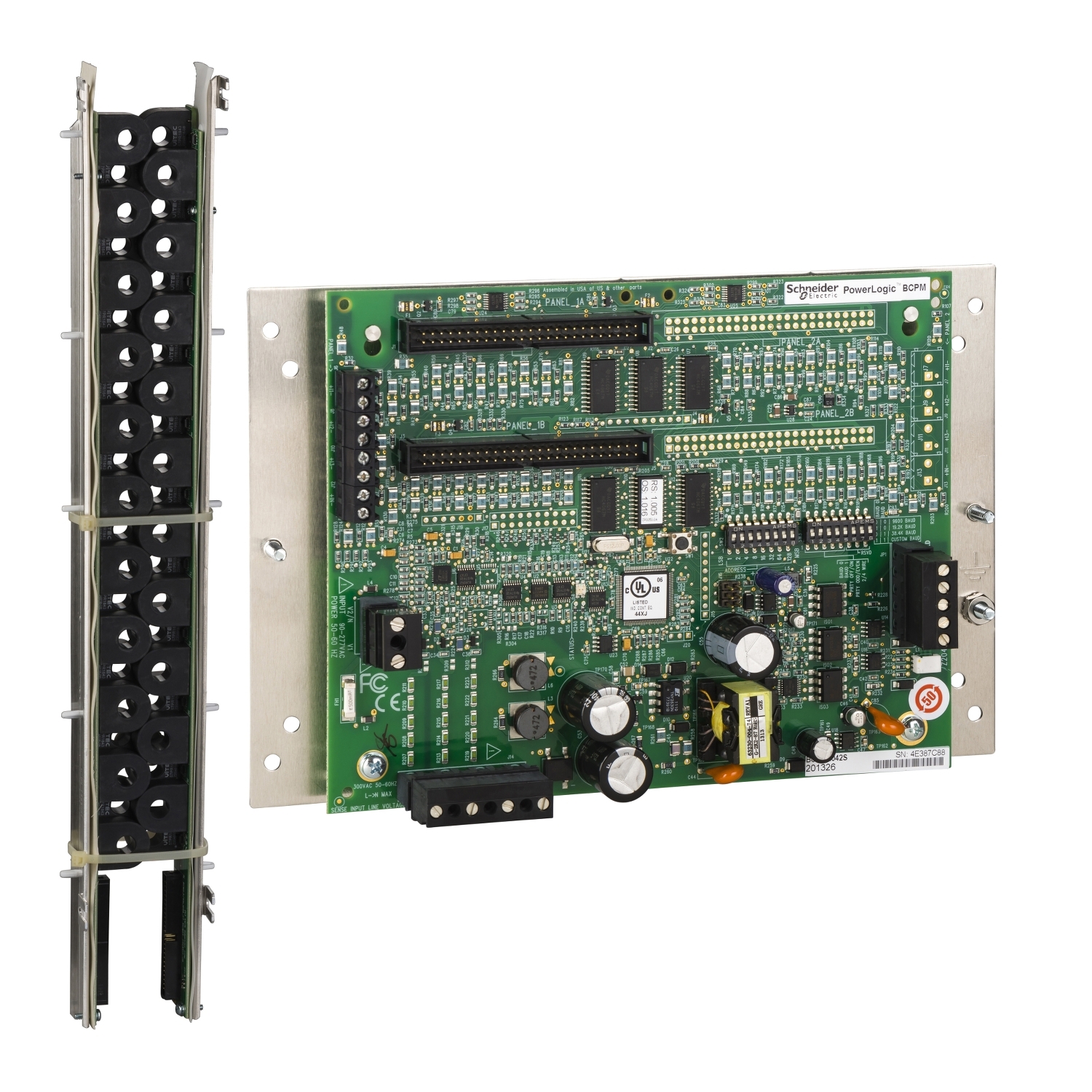

This kit include current transformer with a line rated current of 50 A and a secondary voltage rating of 0.333 V. This split-core do have a 10 mm x 11 mm opening. Accuracy class 1 when used with BCPMSC. Electrically connected to the board with the help of a 1.8m flying lead. This kit include 6 split-core current transducers.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [In] rated current | 50 A |
| Range | PowerLogic |
| Product or component type | current transformer |
| Electrical connection | cable: 1.8 m300 V |
| Range of product | PowerLogic |
| Complementary | |
| Current transformer type | split core balance |
| Quantity per set | set of 6 |
| Height | 40 mm external: , 11 mm internal: |
| Width | 23 mm external: , 10 mm internal: |
| Depth | 26 mm |
| Product destination | BCPMSC |
| Network frequency | 50/60 Hz |
| Environment | |
| Ambient air temperature for operation | 0-60 °C |
