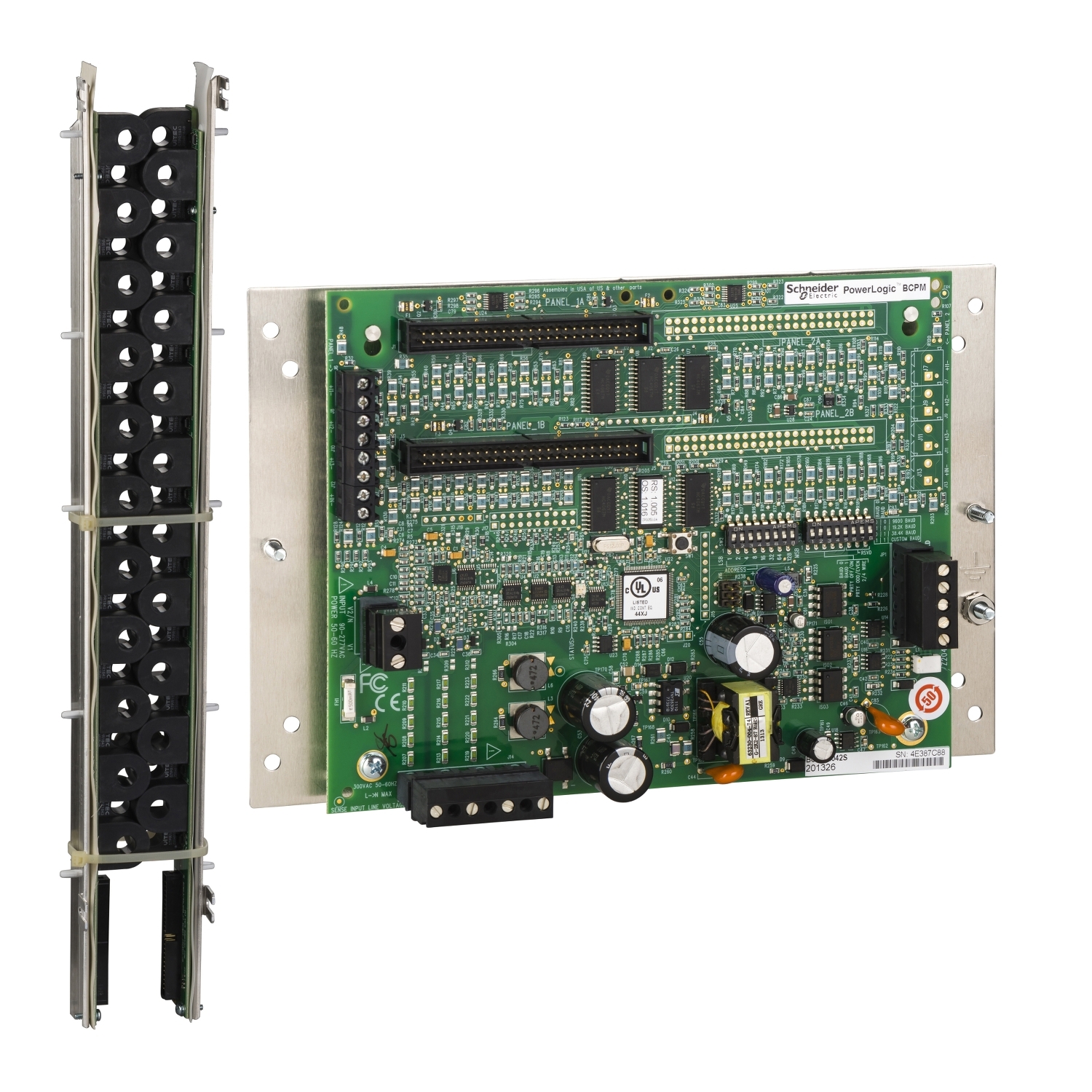

This is an integrated solution for monitoring multi-circuits and mains by using a single meter. The meter is designed for retrofit and is used for critical power operations in data centres and energy management in buildings. It offers class 1 (1 %) power and energy system accuracy (including 50A, 100A or 200A split-core current transformers) on all branch channels. The BCPM monitors only the 30 branch circuits current. All to provide information on the complete Power Distribution Unit. Adapter boards with terminals for split-core CTs can be mounted using DIN-rail, Snaptrack or on a common mounting plate with the main board Full alarming capabilities ensure that potential issues are dealt with before they become problems. Communication enabled with a RS485 serial port and the Modbus protocol support, more communication options with the gateway H8951. The meter need to be powered by a 90V AC to 277V AC supply source. Include 50A branch CTs with 2 meters leads and 1.8 meters round ribbon cables, for 30 split-core current transformers. The device dimensions are 228mm in width, 146mm in height and weight 1.5 kilograms.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | BCPMSCC |
| Device application | sub billing |
| [Us] rated supply voltage | 90...277 V AC 50/60 Hz +/- 1 % |
| Energy management | sub billing and cost allocation |
| Range | PowerLogic |
| Product name | PowerLogic BCPMSC |
| Market segment | healthcare cost management: cost allocation: panelboard, data center cost management: cost allocation: panelboard, healthcare cost management: billing: panelboard, data center cost management: billing: panelboard |
| Product or component type | multi-circuit energy meter |
| Power monitoring | basic instrumentation |
| Type of measurement | current |
| Variant | basic |
| Range of product | PowerLogic |
| Network frequency | 50 Hz, 60 Hz |
| Complementary | |
| Analogue input type | split core CT 0.333 V30 x |
| Update time | 1.8 s |
| Measurement accuracy | current 1 % 2…100 A, current 2 % 0.25…2 A |
| Provided equipment | 30 x current transformer, 2 x adapter board, 2 x cables |
| Number of inputs | 0 |
| Communication of data | high current alarm, high-high current alarm, low current alarm, low-low current alarm |
| Communication port protocol | Modbus RTU |
| Number of outputs | 0 |
| Sampling rate | 256 samples/cycle |
| Measurement voltage | 150-480 V phase to phase, 90-277 V phase to neutral |
| Communication port support | RS485 |
| Environment | |
| Operating altitude | 3000 m |
| Width | 288 mm |
| Relative humidity | 0-95 % at 0-60 °C |
| Ambient air temperature for storage | -40-70 °C |
| Mounting mode | clip-on |
| Net weight | 1.5 kg |
| Product certifications | UL |
| Mounting support | board |
| Standards | ANSI C12.1, EN 61010, IEC 61036, UL 508 |
| Height | 146 mm |
