Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| IP degree of protection | IP10 |

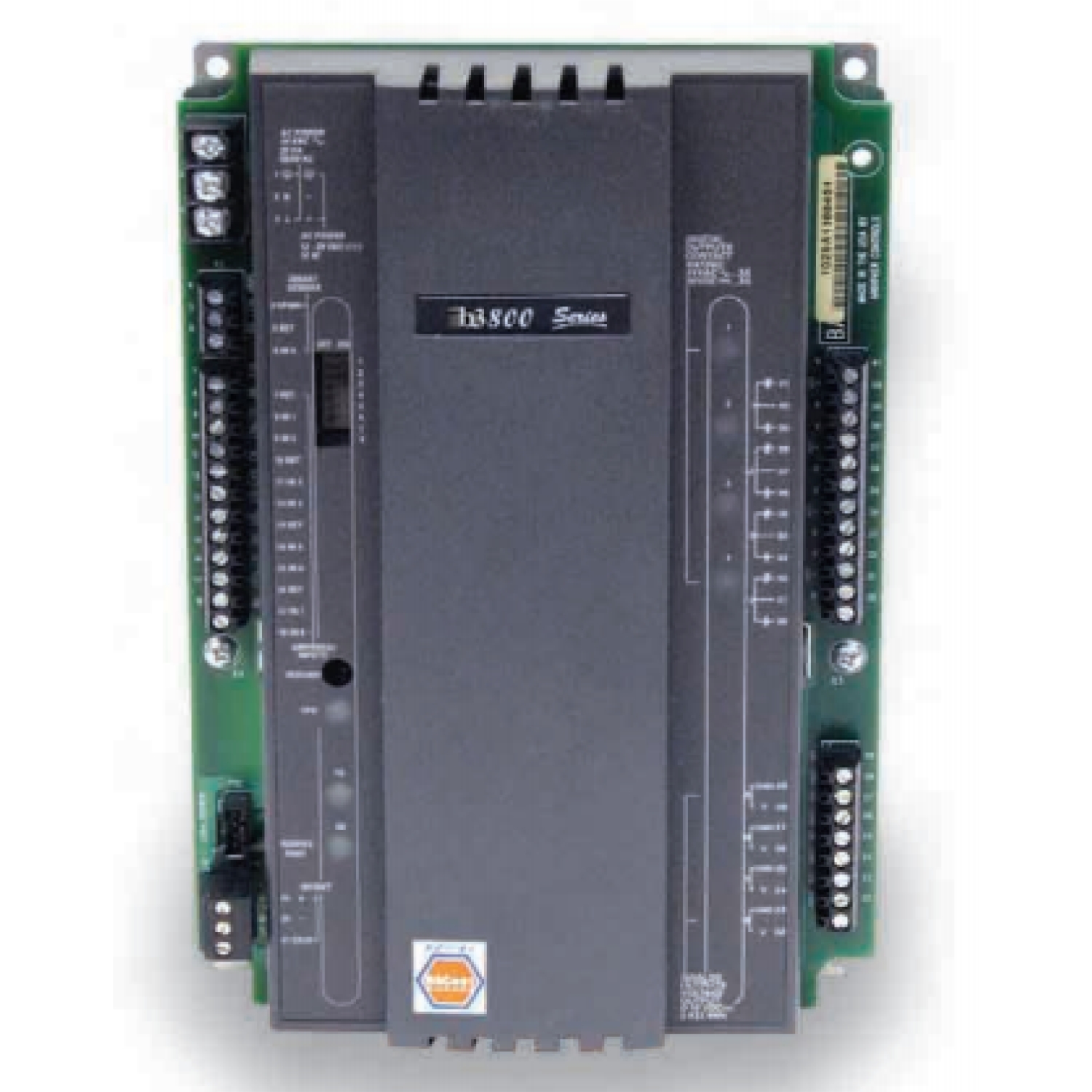

| Device short name | b3800 |
| Display type | LED |
| Product weight | 0.61 kg |
| Relative humidity | 10-95 % non-condensing |
| Function available | stand alone equipment control |
| Height | 229 mm |
| Ambient air temperature for operation | -23-60 °C |
| Range of product | BACnet |
| Communication port support | RS485 |
| [Us] rated supply voltage | 24 V AC, 12...14 V DC |
| Width | 153 mm |
| Product specific application | control of air handling unit, control of roof top unit, control of other mechanical plant equipment |
| Memory type | 1 MB flash, 128 kB SRAM |
| Depth | 54 mm |
| Number of inputs | 1 smart temperature sensor, 8 universal |
| Product or component type | local controller |
| Number of outputs | 4 analog output, 8 single pole single throw form C relays |
| Product certifications | UL/cUL 916, FCC, CE |
| Complementary | |
| Measurement resolution | 5 mV input resolution |
| Product compatibility | bCX network controller |
| Display type | LED |
| Processor name | Motorola 32-bit coldfire |
| Accuracy | +/- 15 mV DC +/- 0.56 °C from - 23...66 °C |
| Resolution | 0.1 V 0...10 V |
| Communication port protocol | BACnet RS485 MS/TP network 76.8 kbauds (127 devices), BACnet RS485 MS/TP network 38.4 kbauds (127 devices), BACnet RS485 MS/TP network 19.2 kbauds (127 devices), BACnet RS485 MS/TP network 9600 bauds (127 devices) |
| Standards | EN 55022, FCC CFR 47 part 15, AS/NZS 3548 class A, ICES-003 |
| Electrical connection | screw terminal |
| Battery type | lithium 5 years power failure backup of RAM memory |
| Realtime clock | with synchronized through MS/TP via BACnet |
| Bus length | 1220 m BACnet |
| Input impedance | 5 MOhm with pull-up resistor disabled, 10 kOhm 5.120 V |
| Local signalling | LEDs |
| Software package | Continuum CyberStation |
| Power consumption in VA | 25 VA 24 V |
| Mounting support | panel |
| Programming language | English |
| Output voltage | 0...10 V DC,5 A for analog output, 0...10 V, 24 V DC, 24 V AC |
