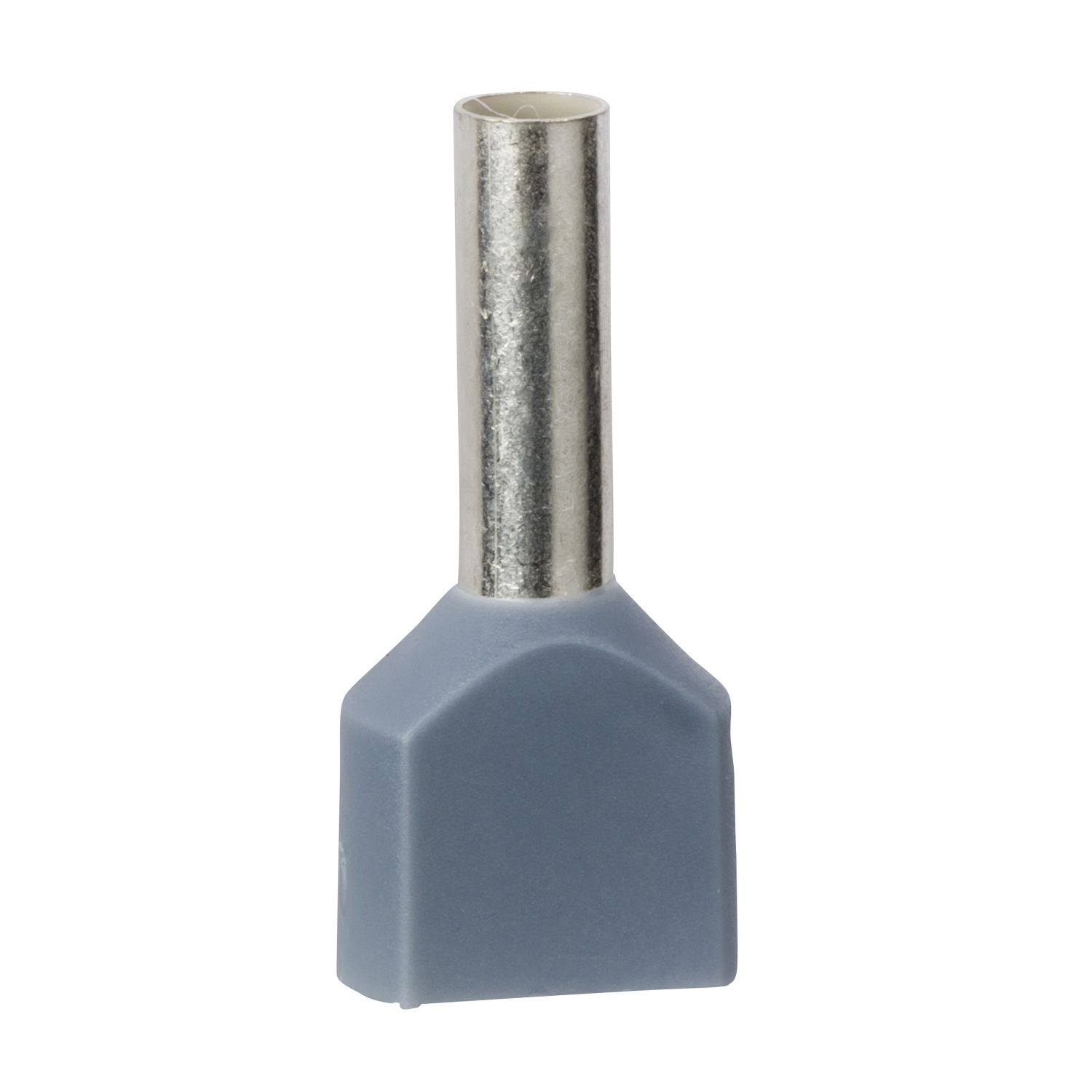

Linergy cable end twin insulated without marker tag holder. It is applied to twin conductor with 2x2.5 mm² cable cross section. It has grey surface treatment. It is medium size without marker tag holder. Packing by dispenser pack and quantity per 1 sets of 500. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is CCSAus certified. It is compliant with Green Premium (RoHS/REACH).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Quantity per set | set of 500 |
| Cable end size | medium |
| Cable cross section | 2.5-2.5 mm² |
| Type of packing | individual bag |
| Product or component type | cable end |
| Standards | NF C 63-023 |
| Range of product | Linergy |
| Complementary | |
| CAD overall depth | 18.5 mm |
| Tube diameter | 2.9 mm |
| Additional information | without marker tag holder |
| Tube material | copper conforming to ISO 1337 |
| Bezel material | halogen-free plastic |
| Colour | grey |
| AWG gauge | AWG 14 |
| Net weight | 0.09 kg |
| Length | 18.5 mm |
| Cable end type | twin conductor |
| Number of cables | 2 |
| Bezel size | Ø 4.2 x 7.8 mm |
| Tube length | 10 mm |
| Environment | |
| Ambient air temperature for operation | -20-105 °C |
| Product certifications | cCSAus |
