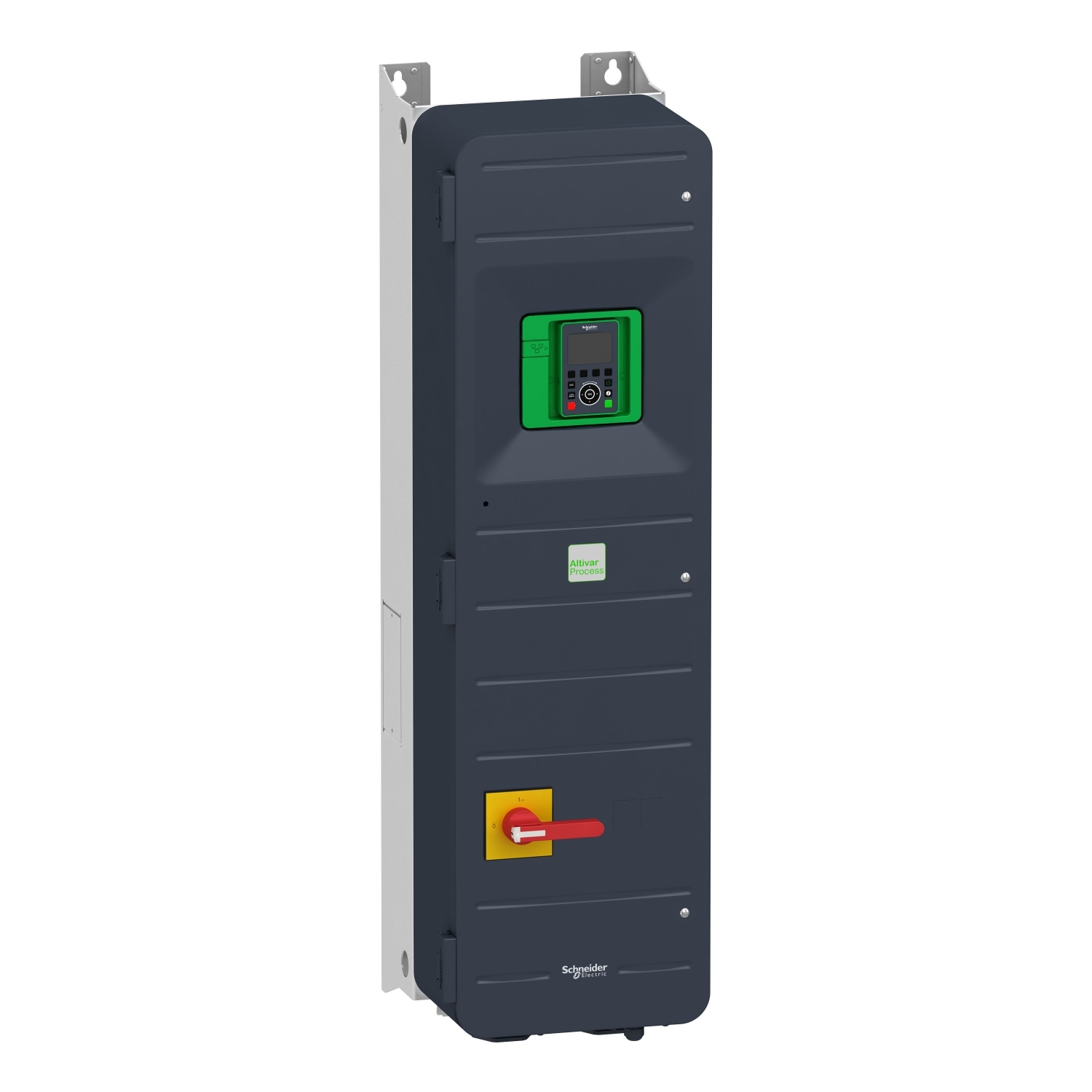

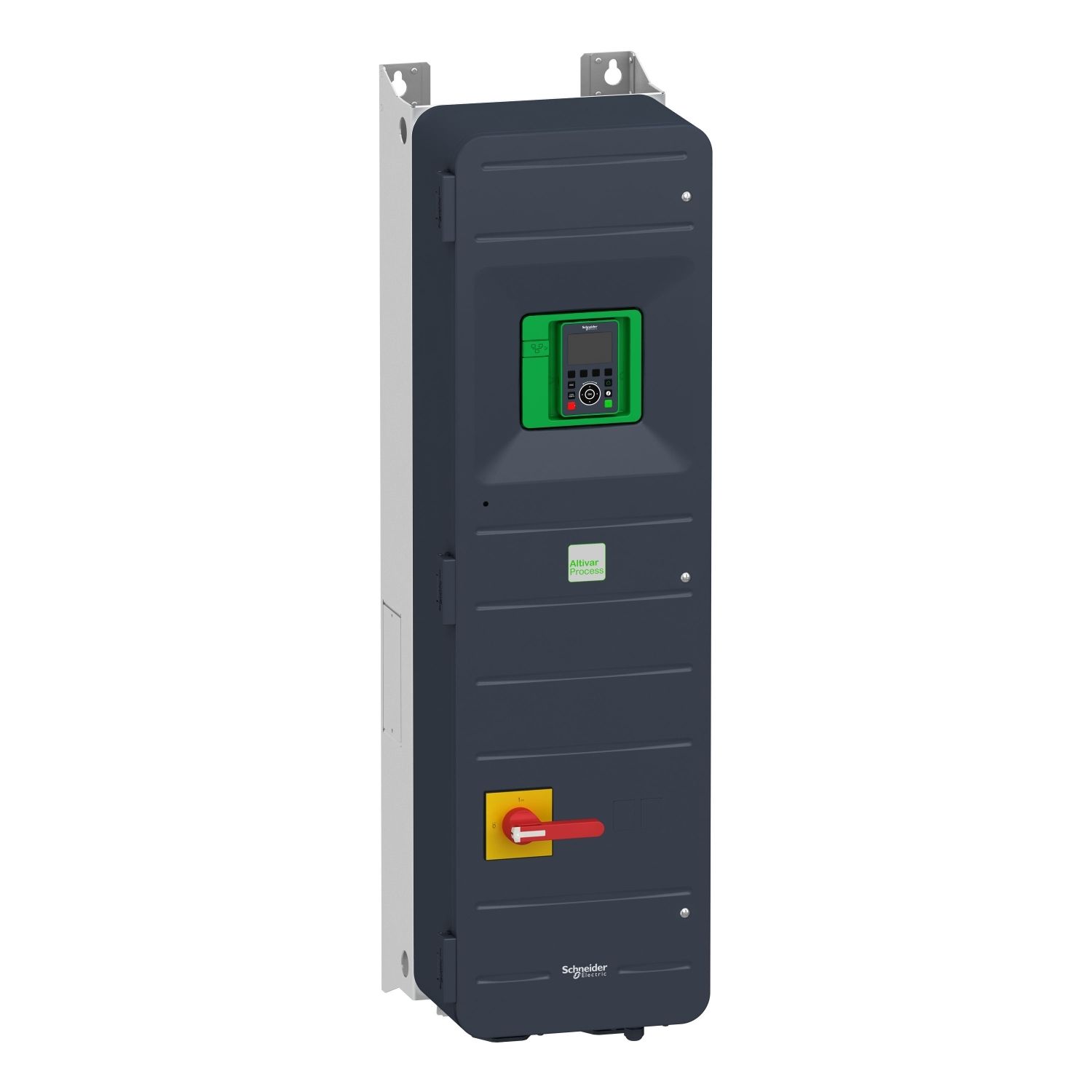

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product destination | synchronous motors, asynchronous motors |
| Product or component type | variable speed drive |
| Relative symmetric mains voltage tolerance | 10 % |
| Number of input phases | 3 |
| Range of product | Altivar Process ATV900 |
| Motor power kW | 75.0 kW for normal duty, 55.0 kW for heavy duty |
| Mounting mode | wall mount |
| EMC filter | integrated, with EMC plate option |
| Network number of phases | 3 phases |
| Variant | with load break switch, with braking chopper |
| Relative symmetric network frequency tolerance | 5 % |
| IP degree of protection | IP55 |
| Communication port protocol | Modbus TCP, EtherNet/IP, Modbus serial |
| Nominal output current | 145.0 A |
| Product specific application | process for industrial |
| Design of frequency changer | U converter |
| Number of output phases | 3 |
| Degree of protection | UL type 1 |
| [Us] rated supply voltage | 380...480 V, 380...480 V - 15...10 % |
| Continuous output current | 145 A at 2.5 kHz for normal duty, 106 A at 2.5 kHz for heavy duty |
| Device application | industrial application |
| Complementary | |
| Network frequency | 50...60 Hz |
| Number of HW interfaces PROFINET | 0 |
| Number of HW interfaces industrial Ethernet | 2 |
| Maximum switching current | relay output R1 on resistive load, cos phi = 1 : 3 A at 250 V AC, relay output R1 on resistive load, cos phi = 1 : 3 A at 30 V DC, relay output R1 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC, relay output R1 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC, relay output R2, R3 on resistive load, cos phi = 1 : 5 A at 250 V AC, relay output R2, R3 on resistive load, cos phi = 1 : 5 A at 30 V DC, relay output R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC, relay output R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC |
| 4 quadrant operation possible | True |
| Exchange mode | half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP |
| Nominal output power | 75.0 W |
| Maximum associated fuse rating | 250.0 A |
| Type of polarization | no impedance, no impedance for Modbus serial |
| Relay output type | configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles, configurable relay logic R2: sequence relay NO electrical durability 1000000 cycles, configurable relay logic R3: sequence relay NO electrical durability 1000000 cycles |
| 1 phase low current possible | False |
| Maximum transient current | 174 A during 60 s (normal duty), 159 A during 60 s (heavy duty) |
| Supporting protocol for CAN | True |
| Application in domestic and commercial area permitted | False |
| Motor slip compensation | adjustable, not available in permanent magnet motor law, automatic whatever the load, can be suppressed |
| Transmission rate | 10/100 Mbit/s for Ethernet IP/Modbus TCP, 4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial, 10, 100 Mbits, 4.8 kbps, 9600 bit/s, 19200 bit/s |
| Power loss per device current dependent | 1785.0 W |
| Number of HW interfaces parallel | 0 |
| Linearity error | AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input, AQ1, AQ2: +/- 0.2 % for analog output |
| Number of addresses | 1-247 for Modbus serial, 1-247 |
| Width | 345 mm |
| Supporting protocol for KNX | False |
| Depth | 436 mm |
| Computer port | True |
| Supporting protocol for other bus systems | False |
| Electrical connection | control: screw terminal 0.5...1.5 mm², line side: screw terminal 95 mm², motor: screw terminal 95...120 mm², DC bus: screw terminal 70...120 mm² |
| Maximum output frequency | 599 Hz |
| With safety function Safe brake management (SBC/SBT) | True |
| Maximum output voltage | 480.0 V |
| Base load current at high overload | 106.0 A |
| Transmission frame | RTU |
| Supporting protocol for SERCOS | False |
| Number of HW interfaces USB | 0 |
| Supporting protocol for ASI | False |
| Base load current at low overload | 145.0 A |
| Supporting protocol for PROFINET CBA | True |
| Input compatibility | DI1...DI8: discrete input level 1 PLC conforming to IEC 61131-2, DI7, DI8: pulse input level 1 PLC conforming to IEC 65A-68, STOA, STOB: discrete input level 1 PLC conforming to IEC 61131-2 |
| Analogue output number | 2 |
| Discrete input logic | 16 preset speeds |
| Refresh time | relay output (R1, R2, R3): 5 ms (+/- 0.5 ms) |
| Supporting protocol for EtherNet/IP | True |
| Number of inputs, potential-free | 0 |
| Number of inputs, bidirectional, not potential-free | 0 |
| With safety function Safe programmable logic | False |
| Nominal switching frequency | 2.5 kHz |
| Power loss static current independent | 32.0 W |
| Discrete input type | DI1...DI8 programmable, 24 V DC (<= 30 V), impedance: 3.5 kOhm, DI7, DI8 programmable as pulse input: 0-30 kHz, 24 V DC (<= 30 V), STOA, STOB safe torque off, 24 V DC (<= 30 V), impedance: > 2.2 kOhm |
| Protection type | thermal protection: motor, safe torque off: motor, motor phase break: motor, thermal protection: drive, safe torque off: drive, overheating: drive, overcurrent between output phases and earth: drive, overload of output voltage: drive, short-circuit protection: drive, motor phase break: drive, overvoltages on the DC bus: drive, line supply overvoltage: drive, line supply undervoltage: drive, line supply phase loss: drive, overspeed: drive, break on the control circuit: drive |
| Number of HW interfaces serial TTY | 0 |
| Number of HW interfaces other | 0 |
| With safety function Safely Limited Speed (SLS) | True |
| Prospective line Isc | 50 kA |
| Line current | 131.3 A at 380 V (normal duty), 98.9 A at 380 V (heavy duty), 112.7 A at 480 V (normal duty), 86.9 A at 480 V (heavy duty) |
| [Ue] rated operational voltage | 380...480 V 75.0 kW 100 hp normal duty, 380...480 V 55.0 kW 75 hp heavy duty |
| Analogue output type | software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits, software-configurable current AQ1, AQ2: 0...20 mA impedance 500 Ohm, resolution 10 bits |
| Discrete output type | logic output DQ+ 0-1 kHz <= 30 V DC 100 mA, programmable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA, logic output DQ- 0-1 kHz <= 30 V DC 100 mA |
| Asynchronous motor control profile | variable torque standard, optimized torque mode, constant torque standard |
| Supporting protocol for INTERBUS | False |
| Data format | 8 bits, configurable odd, even or no parity for Modbus serial, 8 bits, configurable odd, even or no parity |
| Apparent power | 93.7 kVA at 480 V (normal duty), 72.2 kVA at 480 V (heavy duty) |
| EMC limit value (complied) | True |
| Net weight | 89.3 kg |
| With safety function Safe Direction (SDI) | False |
| Switching frequency | 1...8 kHz adjustable, 2.5...8 kHz with derating factor |
| Analogue input number | 3 |
| Supporting protocol for MODBUS | True |
| Discrete output number | 2 |
| Supporting protocol for DeviceNet Safety | False |
| With safety function Safe Position (SP) | False |
| With safety function Safely Limited Position (SLP) | False |
| Method of access | slave Modbus TCP |
| With safety function Safe Operating Stop (SOS) | False |
| Discrete input number | 10 |
| Supporting protocol for BACnet | False |
| Supporting protocol for LON | False |
| Housing material | sheet steel |
| With sft fct Safe Stop 2 (SS2) | False |
| With safety function Safe Stop 1 (SS1) | True |
| Analogue input type | AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 30 kOhm, resolution 12 bits, AI1, AI2, AI3 software-configurable current: 0...20 mA/4...20 mA, impedance: 250 Ohm, resolution 12 bits |
| Supporting protocol for PROFIsafe | False |
| Sampling duration | 2 ms +/- 0.5 ms (DI1...DI8) - discrete input, 5 ms +/- 1 ms (DI7, DI8) - pulse input, 1 ms +/- 1 ms (AI1, AI2, AI3) - analog input, 5 ms +/- 1 ms (AQ1, AQ2) - analog output |
| Supporting protocol for Foundation Fieldbus | False |
| Supporting protocol for TCP/IP | True |
| Optical interface present | False |
| Number of HW interfaces serial RS422 | 0 |
| Height | 1250 mm |
| Acceleration and deceleration ramps | linear adjustable separately from 0.01...9999 s |
| Encoder protocol | 1 Vpp, EnDat 2.2, resolver, RS 422, SSI 24V, SSI 5V, TTL/HTL |
| Supporting protocol for AS-Interface Safety at Work | False |
| Supporting protocol for SafetyBUS P | False |
| With safety function Safe Speed Monitor (SSM) | False |
| Relay output number | 3 |
| With safety function Safe torque off (STO) | True |
| Supporting protocol for PROFIBUS | True |
| Number of HW interfaces serial RS485 | 1 |
| Accuracy | +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input, +/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output |
| Number of HW interfaces serial RS232 | 0 |
| Connector type | 2 RJ45, 1 RJ45 |
| Supporting protocol for Data-Highway | False |
| Supporting protocol for PROFINET IO | True |
| Operating element present | True |
| Physical interface | Ethernet, 2-wire RS 485 |
| Minimum switching current | relay output R1, R2, R3: 5 mA at 24 V DC |
| Supporting protocol for DeviceNet | False |
| Isolation | between power and control terminals |
| Brake chopper integrated | True |
| Quantity per set | 1 |
| Supporting protocol for SUCONET | False |
| Braking to standstill | by DC injection |
| Synchronous motor control profile | permanent magnet motor, synchronous reluctance motor |
| Environment | |
| Standards | UL 508C, IEC 61800-3, IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1 |
| Noise level | 69.9 dB conforming to 86/188/EEC, 69.9 dB |
| Regulation loop | adjustable PID regulator |
| Environmental class (during operation) | class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3 |
| Ambient air temperature for operation | -15-50 °C, -15-40 °C (without derating), 40-50 °C (with derating factor) |
| Pollution degree | 2 |
| Electromagnetic compatibility | electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 |
| Environmental class (during transport) | class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2 |
| Marking | CE |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Permitted relative humidity (during transport) | class 2K5 according to EN 60721-3 |
| Maximum acceleration under shock load (during storage) | 150 m/s² at 11 ms |
| Ambient air transport temperature | -40-70 °C |
| Product certifications | TÜV |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
| Maximum deflection under vibratory load (during transport) | 1.5 mm at 2...13 Hz |
| Permitted relative humidity (during storage) | class 1K5 according to EN 60721-3 |
| Permitted relative humidity (during operation) | class 3K5 according to EN 60721-3 |
| Operating altitude | <= 1000 m without derating, 1000...4800 m with current derating 1 % per 100 m |
| Overvoltage category | III |
| Environmental class (during storage) | class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1 |
| Maximum acceleration under vibratory load (during transport) | 10 m/s² at 13...200 Hz |
| Maximum acceleration under shock load (during transport) | 150 m/s² at 11 ms |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Maximum acceleration under vibratory load (during storage) | 10 m/s² at 13...200 Hz |
| Ambient air temperature for storage | -40-70 °C |
| Assembly style | enclosed |
| Operating position | vertical +/- 10 degree |
| Maximum THDI | <48 % from 80...100 % of load conforming to IEC 61000-3-12 |
| Maximum deflection under vibratory load (during storage) | 1.5 mm at 2...13 Hz |
| Contractual warranty | |
| Warranty | 18 |
