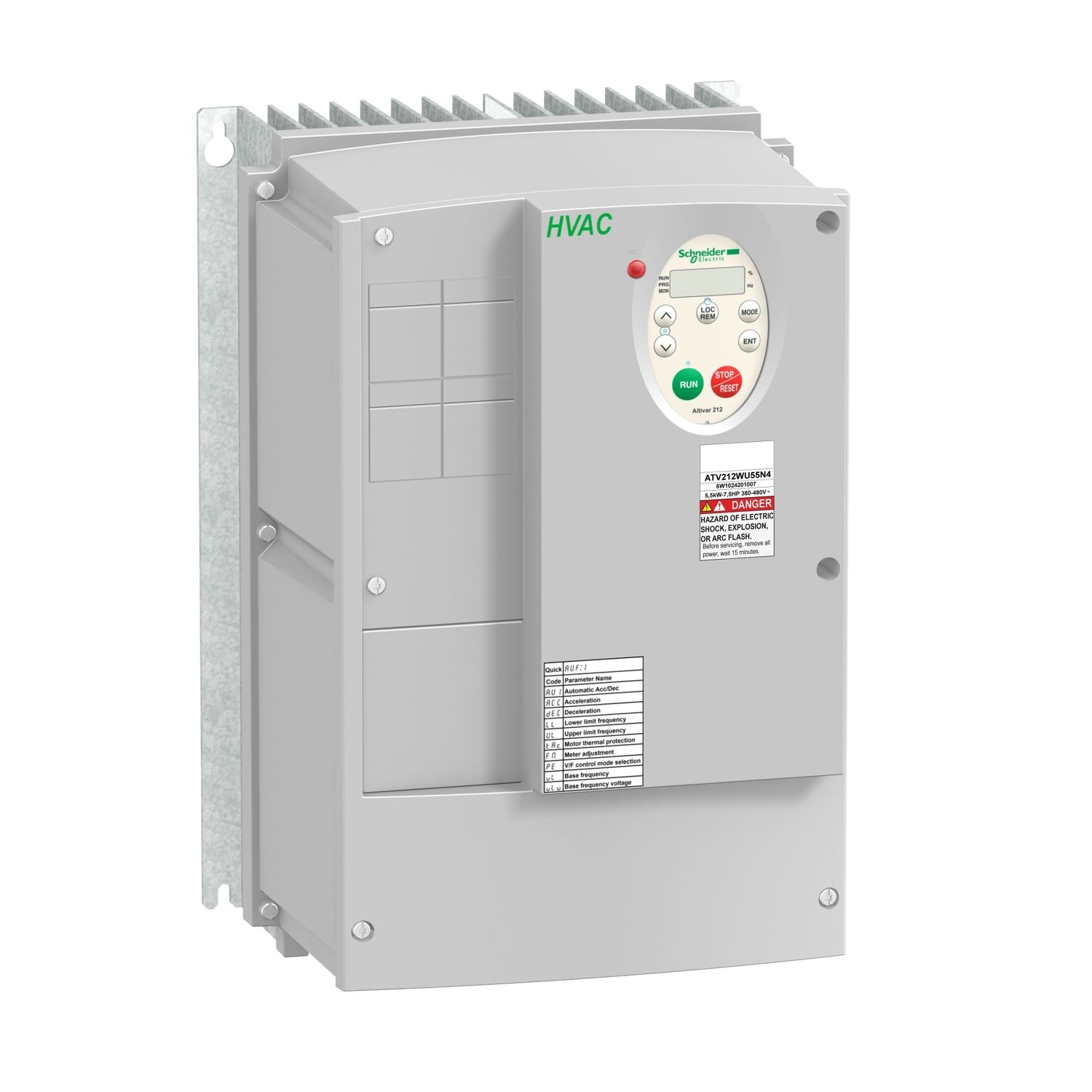

This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP55 and it has a built-in EMC filter. It works at a rated power up to 4kW / 5hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 10.55kg and its dimensions are, 230mm wide, 340mm high, 208mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet. It complies with directives such as RoHS, WEEE, etc.relating to environmental protection.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ATV212 |
| EMC filter | Class C1 EMC filter integrated |
| Supply voltage limits | 323-528 V |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| Line current | 8.2 A at 380 V, 6.5 A at 480 V |
| Motor power kW | 4 kW |
| Range of product | Altivar 212 |
| Supply frequency | 50...60 Hz - 5...5 % |
| Motor power hp | 5 hp |
| Product specific application | pumps and fans in HVAC |
| Communication port protocol | LonWorks, METASYS N2, BACnet, APOGEE FLN, Modbus |
| Network number of phases | 3 phases |
| IP degree of protection | IP55 |
| Product or component type | variable speed drive |
| Product destination | asynchronous motors |
| Complementary | |
| Speed accuracy | +/- 10 % of nominal slip 0.2 Tn to Tn |
| Supply | internal supply: 24 V DC (21-27 V), <200 A, protection type: overload and short-circuit protection, internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 A, protection type: overload and short-circuit protection |
| Protection type | with PTC probes: motor, motor phase break: motor, thermal protection: motor, against input phase loss: drive, line supply undervoltage: drive, line supply overvoltage and undervoltage: drive, against exceeding limit speed: drive, break on the control circuit: drive, overvoltages on the DC bus: drive, overcurrent between output phases and earth: drive, input phase breaks: drive, short-circuit between motor phases: drive, thermal power stage: drive, overheating protection: drive |
| Braking to standstill | by DC injection |
| Nominal switching frequency | 12 kHz |
| Output voltage | <= power supply voltage |
| Isolation | electrical between power and control |
| Discrete input type | RES programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm, R programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm, F programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm |
| Tightening torque | 0.6 N.m (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES), 1.3 N.m, 11.5 lb.in (L1/R, L2/S, L3/T) |
| Continuous output current | 9.1 A at 460 V, 9.1 A at 380 V |
| Physical interface | 2-wire RS 485 |
| Minimum switching current | 3 mA at 24 V DC for configurable relay logic |
| Analogue output number | 1 |
| Connector type | 1 open style, 1 RJ45 |
| Maximum transient current | 10 A for 60 s |
| Accuracy | +/- 1 % (FM) for a temperature variation 60 °C, +/- 0.6 % (VIB) for a temperature variation 60 °C, +/- 0.6 % (VIA) for a temperature variation 60 °C |
| Data format | 8 bits, 1 stop, odd even or no configurable parity |
| Transient overtorque | 120-120 % of nominal motor torque +/- 10 % for 60 s |
| Communication service | write single register (06), time out setting from 0.1 to 100 s, monitoring inhibitable, write multiple registers (16) 2 words maximum, read holding registers (03) 2 words maximum, read device identification (43) |
| Torque accuracy | +/- 15 % |
| Transmission frame | RTU |
| Speed drive output frequency | 0.5-200 Hz |
| Acceleration and deceleration ramps | linear adjustable separately from 0.01 to 3200 s, automatic based on the load |
| Height | 340 mm |
| Electrical connection | L1/R, L2/S, L3/T: terminal 6-6 mm² / AWG 10, VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES: terminal 2.5-2.5 mm² / AWG 14 |
| Option card | communication card for LonWorks |
| Sampling duration | 22 ms +/- 0.5 ms VIB analog, 3.5 ms +/- 0.5 ms VIA analog, 2 ms +/- 0.5 ms RES discrete, 2 ms +/- 0.5 ms R discrete, 2 ms +/- 0.5 ms F discrete |
| Analogue input type | VIA switch-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 10 bits, VIB configurable PTC probe: 0...6 probes, impedance: 1500 Ohm, VIB configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits, VIA switch-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits |
| Depth | 208 mm |
| Transmission rate | 9600 bps or 19200 bps |
| Width | 230 mm |
| Specific application | HVAC |
| Linearity error | FM: +/- 0.2 % for output, VIB: +/- 0.15 % of maximum value for input, VIA: +/- 0.15 % of maximum value for input |
| Local signalling | 1 LED (red) for DC bus energized |
| Speed range | 1/10/2024 12:00:00 AM |
| Number of addresses | 1-247 |
| Discrete output number | 2 |
| Motor slip compensation | automatic whatever the load, adjustable, not available in voltage/frequency ratio motor control |
| Analogue input number | 2 |
| Switching frequency | 12...16 kHz with derating factor, 6...16 kHz adjustable |
| Frequency resolution | analog input: 0.024/50 Hz, display unit: 0.1 Hz |
| Type of polarization | no impedance |
| Net weight | 10.55 kg |
| Apparent power | 6.9 kVA at 380 V |
| Dielectric strength | 5092 V DC between control and power terminals, 3535 V DC between earth and power terminals |
| Response time | RY, RC 7 ms, tolerance +/- 0.5 ms for discrete output(s), FLB, FLC 7 ms, tolerance +/- 0.5 ms for discrete output(s), FLA, FLC 7 ms, tolerance +/- 0.5 ms for discrete output(s), FM 2 ms, tolerance +/- 0.5 ms for analog output(s) |
| Insulation resistance | >= 1 mOhm 500 V DC for 1 minute |
| Maximum switching current | 2 A at 30 V DC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R), 2 A at 250 V AC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R), 5 A at 30 V DC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R), 5 A at 250 V AC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R) |
| Asynchronous motor control profile | flux vector control without sensor, standard, voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo), voltage/frequency ratio - Energy Saving, quadratic U/f, voltage/frequency ratio, 5 points, voltage/frequency ratio, 2 points |
| Discrete output type | configurable relay logic: (RY, RC) NO - 100000 cycles, configurable relay logic: (FLB, FLC) NC - 100000 cycles, configurable relay logic: (FLA, FLC) NO - 100000 cycles |
| Analogue output type | FM switch-configurable current 0...20 mA, impedance: 970 Ohm, resolution 10 bits, FM switch-configurable voltage 0...10 V DC, impedance: 7620 Ohm, resolution 10 bits |
| Type of cable | with UL Type 1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC, without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC, without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR |
| Discrete input logic | negative logic (sink) (F, R, RES), >= 16 V (state 0), <= 10 V (state 1), positive logic (source) (F, R, RES), <= 5 V (state 0), >= 11 V (state 1) |
| Network frequency | 47.5...63 Hz |
| Prospective line Isc | 5 kA |
| Environment | |
| Operating position | vertical +/- 10 degree |
| IP degree of protection | IP55 conforming to IEC 60529, IP55 conforming to IEC 61800-5-1 |
| Assembly style | with heat sink |
| Relative humidity | 5-95 % without dripping water conforming to IEC 60068-2-3, 5-95 % without condensation conforming to IEC 60068-2-3 |
| Ambient air temperature for storage | -25-70 °C |
| Pollution degree | 3 conforming to IEC 61800-5-1 |
| Marking | CE |
| Ambient air temperature for operation | 40-50 °C (with derating factor), -10-40 °C (without derating) |
| Electromagnetic compatibility | voltage dips and interruptions immunity test conforming to IEC 61000-4-11, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
| Operating altitude | <= 1000 m without derating, 1000...3000 m limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m |
| Regulation loop | adjustable PI regulator |
| Noise level | 55 dB conforming to 86/188/EEC |
| Vibration resistance | 1 gn (f= 13-200 Hz) conforming to EN/IEC 60068-2-8, 1.5 mm (f= 3-13 Hz) conforming to IEC 60068-2-6 |
| Environmental characteristic | classes 3S2 conforming to IEC 60721-3-3, classes 3C1 conforming to IEC 60721-3-3 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Standards | EN 55011 group 1 class B, IEC 61800-3 environments 1 category C3, IEC 61800-3, IEC 61800-3 environments 1 category C2, IEC 61800-3 category C1, IEC 61800-3 environments 2 category C1, IEC 61800-3 environments 2 category C3, IEC 61800-5-1, EN 61800-3 category C1, IEC 61800-3 environments 2 category C2, IEC 61800-3 environments 1 category C1 |
| Product certifications | CSA, NOM 117, C-Tick, UL |
