Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

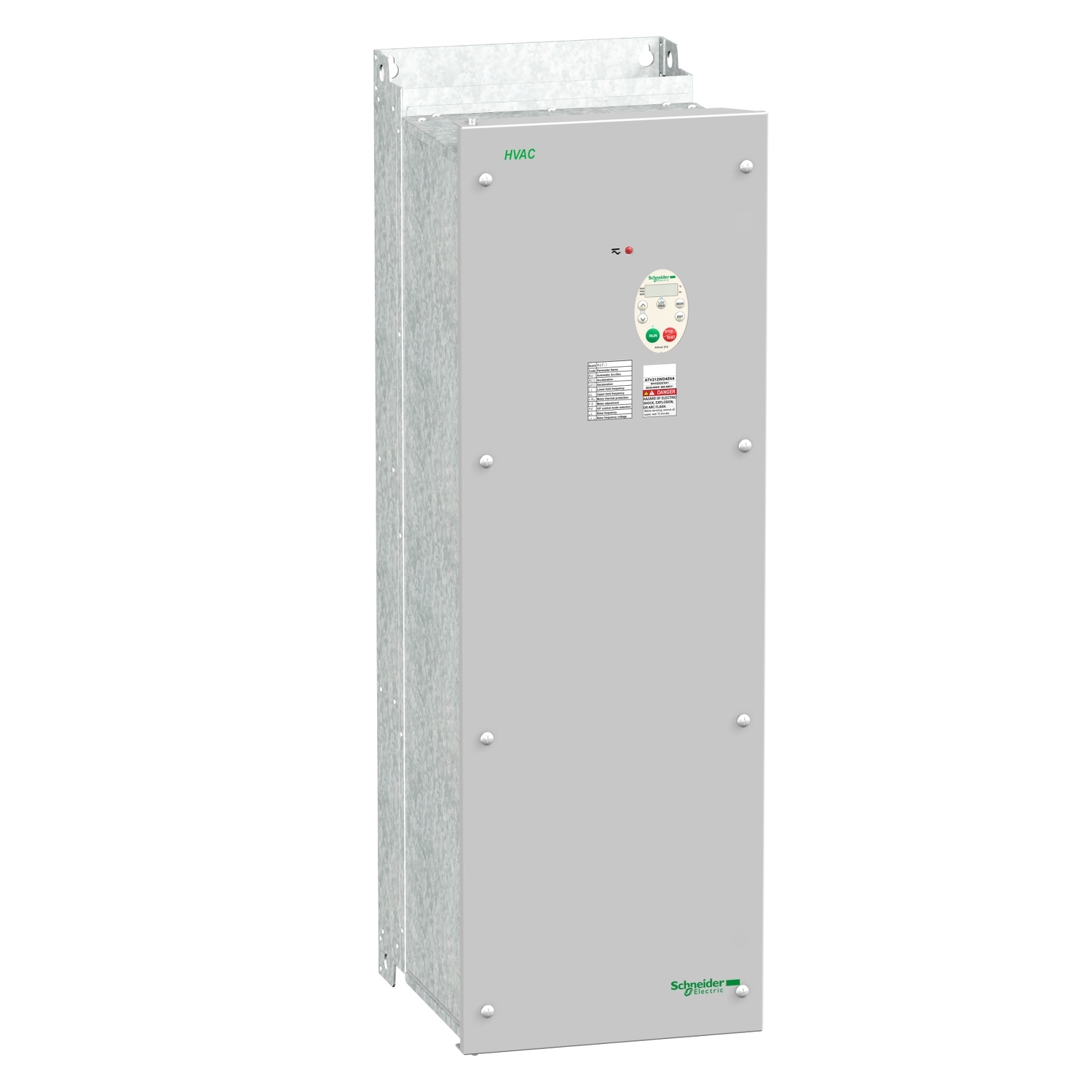

| Device short name | ATV212 |
| EMC filter | Class C1 EMC filter integrated |
| Supply voltage limits | 323-528 V |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| Line current | 54.4 A at 480 V, 68.9 A at 380 V |
| Motor power kW | 37 kW |
| Range of product | Altivar 212 |
| Supply frequency | 50...60 Hz - 5...5 % |
| Motor power hp | 50 hp |
| Product specific application | pumps and fans in HVAC |
| Communication port protocol | BACnet, APOGEE FLN, Modbus, LonWorks, METASYS N2 |
| Network number of phases | 3 phases |
| IP degree of protection | IP55 |
| Product or component type | variable speed drive |
| Product destination | asynchronous motors |
| Complementary | |
| Speed accuracy | +/- 10 % of nominal slip 0.2 Tn to Tn |
| Supply | internal supply: 24 V DC (21-27 V), <200 A, protection type: overload and short-circuit protection, internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 A, protection type: overload and short-circuit protection |
| Protection type | with PTC probes: motor, motor phase break: motor, thermal protection: motor, against input phase loss: drive, line supply undervoltage: drive, line supply overvoltage and undervoltage: drive, against exceeding limit speed: drive, break on the control circuit: drive, overvoltages on the DC bus: drive, overcurrent between output phases and earth: drive, input phase breaks: drive, short-circuit between motor phases: drive, thermal power stage: drive, overheating protection: drive |
| Braking to standstill | by DC injection |
| Nominal switching frequency | 8 kHz |
| Output voltage | <= power supply voltage |
| Isolation | electrical between power and control |
| Discrete input type | RES programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm, R programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm, F programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm |
| Tightening torque | 7 N.m, 62 lb.in (L1/R, L2/S, L3/T), 24 N.m, 212 lb.in (U/T1, V/T2, W/T3), 0.6 N.m (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES) |
| Continuous output current | 79 A at 460 V, 79 A at 380 V |
| Physical interface | 2-wire RS 485 |
| Minimum switching current | 3 mA at 24 V DC for configurable relay logic |
| Analogue output number | 1 |
| Connector type | 1 RJ45, 1 open style |
| Maximum transient current | 86.9 A for 60 s |
| Accuracy | +/- 1 % (FM) for a temperature variation 60 °C, +/- 0.6 % (VIB) for a temperature variation 60 °C, +/- 0.6 % (VIA) for a temperature variation 60 °C |
| Data format | 8 bits, 1 stop, odd even or no configurable parity |
| Transient overtorque | 120-120 % of nominal motor torque +/- 10 % for 60 s |
| Communication service | monitoring inhibitable, time out setting from 0.1 to 100 s, write single register (06), write multiple registers (16) 2 words maximum, read device identification (43), read holding registers (03) 2 words maximum |
| Torque accuracy | +/- 15 % |
| Transmission frame | RTU |
| Speed drive output frequency | 0.5-200 Hz |
| Acceleration and deceleration ramps | linear adjustable separately from 0.01 to 3200 s, automatic based on the load |
| Height | 880 mm |
| Electrical connection | U/T1, V/T2, W/T3: terminal 50-50 mm² / AWG 1/0, L1/R, L2/S, L3/T: terminal 50-50 mm² / AWG 1/0, VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES: terminal 2.5-2.5 mm² / AWG 14 |
| Option card | communication card for LonWorks |
| Sampling duration | 22 ms +/- 0.5 ms VIB analog, 3.5 ms +/- 0.5 ms VIA analog, 2 ms +/- 0.5 ms RES discrete, 2 ms +/- 0.5 ms R discrete, 2 ms +/- 0.5 ms F discrete |
| Analogue input type | VIA switch-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 10 bits, VIB configurable PTC probe: 0...6 probes, impedance: 1500 Ohm, VIB configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits, VIA switch-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits |
| Depth | 343 mm |
| Transmission rate | 9600 bps or 19200 bps |
| Width | 284 mm |
| Specific application | HVAC |
| Linearity error | FM: +/- 0.2 % for output, VIB: +/- 0.15 % of maximum value for input, VIA: +/- 0.15 % of maximum value for input |
| Local signalling | 1 LED (red) for DC bus energized |
| Speed range | 1/10/2024 12:00:00 AM |
| Number of addresses | 1-247 |
| Discrete output number | 2 |
| Motor slip compensation | not available in voltage/frequency ratio motor control, adjustable, automatic whatever the load |
| Analogue input number | 2 |
| Switching frequency | 8...16 kHz with derating factor, 6...16 kHz adjustable |
| Frequency resolution | analog input: 0.024/50 Hz, display unit: 0.1 Hz |
| Type of polarization | no impedance |
| Apparent power | 52 kVA at 380 V |
| Dielectric strength | 5092 V DC between control and power terminals, 3535 V DC between earth and power terminals |
| Response time | RY, RC 7 ms, tolerance +/- 0.5 ms for discrete output(s), FLB, FLC 7 ms, tolerance +/- 0.5 ms for discrete output(s), FLA, FLC 7 ms, tolerance +/- 0.5 ms for discrete output(s), FM 2 ms, tolerance +/- 0.5 ms for analog output(s) |
| Insulation resistance | >= 1 mOhm 500 V DC for 1 minute |
| Maximum switching current | 2 A at 30 V DC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R), 2 A at 250 V AC on inductive load - cos phi = 0.4 - L/R = 7 ms (FL, R), 5 A at 30 V DC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R), 5 A at 250 V AC on resistive load - cos phi = 1 - L/R = 0 ms (FL, R) |
| Asynchronous motor control profile | voltage/frequency ratio, 2 points, voltage/frequency ratio, 5 points, voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo), voltage/frequency ratio - Energy Saving, quadratic U/f, flux vector control without sensor, standard |
| Discrete output type | configurable relay logic: (RY, RC) NO - 100000 cycles, configurable relay logic: (FLB, FLC) NC - 100000 cycles, configurable relay logic: (FLA, FLC) NO - 100000 cycles |
| Analogue output type | FM switch-configurable current 0...20 mA, impedance: 970 Ohm, resolution 10 bits, FM switch-configurable voltage 0...10 V DC, impedance: 7620 Ohm, resolution 10 bits |
| Type of cable | with UL Type 1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC, without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC, without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR |
| Discrete input logic | negative logic (sink) (F, R, RES), >= 16 V (state 0), <= 10 V (state 1), positive logic (source) (F, R, RES), <= 5 V (state 0), >= 11 V (state 1) |
| Network frequency | 47.5...63 Hz |
| Prospective line Isc | 22 kA |
| Environment | |
| Operating position | vertical +/- 10 degree |
| IP degree of protection | IP55 conforming to IEC 60529, IP55 conforming to IEC 61800-5-1 |
| Assembly style | with heat sink |
| Relative humidity | 5-95 % without dripping water conforming to IEC 60068-2-3, 5-95 % without condensation conforming to IEC 60068-2-3 |
| Ambient air temperature for storage | -25-70 °C |
| Pollution degree | 3 conforming to IEC 61800-5-1 |
| Marking | CE |
| Ambient air temperature for operation | 40-50 °C (with derating factor), -10-40 °C (without derating) |
| Electromagnetic compatibility | voltage dips and interruptions immunity test conforming to IEC 61000-4-11, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
| Operating altitude | <= 1000 m without derating, 1000...3000 m limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m |
| Regulation loop | adjustable PI regulator |
| Noise level | 64 dB conforming to 86/188/EEC |
| Vibration resistance | 1 gn (f= 13-200 Hz) conforming to EN/IEC 60068-2-8, 1.5 mm (f= 3-13 Hz) conforming to IEC 60068-2-6 |
| Environmental characteristic | classes 3S2 conforming to IEC 60721-3-3, classes 3C1 conforming to IEC 60721-3-3 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Standards | IEC 61800-3 environments 1 category C1, EN 61800-3 category C1, IEC 61800-3, IEC 61800-3 environments 2 category C2, IEC 61800-3 environments 1 category C2, IEC 61800-3 category C1, EN 55011 group 1 class B, IEC 61800-3 environments 2 category C3, IEC 61800-3 environments 1 category C3, IEC 61800-3 environments 2 category C1, IEC 61800-5-1 |
| Product certifications | C-Tick, NOM 117, UL, CSA |
