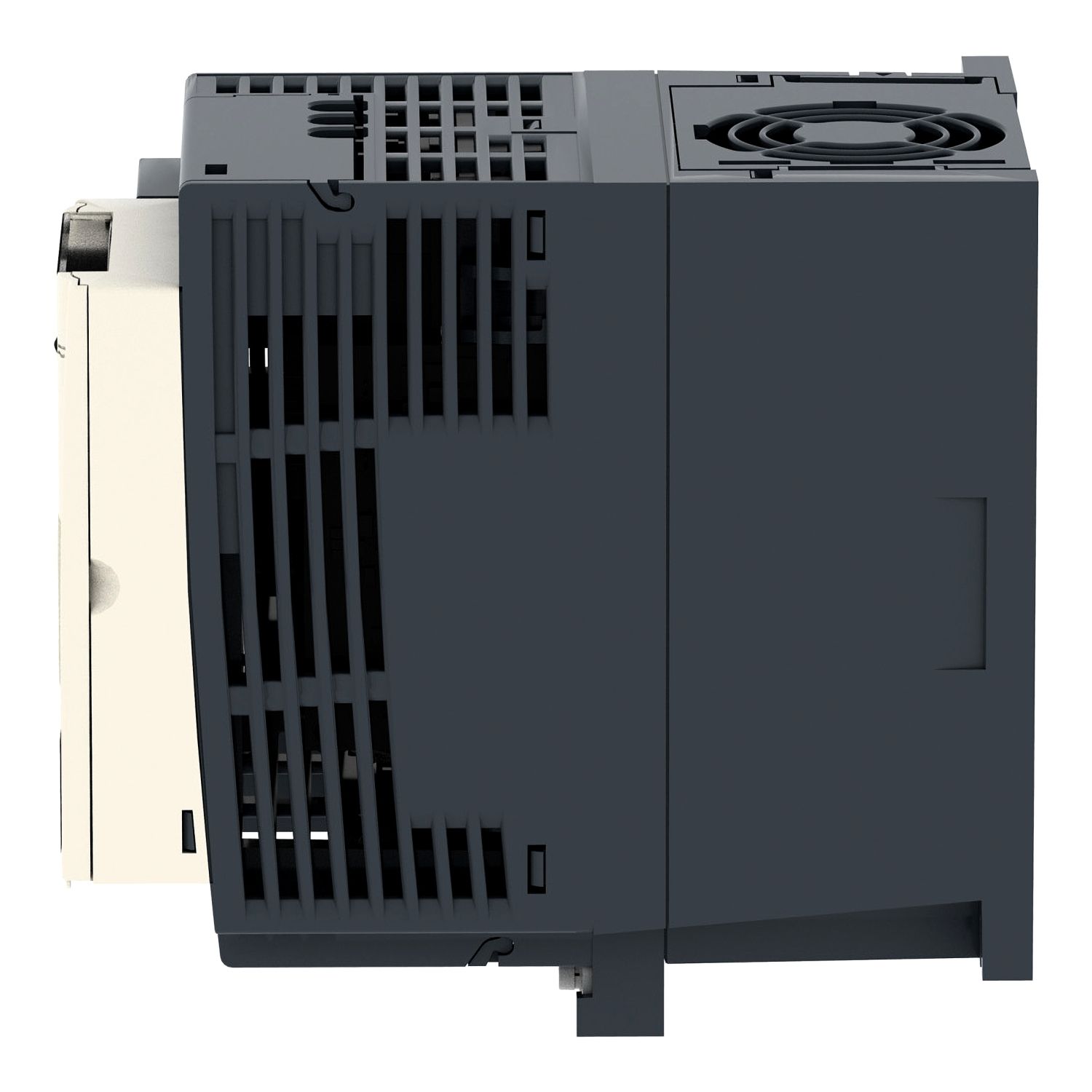

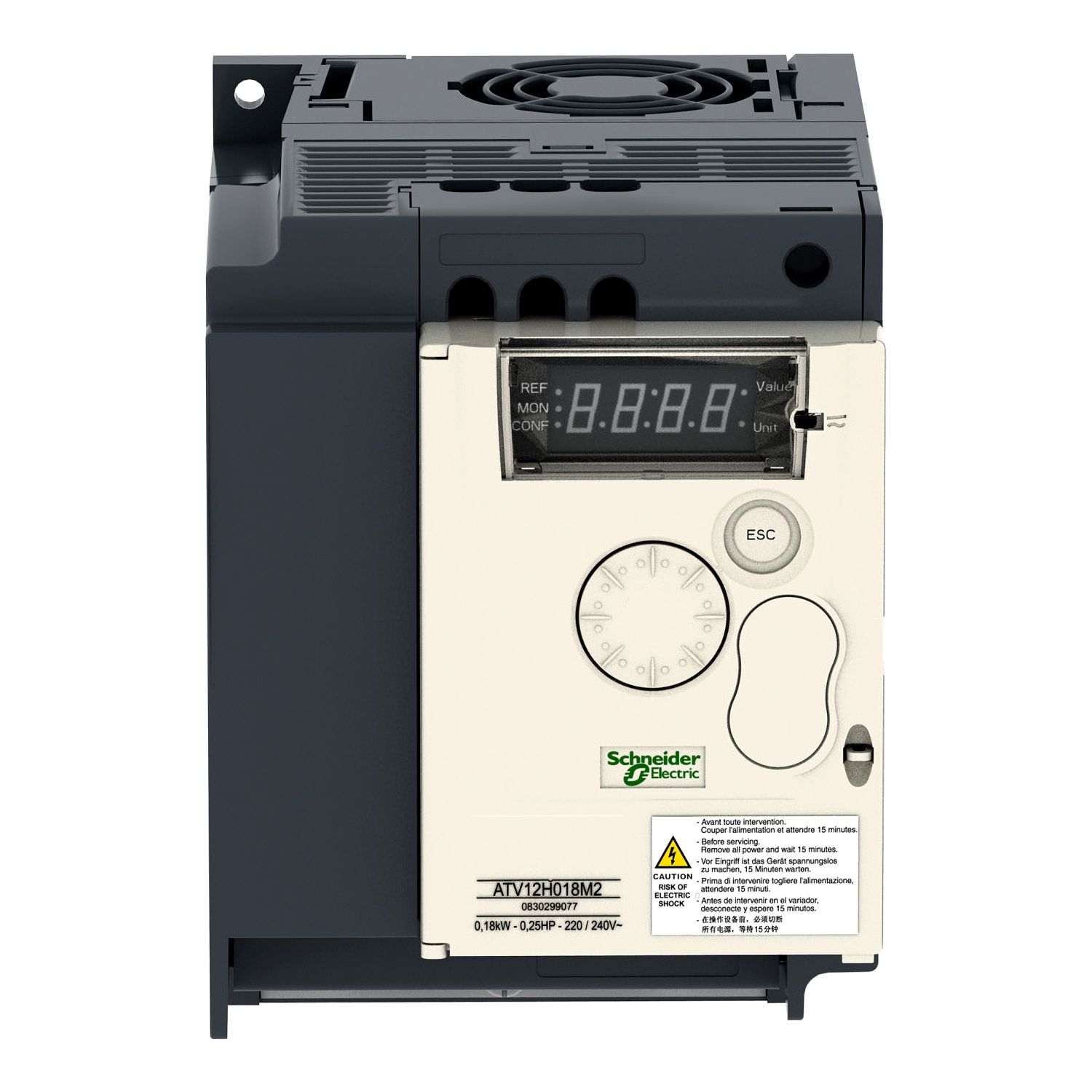

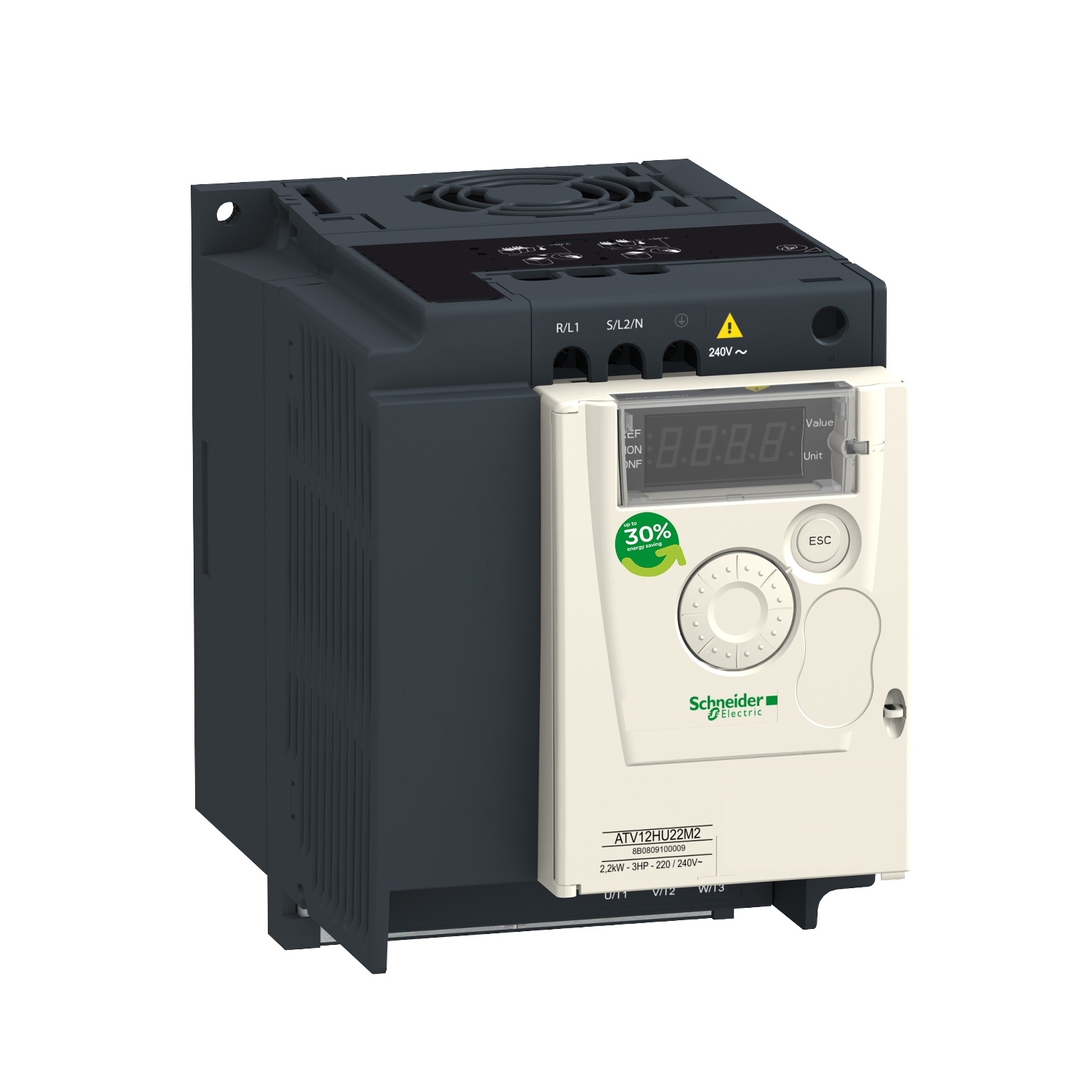

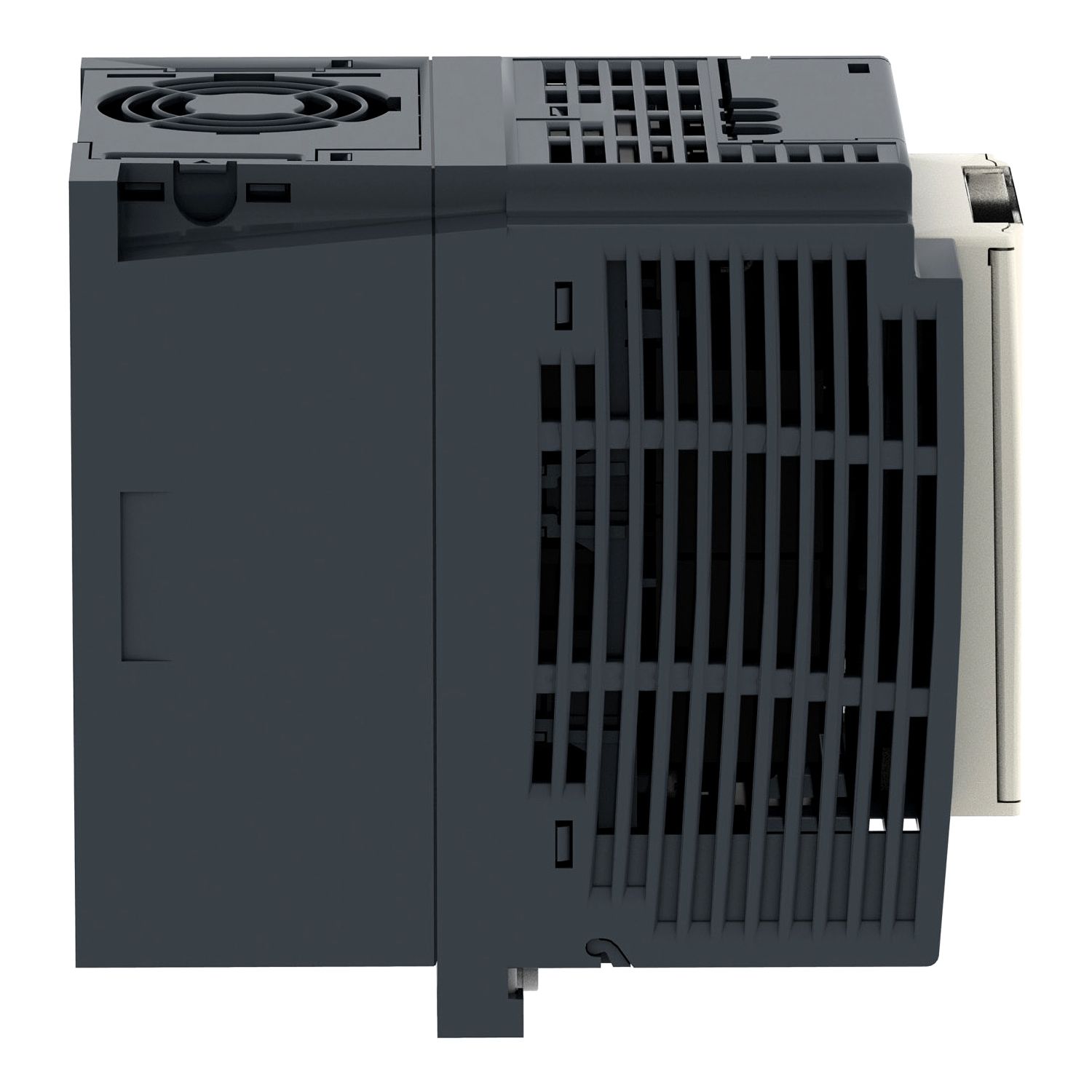

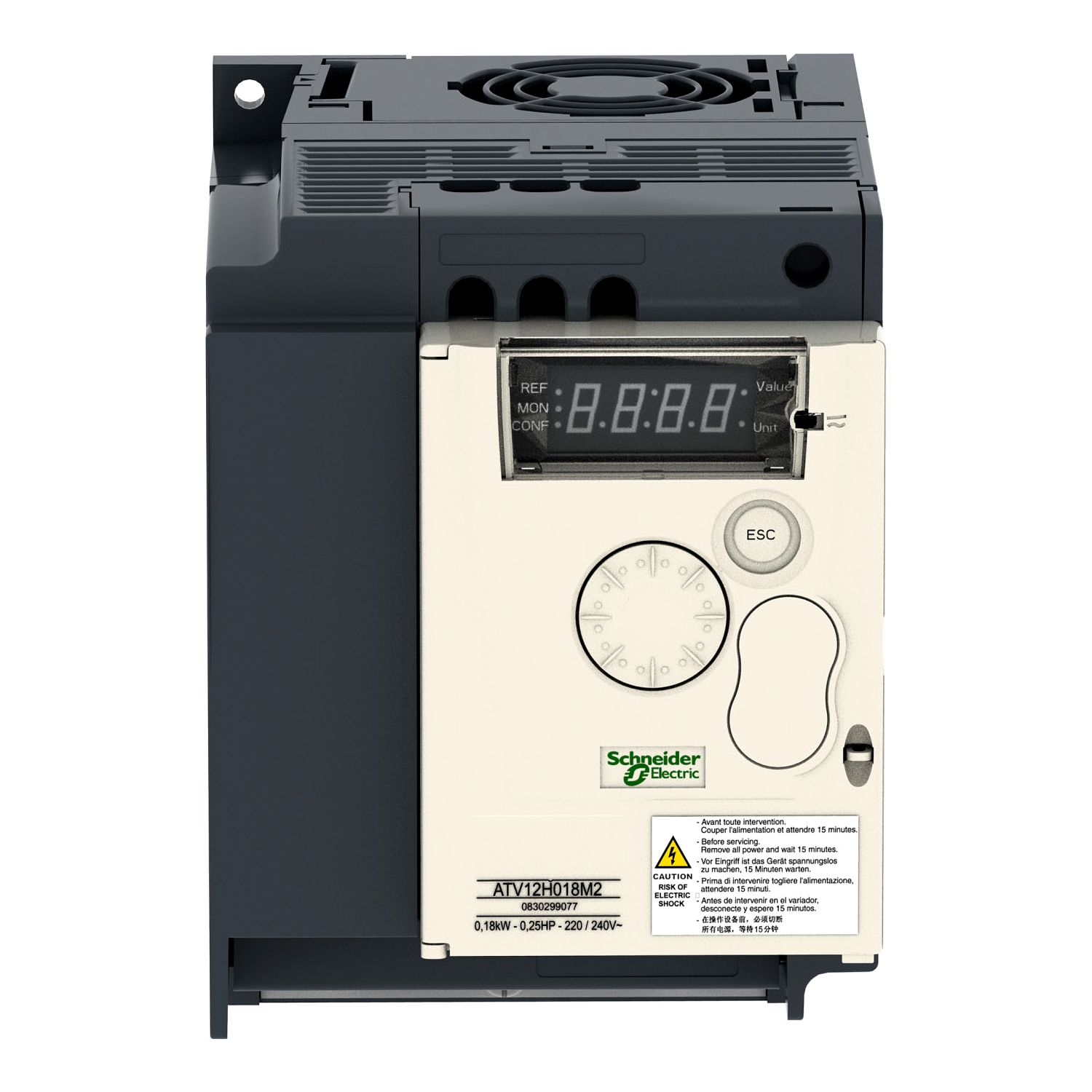

Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 1.5kW / 2hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| EMC filter | integrated |
| Mounting mode | cabinet mount |
| [Us] rated supply voltage | 200...240 V - 15...10 %, 200...240 V |
| Motor power kW | 1.5 kW |
| Range of product | Altivar 12 |
| Supply frequency | 50/60 Hz +/- 5 % |
| Number of output phases | 3 |
| Motor power hp | 2 hp |
| Number of input phases | 3 |
| Design of frequency changer | U converter |
| Product specific application | simple machine |
| Nominal output current | 7.5 A |
| Communication port protocol | Modbus |
| Relative symmetric mains voltage tolerance | 10 % |
| IP degree of protection | IP20 |
| Product or component type | variable speed drive |
| Complementary | |
| With safety function Safely Limited Speed (SLS) | False |
| Number of HW interfaces other | 0 |
| Number of HW interfaces serial TTY | 0 |
| Protection type | thermal motor protection via the drive by continuous calculation of I²t, against input phase loss in three-phase, short-circuit between motor phases, overheating protection, overcurrent between output phases and earth, line supply undervoltage, line supply overvoltage |
| Braking to standstill | by DC injection |
| Capacity of DC link | 1410.0 µF |
| Supporting protocol for SUCONET | False |
| Power loss static current independent | 11.0 W |
| Quantity per set | set of 1 |
| Nominal switching frequency | 4 kHz |
| Brake chopper integrated | False |
| With safety function Safe programmable logic | False |
| Number of inputs, bidirectional, not potential-free | 0 |
| Number of inputs, potential-free | 0 |
| Continuous output current | 7.5 A at 4 kHz |
| Tightening torque | 1.2 N.m |
| Supporting protocol for EtherNet/IP | False |
| Supporting protocol for DeviceNet | False |
| Insulation | electrical between power and control |
| Physical interface | 2-wire RS 485 |
| Analogue output number | 1 |
| Operating element present | True |
| Supporting protocol for PROFINET IO | False |
| Supporting protocol for Data-Highway | False |
| Connector type | 1 RJ45 |
| Number of HW interfaces serial RS232 | 0 |
| Number of HW interfaces serial RS485 | 1 |
| Supporting protocol for PROFINET CBA | False |
| Supporting protocol for PROFIBUS | False |
| Supporting protocol for ASI | False |
| Data format | 8 bits, configurable odd, even or no parity |
| Number of HW interfaces USB | 0 |
| With safety function Safe torque off (STO) | False |
| Transient overtorque | 150-170 % of nominal motor torque depending on drive rating and type of motor |
| Relay output number | 1 |
| Supporting protocol for SERCOS | False |
| With safety function Safe Speed Monitor (SSM) | False |
| Supporting protocol for SafetyBUS P | False |
| Supporting protocol for AS-Interface Safety at Work | False |
| Transmission frame | RTU |
| Speed drive output frequency | 0.5-400 Hz |
| Base load current at high overload | 7.5 A |
| Maximum output voltage | 240 V |
| Time constant | 20 ms +/- 1 ms for reference change |
| Acceleration and deceleration ramps | linear from 0 to 999.9 s, S, U |
| Height | 142 mm |
| With safety function Safe brake management (SBC/SBT) | False |
| Number of HW interfaces serial RS422 | 0 |
| Supporting protocol for TCP/IP | False |
| Optical interface present | False |
| Maximum output frequency | 4 kHz |
| Supporting protocol for other bus systems | False |
| Supporting protocol for Foundation Fieldbus | False |
| Sampling duration | 10 ms for analogue input, 20 ms, tolerance +/- 1 ms for logic input |
| Computer port | True |
| Application in industrial area permitted | True |
| Supporting protocol for PROFIsafe | False |
| Depth | 156.2 mm |
| Supporting protocol for KNX | False |
| Transmission rate | 38.4 kbit/s, 19.2 kbit/s, 9.6 kbit/s |
| Width | 105 mm |
| With safety function Safe Stop 1 (SS1) | False |
| With sft fct Safe Stop 2 (SS2) | False |
| Housing material | plastic |
| Supporting protocol for LON | False |
| Supporting protocol for BACnet | False |
| Linearity error | +/- 0.3 % of maximum value for analogue input |
| Number of HW interfaces parallel | 0 |
| Power loss per device current dependent | 72.0 W |
| Discrete input number | 4 |
| Speed range | 1/20/2024 12:00:00 AM |
| Number of addresses | 1-247 |
| With safety function Safe Operating Stop (SOS) | False |
| Method of access | server Modbus serial |
| With safety function Safely Limited Position (SLP) | False |
| With safety function Safe Position (SP) | False |
| Supporting protocol for DeviceNet Safety | False |
| Discrete output number | 2 |
| Supporting protocol for MODBUS | True |
| Motor slip compensation | preset in factory, adjustable |
| Analogue input number | 1 |
| Application in domestic and commercial area permitted | False |
| Supporting protocol for CAN | False |
| Communication service | read device identification (43), read/write multiple registers (23) 4/4 words, write multiple registers (16) 27 words, write single register (06) 29 words, read holding registers (03) 29 words |
| Maximum transient current | 12.4 A during 2 s (heavy duty), 11.2 A during 60 s (heavy duty) |
| Switching frequency | 4...16 kHz with derating factor, 2...16 kHz adjustable |
| 1 phase low current possible | False |
| Frequency resolution | display unit: 0.1 Hz, analog input: converter A/D, 10 bits |
| Type of polarization | no impedance |
| With safety function Safe Direction (SDI) | False |
| Net weight | 1.4 kg |
| Maximum associated fuse rating | 12.5 A |
| EMC limit value (complied) | True |
| Nominal output power | 1500.0 W |
| Apparent power | 3.6 kVA at 240 V (heavy duty) |
| Relative symmetric network frequency tolerance | 5 % |
| Supporting protocol for INTERBUS-Safety | False |
| Supporting protocol for INTERBUS | False |
| 4 quadrant operation possible | False |
| Number of HW interfaces industrial Ethernet | 0 |
| Asynchronous motor control profile | voltage/frequency ratio (V/f), quadratic voltage/frequency ratio, sensorless flux vector control |
| Number of HW interfaces PROFINET | 0 |
| Line current | 14.9 A at 120 V (heavy duty), 17.8 A at 100 V (heavy duty) |
| Power dissipation in W | forced cooling: 72.0 W |
| Network frequency | 50...60 Hz |
| Prospective line Isc | 1 kA |
| Environment | |
| Maximum deflection under vibratory load (during storage) | 1.5 mm at 2...13 Hz |
| Ambient air transport temperature | -25-70 °C |
| Maximum acceleration under shock load (during storage) | 150 m/s² at 11 ms |
| Operating position | vertical +/- 10 degree |
| Assembly style | with heat sink |
| Relative humidity | 5-95 % without dripping water conforming to IEC 60068-2-3, 5-95 % without condensation conforming to IEC 60068-2-3 |
| Ambient air temperature for storage | -25-70 °C |
| Noise level | 45 dB |
| Maximum acceleration under vibratory load (during storage) | 10 m/s² at 13...200 Hz |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Marking | CE |
| Environmental class (during transport) | class 2S1 according to IEC 60721-3-2, class 2C3 according to IEC 60721-3-2 |
| Volume of cooling air | 16 m3/h |
| Ambient air temperature for operation | 50-60 °C with current derating 2.2 % per °C, -10-50 °C without derating, -10-60 °C |
| Electromagnetic compatibility | voltage dips and interruptions immunity test conforming to EN/IEC 61000-4-11, surge immunity test level 3 conforming to EN/IEC 61000-4-5, radiated radio-frequency electromagnetic field immunity test level 3 conforming to EN/IEC 61000-4-3, immunity to conducted disturbances level 3 conforming to EN/IEC 61000-4-6, electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2, electrical fast transient/burst immunity test level 4 conforming to EN/IEC 61000-4-4 |
| Pollution degree | 2 |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Maximum acceleration under shock load (during transport) | 150 m/s² at 11 ms |
| Maximum acceleration under vibratory load (during transport) | 10 m/s² at 13...200 Hz |
| Electromagnetic emission | conducted emissions with integrated EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <10 m, conducted emissions with integrated EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 4...16 kHz shielded motor cable <5 m, conducted emissions with additional EMC filter environment 2 category C3 conforming to EN/IEC 61800-3 4...12 kHz shielded motor cable <50 m, conducted emissions with additional EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 4...12 kHz shielded motor cable <50 m, conducted emissions with additional EMC filter environment 1 category C1 conforming to EN/IEC 61800-3 4...12 kHz shielded motor cable <20 m, conducted emissions with integrated EMC filter environment 1 category C1 conforming to EN/IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m, radiated emissions environment 1 category C2 conforming to EN/IEC 61800-3 2...16 kHz shielded motor cable |
| Environmental class (during operation) | class 3S2 according to IEC 60721-3-3, class 3C3 according to IEC 60721-3-3 |
| Environmental class (during storage) | class 1S2 according to IEC 60721-3-1, class 1C3 according to IEC 60721-3-1 |
| Overvoltage category | class III |
| Operating altitude | <= 1000 m without derating, > 1000...2000 m with current derating 1 % per 100 m |
| Regulation loop | adjustable PID regulator |
| Vibration resistance | 1.5 mm peak to peak (f = 3-13 Hz) - drive unmounted on symmetrical DIN rail - conforming to EN/IEC 60068-2-6, 1 gn (f = 13-200 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance | 15 gn conforming to EN/IEC 60068-2-27 for 11 ms |
| Maximum deflection under vibratory load (during transport) | 1.5 mm at 2...13 Hz |
| Standards | EN/IEC 61800-3, EN/IEC 61800-5-1, UL 618000-5-1, UL 508C |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
| Product certifications | KC, RCM, GOST, UL, C-Tick, CSA, NOM |
| Maximum input current | 14.9 A |
