Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product destination | asynchronous motors |
| [Ue] rated operational voltage | 208...600 V AC (- 15...10 %), 208 V 125 hp normal duty, 230 V 110 kW normal duty, 230 V 150 hp normal duty, 400 V 220 kW normal duty, 440 V 220 kW normal duty, 460 V 300 hp normal duty, 500 V 250 kW normal duty, 525 V 250 kW normal duty, 575 V 350 hp normal duty |

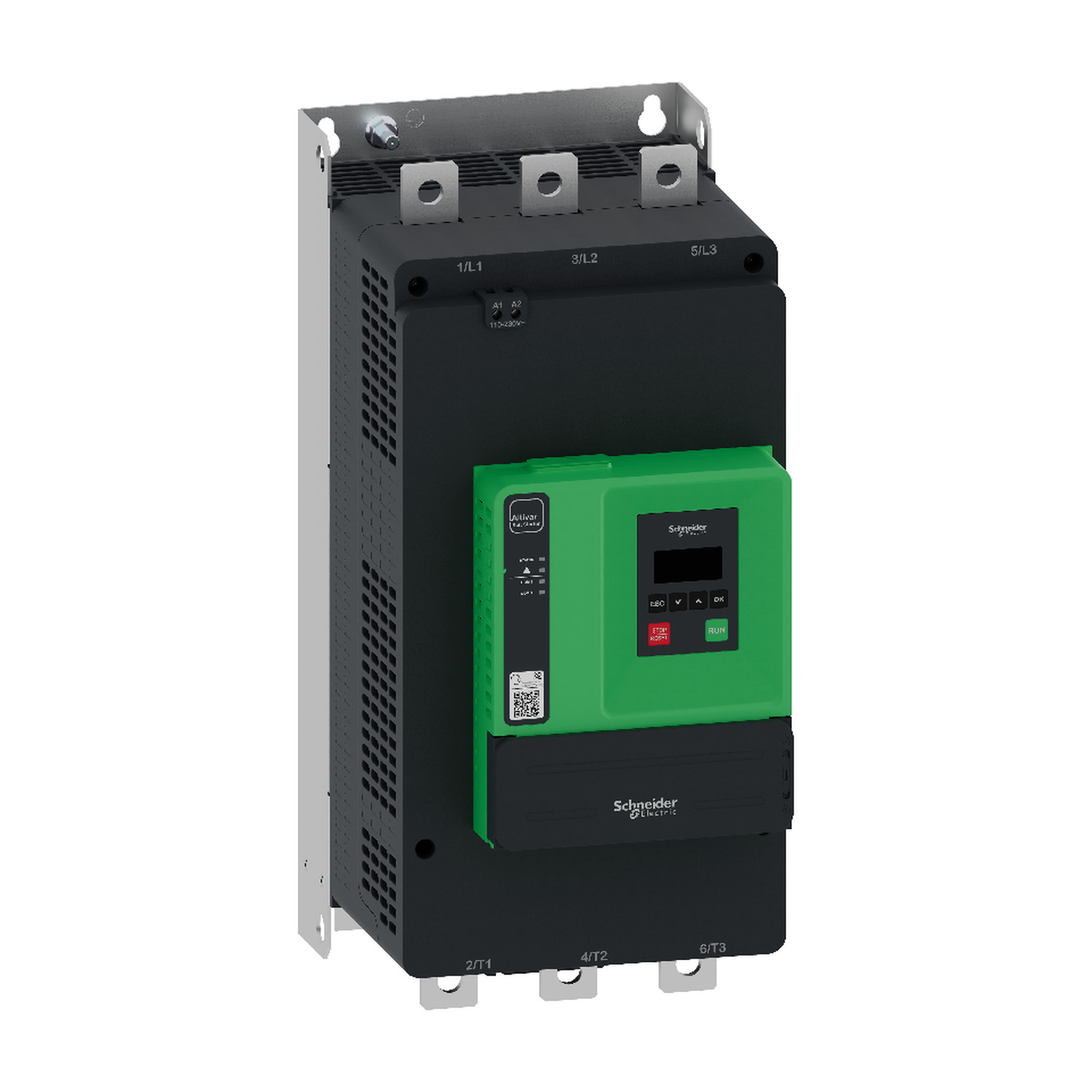

| Product or component type | soft starter |
| Network number of phases | 3 phases |
| Motor power hp | 125 hp at 208 V normal duty, 150 hp at 230 V normal duty, 300 hp at 460 V normal duty, 350 hp at 575 V normal duty |
| Supply frequency | 50...60 Hz - 20...20 % |
| Range of product | Altivar Soft Starter ATS430 |
| Motor power kW | 110 kW at 230 V in line normal duty, 220 kW at 400 V in line normal duty, 220 kW at 440 V in line normal duty, 250 kW at 500 V in line normal duty, 250 kW at 525 V in line normal duty |
| Device short name | ATS430 |
| IP degree of protection | IP00 |
| Utilisation category | AC-3A, AC-53A |
| [Ie] rated operational current | normal duty: 410 A in line (at <40 °C) |
| Communication port protocol | Modbus serial |
| Product specific application | standard industrial machines |
| Service factor | 100 |
| Complementary | |
| Device connection | in line |
| Network frequency | 50...60 Hz |
| [Uc] control circuit voltage | 24 V DC, 110...230 V AC 50...60 Hz - 15...10 % |
| Standards | EN/IEC 60947-4-2, UL 60947-4-2, IEC 60664-1 |
| Maximum switching current | relay outputs 2 A / 250 V AC for AC-15 100000 cycles following IEC 60947-5-1, relay outputs 2 A / 30 V DC for DC-13 150000 cycles following IEC 60947-5-1 |
| Relay output type | relay outputs R1A, R1C NO, relay outputs R1B, R1C NC, relay outputs R2A, R2C NO |
| Transmission frame | RTU : 1 RJ45, RTU : open style (DO, D1, PE, COM) |
| Power loss per device current dependent | 76 W |
| Number of addresses | 0-247 for Modbus serial |
| Apparent power | 70 VA |
| Width | 206 mm |
| Depth | 261.2 mm |
| Operating rate | 10 cyc/h |
| With safety function Safe brake management (SBC/SBT) | False |
| Transmission rate | 4.8…38.4 kbps for Modbus serial RJ45, 0.3...115.2 kbps for Modbus serial open style (DO, D1, PE, COM) |
| Marking | cULus, CE, UKCA, CCC, RCM, EAC, KC |
| internal bypass | true |
| Overload current | 400 % Ie for 13 s |
| Power losses | 3462 W during starting at 40 °C at 400% In |
| Input compatibility | STOP: digital input level 1 PLC conforming to EN/IEC 61131-2, RUN: digital input level 1 PLC conforming to EN/IEC 61131-2, DI3: digital input level 1 PLC conforming to EN/IEC 61131-2, DI4: digital input level 1 PLC conforming to EN/IEC 61131-2 |
| Discrete input type | (STOP) digital input, 4.4 kOhm, (RUN) digital input, 4.4 kOhm, (DI3) digital input, 4.4 kOhm, (DI4) digital input, 4.4 kOhm |
| Analogue output number | 1 |
| Rated current pwr loss specification | 410 A |
| With safety function Safe programmable logic | False |
| Display type | 1 LED (green-yellow) for status, 1 LED (red) for Warning/Error, 1 LED (yellow) for COM1, 1 LED (yellow) for COM2 |
| Power loss static current independent | 19 W |
| Protection type | phase failure: mains, thermal protection: mains, thermal protection: starter, current overload: motor, motor underload: motor, excessive acceleration time: motor, motor phase loss detection: motor, protection against line phase inversion: mains, external thermal protection: motor, short-circuit between motor phase and earth: motor |
| With safety function Safely Limited Speed (SLS) | False |
| Product certifications | cULus, CE, UKCA, CCC, RCM, EAC, KC |
| Physical interface | 2-wire RS 485 - connector(s): RJ45, 2-wire RS 485 - connector(s): open style (DO, D1, PE, COM) |
| Data format | 8 bits, odd, even or no parity, 1 or 2 bits to stop for Modbus serial RJ45, 8 bits, configurable odd, even or no parity for Modbus serial open style (DO, D1, PE, COM) |
| Display screen available | True |
| Net weight | 16.50 kg |
| With safety function Safe Direction (SDI) | False |
| Voltage ramp | true |
| Analogue input number | 1 |
| Discrete output number | 0 |
| With safety function Safe Position (SP) | False |
| With safety function Safely Limited Position (SLP) | False |
| Method of access | slave Modbus serial |
| Integrated motor overload protection | True |
| With safety function Safe Operating Stop (SOS) | False |
| Suitable for mounting onto standard rails | False |
| Discrete input number | 4 |
| Accuracy class | class 10E |
| With sft fct Safe Stop 2 (SS2) | False |
| With safety function Safe Stop 1 (SS1) | False |
| material declaration | true |
| Discrete input logic | digital input STOP at State 0: 0...< 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA, digital input RUN at State 0: 0...< 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA, digital input DI3 at State 0: 0...< 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA, digital input DI4 at State 0: 0...< 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA |
| Analogue output type | current output AQ1 : 0...20 mA/4...20 mA , impedance< 500 Ohm, voltage output AQ1 : 0...10 V , impedance> 470 Ohm |
| Analogue input type | PTC1 : PTC temperature probe, PTC2 : PTC temperature probe |
| Height | 443 mm |
| With safety function Safe Speed Monitor (SSM) | False |
| Relay output number | 2 |
| With safety function Safe torque off (STO) | False |
| Volume of cooling air | 106 m3/h |
| Communication port protocol | Modbus serial RJ45, Modbus serial open style (DO, D1, PE, COM) |
| Output current drift | 150-700 % |
| Connector type | 1 RJ45, open style |
| Function available | single direction, pre-heating, power monitoring, condition monitoring, user management, ports and services hardening, security event logging, cybersecure firmware update, small motor test |
| Minimum switching current | 100 mA at 12 V DC for relay outputs |
| NEMA degree of protection | open type |
| On-load factor | 50 % |
| Operating position | vertical +/- 10 degree |
| Type of polarization | no impedance for Modbus serial |
| Environment | |
| [Ui] rated insulation voltage | 600 V |
| Environmental class (during operation) | class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3 |
| Pollution degree | level 3 |
| Electromagnetic compatibility | conducted and radiated emissions level A conforming to IEC 60947-4-2, electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, immunity to electrical transients level 4 conforming to IEC 61000-4-4, voltage/current impulse level 3 conforming to IEC 61000-4-5, damped oscillating waves level 3 conforming to IEC 61000-4-18, immunity to conducted disturbances radio-frequency level 3 conforming to IEC 61000-4-6 |
| Ambient air temperature for operation | -25-40 °C (without derating), 40-60 °C (with current derating of 1 % per °C above 40 °C) |
| Maximum acceleration under vibrational stress (during operation) | 1 gn at 13…200 Hz |
| Maximum acceleration under shock load (during storage) | 10 gn at 11 ms |
| Ambient air transport temperature | -40-70 °C |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2...13 Hz |
| Maximum deflection under vibratory load (during transport) | 1.75 mm at 2...9 Hz |
| Operating altitude | <= 2000 m without derating, > 2000...4800 m with current derating 1 % per 100 m above 2000 m |
| Maximum acceleration under vibratory load (during transport) | 1 gn at 9…200 Hz, 1.5 gn at 200…500 Hz |
| Maximum acceleration under shock load (during transport) | 10 gn at 11 ms |
| Maximum acceleration under shock impact (during operation) | 15 gn at 11 ms |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Maximum acceleration under vibratory load (during storage) | 1 gn at 9…200 Hz, 1.5 gn at 200…500 Hz |
| Ambient air temperature for storage | -40-70 °C |
| Relative humidity | 5-95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 |
| Maximum deflection under vibratory load (during storage) | 1.75 mm at 2...9 Hz |
| Contractual warranty | |
| Warranty | 18 |
