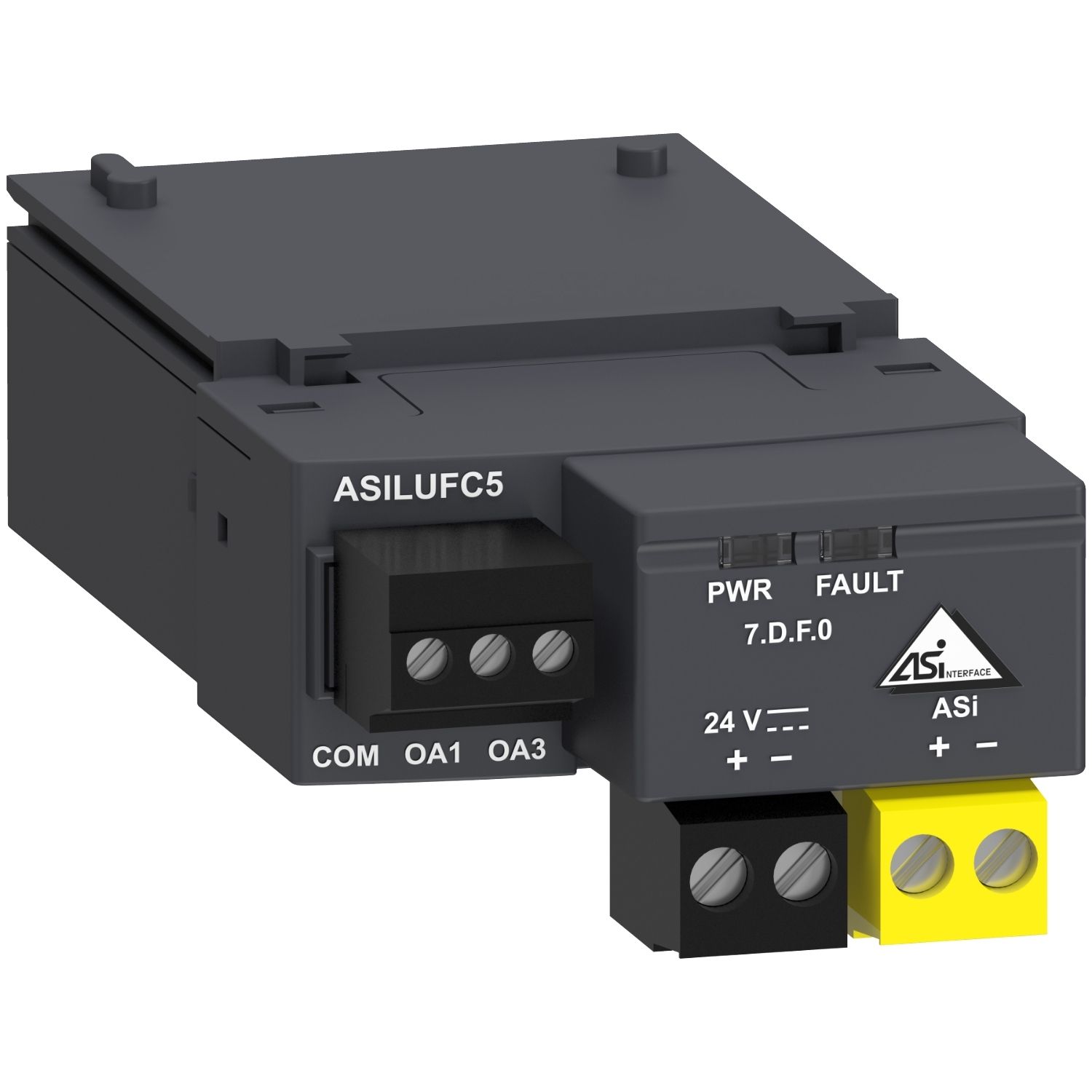

TeSys U communication module for AS-Interface bus, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a yellow 2-point plug-in connector for connection to an AS-I network (limited to 31 slaves), a black 2-point plug-in connector for connection to an external 24V DC supply. On front side, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11C for a LUB base or LU9MRC for a LU2B base. It displays 2 LEDs indicating 24V voltage presence (PWR) and communication status (FAULT). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ASILUF |
| Device application | communication |
| Product compatibility | LUCB, LUCC, LUCM, LUCD, LUCL, LUCA |
| Range | TeSys |
| Range of product | TeSys Ultra |
| Product or component type | communication module |
| Range compatibility | TeSys TeSys Ultra LU2B reversing power base, TeSys TeSys Ultra LUB non reversing power base |
| Complementary | |
| Tightening torque | output: 0.2-0.25 N.m2.5 mm, input: 0.5-0.6 N.m3.5 mm |
| Connection pitch | 5.08 mm input, 3.81 mm output |
| Bus type | AS-Interface |
| Mounting mode | plug-in |
| Function available | AS-Interface communication module |
| Connections - terminals | output: screw clamp terminals 2 cable(s) 0.5-0.5 mm²flexible with cable end, output: screw clamp terminals 2 cable(s) 0.25-0.34 mm²flexible with cable end, output: screw clamp terminals 2 cable(s) 0.14-0.75 mm²flexible without cable end, output: screw clamp terminals 2 cable(s) 0.14-0.5 mm²rigid without cable end, output: screw clamp terminals 1 cable(s) 0.25-1 mm²flexible with cable end, output: screw clamp terminals 1 cable(s) 0.25-0.5 mm²flexible with cable end, output: screw clamp terminals 1 cable(s) 0.14-1 mm²rigid without cable end, output: screw clamp terminals 1 cable(s) 0.14-1 mm²flexible without cable end, input: screw clamp terminals 2 cable(s) 0.5-1 mm²flexible with cable end, input: screw clamp terminals 2 cable(s) 0.25-1 mm²flexible with cable end, input: screw clamp terminals 2 cable(s) 0.2-1 mm²rigid without cable end, input: screw clamp terminals 2 cable(s) 0.2-1 mm²flexible without cable end, input: screw clamp terminals 1 cable(s) 0.25-1.5 mm²flexible with cable end, input: screw clamp terminals 1 cable(s) 0.2-1.5 mm²rigid without cable end, input: screw clamp terminals 1 cable(s) 0.2-1.5 mm²flexible without cable end |
| Addressing | 31 slaves |
| Local signalling | 2 LEDs front panel |
| Switching current capacity | 500 mA at 24 V against short-circuits solid state |
| Communication port protocol | Profibus DP |
| Mounting location | front side |
| Current consumption | 30 mA fault operation, 25 mA normal operation, 200 mA at 24 V output |
| Environment | |
| IP degree of protection | IP20 conforming to IEC 60529 |
