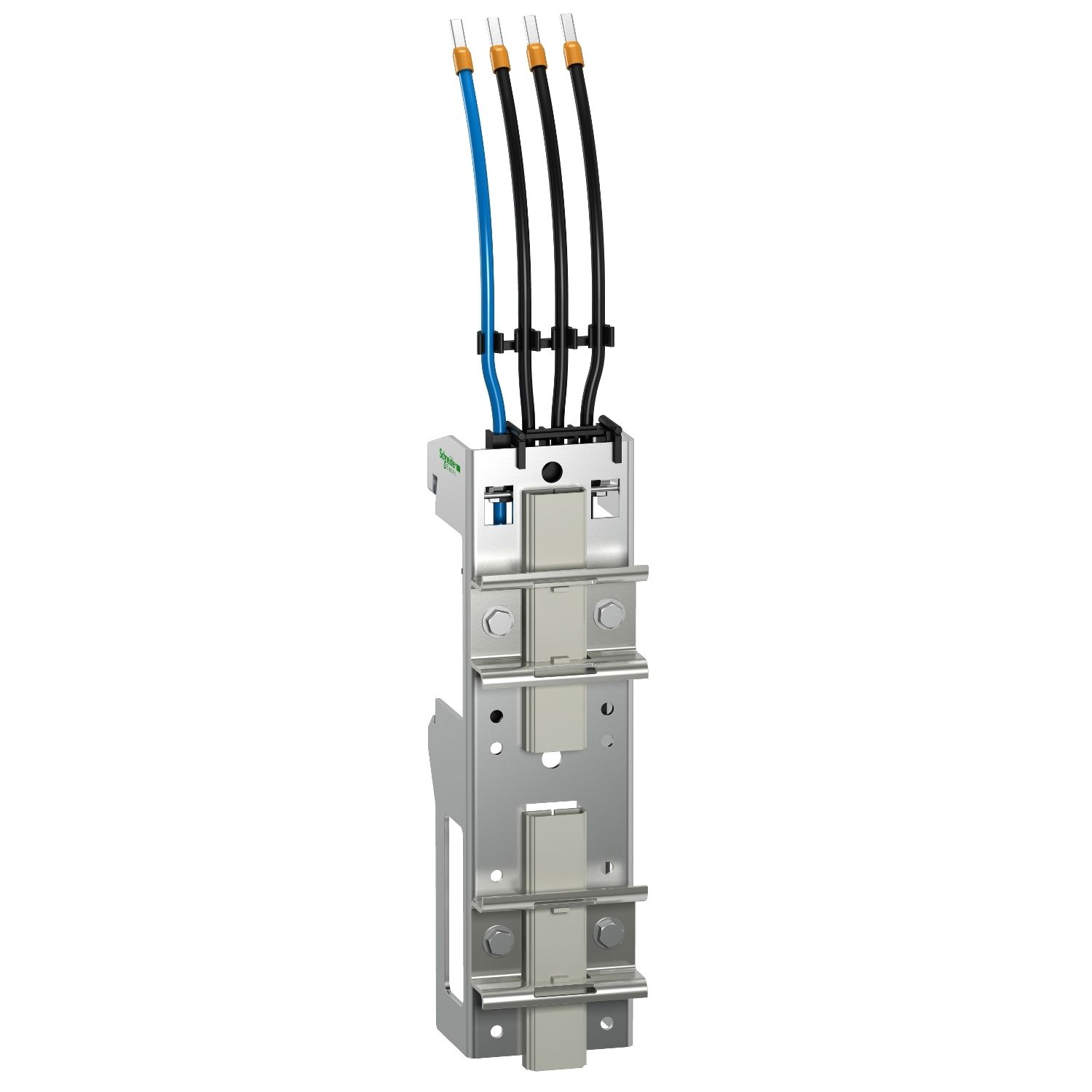

Mounting plate, Linergy HK, 3P, 25A 4.4mmÂ², 190x54x61mm

Linergy 3P plug outlet mounting plate

Component mounting plates incorporating tap-off

Panel easily upgradable

Multi-standard system of up to 160 A

Compactness with mounting plate version

Manufacturer: Schneider Electric

SKU: AK5PA232

GTIN: 3389110576726

Catalog

Instruction sheet

Declaration of conformity

Full Description

Linergy 3P plug outlet mounting plate. It provides 3P, and 3 cables with 4 mm² at 105 °C. The rated insulation voltage is 690 V which conforming to IEC 60439-1 The conventional free air thermal current is 25A. It conforms to IEC 60439 standard. Multi standards certified (CSA, DNV, UL, LROS (Lloyds register of shipping). It is compliant with Green Premium (RoHS/REACH).

Old price: $230.89 inc GST

Price: $187.02 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
I²t on activation	200000 A².s
Depth	61 mm
Width	54 mm
Poles description	3P
Number of cables	3 cable(s) 4-4 mm² at 105 °C
Range	Linergy
Product name	HK
Product or component type	mounting plate
Range of product	AK5
[Ith] conventional free air thermal current	25 A
Height	190 mm
Complementary
[Ui] rated insulation voltage	690 V conforming to IEC 60439-1
Net weight	0.23 kg
9 mm pitches	6
Environment
Standards	IEC 60439
Product certifications	LROS (Lloyds register of shipping), CSA, DNV, UL
