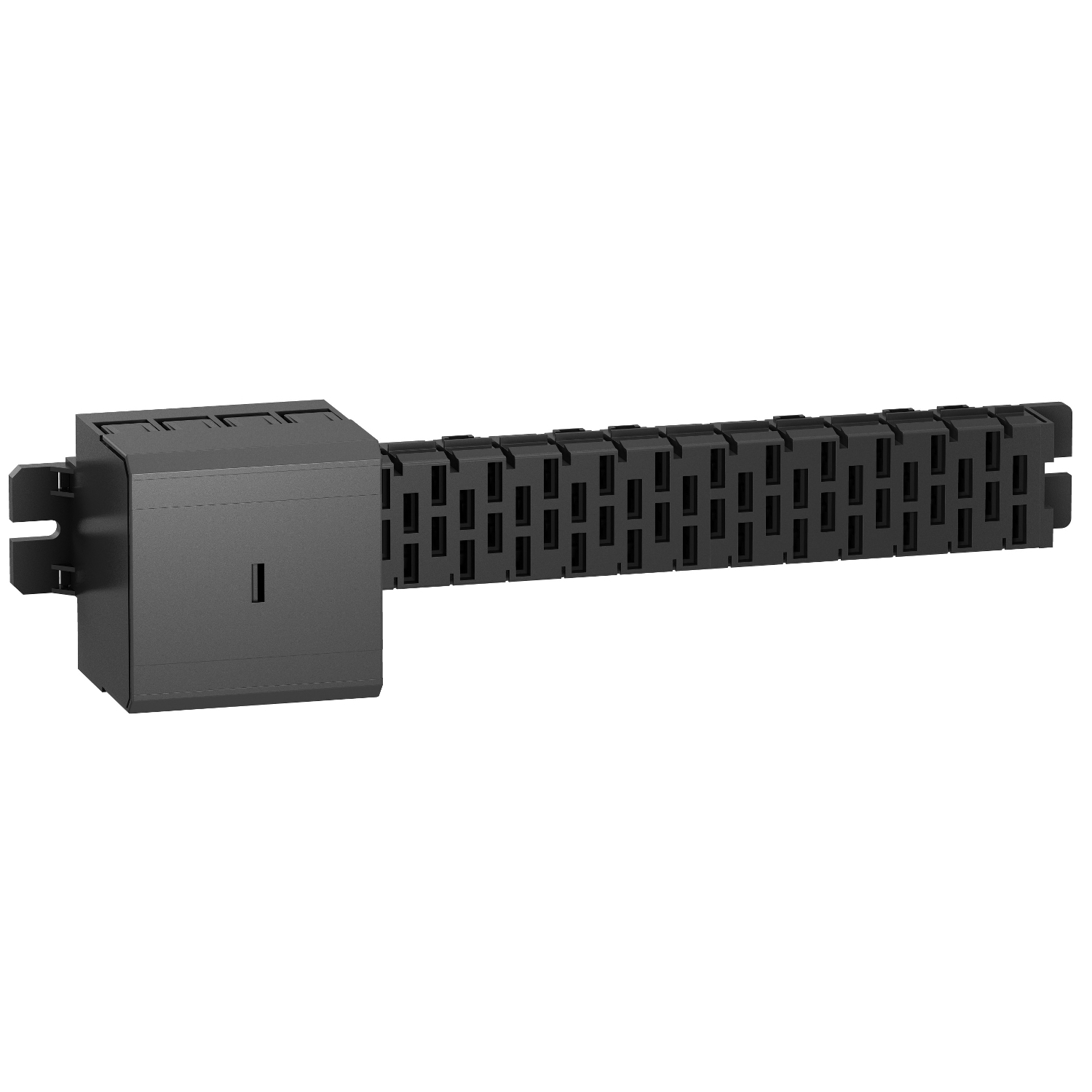

Simple and quick products to mount and wire up automated control and distribution panels. It is made of 4 conductors with 24 tap-off units at 18 mm intervals. It is suitable for mounting in 800 mm enclosure width.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | distribution |
| Number of conductors | 4 |
| Number of tap-offs | 24 |
| [Ie] rated operational current | 160 A at 35 °C |
| Enclosure/cubicle width | 800 mm |
| Range | Linergy |
| Product name | HK |
| Bar length | 560 mm |
| Product or component type | busbar |
| Network type | AC |
| [Ue] rated operational voltage | 690 V (plugging-in and unplugging, with supply switched off) conforming to IEC 60439-1, 600 V (plugging-in and unplugging, with supply switched off) conforming to UL, 600 V (plugging-in and unplugging, with supply switched off) conforming to CSA, 480 V (off-load plugging-in and unplugging, with supply switched on) conforming to UL, 480 V (off-load plugging-in and unplugging, with supply switched on) conforming to CSA, 400 V (off-load plugging-in and unplugging, with supply switched on) conforming to IEC 60439-1 |
| Range of product | AK5 |
| Complementary | |
| Peak current | 25 kA |
| I²t on activation | 10000000 A².s |
| Depth | 82 mm |
| Width | 81 mm |
| Tightening torque | 10 N.m |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60439-1, 600 V conforming to UL, 600 V conforming to CSA |
| Flame retardance | V0 conforming to UL 94 |
| Mounting position | horizontal mounting, vertical mounting using side stop AK5BT01 on mounting plates AK5PA |
| Net weight | 1.1 kg |
| Connections - terminals | connector 2.5-70 mm² rigid, connector 2.5-70 mm² flexible with cable end |
| Protection type | NS160H circuit breaker In = 160 A, Isc = 70 kA, Ie = 160 A, NS160H circuit breaker In = 160 A, Isc = 36 kA, Ie = 160 A, gF fuses In = 160 A, Isc = 100 kA, Ie = 160 A, aM fuses In = 160 A, Isc = 100 kA, Ie = 160 A |
| Network frequency | 50/60 Hz |
| Bar width | 45 mm |
| Environment | |
| Fire resistance | 850 °C conforming to IEC 60695 |
| IP degree of protection | IPxx B conforming to IEC 60529 |
| Standards | IEC 60439 |
| Product certifications | LROS (Lloyds register of shipping), UL, CSA, DNV |
