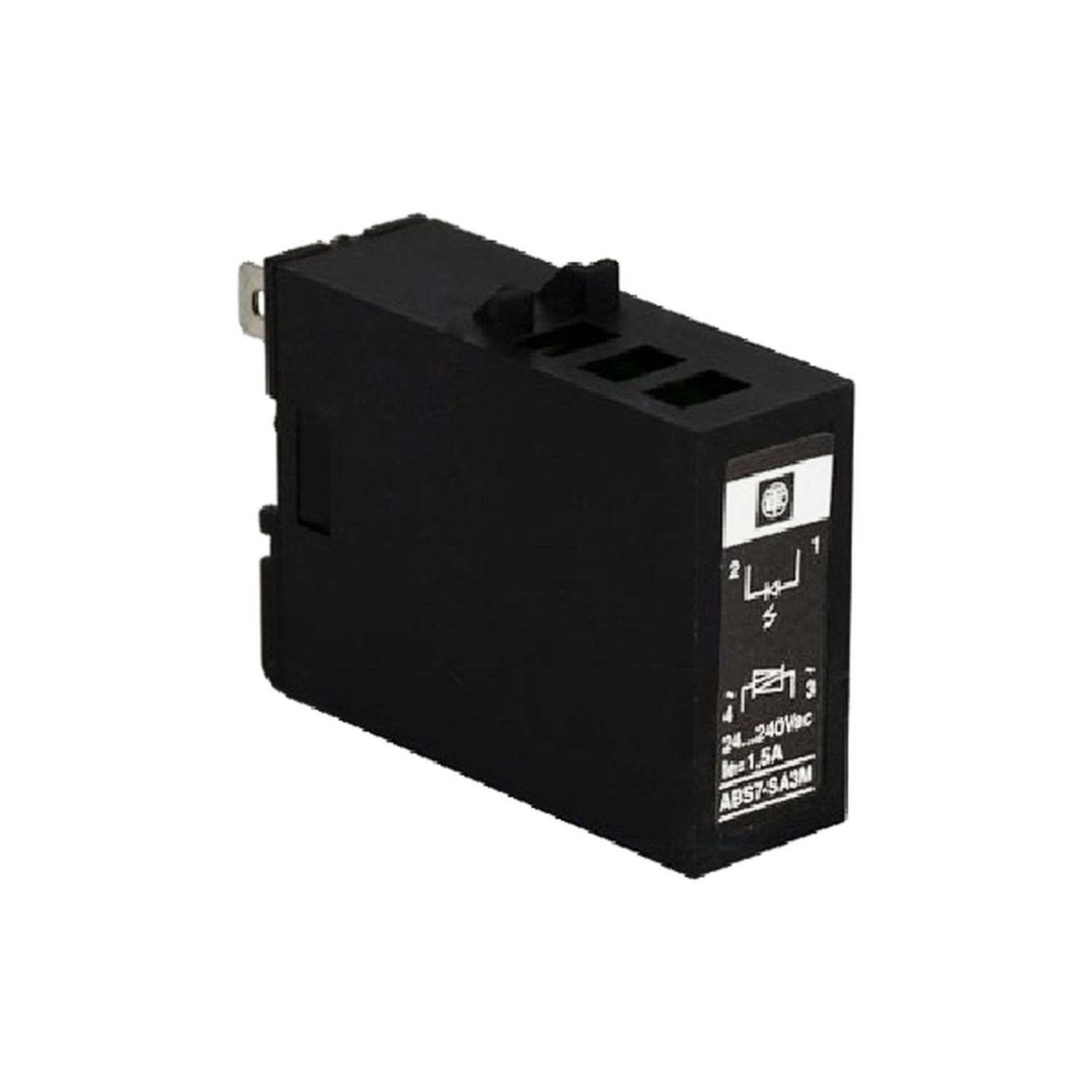

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a solid-state plug-in output relays for 24VAC to 240VAC prewired sub-bases. Its response time is less than 10ms from state 0 to 1 and less than 10ms from state 1 to 0. It is used to to control the power along with switching the smaller current values in a control circuit. It is 12.5mm wide. It weighs 0.016kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. It is suitable for use with ABE7P16T215, ABE7P16T214, ABE7P16T212 and ABE7P16T210 sub-bases. It is delivered in 1 package (PCE type) containing 4 units. Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Quantity per set | set of 4 |
| Relay type | output relay |
| Product or component type | plug-in solid state relay |
| Range of product | Advantys Telefast ABE7 |
| Complementary | |
| Product compatibility | ABE7P16T210, ABE7P16T212, ABE7P16T214, ABE7P16T215 |
| Current state 0 guaranteed | 0.4 mA DC |
| Voltage state 1 guaranteed | 18.6 V DC |
| Discrete output voltage | 24...240 V AC |
| Width pitch dimension | 10 mm |
| Net weight | 0.016 kg |
| Voltage state 0 guaranteed | 2.8 V DC |
| Discrete output current | 2000 mA |
| Current state 1 guaranteed | 6.5 mA DC |
| Response time | <= 10 ms from state 1 to 0, <= 10 ms from state 0 to 1 |
| Discrete input voltage | 24 V DC |
