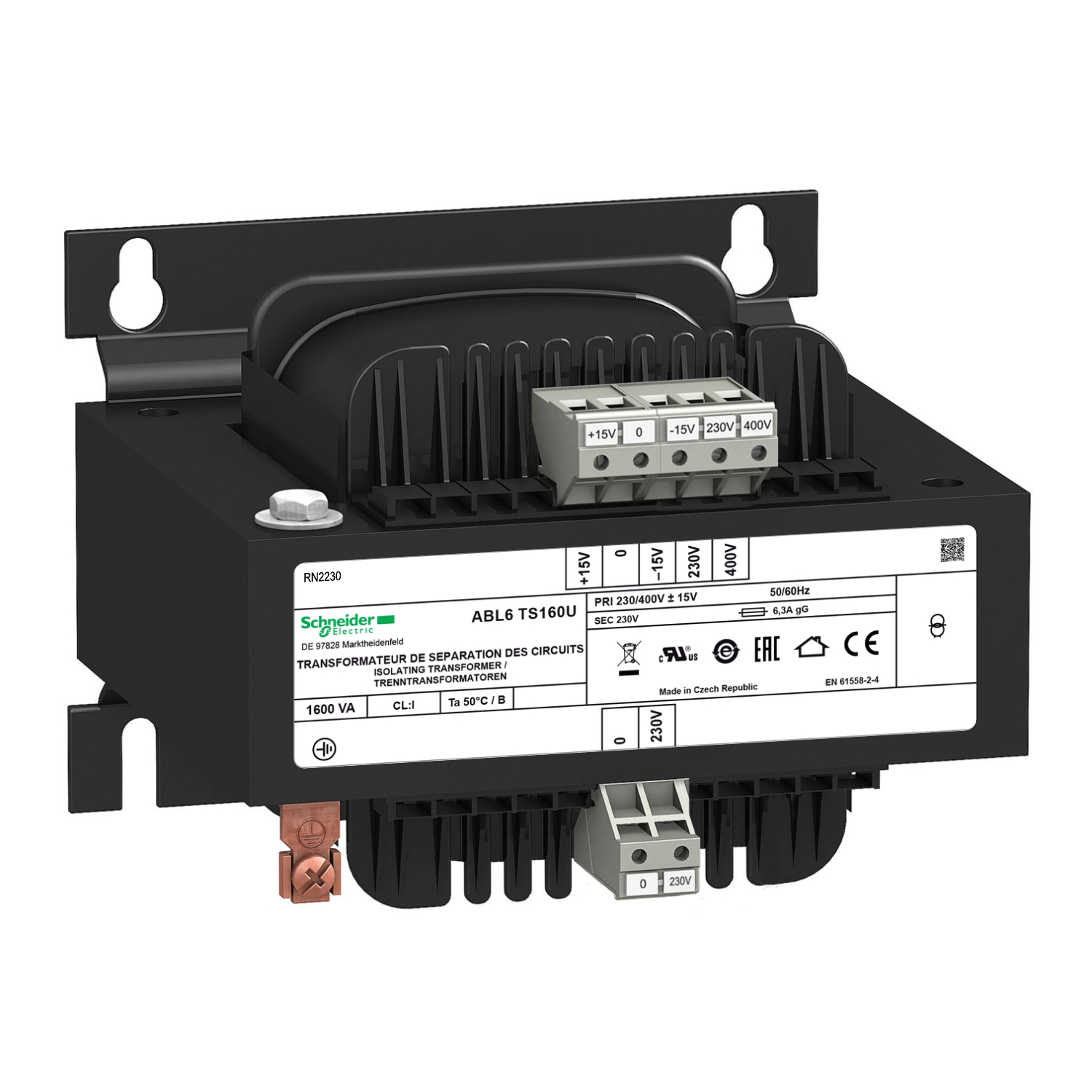

This ABL6 transformer supplies alternating current to control circuits while isolating them from mains power. It has a rated input voltage of 230V to 400V AC, a rated output voltage of 230V AC and a rated power of 1.6kVA / 1600VA. It offers an economic way to supply each consuming load individually, or by groups of loads, in applications such as mining, refining. It is ideal for systems accepting low voltage AC power, such as motor protection relays, contactors.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Protective cover | without |
| Secondary winding | single |
| Input voltage | 400 V AC phase to phase, terminal(s): L1-L2, 230 V AC single phase, terminal(s): N-L1 |
| Rated power in VA | 1600 VA |
| Product or component type | safety and isolation transformer |
| Output voltage | 230 V AC |
| Range of product | Modicon Transformer Optimized |
| Ambient air temperature for operation | -20-50 °C |
| Complementary | |
| Operating altitude | 3000 m |
| Maximum voltage drop at rated load | 0 % |
| Depth | 163.0 mm |
| Width | 174.0 mm |
| Input voltage tolerance | +/- 15 V |
| No load losses | 23.7 W |
| Compatibility code | ABL6T |
| Power dissipation in W | 66.7 W |
| Short-circuit voltage | 265 |
| Output protection type | against short-circuits, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection, against overvoltage, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection, against overload, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection |
| Electrical insulation class | class B |
| Connections - terminals | for output connection: screw type terminals, connection capacity: 2 x 4 mm² AWG 11, for input ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 11, for input connection: screw type terminals, connection capacity: 5 x 4 mm² AWG 11 |
| Net weight | 19.96 kg |
| Input voltage limits | 207...253 V, 360...440 V |
| Marking | CE |
| Network frequency limits | 47-63 Hz |
| Efficiency | 96 % |
| Output sustained overvoltage | 3 % (no load, hot state) |
| Fixing mode | by 4 screws diameter: 7 mm on horizontal panel with derating to 90 %, by 4 screws diameter: 7 mm on vertical panel, operating position: vertical, by 4 screws diameter: 7 mm on vertical panel, operating position: horizontal |
| Height | 169.0 mm |
| Environment | |
| Dielectric strength | 4000 V between primary and secondary, 2000 V between winding and ground |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Overvoltage category | class I conforming to VDE 0106-1 |
| Ambient air temperature for storage | -40-80 °C |
| Environmental characteristic | safety conforming to EN 61558-2-4, safety conforming to EN 61558-1, EMC conforming to EN 62041 |
| Standards | UL 506 |
| Product certifications | DNV-GL, EAC, UR |
