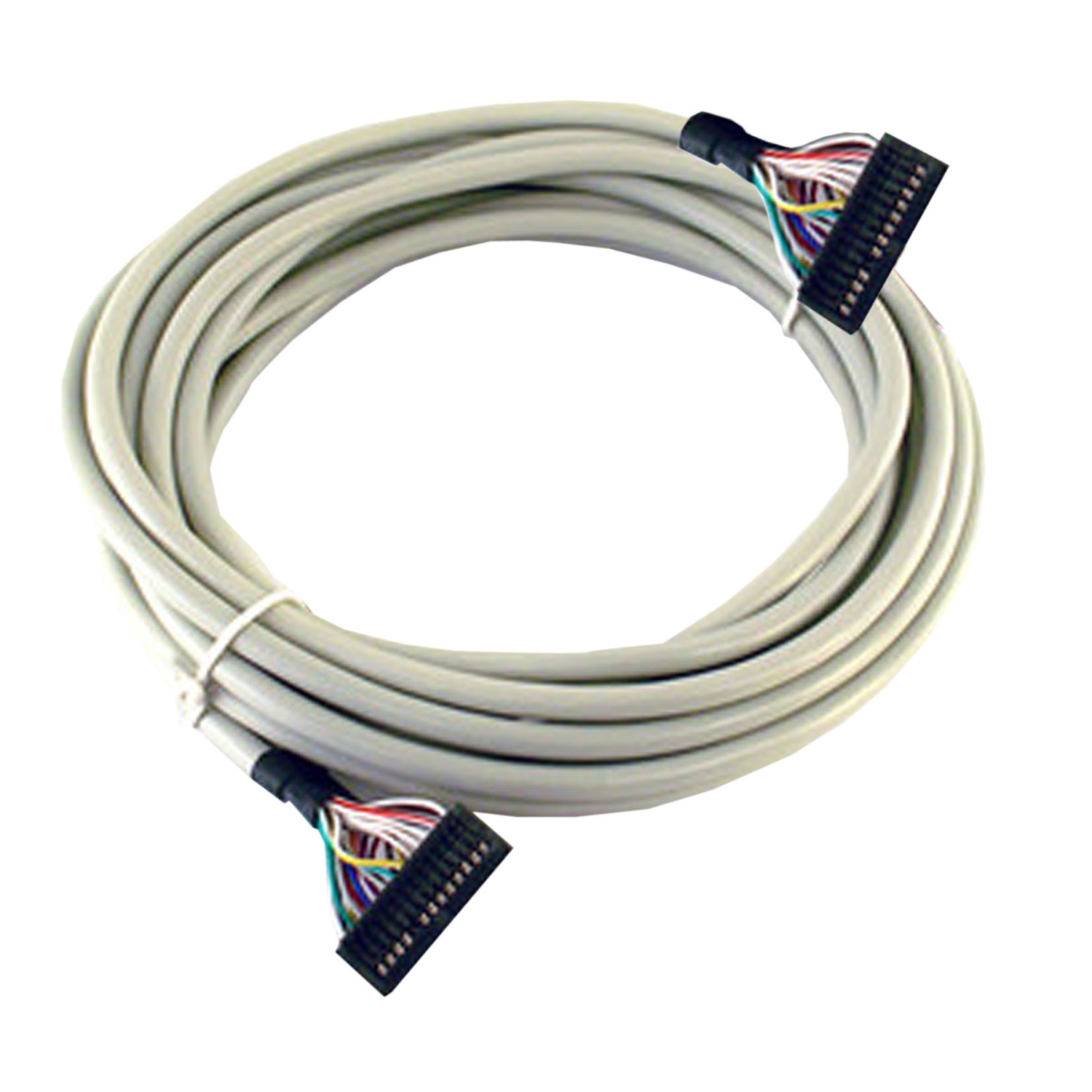

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a connection cable between plc and passive and relay sub-bases with 16 channels. It is pre-equipped with one1 connector 20-way HE10 at sensor side and 1 connector 20-way HE10 at plc side. It is used to connect the digital inputs between ABE7 sub-bases and Modicon M221 and Twido PLCs, and Modicon TM3 modules. It measures 1m. It weighs 0.080kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. It is suitable for use with TM221M32TK, TM221ME32TK, TM3DI16K, TM3DI32K, TWDDDI32DK, TWDDDI16DK. It is delivered in 1 package (PCE type). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Accessory / separate part destination | discrete input |
| Accessory / separate part type | connecting cable |
| Product specific application | for application other than use of Advantys Telefast ABE7 sub-base |
| Accessory / separate part category | connection accessories |
| Accessory / separate part designation | discrete input pre-formed cable |
| Range of product | Twido |
| Complementary | |
| Product compatibility | TWDDDI16DK, TWDDDI32DK |
| Electrical connection | 1 connector HE10 20 pin(s) Twido side, 1 connector HE10 20 pin(s) sensor side |
| Cable cross section | 0.08-0.08 mm² |
| AWG gauge | AWG 28 |
| Net weight | 0.08 kg |
| Cable length | 1 m |
