Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

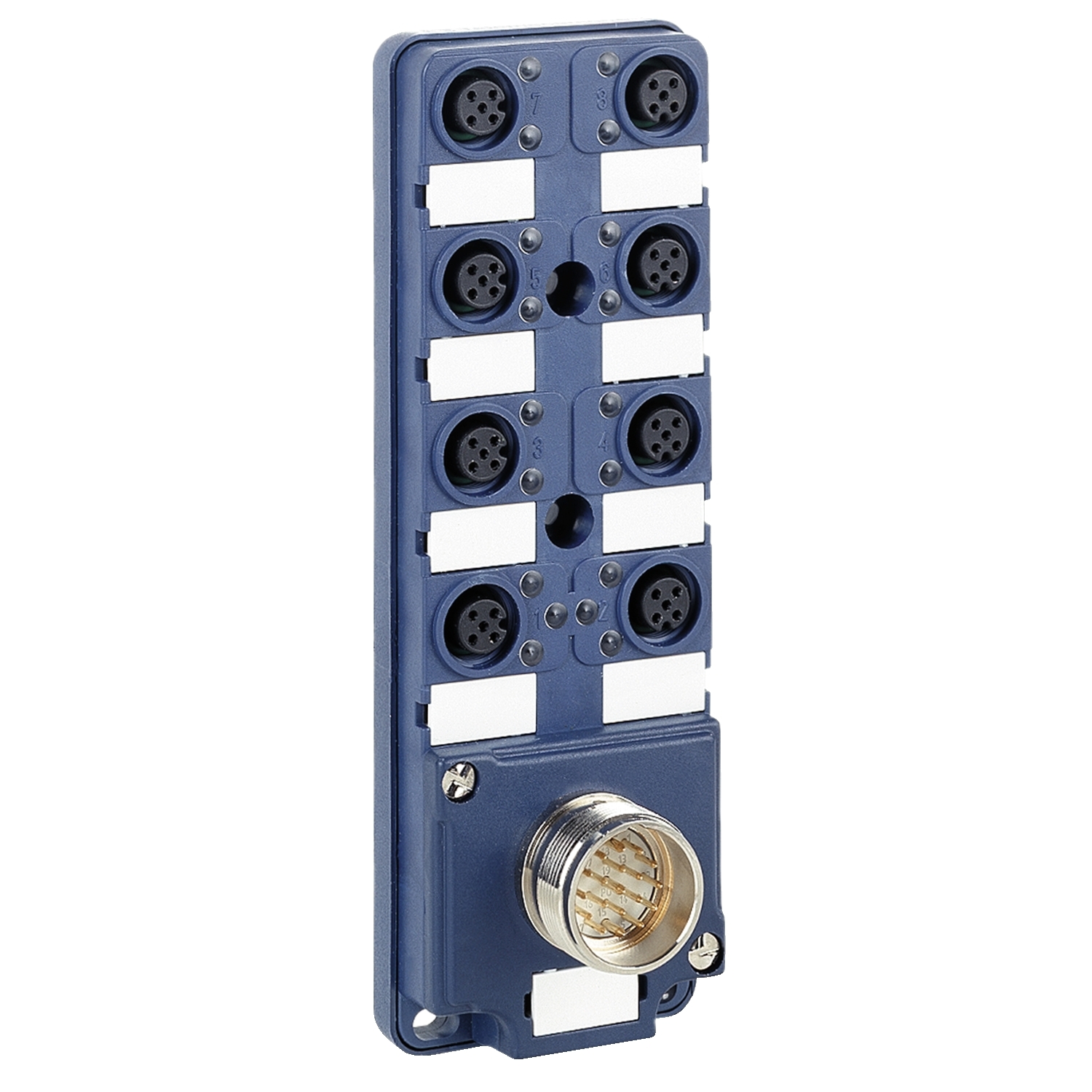

| Electrical connection | 8 female connectors M12 5 pins, 1 male connector M23 19 pins |
| Number of channels | 8 |
| Product or component type | IP67 passive splitter box |
| Status LED | without |
| Range of product | Advantys ABE9 |
| Complementary | |
| Contact resistance | 5000 µOhm |
| Operating position | any position |
| Number of ways | 16 ways |
| Insulation group | category 3 conforming to VDE 0110 |
| Separation of commons | without |
| Net weight | 0.14 kg |
| Fixing mode | M4 screw fixing |
| [Ue] rated operational voltage | 24 V DC |
| Current per channel | 4 A |
| Current of common | 12 A 0.75-0.75 mm², 16 A 1-1 mm² |
| Environment | |
| Ambient air temperature for storage | -40-85 °C |
| IP degree of protection | IP67 conforming to IEC 529 |
| Vibration resistance | 0.2 gn (f= 57-150 Hz) conforming to IEC 68-2-6, FC tests |
| Shock resistance | 30 gn for 11 ms conforming to EN 68-2-2 |
| Ambient air temperature for operation | -20-80 °C |
| Product certifications | cULus |
