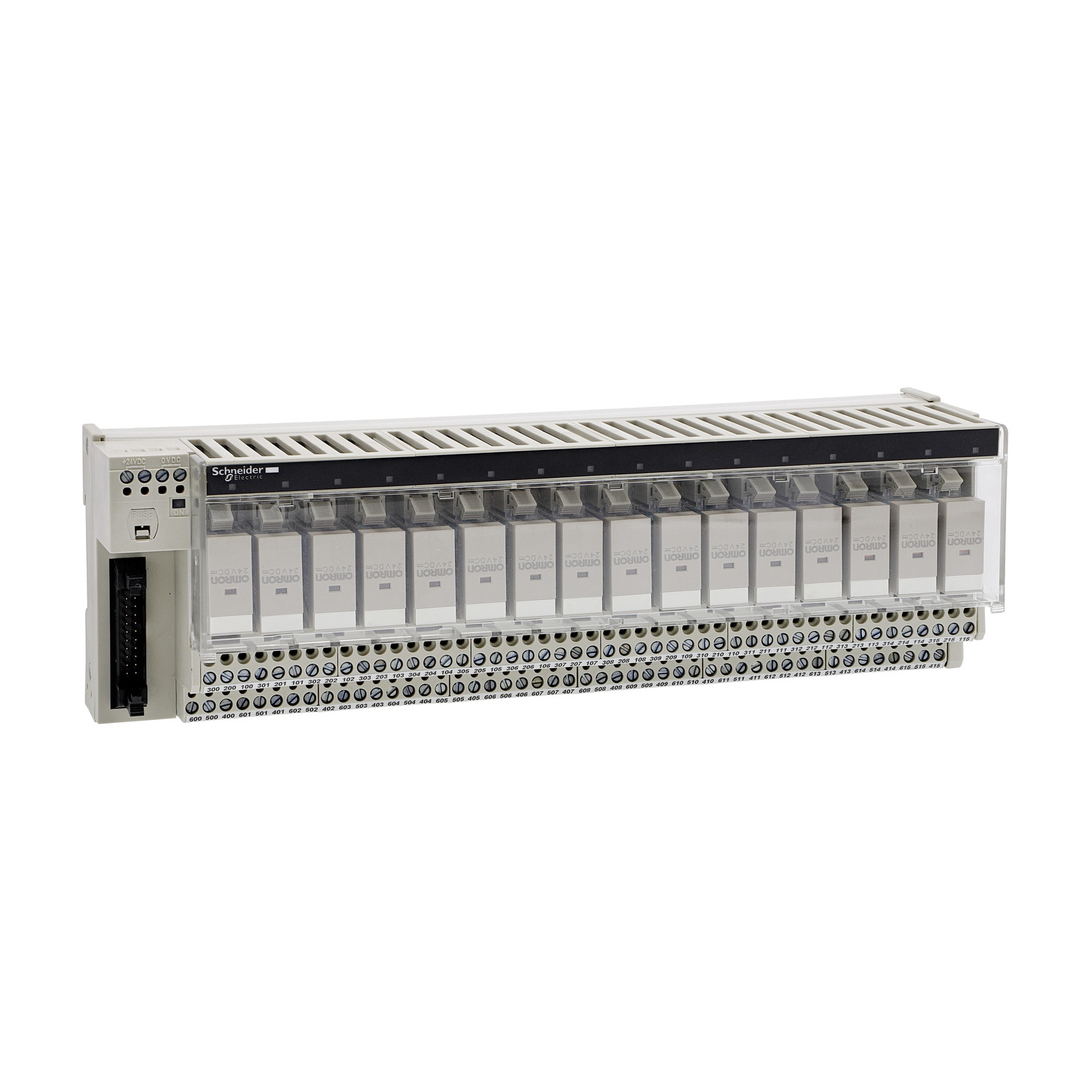

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. The sub-base with plug-in electromechanical relay, provides 16 channels. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a maximum supply current of 1A. It is an IP2x rated product. It weighs 1.3kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV and LROS. This sub-base is suitable for use with ABR7S37 plug-in relay. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Us] rated supply voltage | 19...30 V conforming to IEC 61131-2 |
| Sub-base type | output sub-base |
| Number of channels | 16 |
| Product or component type | sub-base with plug-in electromechanical relay |
| Range of product | Modicon ABE7 |
| Complementary | |
| [Ui] rated insulation voltage | 300 V coil circuit/contact circuits conforming to IEC 60947-1, 2000 V terminals/mounting rails |
| Product compatibility | ABR7S37 |
| Voltage drop on power supply fuse | 0.3 V |
| Supply circuit type | DC |
| Maximum supply current | 1 A |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Polarity distribution | volt-free |
| Fixing mode | by screws (solid plate with fixing kit), by clips (35 mm symmetrical DIN rail) |
| Net weight | 1.3 kg |
| Installation category | II conforming to IEC 60664-1 |
| Status LED | 1 LED (green) power ON, 1 LED per channel (green) channel status |
| [Uimp] rated impulse withstand voltage | 2.5 kV |
| Short-circuit protection | 1 A internal fuse, 5 x 20 mm, fast blow (PLC end) |
| Environment | |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Resistance to electrostatic discharge | 8 kV (air) level 3 conforming to IEC 61000-4-2, 4 kV (contact) level 3 conforming to IEC 61000-4-2 |
| Ambient air temperature for storage | -40-80 °C conforming to IEC 61131-2 |
| Resistance to incandescent wire | 750 °C conforming to IEC 60695-2-11 |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Vibration resistance | 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -5-60 °C conforming to IEC 61131-2 |
| Resistance to radiated fields | 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Product certifications | EAC, GL, CSA, DNV |
