Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Us] rated supply voltage | 19...30 V conforming to IEC 61131-2 |
| Sub-base type | output sub-base |
| Number of channels | 16 |
| Connections - terminals | screw type terminals, 2 x 0.14...2 x 1.5 mm² (AWG 26...AWG 16) solid, screw type terminals, 2 x 0.14...2 x 0.75 mm² (AWG 26...AWG 18) flexible with cable end, screw type terminals, 1 x 0.14...1 x 4 mm² (AWG 26...AWG 12) solid, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, screw type terminals, 1 x 0.14...1 x 1.5 mm² (AWG 26...AWG 16) flexible with cable end |

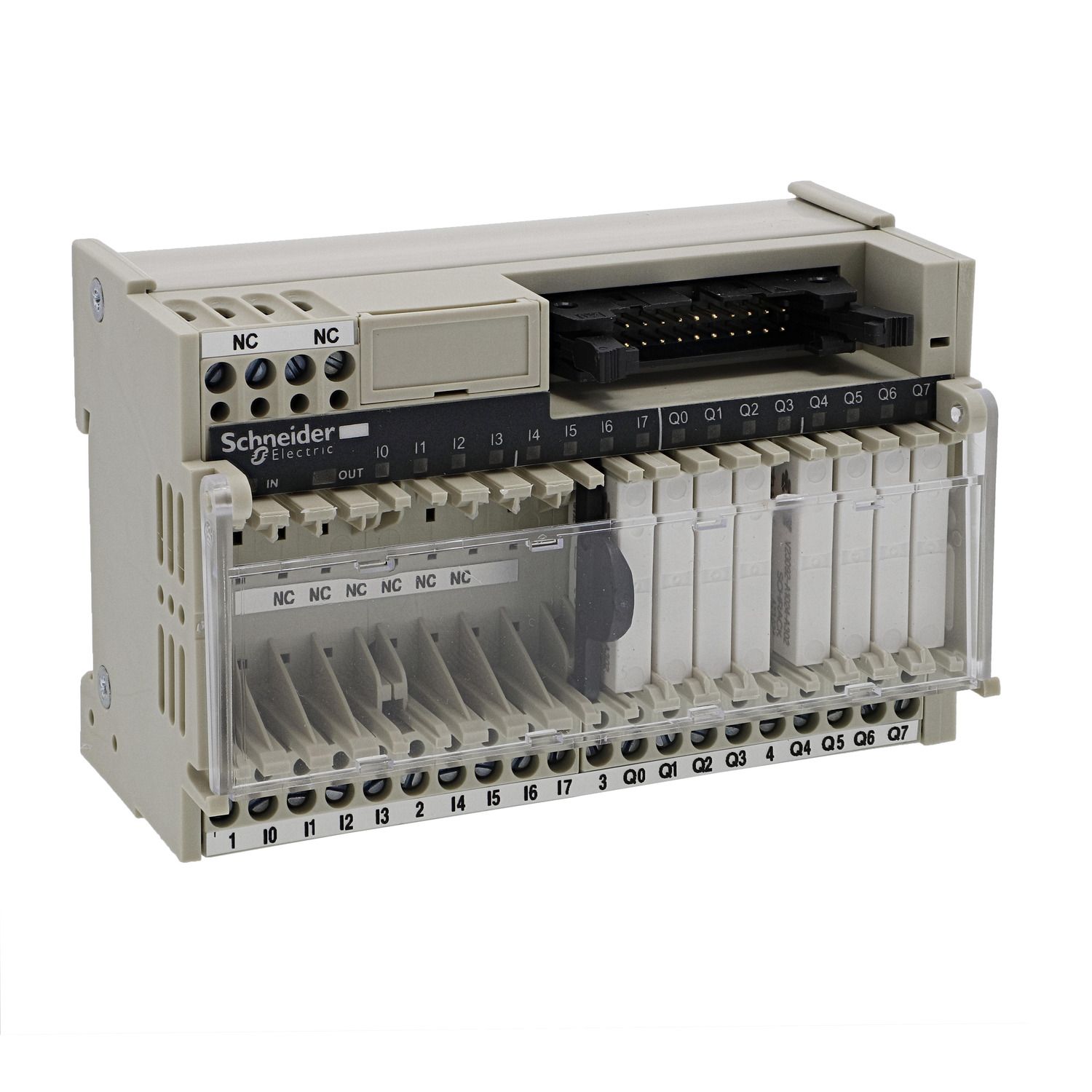

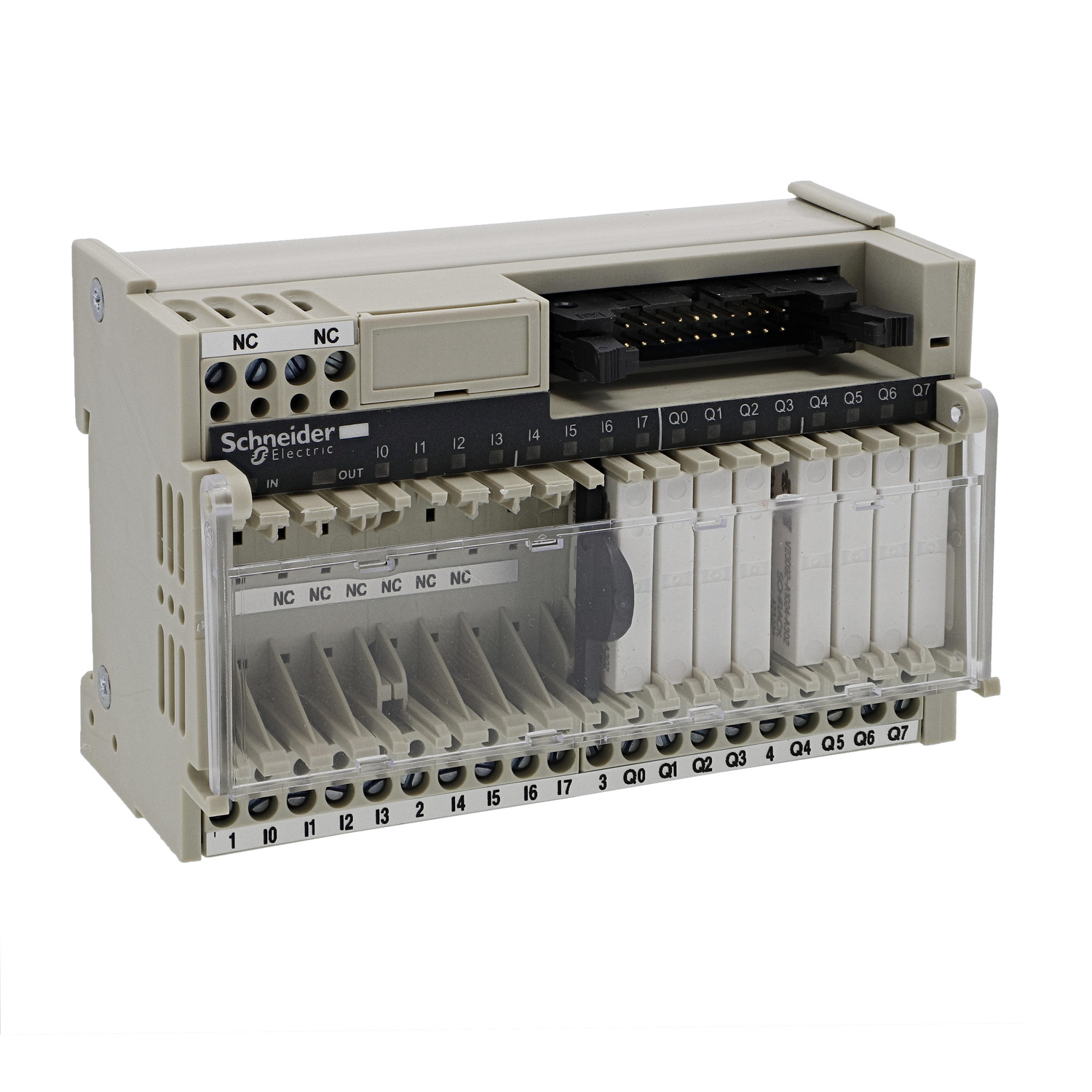

| Product or component type | sub-base with plug-in electromechanical relay |
| Range of product | Modicon ABE7 |
| Complementary | |
| Product compatibility | ABR7S11 |
| Voltage drop on power supply fuse | 0.3 V |
| Supply circuit type | DC |
| Maximum supply current | 1 A |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Polarity distribution | common distribution group of 4 + 2 inputs common terminals |
| [Ui] rated insulation voltage | 300 V between coil circuit/contact circuits conforming to IEC 60947-1, 2000 V between terminals/mounting rails |
| Contacts type and composition | 1 NO |
| Net weight | 0.6 kg |
| Maximum current per output common | 5 A screw type terminals |
| Installation category | II conforming to IEC 60664-1 |
| Status LED | 1 LED per channel channel status, 1 LED power ON |
| [Uimp] rated impulse withstand voltage | 2.5 kV |
| Short-circuit protection | 1 A internal fuse, 5 x 20 mm, fast blow (PLC end) |
| Maximum current per module | 12 A |
| Mounting mode | by screws (surface mount with kit), by clips (35 mm DIN rail) |
| Environment | |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Resistance to electrostatic discharge | 8 kV (air) level 3 conforming to IEC 61000-4-2, 4 kV (contact) level 3 conforming to IEC 61000-4-2 |
| Ambient air temperature for storage | -40-80 °C conforming to IEC 61131-2 |
| Resistance to incandescent wire | 750 °C, extinction time <30 s conforming to IEC 60695-2-11 |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 2 gn conforming to IEC 60068-2-6 (f = 10-150 Hz) |
| Ambient air temperature for operation | -5-60 °C conforming to IEC 61131-2 |
| Resistance to radiated fields | 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Product certifications | EAC, GL, CSA, DNV, UL |
