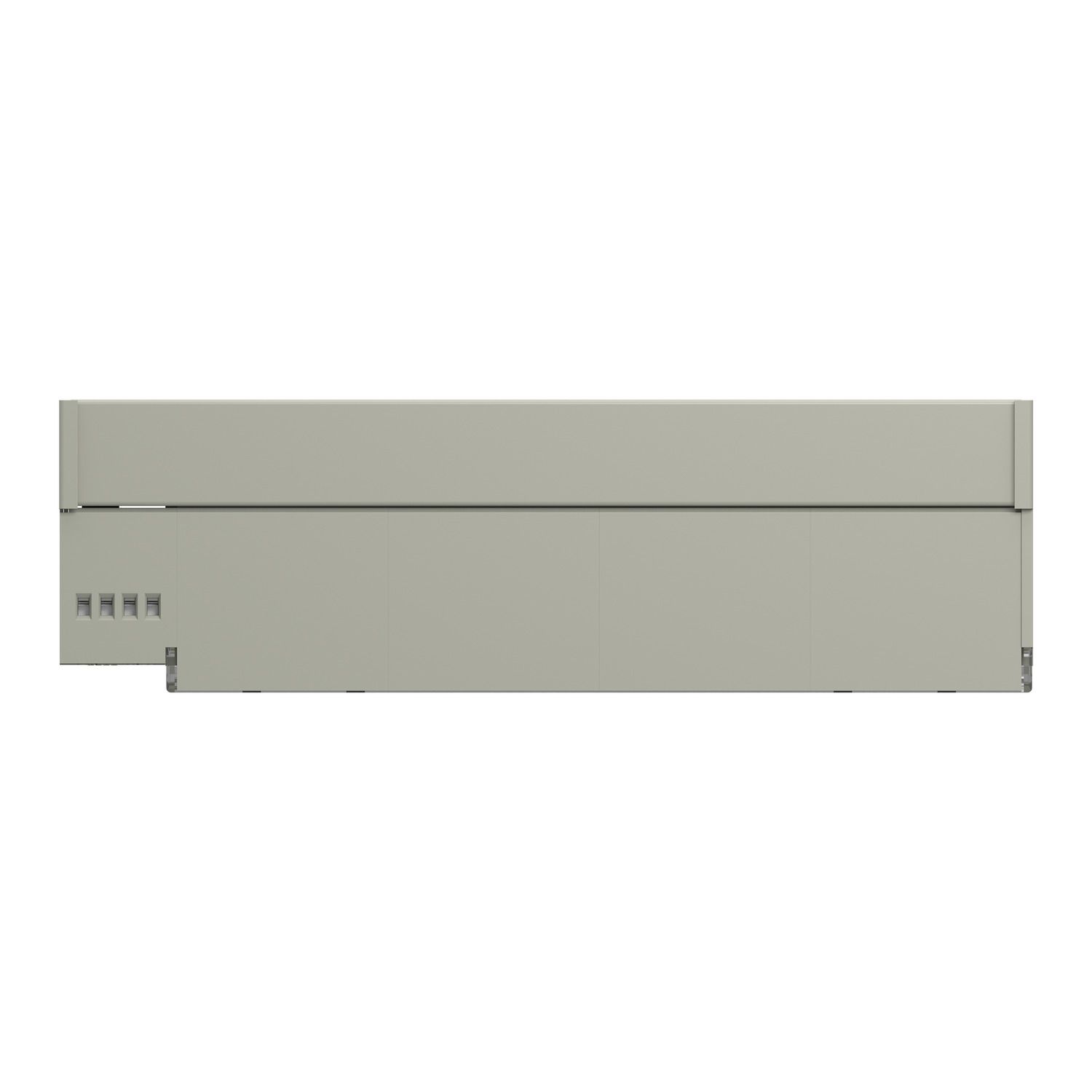

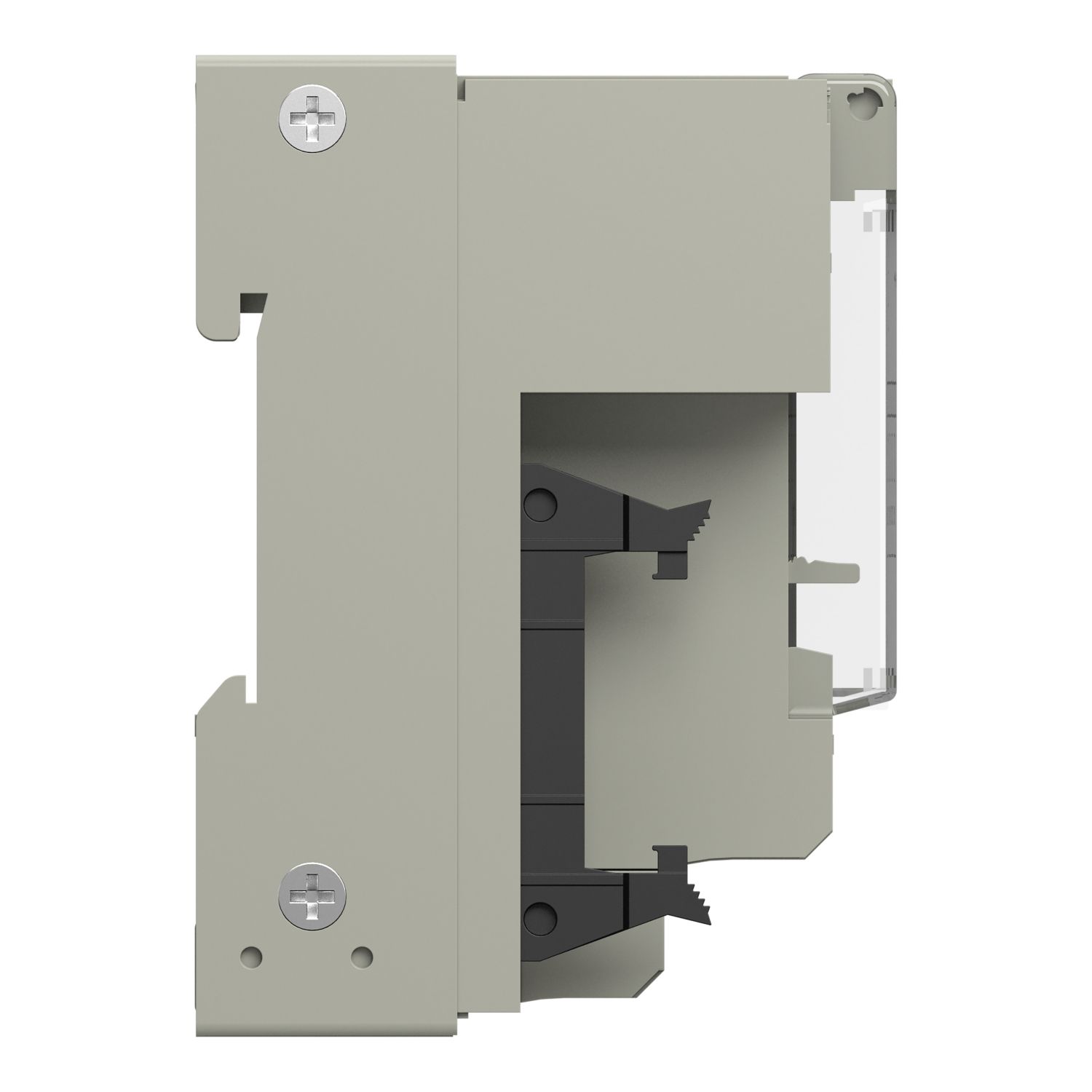

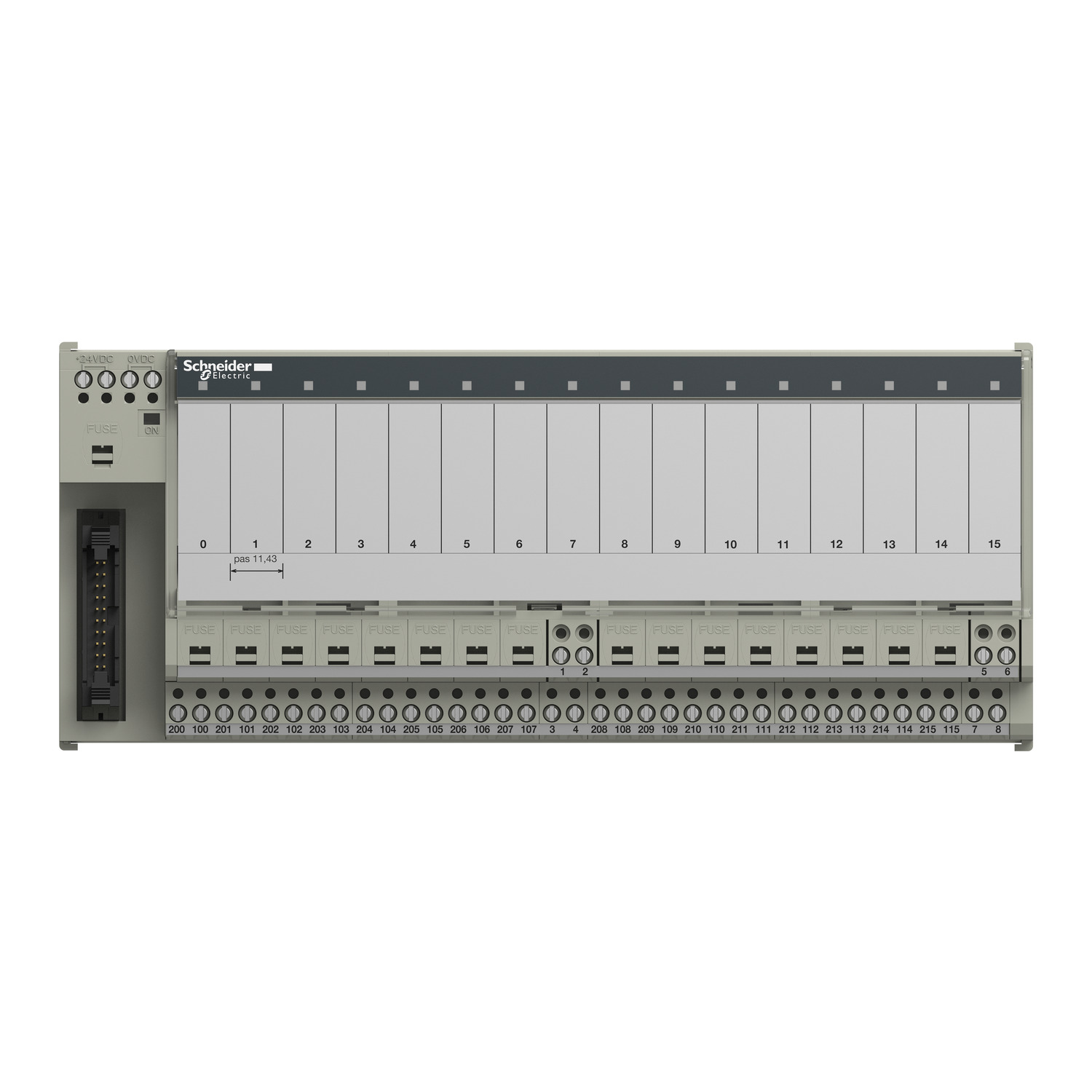

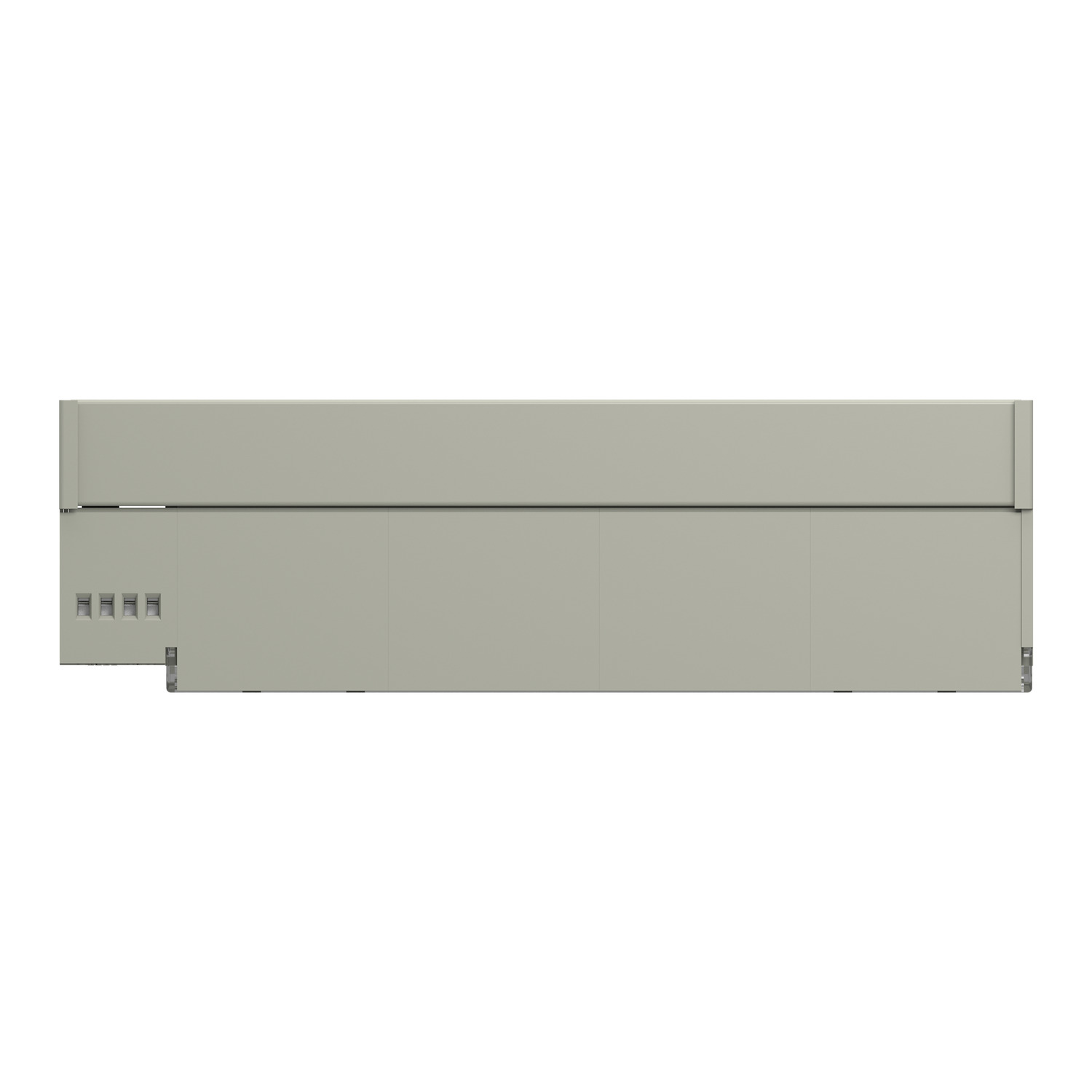

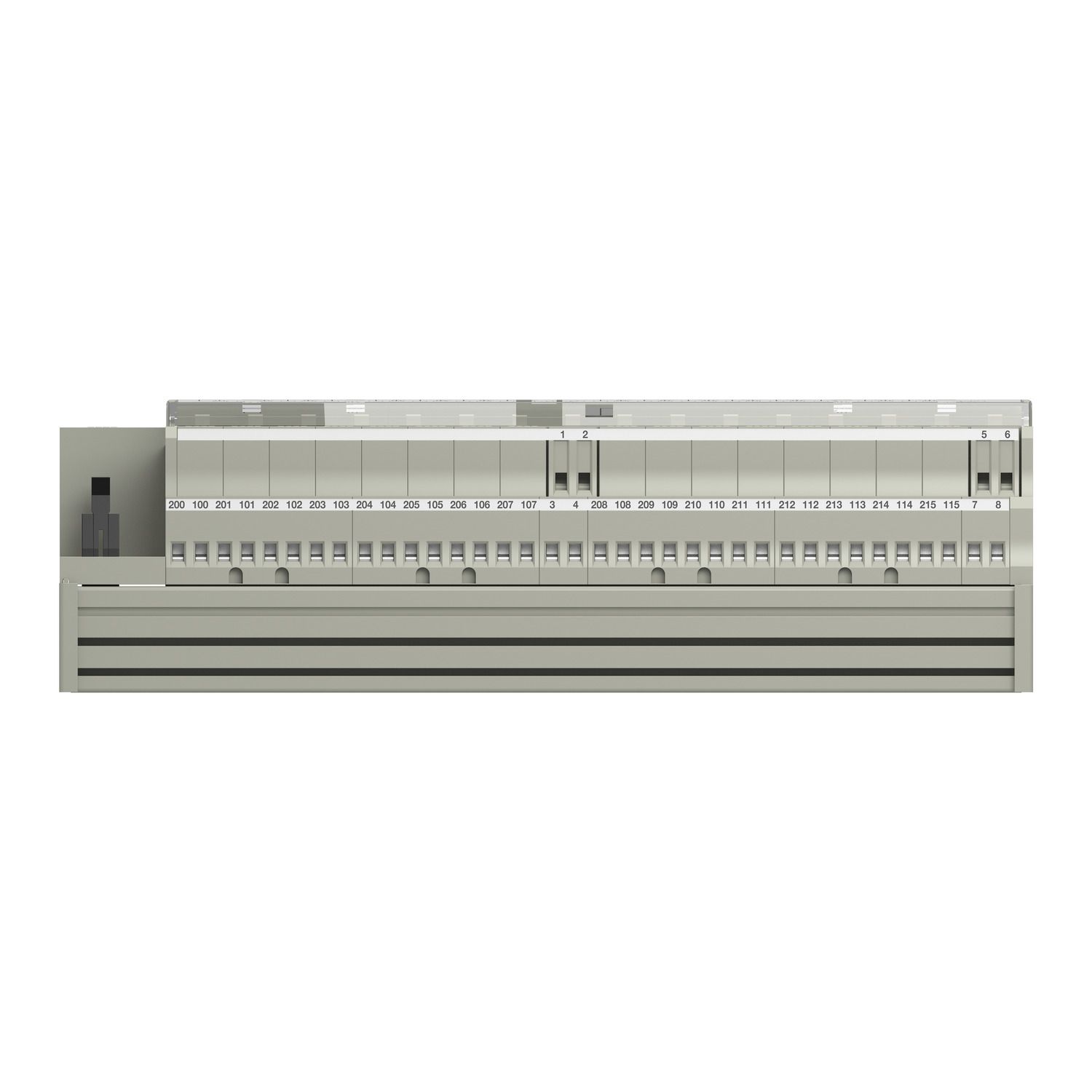

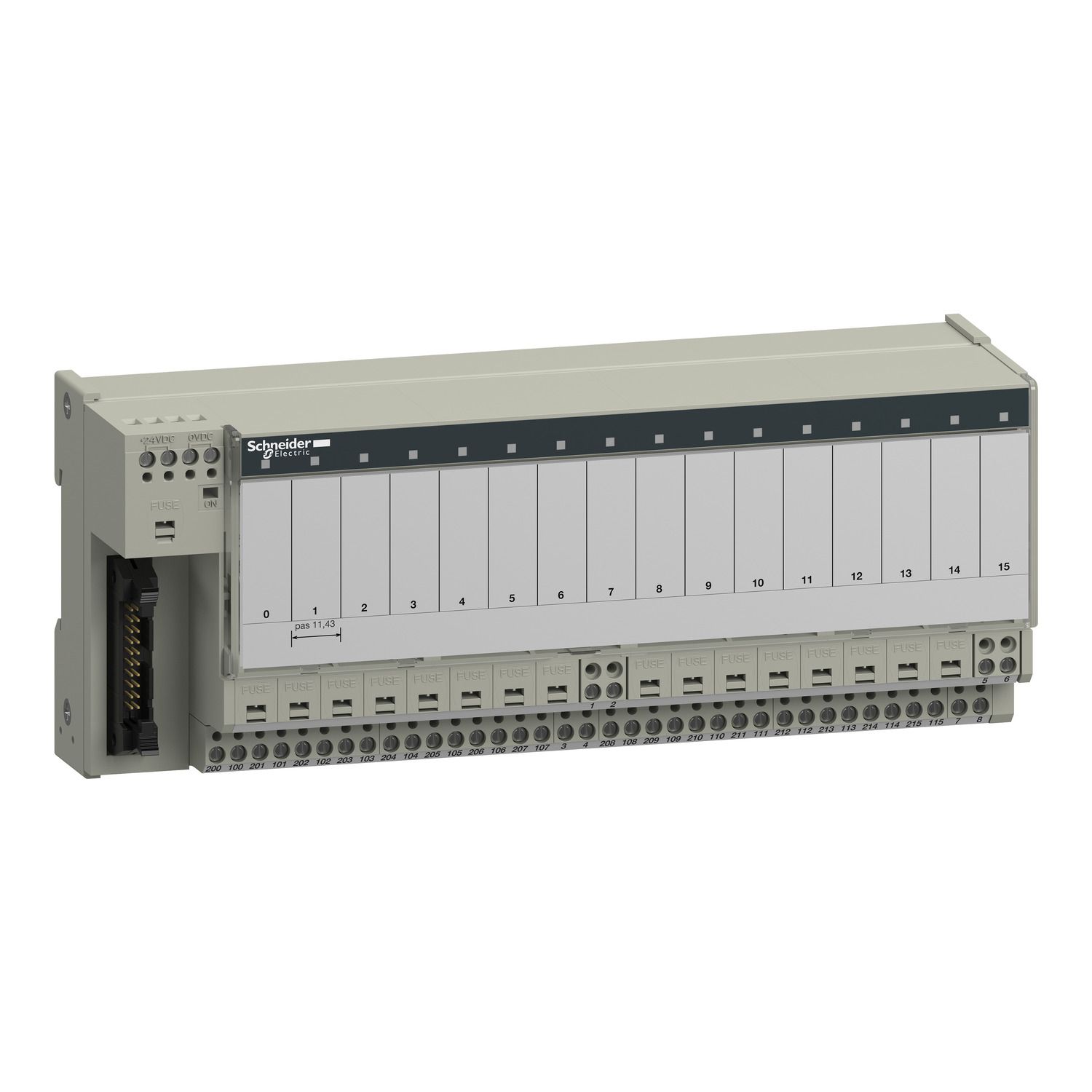

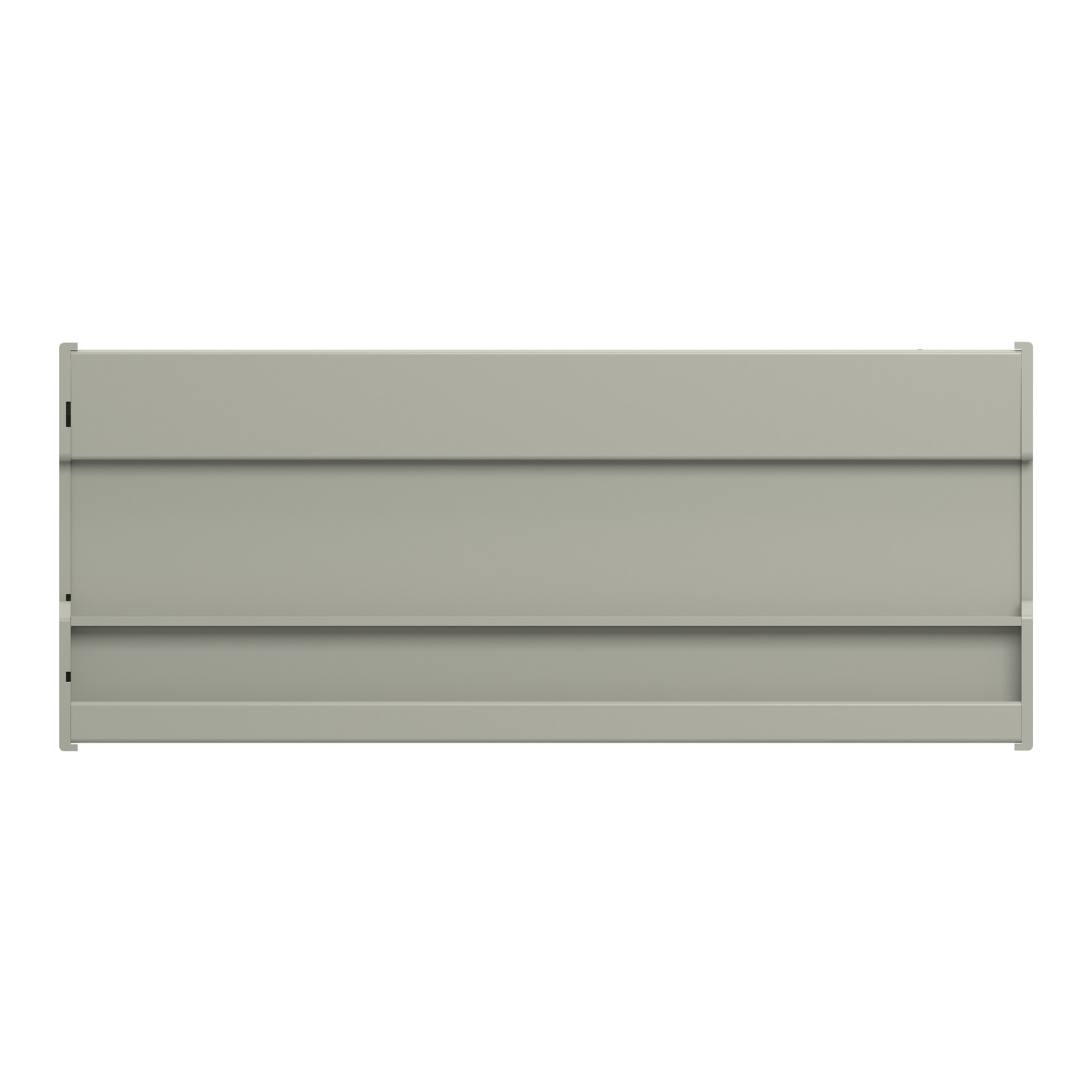

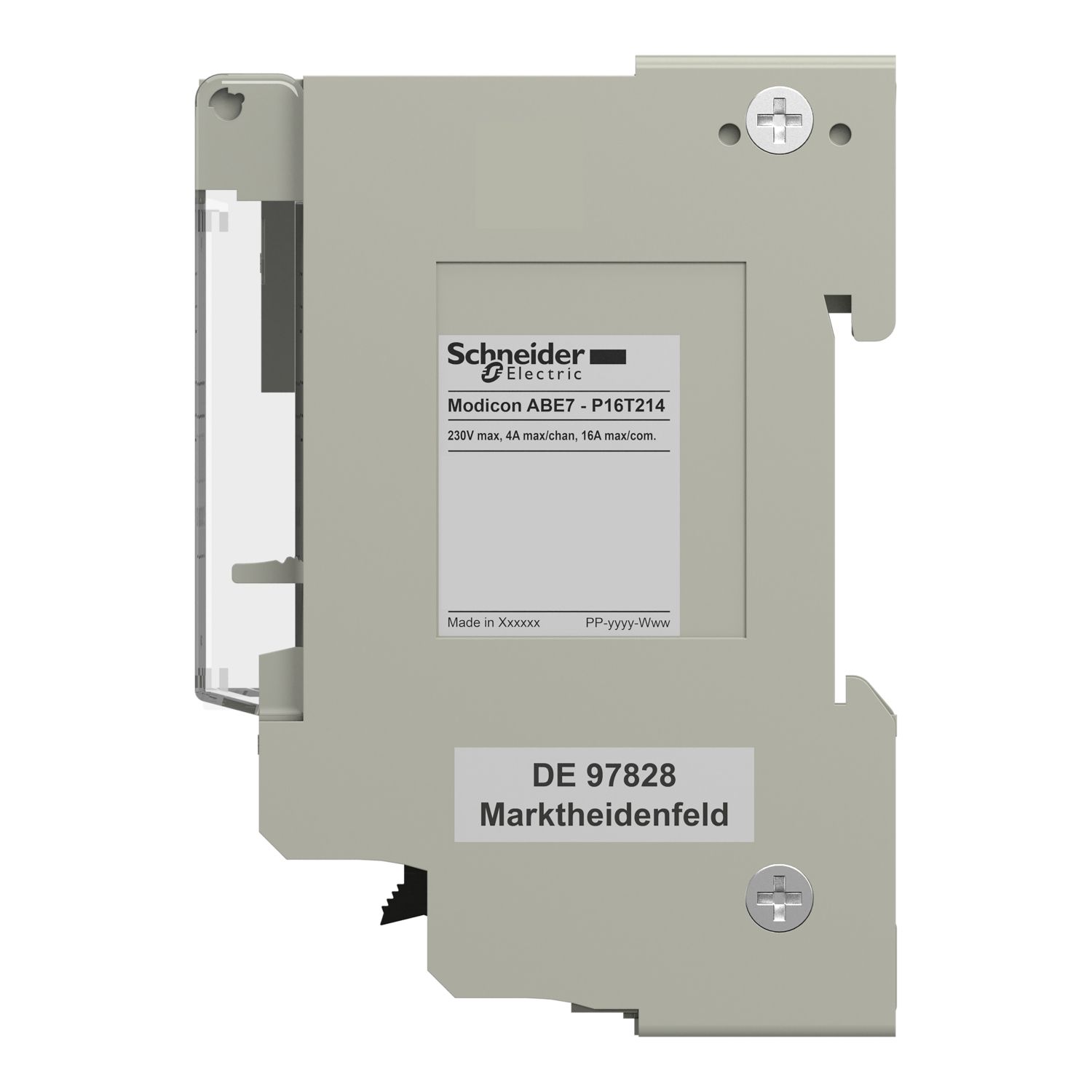

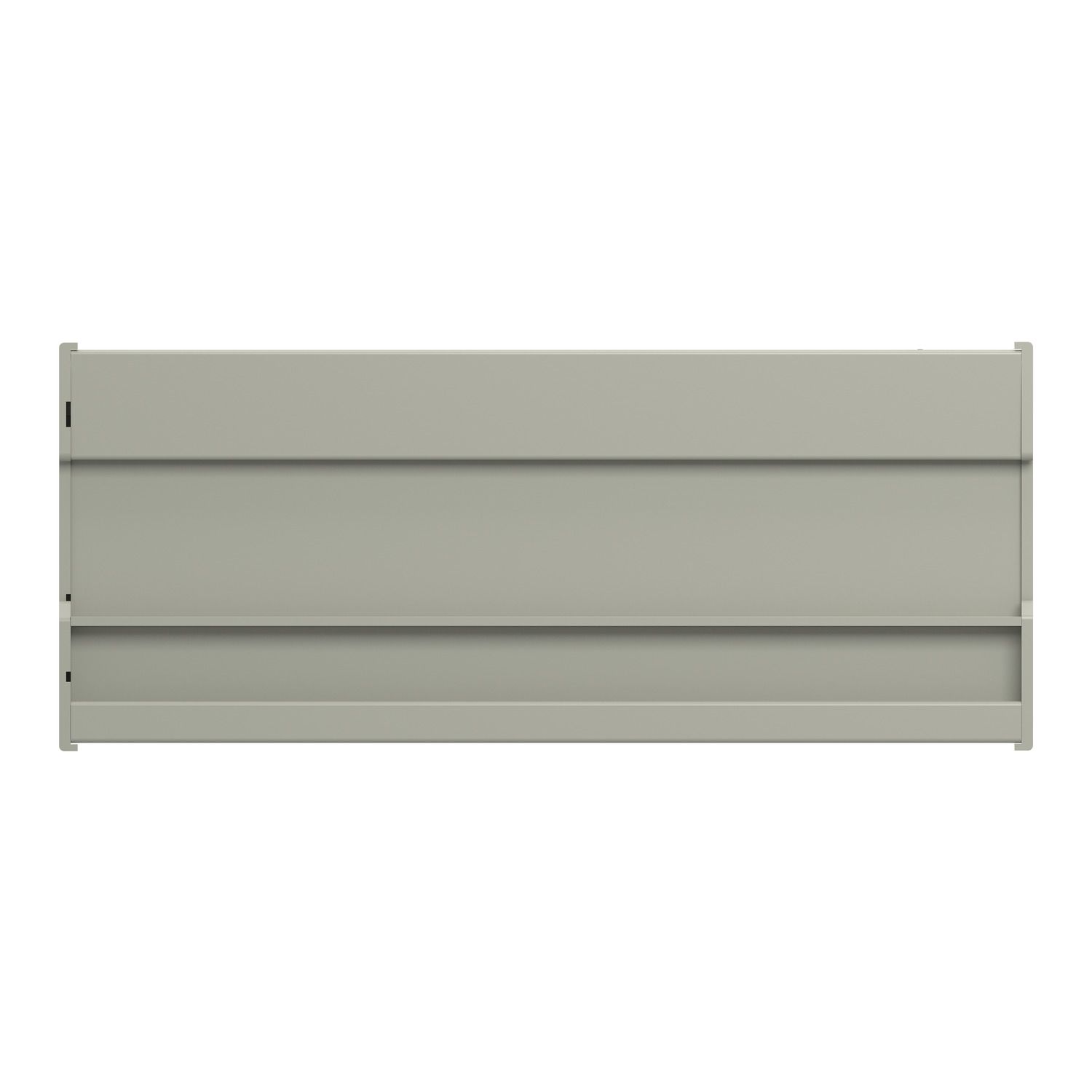

sub-base for plug-in relay ABE7 - 16 channels - fuses - relay 10 mm

Manufacturer: Schneider Electric

SKU: ABE7P16T214

GTIN: 3389110644579

Catalog

Instruction sheet

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $1,258.40 inc GST

Price: $1,387.39 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This sub-base for plug-in relay, provides 16 channels. It has 1 switch disconnector per channel. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a maximum supply current of 1A. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.675kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. This sub-base is suitable for use with ABR7S2, ABS7SA2, ABS7SC2 and ABE7ACC20 connection sub-base accessory. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Products specifications

Attribute name	Attribute value
Main
[Us] rated supply voltage	19...30 V conforming to IEC 61131-2
Sub-base type	output sub-base
Channel additional information	1 switch disconnector per channel
Number of channels	16
Connections - terminals	screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid, screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid, screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end
Product or component type	sub-base for plug-in relay
Range of product	Modicon ABE7
Complementary
[Ui] rated insulation voltage	2000 V terminals/mounting rails, 300 V coil circuit/contact circuits conforming to IEC 60947-1

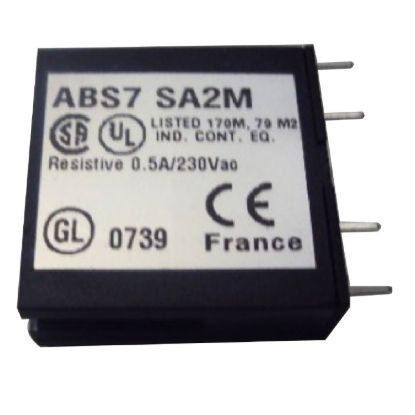

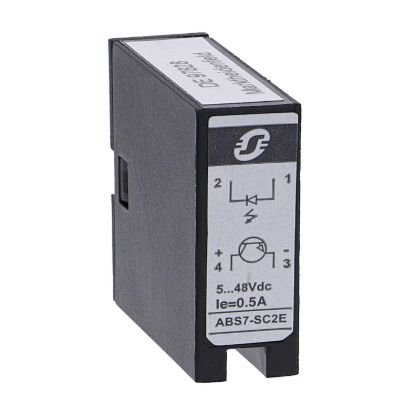

Product compatibility	ABE7ACC20, ABS7SC2., ABS7SA2., ABR7S2.
Voltage drop on power supply fuse	0.3 V
Supply circuit type	DC
Maximum supply current	1 A
Tightening torque	0.6 N.m with flat Ø 3.5 mm screwdriver
Polarity distribution	volt-free
Fixing mode	by screws (solid plate with fixing kit), by clips (35 mm symmetrical DIN rail)
Net weight	0.675 kg
Maximum current per output common	16 A
Installation category	II conforming to IEC 60664-1
Status LED	1 LED (green) power ON, 1 LED per channel (green) channel status
[Uimp] rated impulse withstand voltage	2.5 kV
Short-circuit protection	0.5 A fuse per channel, 5 x 20 mm, fast blow (output circuit), 1 A internal fuse, 5 x 20 mm, fast blow (PLC end)
Environment
Resistance to fast transients	2 kV level 3 conforming to IEC 61000-4-4
Resistance to electrostatic discharge	8 kV (air) level 3 conforming to IEC 61000-4-2, 4 kV (contact) level 3 conforming to IEC 61000-4-2
Ambient air temperature for storage	-40-80 °C conforming to IEC 61131-2
Resistance to incandescent wire	750 °C conforming to IEC 60695-2-11
Pollution degree	2 conforming to IEC 60664-1
IP degree of protection	IP2X conforming to IEC 60529
Vibration resistance	2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
Ambient air temperature for operation	-5-60 °C conforming to IEC 61131-2
Resistance to radiated fields	10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3
Product certifications	EAC, UL, DNV, GL, CSA
