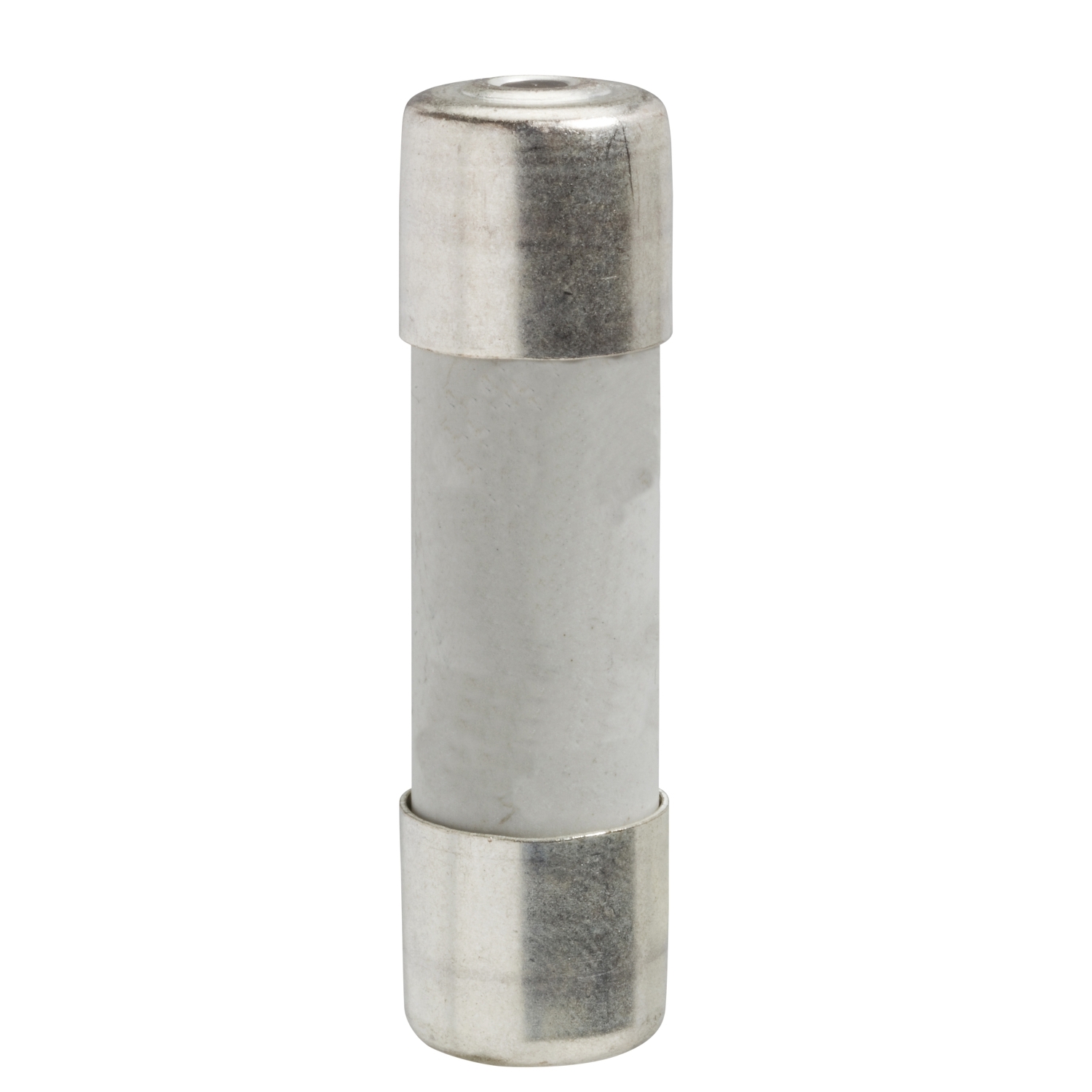

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a fuse cartridge type fast blow 0.5A. It has no indication marked on. It is used for the overload protection of electrical circuits and appliances. It is rated at 0.5A. It weighs 0.010kg, and measures 5mm wide and 20mm long. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. It is certified by UL. It is suitable for use with ABE7 connection sub-bases. It is delivered in 1 package (PCE type) containing 10 units. Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Accessory / separate part destination | connection sub-base |
| Accessory / separate part type | fast blow fuse |
| Quantity per set | set of 10 |
| Accessory / separate part category | fuses |
| Accessory / separate part designation | fast blow fuse |
| Range of product | Modicon ABE7 |
| Complementary | |
| [Ue] rated operational voltage | 250 V |
| Local signalling | without |
| [In] rated current | 0.5 A |
| Fuse curve | fast blow |
| Net weight | 0.01 kg |
| Fuse size | 5 x 20 mm |
| Environment | |
| Product certifications | UL |
