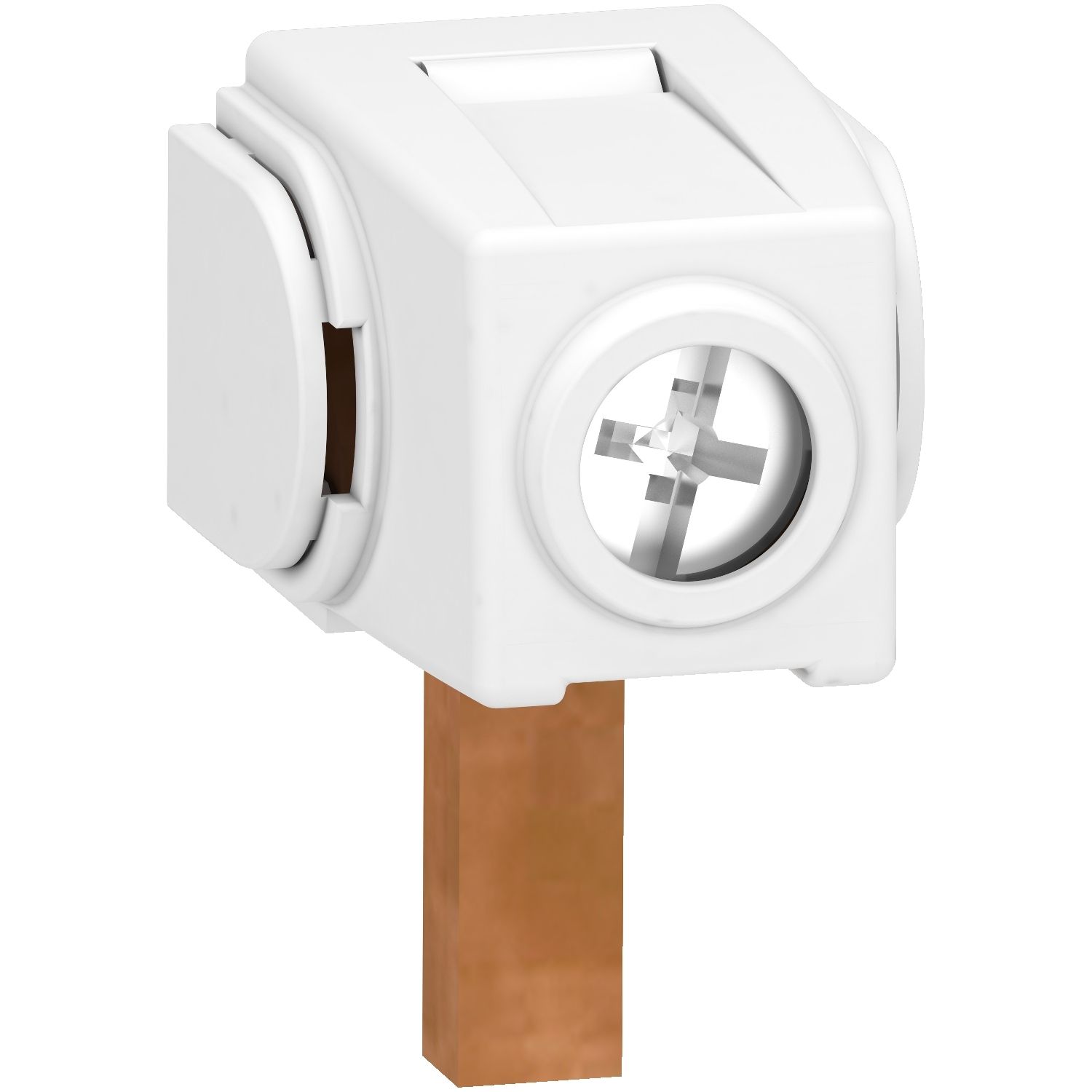

This Acti9 Linergy FH product is a set of 4 cable connectors. It facilitates the comb busbar power supply. it is compatible with iC60 and iK60 devices. The cross section of the cable connector is 35mm². The tightening torque is 4N.m. The In rated current is 100A. The color of the device is white (RAL 9003).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Quantity per set | set of 4 |
| Range | Acti9 |
| Product name | Linergy FH |
| Product or component type | connector |
| Accessory / separate part category | connection accessory |
| Range of product | Acti9 |
| Comb busbar and distribution block compatibility | double terminal |
| Complementary | |
| Product compatibility | iSW-NA, iID, STI, iK60, iID K, iC60, iSW switch disconnector |
| Tightening torque | 4-4 N.m |
| Market segment | small commercial |
| Colour | white (RAL 9003) |
| Range compatibility | Acti 9 Acti9 STI comb busbar, Acti 9 Acti9 iSW-NA comb busbar, Acti 9 Acti9 iSW comb busbar, Acti 9 Acti9 iID K comb busbar, Acti 9 Acti9 iID comb busbar, Acti 9 Acti9 iK60 comb busbar, Acti 9 Acti9 iC60 comb busbar |
| Connections - terminals | screw clamp terminals top connector35-35 mm² |
| [In] rated current | 100 A |
