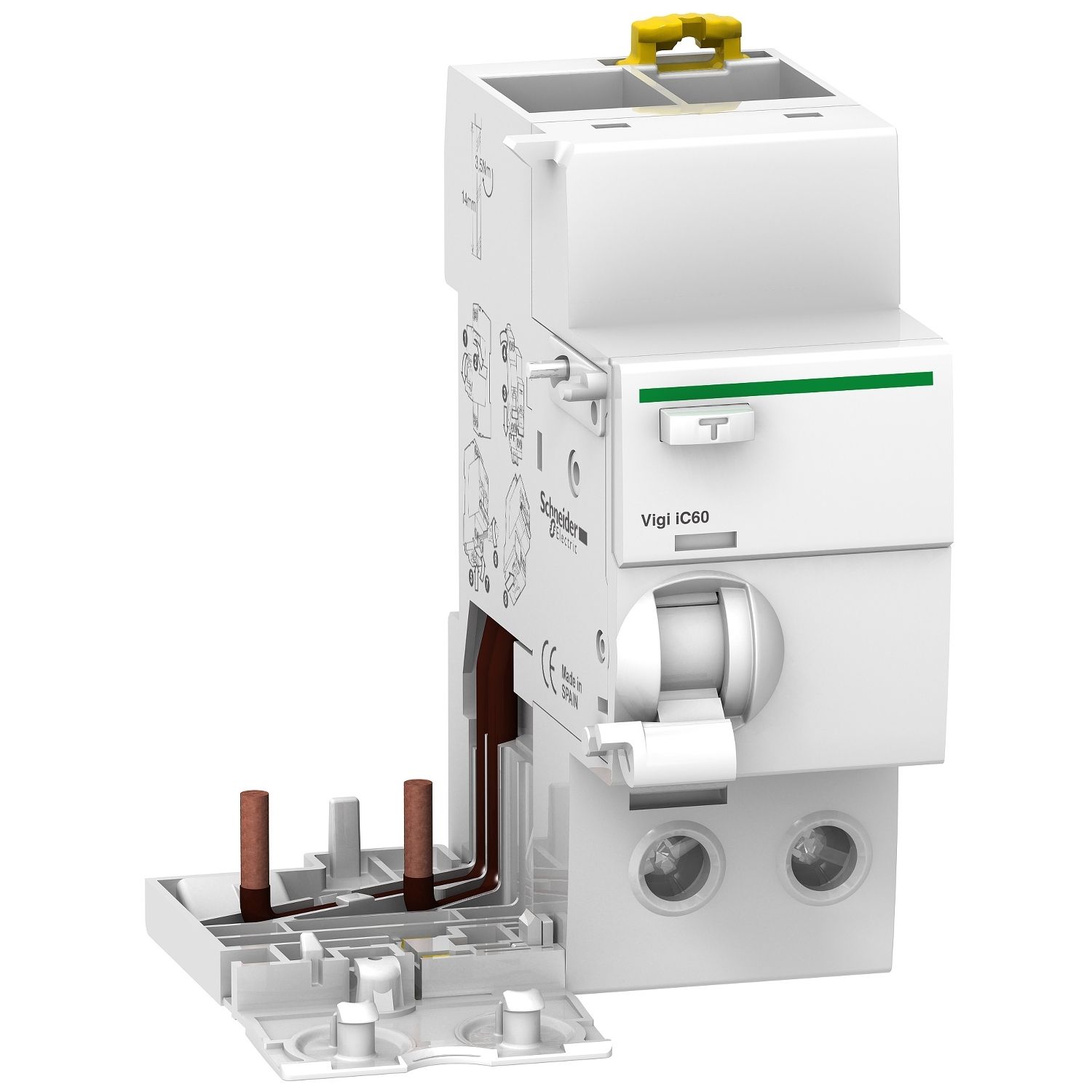

This Acti9 Vigi iC60 is a modular add-on residual current device. It is a 2P, rated current is 63A, operating voltage is 230VAC to 415VAC according to IEC 61009-1. The earth leakage protection class is A type with a sensitivity of 30mA and a voltage independent technology. This product protects against electrical shock by direct or indirect contact, and fire risks. A VisiTrip window is present to indicate a fault tripping by a red mechanical indicator on the front face. It has to be combined with a iC60 circuit breaker. This product is compliant with IEC 61009-1 and EN 61009-1 standards. The Ue rated operational voltage is 230VAC or 400VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 4. The dimensions are (W) 72mm x (H) 91mm x (D) 73.5mm. The weight is 165g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | Vigi iC60 |
| Range | Acti9 |
| Earth-leakage protection class | type A |
| Range of product | Reflex iC60, iC60 |
| [Ue] rated operational voltage | 230...240 V AC 50/60 Hz conforming to EN/IEC 61009-2-1, 230...240 V AC 50/60 Hz conforming to EN/IEC 61009-1 |
| Poles description | 2P |
| Earth-leakage protection time delay | instantaneous |
| Product or component type | add-on residual current devices |
| 9 mm pitches | 4 |
| Network type | AC |
| Standards | EN/IEC 61009-2-1, EN/IEC 61009-1 |
| [In] rated current | 63 A |
| Network frequency | 50/60 Hz |
| Complementary | |
| Product compatibility | single terminal |
| Tightening torque | 3.5-3.5 N.m bottom |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Width | 72 mm |
| Mounting mode | clip-on |
| Residual current tripping technology | voltage independent |
| Electrical connection to mcb | by screws |
| Wire stripping length | 14 mm for bottom connection |
| Comb busbar and distribution block compatibility | bottom: YES |
| Connections - terminals | tunnel type terminal downside for 1 cable(s) 1-25 mm² flexible with cable end, tunnel type terminal downside for 1 cable(s) 1-25 mm² flexible without cable end, tunnel type terminal downside for 1 cable(s) 1-35 mm² rigid without cable end |
| Height | 91 mm |
| Depth | 73.5 mm |
| Market segment | small commercial |
| Local signalling | trip indicator |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| Net weight | 0.165 kg |
| Device location in system | outgoer |
| Range compatibility | Acti 9 Acti9 Reflex iC60, Acti 9 Acti9 iC60 |
| Mounting support | DIN rail |
| Environment | |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 3 conforming to IEC 60947-2 |
| IP degree of protection | IP40 (modular enclosure) conforming to IEC 60529, IP20 conforming to IEC 60529 |
| Electromagnetic compatibility | 8/20 µs impulse withstand, 250 A conforming to IEC 61009-1 |
| Ambient air temperature for operation | -25-60 °C |
