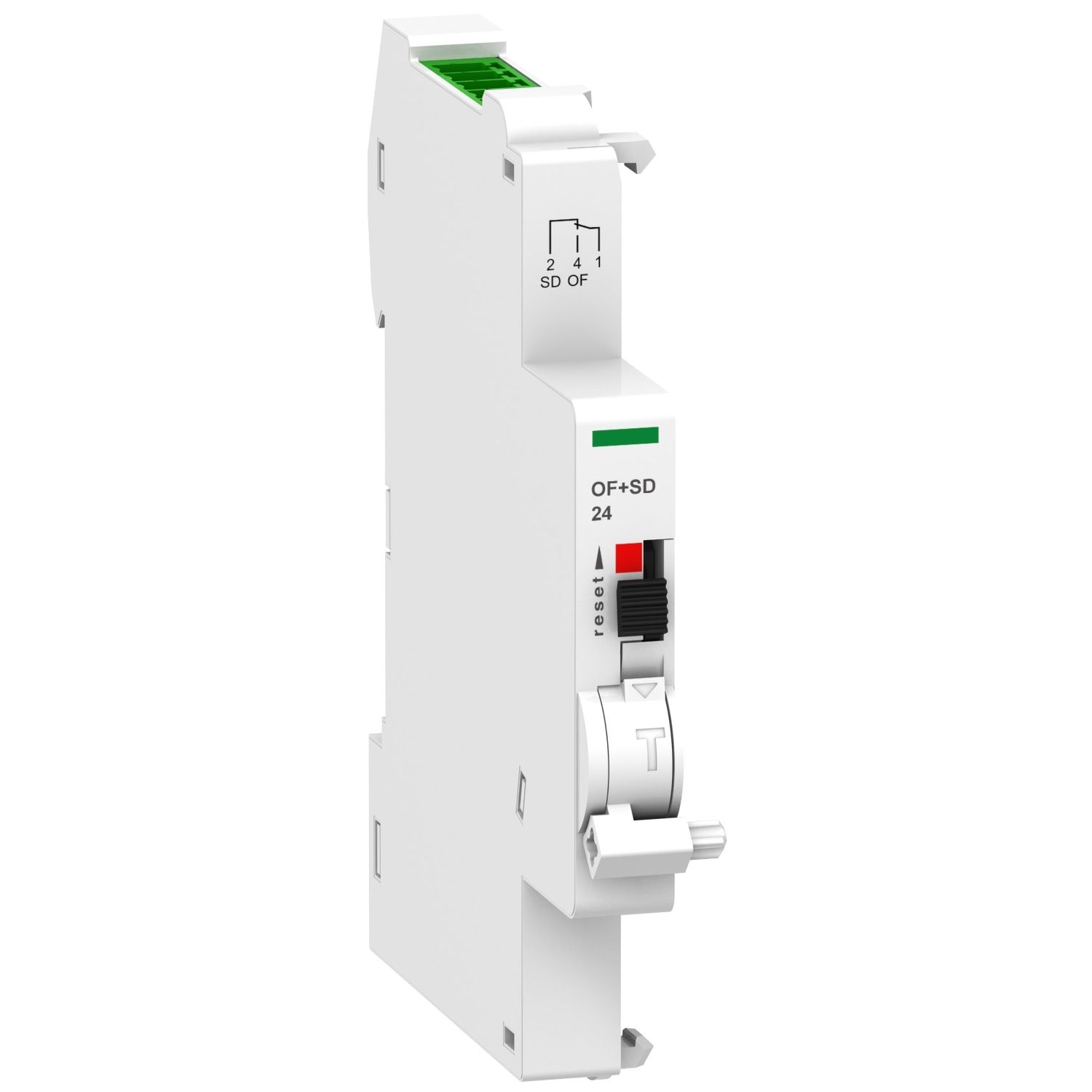

This Acti9 OF+SD24 electrical auxiliary is a double open/close or fault indicator contact. It is dedicated to iD, C60, C120, DPN, DPN Vigi, C60H-DC, SW60-DC, C60PV-DC, C60NA-DC, C120NA-DC It reports also the electrical fault, actuation of the tripping auxiliary, open or closed position of the associated device informations to a programmable logic controller. Remote indication of position and tripping upon a fault of the associated device. The 2 contacts (1NO + 1NC) can report the signalling information of the associated device to the Acti9 Smartlink. The width in 9mm pitches is 1. It is a ComReady device. There is a Test function on the toggle. The Ue rated operational voltage is 24VDC. The In rated operational current is 2mA (mini) up to 100 mA (maxi). The operating temperature is -25°C to + 70°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1. and IEC/EN 60947-5-4 standards.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | OF+SD 24 |
| Device application | for Smartlink interface |
| [In] rated current | DC-12 2-100 mA at 24 V, DC +/- 20 % |
| Signal contacts composition | 1 NO + 1 NC |
| Range | Acti9 |
| Product or component type | OC and fault contact |
| 9 mm pitches | 1 |
| Range of product | DT40, DT60, Clario, C60, C120, ITG40, I-NA, ProDis, Librio, DPN, DPN Vigi, ID, C40 |
| Complementary | |
| Product compatibility | C60NA-DC, C120, iDPN, C40, C60PV-DC, ID C40, DT60, ITG40, C120NA-DC, SW60-DC, with PLC, C60, C60H-DC, DPN Vigi, DT40, IDc |
| Depth | 73.5 mm |
| Market segment | residential, small commercial |
| Width | 9 mm |
| Colour | white |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60664-1 |
| Local signalling | mechanical indicator |
| Compatibility code | OF+SD 24 |
| Electrical durability | 20000 cycles conforming to IEC 60947-5-4 |
| Mounting mode | fixed |
| [Ui] rated insulation voltage | 500 V conforming to IEC 60664-1 |
| Wire stripping length | 10 mm |
| Net weight | 28 g |
| Connections - terminals | spring-loaded terminal Ti24 (top) 1 cable(s) 0.5-1.5 mm² - flexible, spring-loaded terminal Ti24 (top) 1 cable(s) 0.5-1.5 mm² - rigid |
| Comb busbar and distribution block compatibility | bottom: YES |
| Range compatibility | Acti 9 Acti9 C60NA-DC, Acti 9 Acti9 SW60-DC, Acti 9 Acti9 ITG40, Acti 9 Acti9 iDPN, Acti 9 Acti9 DPN, Acti 9 Acti9 C120NA-DC, Acti 9 Acti9 IDc, Acti 9 Acti9 DT60, Acti 9 Acti9 DT40, Acti 9 Acti9 C120, Acti 9 Acti9 ID C40, Acti 9 Acti9 C40, Acti 9 Acti9 C60PV-DC, Acti 9 Acti9 C60H-DC, Acti 9 connectors Ti24, Acti 9 Acti9 RCCB-ID, Acti 9 Acti9 DPN Vigi |
| Mounting support | DIN rail |
| Height | 85.5 mm |
| Environment | |
| Overvoltage category | III |
| Quality labels | CE |
| Relative humidity | 93-93 % at 40-40 °C |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 2 conforming to IEC 60664-1 |
| Tropicalisation | 2 conforming to IEC 60947-5-1 |
| Standards | IEC 60947-5-1, IEC 60947-5-4 |
| Ambient air temperature for operation | -25-70 °C |
