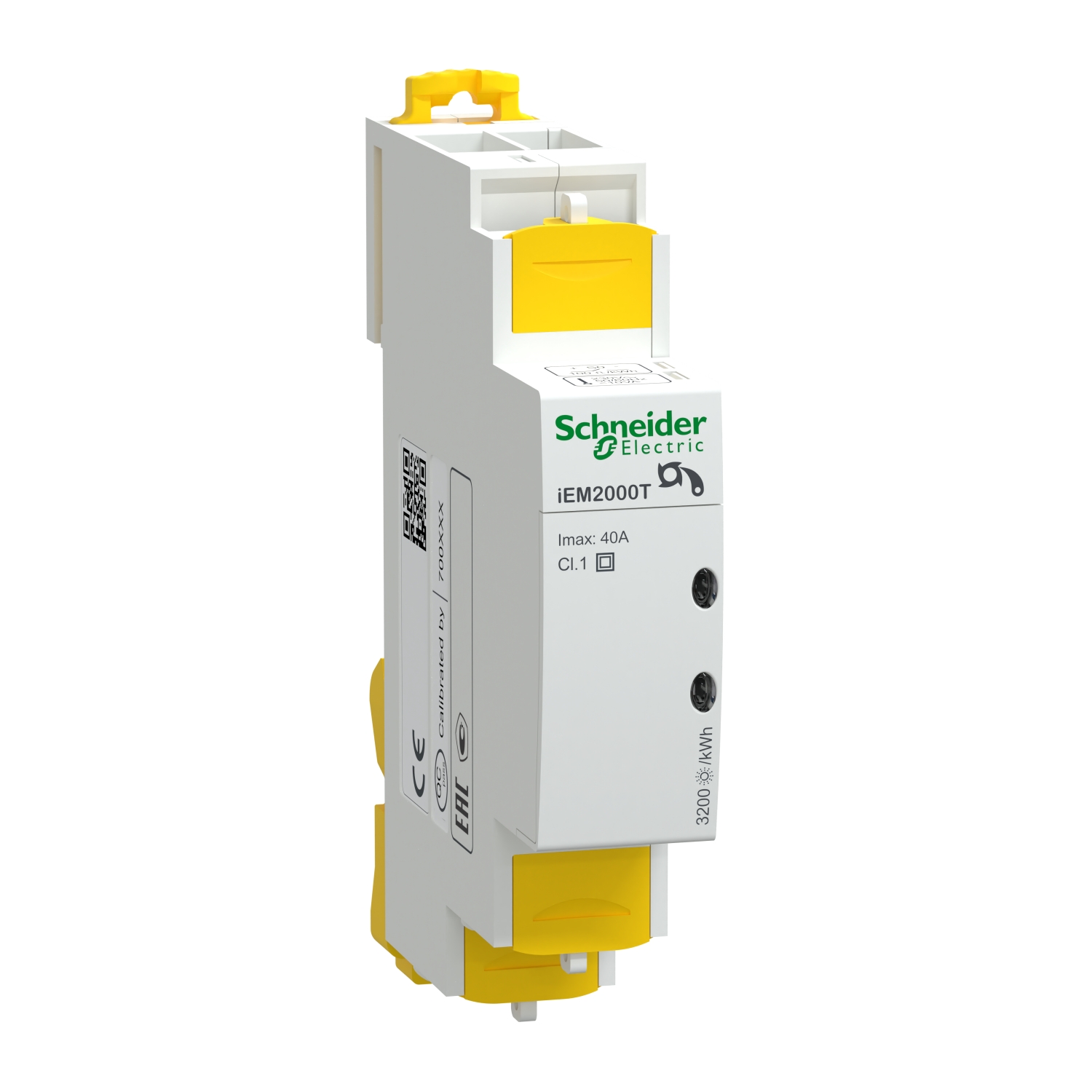

The Acti9 iEM2000 series energy meters offer an attractive range of single-phase DIN rail-mounted energy meters fitted for sub-billing or partial meter applications. This product family can be used to monitor power consumption for each floor, office sector, or unit and allocate energy cost for building management. This version do not include a display. Providing Class 1 active energy accuracy per IEC 62053-21 standard, the meter will measure Active Energy. Suitable for a 230VAC network, with a supply voltage range of 184 to 276 VAC at 50Hz or 60Hz. Direct connect current measurement up to 40A with 32 samples per cycle only in a Single Phase and Neutral configuration. Communication is assured by 1 pulse output. Product dimensions are as follows: width 18 mm, depth 67 mm, height 95 mm and product weight 73 g. Compatible with power management software to take advantage of the IoT digital power installation.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | iEM2000T |
| Range | Acti9 |
| Market segment | industry cost management: cost allocation: panelboard, healthcare cost management: cost allocation: panelboard, data center cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: panelboard, buildings medium building cost management: cost allocation: panelboard, buildings small building cost management: cost allocation: panelboard, industry cost management: billing: panelboard, healthcare cost management: billing: panelboard, data center cost management: billing: panelboard, buildings multi-site cost management: billing: panelboard, buildings large building cost management: billing: panelboard, buildings medium building cost management: billing: panelboard, buildings small building cost management: billing: panelboard |
| Product name | Acti9 iEM2000 |
| Product or component type | energy meter |
| Complementary | |
| [Ib] basic current | 5 A |
| Device application | sub billing |
| Tightening torque | remote transfer: 0.8-0.8 N.m, power circuit: 1.2-1.2 N.m |
| Display type | without display |
| Compatibility code | iEM2000T |
| Mounting mode | clip-on |
| Impulse duration | 120 ms |
| Number of inputs | 0-0 |
| Max current | 40 A |
| Frequency measurement range | 48-62 Hz |
| Communication port protocol | - |
| Type of measurement | active power |
| Product certifications | CE |
| Number of outputs | 1 pulse energy monitoring: |
| Output voltage | 5...35 V DC@20 mA |
| Communication port support | - |
| Rated voltage | 230-230 V +/- 20 % |
| Maximum power consumption in VA | 10 VA at 240 V AC |
| Accuracy class | class 1 active energy conforming to IEC 62053-21 |
| Market segment | small commercial, residential |
| Analogue input type | direct input |
| [In] rated current | 40 A |
| Poles description | 1P + N |
| Technology type | electronic |
| Connections - terminals | remote transfer: tunnel type terminals (top) 1 4-4 mm² cable(s) , power circuit: tunnel type terminals (bottom) 1 10-10 mm² cable(s) |
| Local signalling | yellow indicator light: metering and activity 3200 p/kWh, green indicator light: power ON |
| Measurement current | 0.25-40 A |
| Display digits | 0 |
| Mounting support | DIN rail |
| Standards | IEC 62053-21, IEC 61557-12 |
| Sampling rate | 32 samples/cycle |
| Network frequency | 50 Hz, 60 Hz |
| Environment | |
| IP degree of protection | IP20 casing: , IP40 front panel: conforming to IEC 60529 |
| Relative humidity | 0-95 % at 55-55 °C |
| Ambient air temperature for storage | -40-70 °C |
| Colour | white |
| Height | 96.5 mm |
| Ambient air temperature for operation | -20-55 °C, -25-65 °C |
| Operating altitude | < 2000 m |
| Depth | 69 mm |
| Width | 18 mm |
| Net weight | 0.073 kg |
| 9 mm pitches | 2 |
