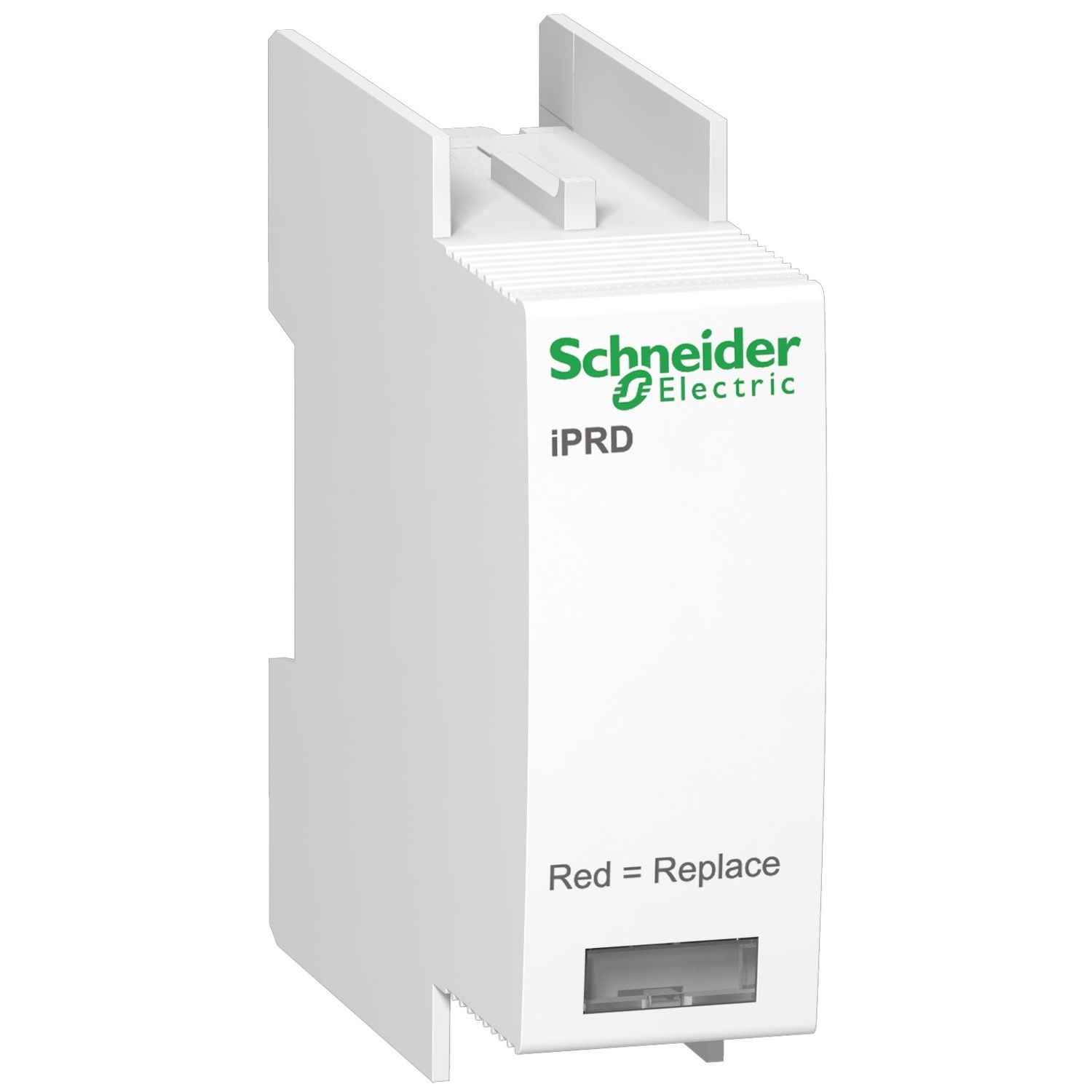

This Acti9 product is a cartridge C65-350 for surge arrester iPRD. The Imax maximum discharge current is 65kA. The In nominal discharge current is 20kA. This product is compatible with TT and TN earthing system. This Type 2 device autoprotected by integrated circuit-breaker is recommended for moderate risk level in incoming panel board. The Uc maximum continuous operating voltage is 350VAC. The Up Voltage protection level is 1.5kV. It can be plugged into a surge protecting device module. Its width is 57 mm pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 18mm x (H) 57mm x (D) 56mm. According to IEC 60529 standard, the degree of protection is IP20 or IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. It is compliant with IEC 61643-1 and EN 61643-11 standards.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | C65-350 |
| Range of product | iPRD |
| Surge arrester type | electrical distribution network |
| Product or component type | cartridge |
| Complementary | |
| Colour | white (RAL 9003) |
| [Ue] rated operational voltage | 230 V AC 50 Hz |
| Maximum [Up] voltage protection level | <1.5 kV type 2 |
| Local signalling | flag (white/red) |
| Mounting mode | plug-in |
| [Uc] maximum continuous operating voltage | 350 V |
| Earthing system | TT, TN |
| Surge arrester class type | type 2 |
| Height | 57 mm |
| Surge arrester technology | MOV |
| Depth | 56 mm |
| Width | 18 mm |
| Response time | < 25 ns |
| Net weight | 0.075 kg |
| Material | PBT (polybutylene terephthalate) |
| Product destination | surge protection device iPRD65r 4P, surge protection device iPRD65r 3P, surge protection device iPRD65r 2P, surge protection device iPRD65r 1P |
| Maximum discharge current | 65 kA |
| 9 mm pitches | 2 |
| Nominal discharge current | 20 kA |
| Mounting support | into SPD module |
| Environment | |
| IP degree of protection | IP20 front face: |
| Relative humidity | 5-90 % |
| Ambient air temperature for storage | -40-85 °C |
| Standards | IEC 61643-11: 2011, EN 61643-11 |
| Ambient air temperature for operation | -25-60 °C |
| Operating altitude | 0...2000 m |
| Quality labels | CE |
