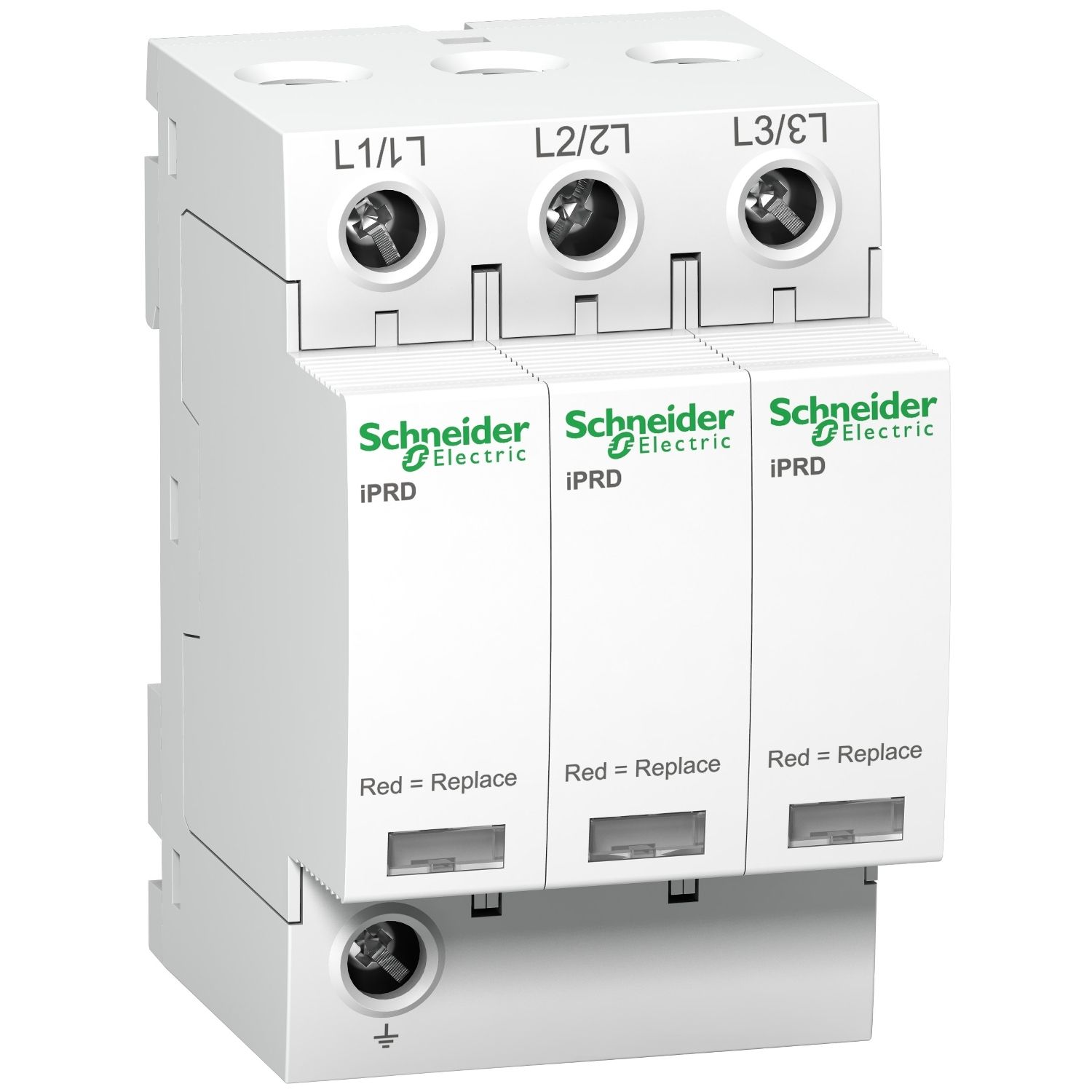

This Acti9 iPRD8 surge arrester protects 3P installations. It allows quick replacement of damaged cartridges. The Imax maximum discharge current is 8kA .The In nominal discharge current is 2.5kA. The iPRD8r ensures secondary protection of loads to be protected and is placed in cascade with the incoming surge arresters. This surge arrester is required when the loads to be protected are at a distance of more than 10 m from the incoming surge arrester. The Uc maximum continuous operating voltage in common mode (between phase and earth) is 350VAC. The Up Voltage protection level in common mode (between phase and earth) is 1.2kV. The Ue rated operational voltage is 230VAC or 400VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 54mm x (H) 85mm x (D) 69mm. The weight is 340g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | iPRD8 |
| Device application | distribution |
| Range | Acti9 |
| Earthing system | IT 230, TN-C |
| Standards | IEC 61643-11:2011, EN 61643-11:2012 |
| Range of product | iPRD |
| Poles description | 3P |
| Surge arrester type | electrical distribution network |
| Quality labels | NF, KEMA-KEUR |
| Product name | Acti9 iPRD |
| Product or component type | surge arrester with pluggable cartridge |
| Remote signalling | without |
| Product certifications | CE |
| Complementary | |
| Residual current | 0.6 mA |
| Tightening torque | 3.5-3.5 N.m |
| Colour | white (RAL 9003) |
| [Ue] rated operational voltage | 230/400 V AC (+/- 10 %) at 50/60 Hz |
| Compatibility code | iPRD8 |
| Maximum [Up] voltage protection level | common mode <1.2 kV type 3 L/PE, common mode <1.2 kV type 2 L/PE |
| [Uoc] open circuit voltage | 10 kV type 3 common mode L/PE |
| Disconnector device type | associated fuse gG 80 A - Icu 50 kA, associated fuse gG 25 A - Icu 15 kA, associated circuit breaker iC60H 10 A curve C - Icu 15 kA, associated circuit breaker IC60N 10 A curve C - Icu 10 kA, associated circuit breaker iC60L 10 A curve C - Icu 25 kA |
| Connections - terminals | tunnel type terminal (top or bottom) 4-16 mm² flexible with ferrule, tunnel type terminal (top or bottom) 4-16 mm² flexible, tunnel type terminal (top or bottom) 2.5-25 mm² rigid |
| [Uc] maximum continuous operating voltage | common mode: 350 V L/PE |
| [Ut] temporary overvoltage | 1455 V L/PE 200 ms safe failure mode, 422 V L/PE 720 ms withstand, 1200 V N/PE 200 ms safe failure mode, 337 V L/N 5 s withstand |
| Surge arrester class type | type 2 + 3 |
| Height | 85 mm |
| Surge arrester technology | MOV |
| Depth | 69 mm |
| Width | 54 mm |
| Net weight | 340 g |
| Maximum discharge current | common mode: 8 kA L/PE |
| 9 mm pitches | 6 |
| Nominal discharge current | common mode: 2.5 kA (L/PE) |
| Mounting mode | clip-on (DIN rail) |
| Environment | |
| Relative humidity | 5-95 % |
| Ambient air temperature for storage | -40-85 °C |
| Ambient air temperature for operation | -25-60 °C |
| IK degree of protection | IK03 conforming to IEC 62262 |
| Operating altitude | 2000 m |
