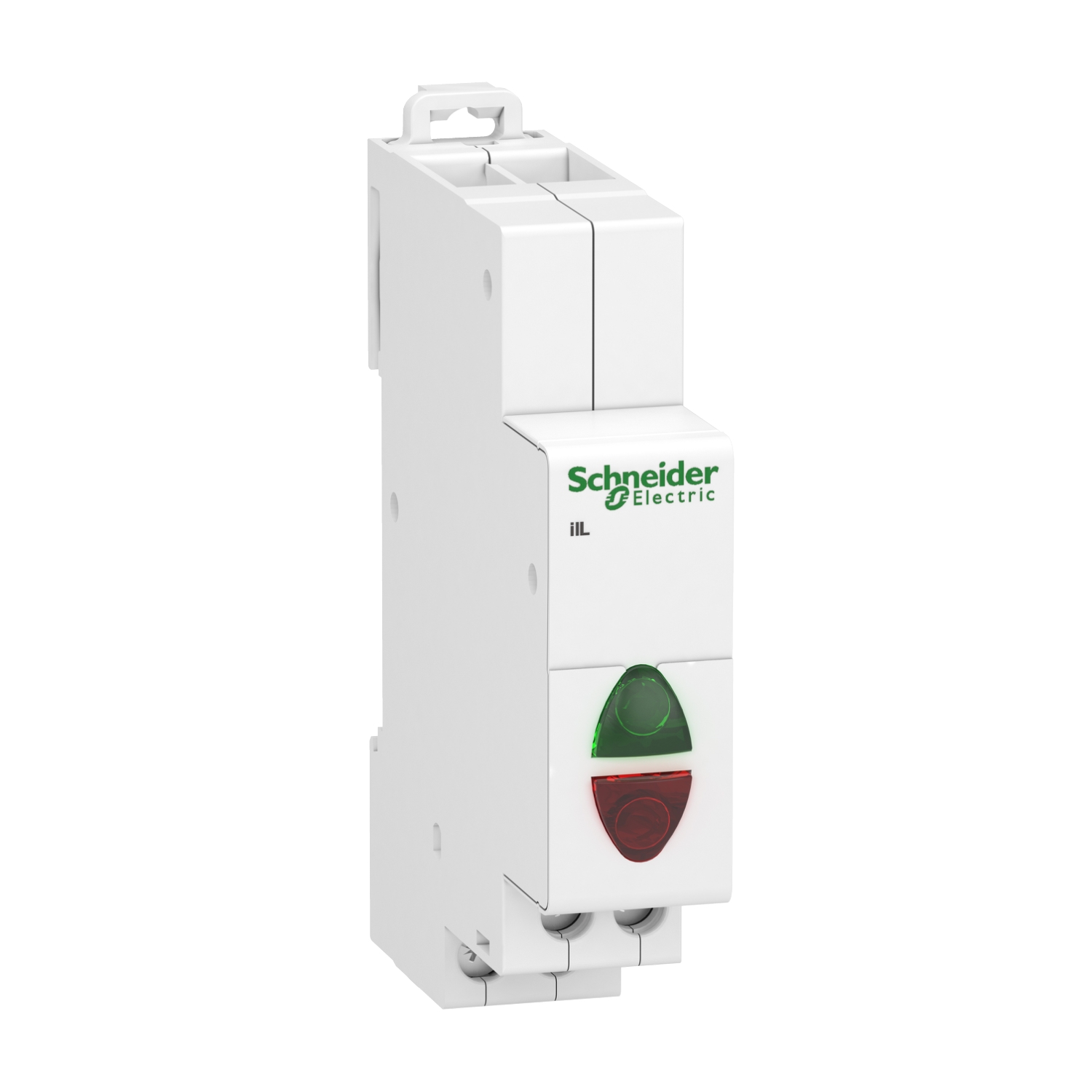

This Acti9 iIL accessory is a double modular pilot light fixed on DIN rail. It has at front face a green and a red LEDs of 0.3W with a service life of 100000 hours. The Us rated supply voltage is 100VAC to 230VAC at a 50/60Hz frequency, or is 110VDC to 130VDC.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Us] rated supply voltage | 110...130 V DC, 110...230 V AC at 50/60 Hz |
| Device short name | iIL |
| Range | Acti9 |
| Product name | Acti9 iIL |
| Product or component type | modular pilot ligth |
| Range of product | Acti9 |
| Complementary | |
| Auxiliary connection terminal | tunnel type terminal 2 cable(s) flexible with ferrule 2.5-2.5 mm², tunnel type terminal 2 cable(s) flexible 2.5-2.5 mm², tunnel type terminal 1 cable(s) flexible 0.5-0.5 mm², tunnel type terminal 2 cable(s) rigid 2.5-2.5 mm², tunnel type terminal 1 cable(s) rigid 0.5-0.5 mm² |
| Tightening torque | 1-1 N.m |
| Depth | 69.5 mm |
| Market segment | residential, small commercial |
| Width | 18 mm |
| Colour | white (RAL 9003) |
| Compatibility code | iIL |
| Mounting mode | fixed |
| Wire stripping length | 9 mm |
| Comb busbar and distribution block compatibility | upside: ProDis |
| Local signalling | 2 LEDs green/red, service life 100000 h of constant lighting efficiency (consumption 0.6 W) |
| 9 mm pitches | 2 |
| Mounting support | symmetrical DIN rail |
| Height | 82 mm |
| Environment | |
| Relative humidity | 95-95 % at 55-55 °C |
| Ambient air temperature for storage | -40-80 °C |
| Pollution degree | 2 |
| IP degree of protection | IPxx B, IP2 |
| Tropicalisation | 2 |
| Standards | IEC 60947-5-1 |
| Ambient air temperature for operation | -35-70 °C |
