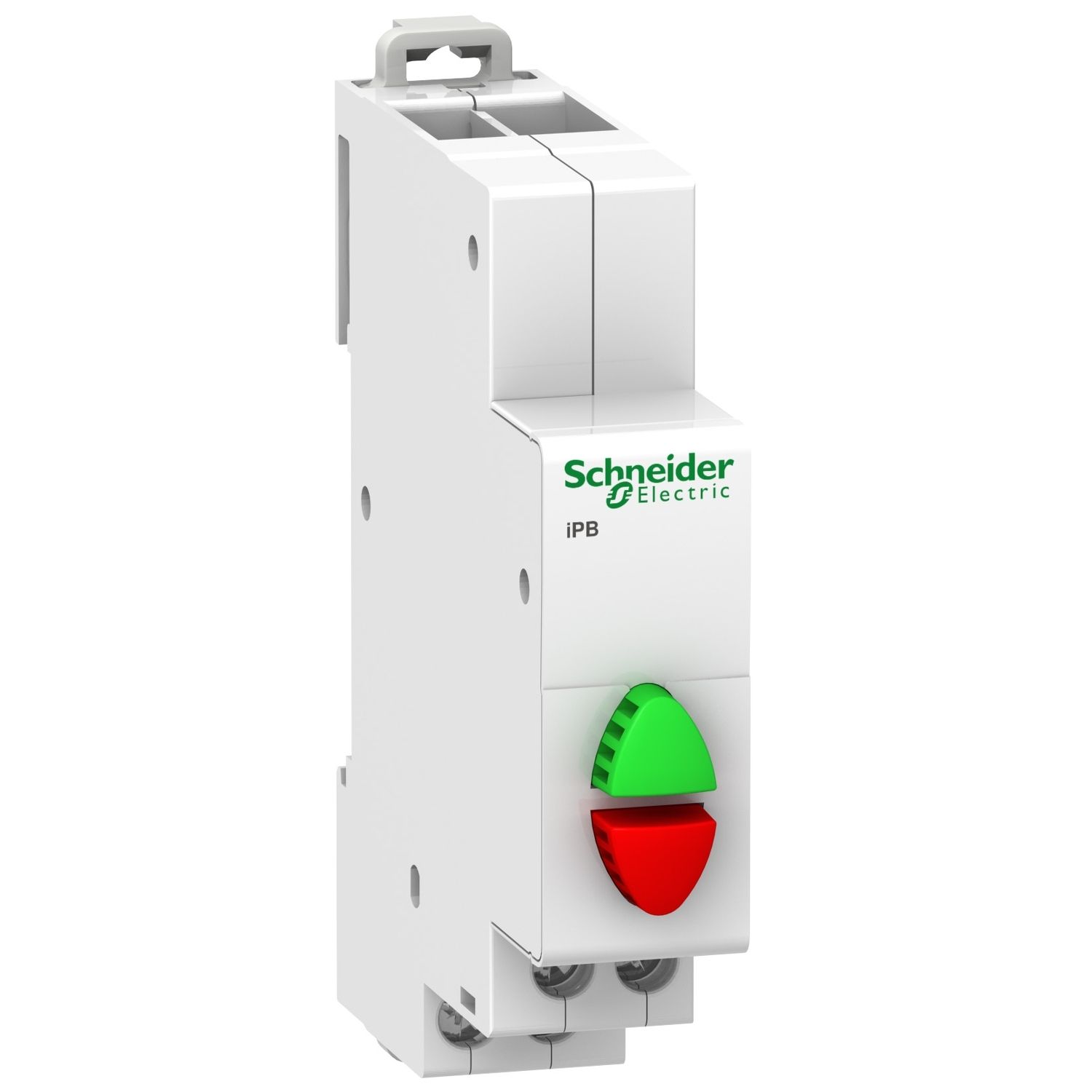

This Acti9 iPB product is a modular pusbutton used to control electric circuits. It has normally open contact (NO) for one push-button and a normally close contact for the other push-button (NO). The bottom push-button is red and the top one is green. It comes with staggered terminals to simplify connection. The tightening torque of connection is 1N.m.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | iPB |
| Range | Acti9 |
| Product name | Acti9 iPB |
| Product or component type | push-button |
| Standards | IEC 60669-1, IEC 60947-5-1 |
| Range of product | iPB |
| Complementary | |
| [Ue] rated operational voltage | 250 V AC |
| Tightening torque | 1-1 N.m |
| Depth | 71.5 mm |
| Market segment | residential, small commercial |
| Width | 18 mm |
| Compatibility code | iPB |
| [Ie] rated operational current | 20 A |
| Colour | white |
| Electrical durability | AC-22: 30000 cycles AC 50/60 Hz |
| Mounting mode | fixed |
| Contacts type and composition | 1 NO, 1 NC |
| Control type | 2 push-button green/red |
| Wire stripping length | 9 mm |
| Connections - terminals | staggered tunnel terminal2 cable(s) 2.5-2.5 mm² flexible with ferrule, staggered tunnel terminal2 cable(s) 2.5-2.5 mm² flexible, staggered tunnel terminal2 cable(s) 2.5-2.5 mm² rigid, staggered tunnel terminal1 cable(s) 0.5-0.5 mm² flexible with ferrule, staggered tunnel terminal1 cable(s) 0.5-0.5 mm² flexible, staggered tunnel terminal1 cable(s) 0.5-0.5 mm² rigid |
| Comb busbar and distribution block compatibility | upside: ProDis, upside: Librio, upside: Clario |
| 9 mm pitches | 2 |
| Mounting support | 35 mm symmetrical DIN rail |
| Height | 82 mm |
| Environment | |
| Relative humidity | 95-95 % at 55-55 °C |
| Ambient air temperature for storage | -40-80 °C |
| Tropicalisation | 2 |
| Ambient air temperature for operation | -35-70 °C |
