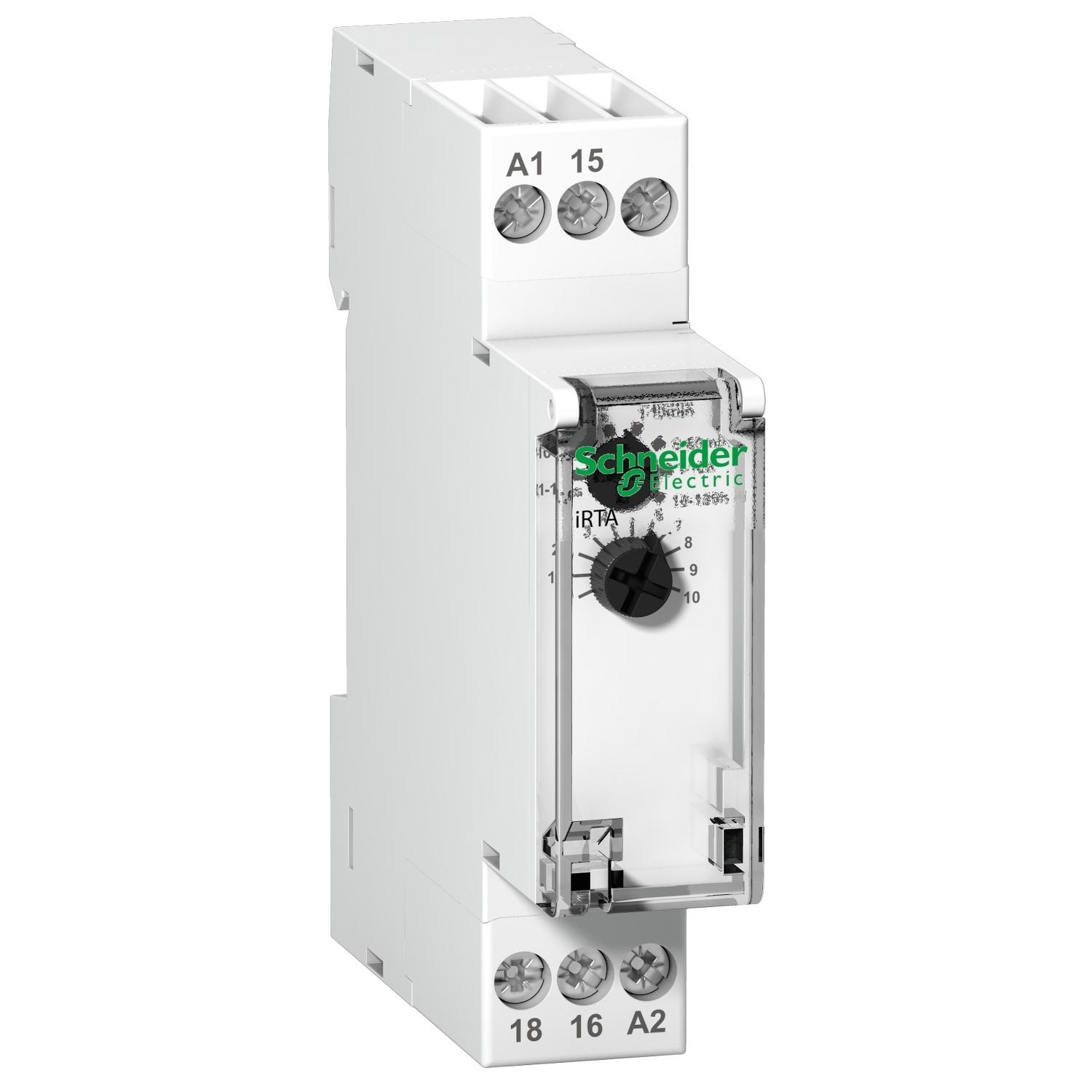

This Acti9 iRTA is an operating Time delay relay. The time delay range is 0.1s to 100h. It delays emergizing of a load. The single time daily cycle starts at the switching ON of the iRTA relay power supply. The Uc control and power supply voltage is from 24VAC to 240VAC +/- 10% and 24VDC +/- 10%. The load is energized at the end of the time delay T. The operating frequency is 50Hz or 60Hz. The precision of the device is +/- 10% of the full scale. The minimum duration of control impulse is 100ms. The maximum resetting time per voltage interruption is 100ms. The nominal switching current is 21A at 250VAC. The mechanical endurance under AC1 category is over 5 x 10exp6 switchning operations. The electrical endurance under AC1 category is over 10exp5 switchning operations. The type of excitation is analog (ou analogue) with single function. The device is flashing during time delay. It includes a changeover contact. The width in 9mm pitches is 2. The degree of protection is IP20. The dimensions are (W) 18mm x (H) 90mm x (D) 72mm. The weight is 65g. The operating temperature is -5°C to + 55°C. The storage temperature is -40°C to + 70°C.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | iRTA |
| Time delay type | delays energizing of a load |
| Range | Acti9 |
| Signal contacts composition | 1 C/O |
| Product name | iRT |
| Product or component type | relay |
| Relay application | time delay relay |
| Complementary | |
| Type of setting | rotary knob: time delay configuration |
| Compatibility code | iRTA |
| [Ie] rated operational current | 0.01 A at 5 V DC, 8 A at 250 V DC, 8 A at 250 V AC |
| Colour | white |
| Electrical durability | AC-1: 100000 cycles |
| Mounting mode | fixed |
| Impulse duration | > 100 ms |
| Repeat accuracy | +/- 0.5 % |
| Connections - terminals | tunnel type terminals for 2 cable(s) 2.5-2.5 mm² rigid without cable end, tunnel type terminals for 2 cable(s) 2.5-2.5 mm² rigid with cable end, tunnel type terminals for 2 cable(s) 1.5-1.5 mm² flexible without cable end, tunnel type terminals for 2 cable(s) 1.5-1.5 mm² flexible with cable end |
| Height | 93 mm |
| [Us] rated supply voltage | 24 V DC, 24...240 V AC at 50/60 Hz |
| Depth | 72 mm |
| Accuracy error | +/- 10 % |
| Market segment | residential, small commercial |
| Width | 18 mm |
| Mechanical durability | 5000000 cycles |
| Local signalling | LED green for power ON, LED, flashing for time delay |
| Time delay range | 0.1...360000 s |
| Net weight | 0.065 kg |
| 9 mm pitches | 2 |
| Mounting support | 35 mm symmetrical DIN rail |
| [Uc] control circuit voltage | 24 V DC, 24...240 V AC 50/60 Hz |
| Undervoltage behaviour | 100 ms |
| Environment | |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP20 |
| Immunity to microbreaks | 20 ms |
| Ambient air temperature for operation | -5-55 °C |
