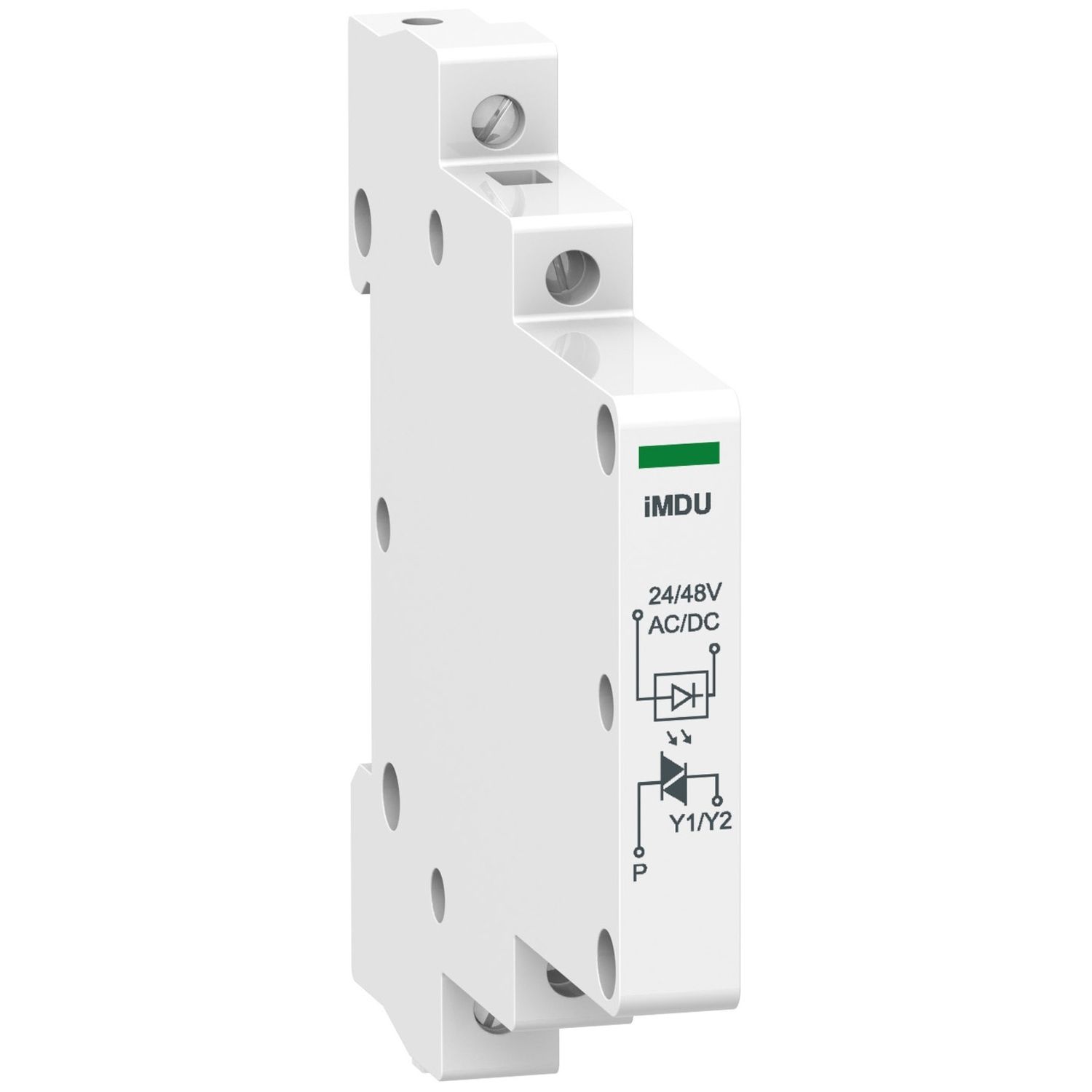

This Acti9 iMDU product is a voltage adaptation module. It is intended to be used with iC60 or Reflex iC60 devices.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | iMDU |
| Range | Acti9 |
| Product or component type | voltage adaptor |
| Range of product | iC60, Reflex iC60 |
| Complementary | |
| Auxiliary connection terminal | tunnel type terminalsflexible with ferrule 1.5-1.5 mm², tunnel type terminalsflexible 1.5-1.5 mm², tunnel type terminalsrigid 1.5-1.5 mm² |
| Tightening torque | 1-1 N.m |
| Depth | 74 mm |
| Market segment | small commercial |
| Width | 9 mm |
| Compatibility code | iMDU |
| Colour | white |
| Mounting mode | fixed |
| [Ui] rated insulation voltage | 500 V |
| Wire stripping length | 6 mm |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Net weight | 53 g |
| 9 mm pitches | 1 |
| Range compatibility | Acti 9 Acti9 Reflex iC60, Acti 9 Acti9 RCA |
| Mounting support | 35 mm symmetrical DIN rail |
| Height | 78 mm |
| [Uc] control circuit voltage | 24...48 V AC/DC |
| Environment | |
| Relative humidity | 95-95 % at 55-55 °C |
| Ambient air temperature for storage | -40-80 °C |
| IP degree of protection | IP40 in modular enclosure (Insulation class II) conforming to IEC 60529, IP20 conforming to IEC 60529 |
| Tropicalisation | 2 |
| Ambient air temperature for operation | -20-60 °C |
