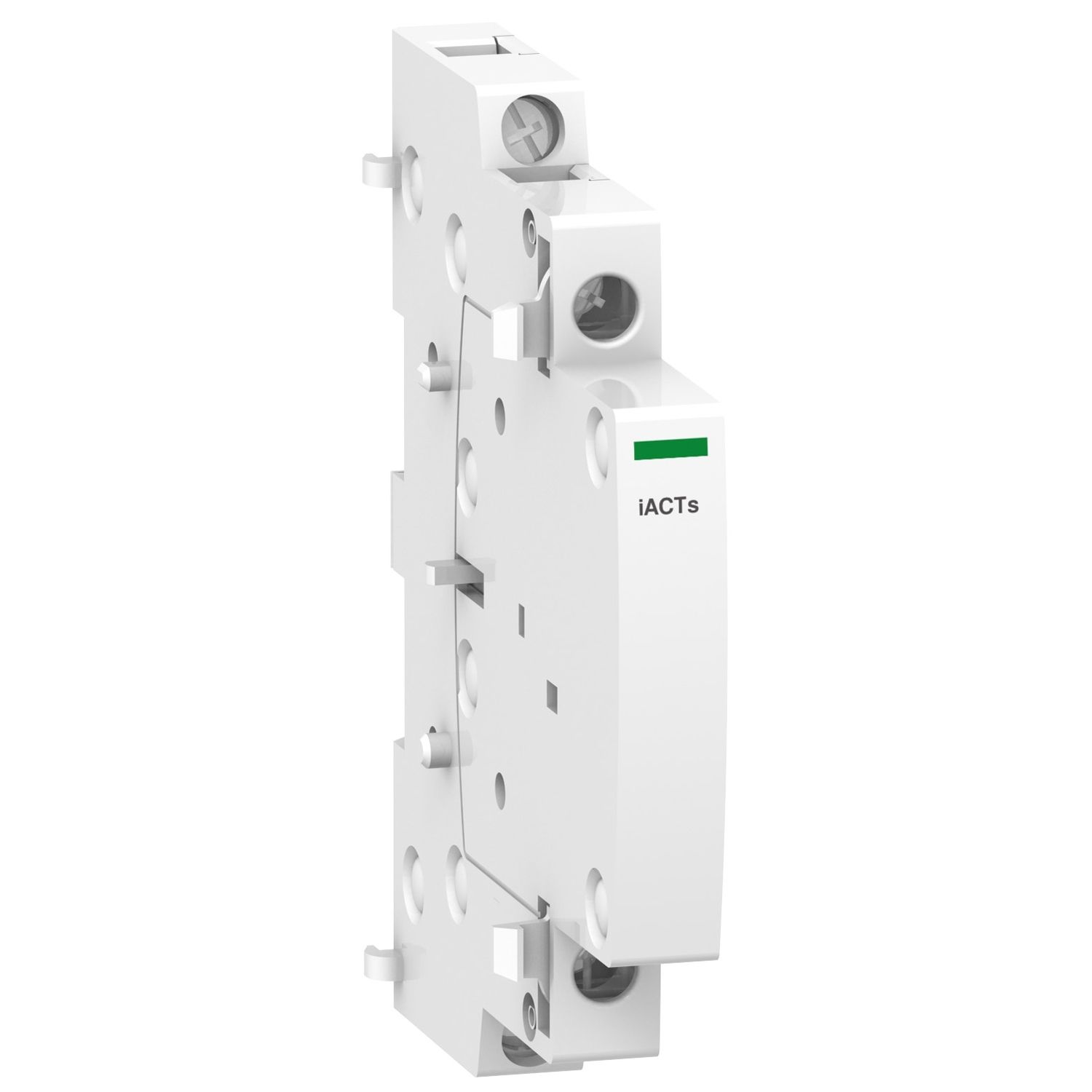

This Acti9 iACTs is reliable remote indication auxiliary. It has 1 open and close 1 contacts, it operates from 24VAC to 240VAC and 24VDC to 130VDC. Mounting is performed on the right of Acti9 iCT contactors. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is compatible with all Acti9 iCT Contactors. This product helps reporting the status of a contactor and is especially required in a connected environment. This product is compliant with EN 60947-5.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | iACTs |
| Signal contacts composition | 1 NO + 1 NC |
| Range | Acti9 |
| Product or component type | remote indication auxiliary |
| Range of product | iCT |
| Complementary | |
| Auxiliary connection terminal | tunnel type terminals1 cable(s) flexible 1.5-2.5 mm², tunnel type terminals1 cable(s) rigid 1.5-2.5 mm², tunnel type terminals2 cable(s) rigid 1.5-1.5 mm², tunnel type terminals2 cable(s) flexible 2.5-2.5 mm² |
| Product compatibility | iCT |
| Tightening torque | 0.8-0.8 N.m |
| Depth | 68 mm |
| Market segment | residential, small commercial |
| Width | 9 mm |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Compatibility code | iACTs |
| Colour | white |
| Mounting mode | fixed, on the right of CT |
| [Ui] rated insulation voltage | 440 V |
| Wire stripping length | 9 mm |
| Signalling circuit voltage | 130 V DC: 1 A, 230 V AC: 50/60 Hz 2 A, 230 V AC: 50/60 Hz 5 A, 24 V AC/DC: 10 mA |
| 9 mm pitches | 1 |
| [Uc] control circuit voltage | 24...130 V DC, 24...240 V AC 50/60 Hz |
| Range compatibility | Acti 9 Acti9 iCT |
| Mounting support | 35 mm symmetrical DIN rail |
| Height | 81 mm |
| Environment | |
| Relative humidity | 95-95 % at 55-55 °C |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP20 conforming to IEC 60529, IP20 |
| Tropicalisation | 2 |
| Standards | EN 60947-5 |
| Ambient air temperature for operation | -5-50 °C |
