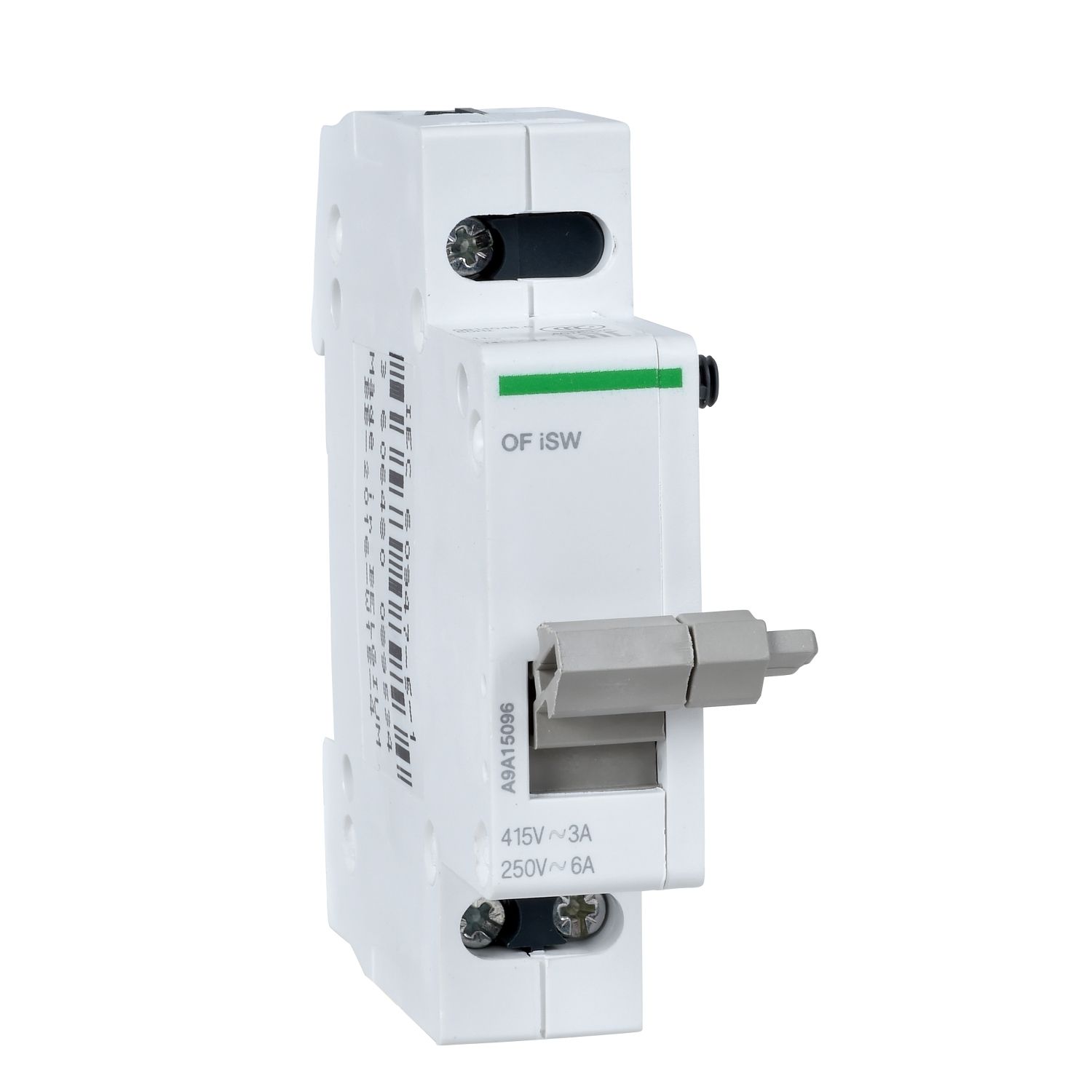

This Acti9 iOF is a contact auxiliary for iSW. it has a changeover contact, rated current is 3A at 415VAC and 6A at 250VAC. Mounting is performed on the left of Acti9 iSW switches with operational current less than or equal to 32A. The width in 9mm pitches is 2. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The dimensions are (W) 18mm x (H) 77mm x (D) 75mm.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | iOF |
| Range | Acti9 |
| Range of product | iSW 20...32 |
| Signal contacts composition | 1 C/O |
| Product or component type | OC contact |
| Complementary | |
| Auxiliary connection terminal | screw terminal 10-10 mm² |
| Compatibility code | iOF |
| [Ie] rated operational current | 6 A at 250 V AC, 3 A at 415 V AC |
| Colour | white |
| Mounting mode | fixed |
| Height | 77 mm |
| Depth | 75 mm |
| Market segment | small commercial |
| Width | 18 mm |
| 9 mm pitches | 2 |
| Range compatibility | Acti 9 Acti9 iSW |
| Mounting support | 35 mm DIN rail |
