Operating mechanism, flange mounted, variable depth, handle mechanism, 6in handle, NEMA 1, 3R, 4, 12 enclosure

Used with all disconnect switch and circuit breaker installations

Designed for variable depth, flange mounting applications

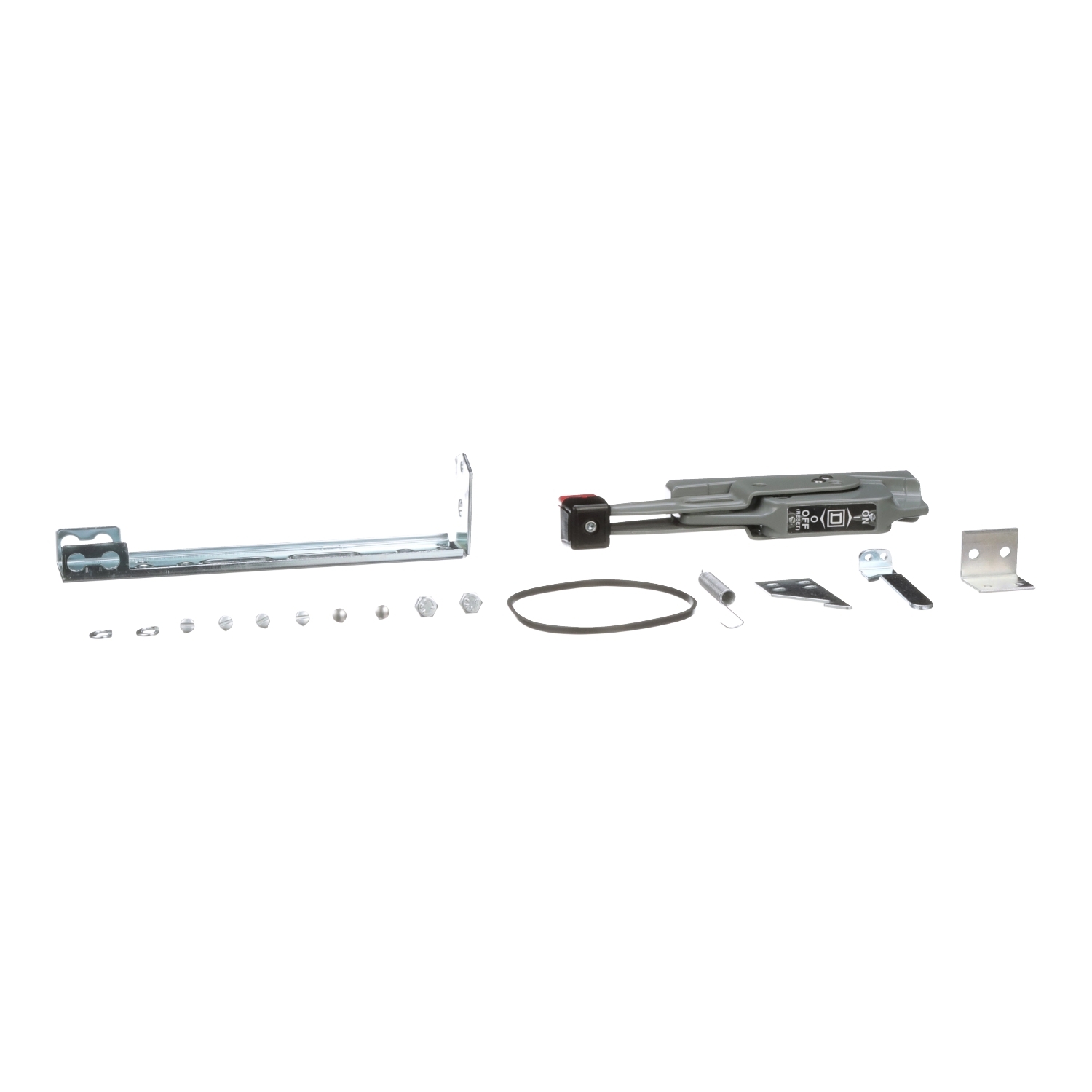

Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure

Two mounting methods offered for flexibility

Disconnect switches were designed for control panel installations

Manufacturer: Square D

SKU: 9422A1

GTIN: 785901739739

PDF

Image of product

User guide

Instruction sheet

Catalog

Full Description

Handle mechanism is used with circuit breaker variable depth and cable operating mechanisms. Kit contains all of the parts required to mount the handle to the flange of the enclosure. Handle is used with 30A to 200A, 9422 switches and all circuit breaker mechanisms. Handle is suitable for right or left hand flange mounting. The handle is 6 inches long. This handle is used on NEMA Type 1, 3, 3R, 4 sheet steel and 12 enclosures. Handle mechanism is UL Component Recognized.

Old price: $363.55 inc GST

Price: $144.29 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Product or component type	Handle Mechanism
Range of product	9422A
Product destination	all circuit breaker mechanisms, disconnect switches (30...200 A)
Complementary
Specificity of operator	variable depth
Product compatibility	NEMA 1/3/3R/4/12 enclosures
Net weight	1.26 kg
Length	6 in
Product destination	disconnect switches (30...200 A), all circuit breaker mechanisms
Contractual warranty
Warranty	18
