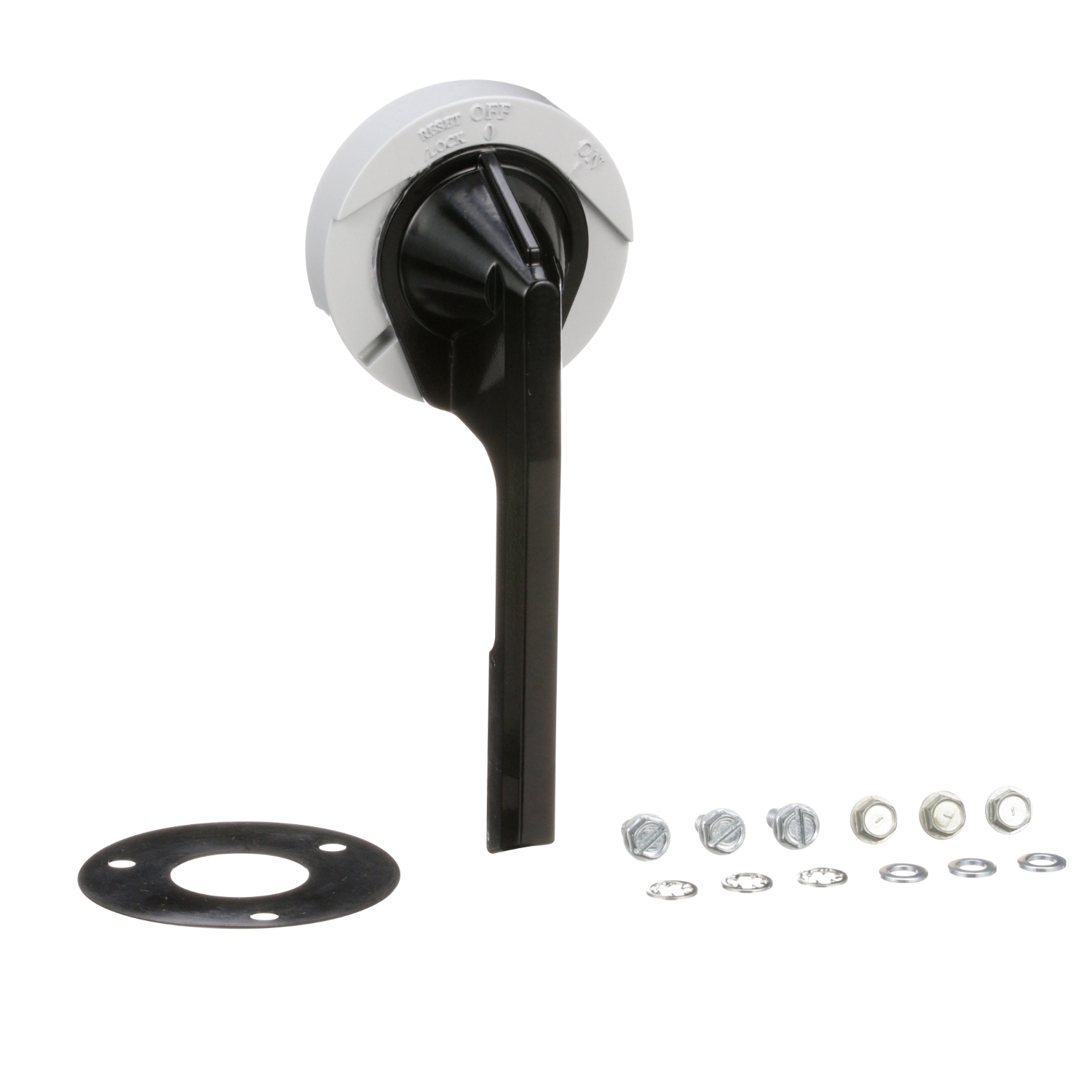

Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 1/3R/12
Manufacturer: Square D
SKU: 9421LH6
GTIN: 785901830108
Old price: $326.15 inc GST
$129.45 inc GST
Supported cards
Supported cards
Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This handle assembly will work with the operating mechanism for a 2 or 3 pole PowerPact H, and PowerPact J, Compact NSF circuit breakers with a 125A frame size. This handle assembly will also work with the operating mechanism for a 2 or 3 pole PowerPact H, and PowerPact J circuit breakers with a 250A frame size. This handle assembly has a 6 inch handle. This handle assembly is rated for NEMA Type 1, 3R and 12. This handle assembly is UL Component Recognized and CSA certified.

Products specifications

Attribute name Attribute value
Main
Product or component type Handle Assembly
Range of product 9421L
Complementary
Product compatibility NEMA 1/3R/12 enclosure
Surface finish painted black
Length 6 in
Product destination 9421LG7, LF1, LK1, LJ7 or LL1 operating mechanism
