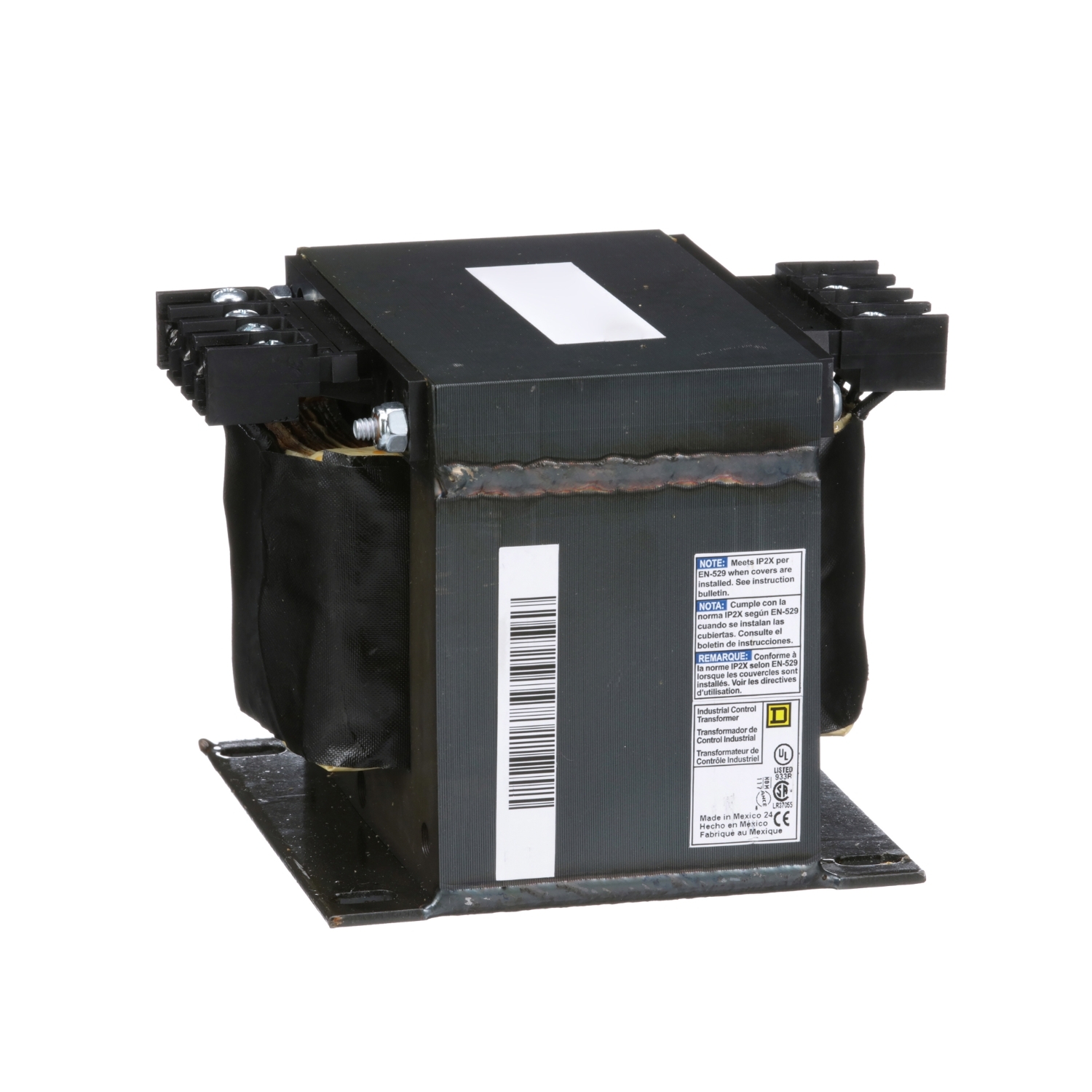

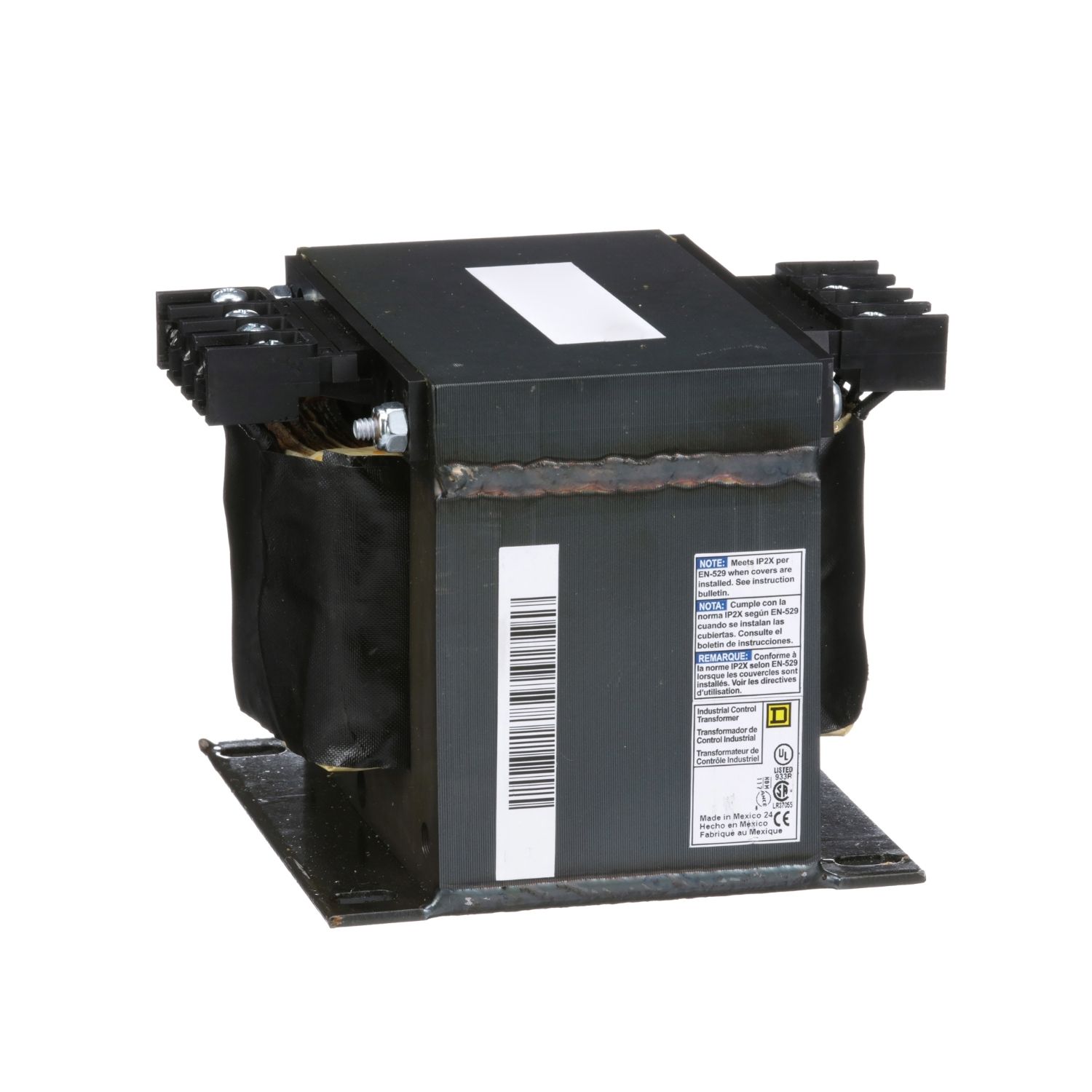

Transformer, Type T, industrial control, 1000VA, 1 phase, 550/575/600V primary, 120/240V secondary, 115C rise
  • Designed with various temperature classes
  • 50/60 Hz rated
  • Customer installed accessories
  • UL Listed, cUL, CSA certified
Manufacturer: Square D
SKU: 9070T1000D37
The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 100VA and is 1 phase. It has a 550/575/600V primary voltage and 120/240V secondary voltage. It also has a temperature rise of 115 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.
Availability: Out of stock
Old price: $1,127.02 inc GST
$1,622.91 inc GST
Supported cards
Supported cards

Products specifications

Attribute name Attribute value
Main
Range of product T
Product or component type Industrial Control Transformer
Complementary
Height 4.51 in
Temperature rise 115 °C
Rated power in VA 1000 VA per UL, 1000 VA per CSA, 1000 VA per NOM, 630 VA per CE
Network number of phases 1 phase
Electrical connection screw clamp terminals
Width 5.25 in
Depth 6.3 in
Product compatibility FSC2
Primary voltage 550/575/600 V: 120/240 V, 550/575/600 V: 115/230 V, 550/575/600 V: 110/220 V
Environment
Product certifications CSA, UL listed
NEMA degree of protection not rated (open device)
Insulation temperature 180 °C
Contractual warranty
Warranty 18
