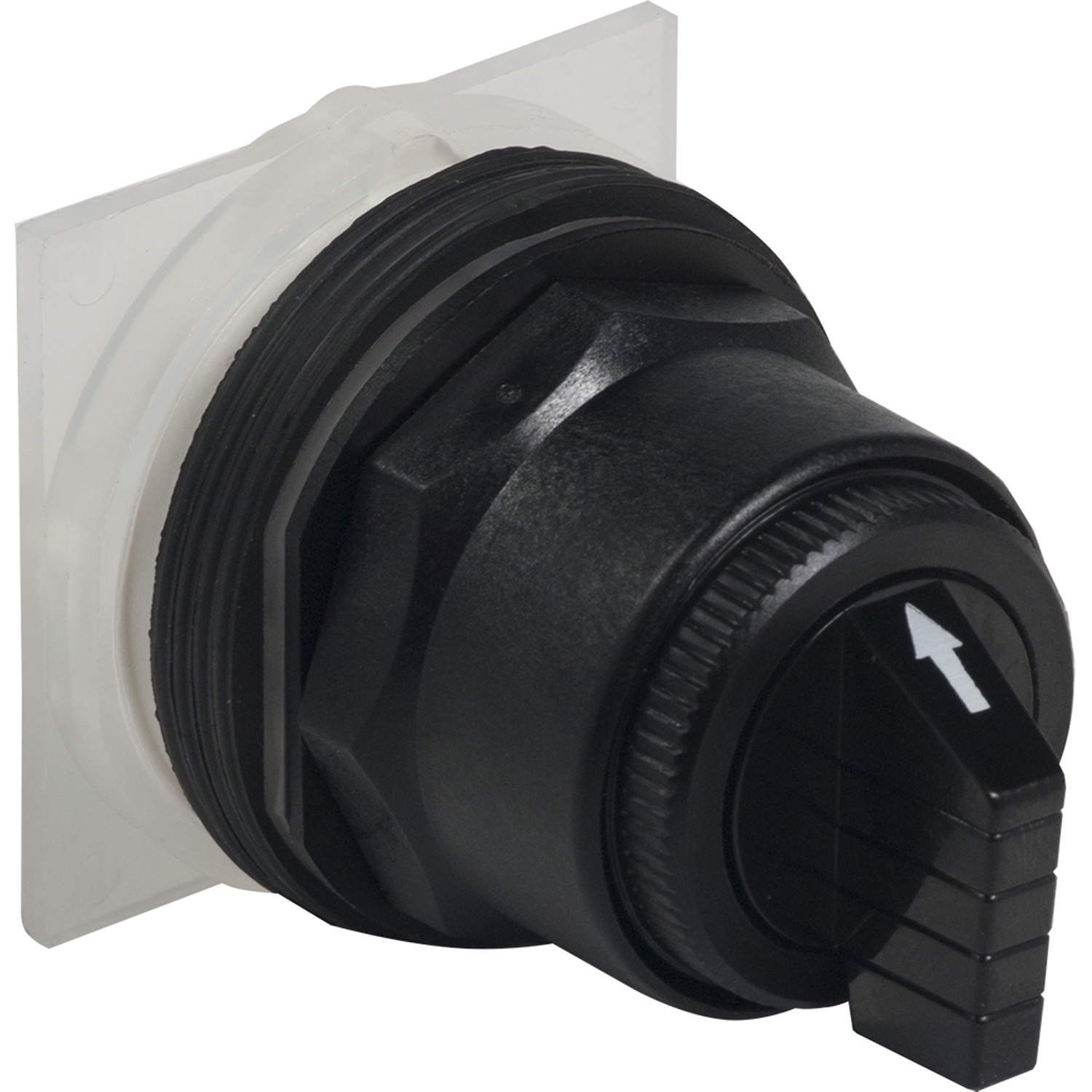

This selector switch provides a versatile interface for controlling your machines It provides an effective manner to set your machine in various operating modes It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | 9001SK |
| Product or component type | head for selector switch |
| Range of product | Harmony 9001SK |
| Complementary | |
| Return | both sides to centre |
| Type of operator | spring return |
| Compatibility code | 9001SK |
| Operator position information | 3 positions |
| Bezel material | plastic |
| Contacts type and composition | without contact block |
| Device presentation | basic element |
| Size | 30 mm |
| Cap/operator or lens colour | black |
| Operator profile | standard handle |
| Mounting diameter | 30 mm |
| Cam profile | 2 |
| Environment | |
| Protective treatment | TC |
| Electrical shock protection class | class II conforming to IEC 61140 |
| NEMA degree of protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Ambient air temperature for operation | -25-70 °C |
| Product certifications | CE, CSA LR24590 class 3211 03, UL listed file E42259 CCN NKCR |
