| Attribute name | Attribute value |
|---|---|
| Main | |

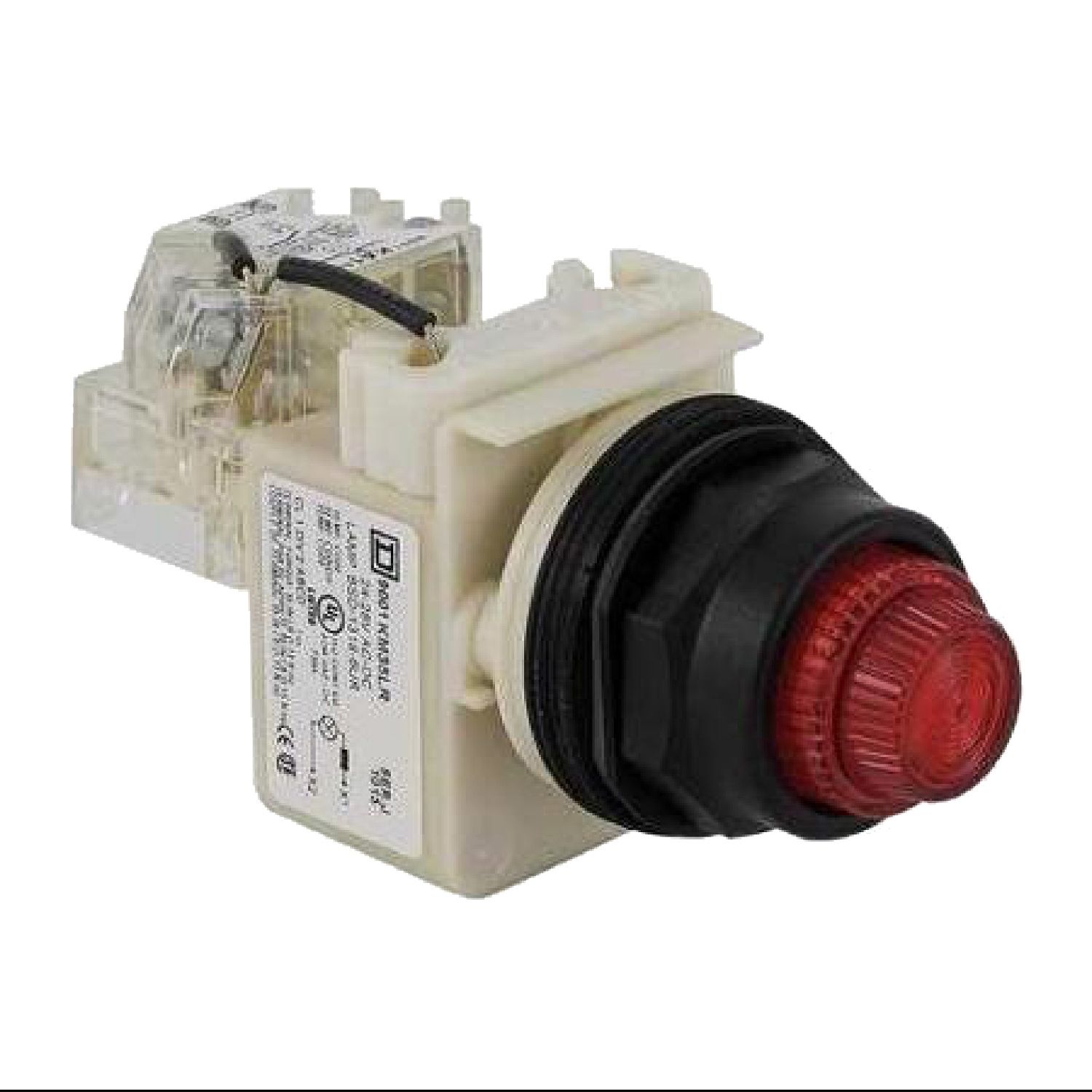

| Product or component type | push-to-test pilot light |
| Operator profile | red projecting, unmarked |
| Range of product | Harmony 9001K |
| Type of operator | spring return |
| Device short name | 9001K |
| Complementary | |
| [Us] rated supply voltage | 24...28 V AC/DC, 24 V AC/DC, 24...28 V |
| Short-circuit protection | 10 A cartridge fuse conforming to IEC 60947-5-1 |
| Lens material | polycarbonate |
| Light source | LED |
| Positive opening | without |
| Mounting diameter | 30 mm |
| [Ith] conventional free air thermal current | 10 A |
| Shape of signaling unit head | octagonal |
| Net weight | 0.235 kg |
| Size | 30 mm |
| [Uimp] rated impulse withstand voltage | 2.5 kV conforming to IEC 60947-1 |
| [Icm] rated short-circuit making capacity | 0.1 kA at 600 V DC-13, 7200 VA, 0.27 kA at 250 V DC-13, 7200 VA, 0.55 kA at 125 V DC-13, 7200 VA, 12 kA at 600 V AC-15, 7200 VA, 15 kA at 480 V AC-15, 7200 VA, 30 kA at 240 V AC-15, 7200 VA, 60 kA at 120 V AC-15, 7200 VA |
| Contacts type and composition | 1 C/O |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| Bezel material | metal |
| Shape of screw head | cross slotted |
| Bulb base | BA 9s |
| Contacts material | silver alloy contacts |
| Light block supply | direct |
| Rated breaking capacity | 1.2 kA at 600 V AC-15, 720 VA, 1.5 kA at 480 V AC-15, 720 VA, 3 kA at 240 V AC-15, 720 VA, 6 kA at 120 V AC-15, 720 VA, 0.1 kA at 600 V DC-13, 0.27 kA at 250 V DC-13, 0.55 kA at 125 V DC-13 |
| Cap/operator or lens colour | red |
| Device presentation | complete product |
| Lens type | fresnel |
| Connections - terminals | screw clamp terminals 1 x 0.22...2 x 1.5 mm² conforming to IEC 60947-1 |
| Contact operation | standard |
| Light source colour | red |
| Mechanical durability | 5000000 cycles |
| Compatibility code | 9001K |
| Operating position | any position |
| Tightening torque | 0.8-0.8 N.m conforming to IEC 60947-1 |
| Environment | |
| Product certifications | UL 508, NEMA |
| Standards | IEC 60947-1, IEC 60947-5-4, CSA C22.2 No 14, UL 508, JIS C8201-5-1, JIS C 852, IEC 60947-5-1, JIS C8201-1 |
| Vibration resistance | 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| NEMA degree of protection | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4 |
| Electrical shock protection class | class II conforming to IEC 61140 |
| Ambient air temperature for operation | -25-70 °C |
| Shock resistance | 50 gn conforming to IEC 60068-2-27 |
| IP degree of protection | IP66 conforming to IEC 60529, IP65/IP66 |
| Ambient air temperature for storage | -40-70 °C |
| Protective treatment | TC |
| Contractual warranty | |
| Warranty | 18 |
