Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

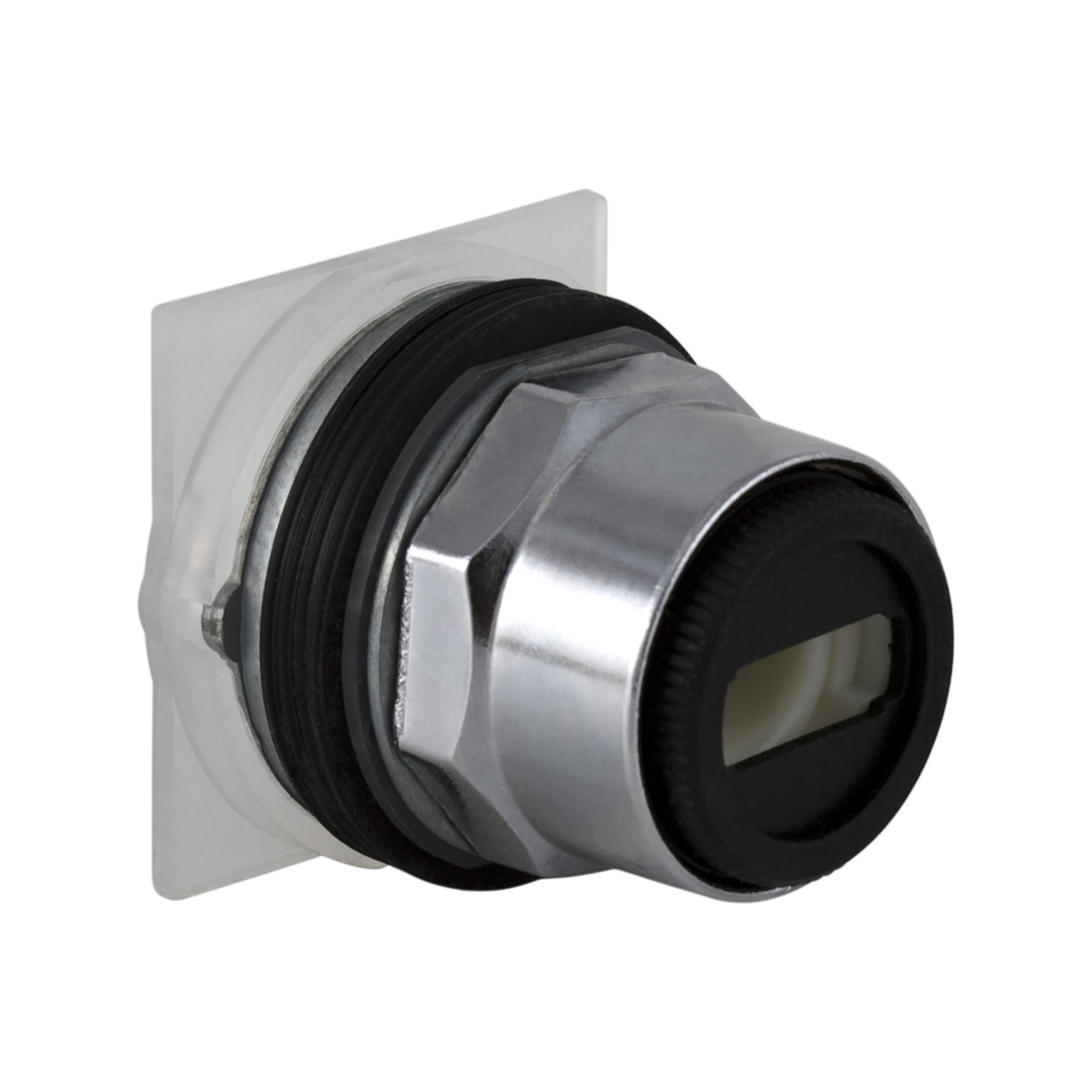

| Device short name | 9001KS |
| Product or component type | head for selector switch |
| Type of operator | left to centre spring return |
| Range of product | Harmony 9001K |
| Complementary | |
| Return | left to centre |
| Type of operator | spring return |
| Mechanical durability | 500000 cycles |
| Operator position information | 3 positions |
| Bezel material | metal |
| Contacts type and composition | without contact block |
| Device presentation | basic element |
| Size | 30 mm |
| Net weight | 0.245 kg |
| Shape of signaling unit head | round |
| Operator profile | without handle |
| Mounting diameter | 30 mm |
| Cam profile | 2 |
| Environment | |
| Protective treatment | TC |
| NEMA degree of protection | NEMA 6, NEMA 4, NEMA 3R, NEMA 3, NEMA 2, NEMA 13, NEMA 12, NEMA 1 |
| Overvoltage category | class II conforming to IEC 61140 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Vibration resistance | 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn conforming to IEC 60068-2-27 |
| Standards | EN/IEC 60947-1, JIS C 4520, EN/IEC 60947-5-4, EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C 852, UL 508 |
| Ambient air temperature for operation | -25-70 °C |
| Product certifications | NEMA, UL 508 |
