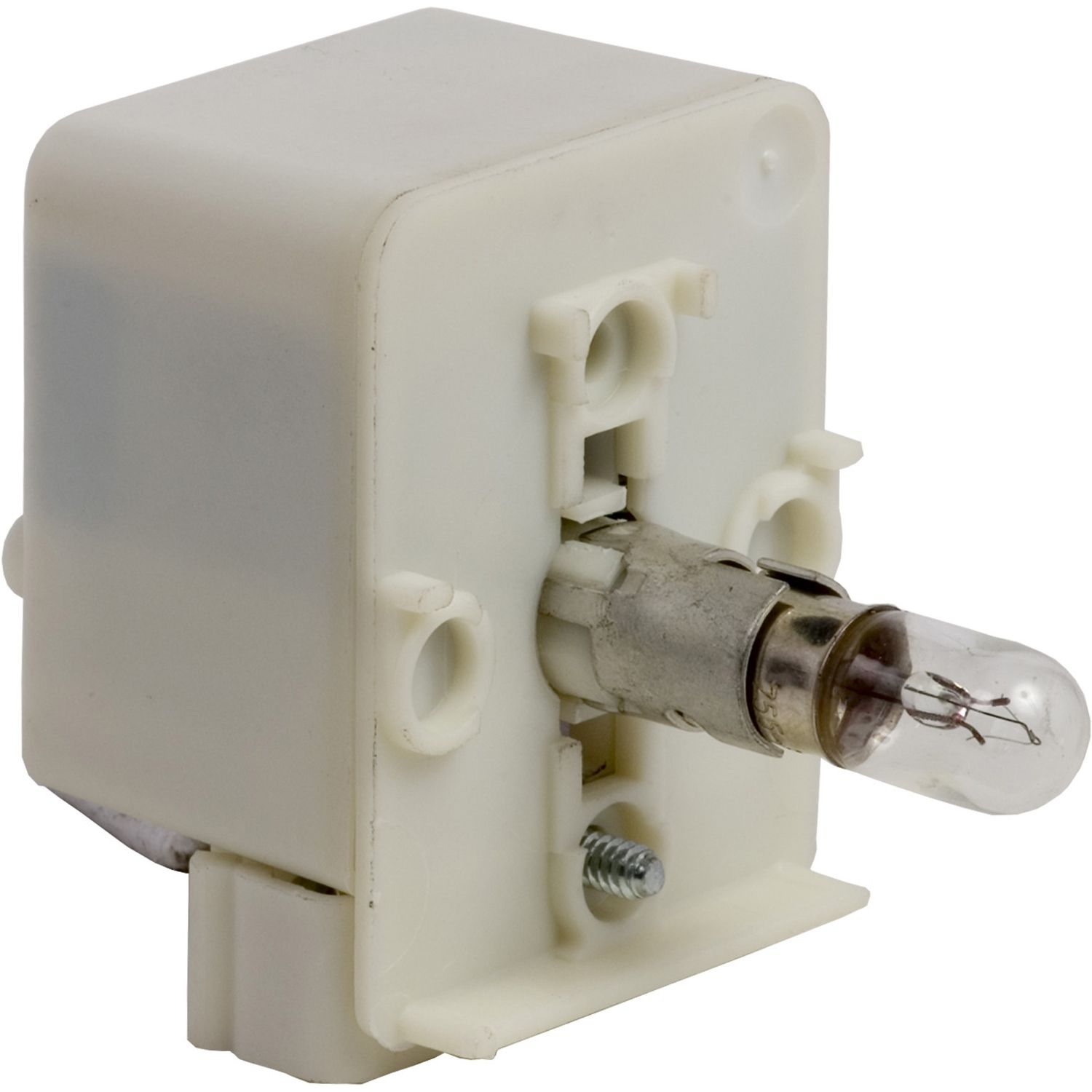

30mm Push Button, Types K, SK or KX, light module, transformer, 6V incandescent lamp, 277 VAC 60 Hz
Manufacturer: Square D
SKU: 9001KM8
GTIN: 785901237051
Harmony® 9001K and 9001SK 30mm control and signaling range has a large choice of products to meet a great number of applications in heavy industries. These product lines have a large variety of push buttons, selector switches and pilot lights. Illuminated devices in this product line use a replaceable light module to do the illuminating. These light modules provide clear visual feedback on the status of the machine. The various light modules can be used on a range voltages from 6 to 600 VAC or 6 to 480 VDC. This transformer light module is designed for 277 VAC 50/60 Hz circuits. Light modules have either an incandescent or an LED lamp. This light module has a 6 V incandescent lamp with a BA9 base. This light module is for pilot lights, illuminated push buttons and illuminated selector switches with a lens cap of any color. These light modules are UL Listed and CSA certified.
Old price: $222.20 inc GST
$135.19 inc GST
Supported cards
Supported cards

Products specifications

Attribute name Attribute value
Main
Range of product Harmony 9001K, Harmony 9001SK
Light block supply direct via integral transformer 6 V
Product or component type light module, light block
Device short name 9001K
Bulb base BA 9s
Complementary
Light source incandescent
Light block colour clear
[Us] rated supply voltage 277 V AC at 60 Hz, 277 V AC at 50 Hz
Environment
Product certifications UL listed, CSA, NEMA
Ambient air temperature for operation -25-70 °C, -13-158 °F
Standards UL 508, CSA C22.2 No 14, EN/IEC 60947-5-4, EN/IEC 60947-5-1, EN/IEC 60947-1, JIS C 4520, JIS C 852
Shock resistance 50 gn conforming to IEC 60068-2-27
Vibration resistance 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
IP degree of protection IP10 conforming to IEC 60529
Ambient air temperature for storage -40-70 °C, -40-158 °F
Electrical shock protection class class II conforming to IEC 61140
Protective treatment TC
Contractual warranty
Warranty 18
