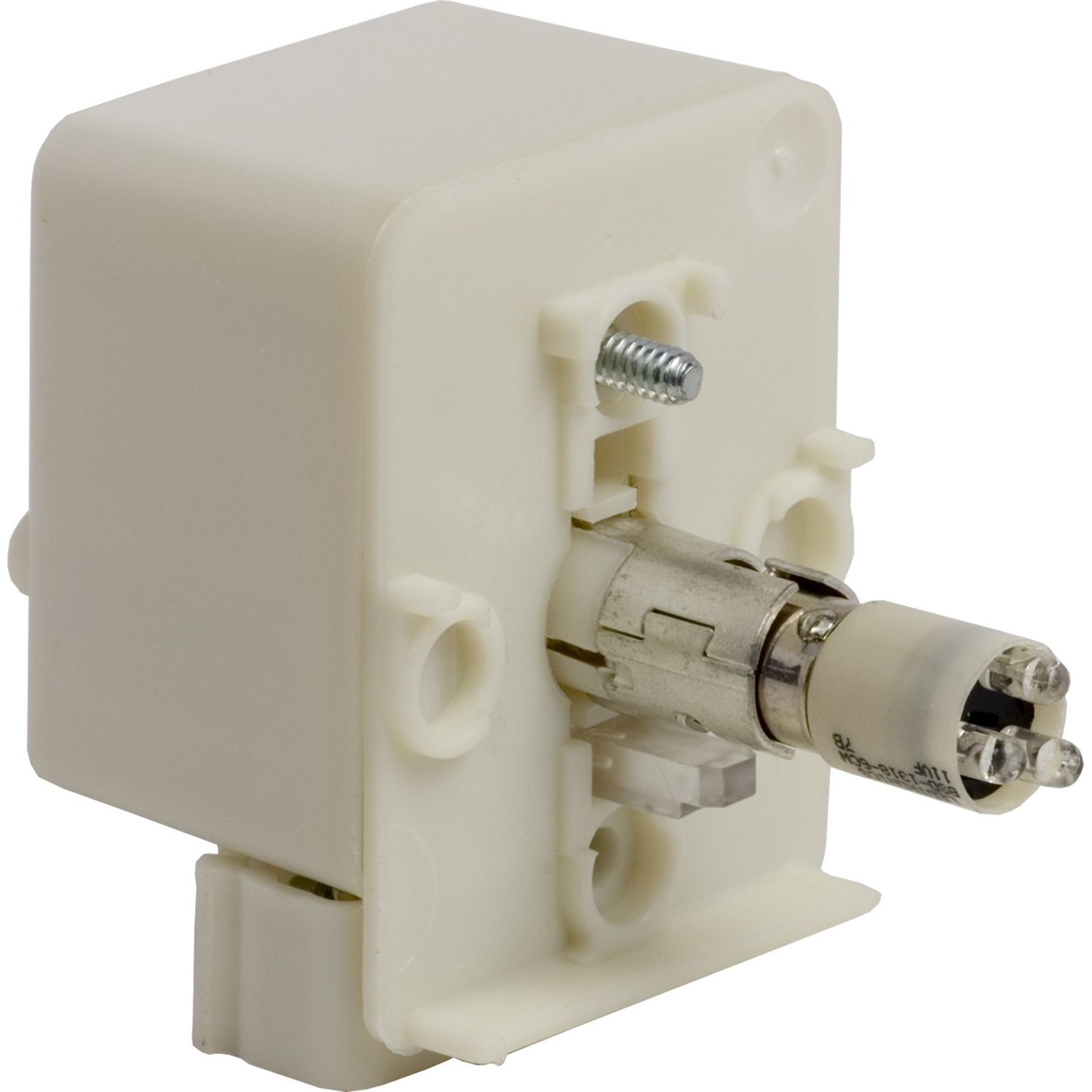

30mm Push Button, Types K, SK or KX, light module, white LED lamp, 120 VAC/VDC
Manufacturer: Square D
SKU: 9001KM38LW
GTIN: 785901696490
Harmony® 9001K and 9001SK 30mm control and signaling range has a large choice of products to meet a great number of applications in heavy industries. These product lines have a large variety of push buttons, selector switches and pilot lights. Illuminated devices in this product line use a replaceable light module to do the illuminating. These light modules provide clear visual feedback on the status of the machine. The various light modules can be used on a range voltages from 6 to 600 VAC or 6 to 480 VDC. This light module with internal resistance is designed for 120 VAC or VDC circuits. Light modules have either an incandescent or an LED lamp. This light module has a white LED lamp. This light module is for pilot lights, illuminated push buttons and illuminated selector switches with a clear lens cap. These light modules are UL Listed and CSA certified.
Old price: $222.20 inc GST
$135.19 inc GST
Supported cards
Supported cards

Products specifications

Attribute name Attribute value
Main
Bulb base BA 9s
Device short name 9001K
Product or component type light block, light module
Range of product Harmony 9001SK, Harmony 9001K
Light block supply direct via integral resistance 1.4 VA
Complementary
Light block colour white
Light source LED (bulb included)
[Us] rated supply voltage 120 V AC at 50...60 Hz, 120 V DC
Environment
Protective treatment TC
Standards JIS C 852, JIS C 4520, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508
Ambient air temperature for storage -40-158 °F, -40-70 °C
Ambient air temperature for operation -13-158 °F, -25-70 °C
Product certifications NEMA, CSA, UL listed
Vibration resistance 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Electrical shock protection class class II conforming to IEC 61140
Shock resistance 50 gn conforming to IEC 60068-2-27
IP degree of protection IP10 conforming to IEC 60529
Contractual warranty
Warranty 18
