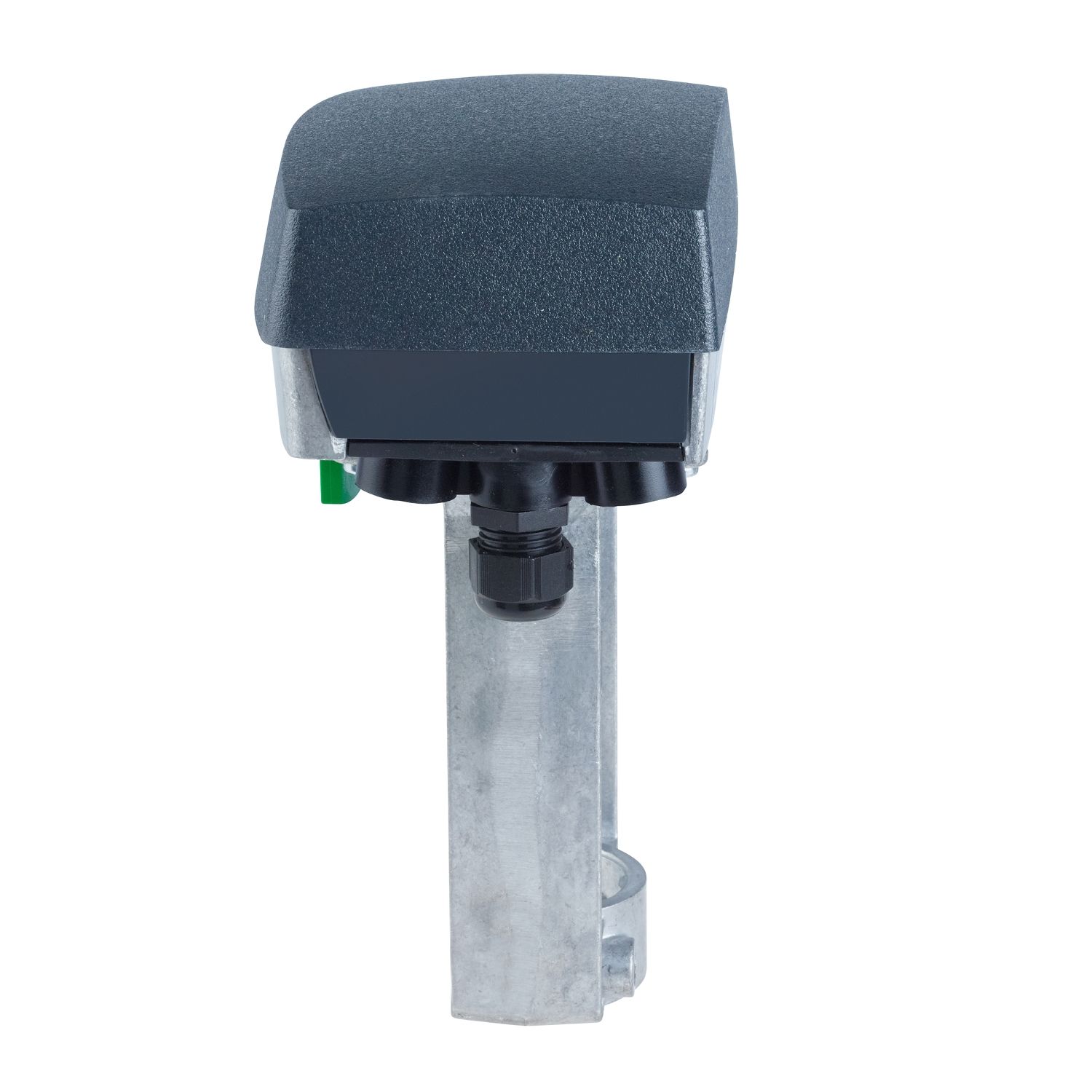

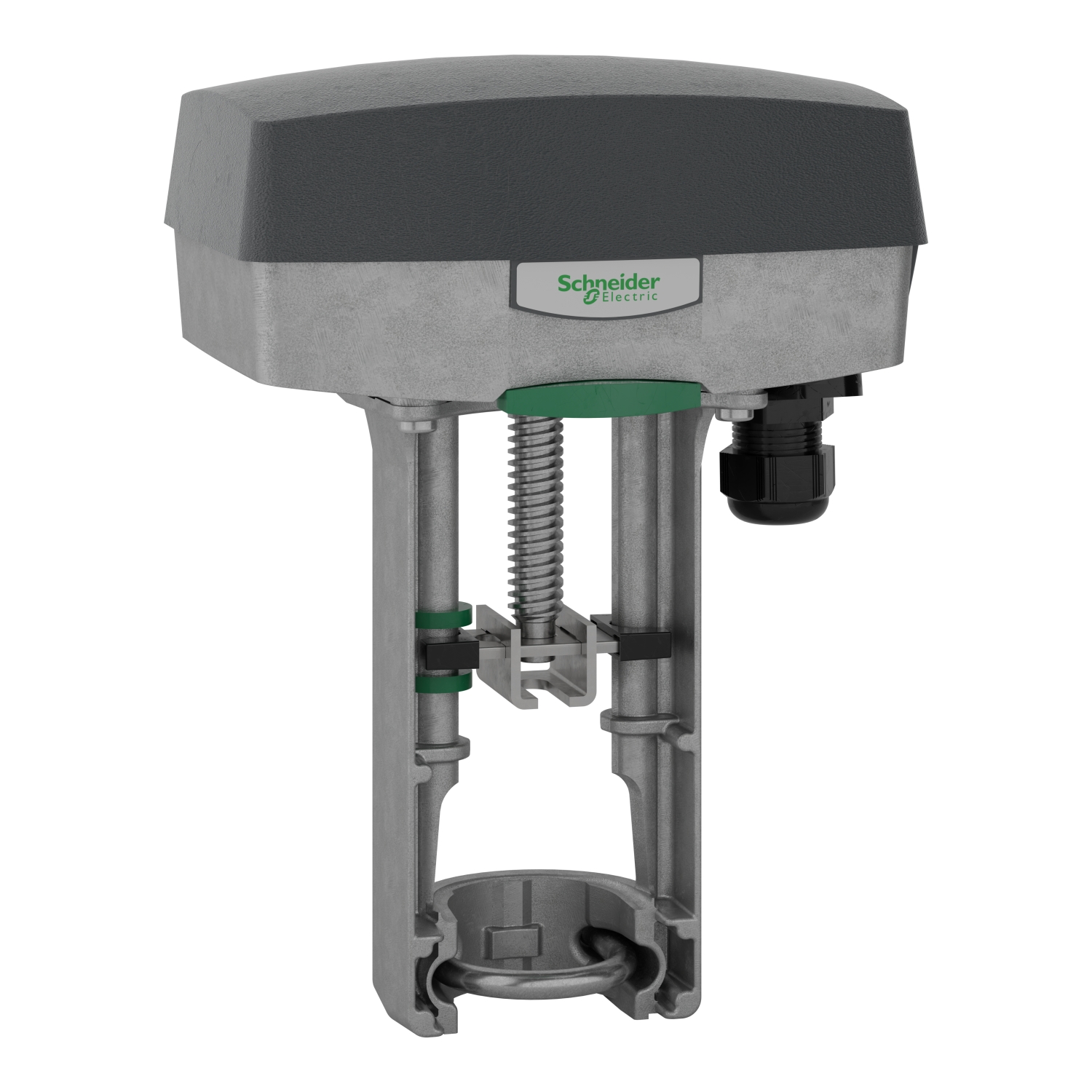

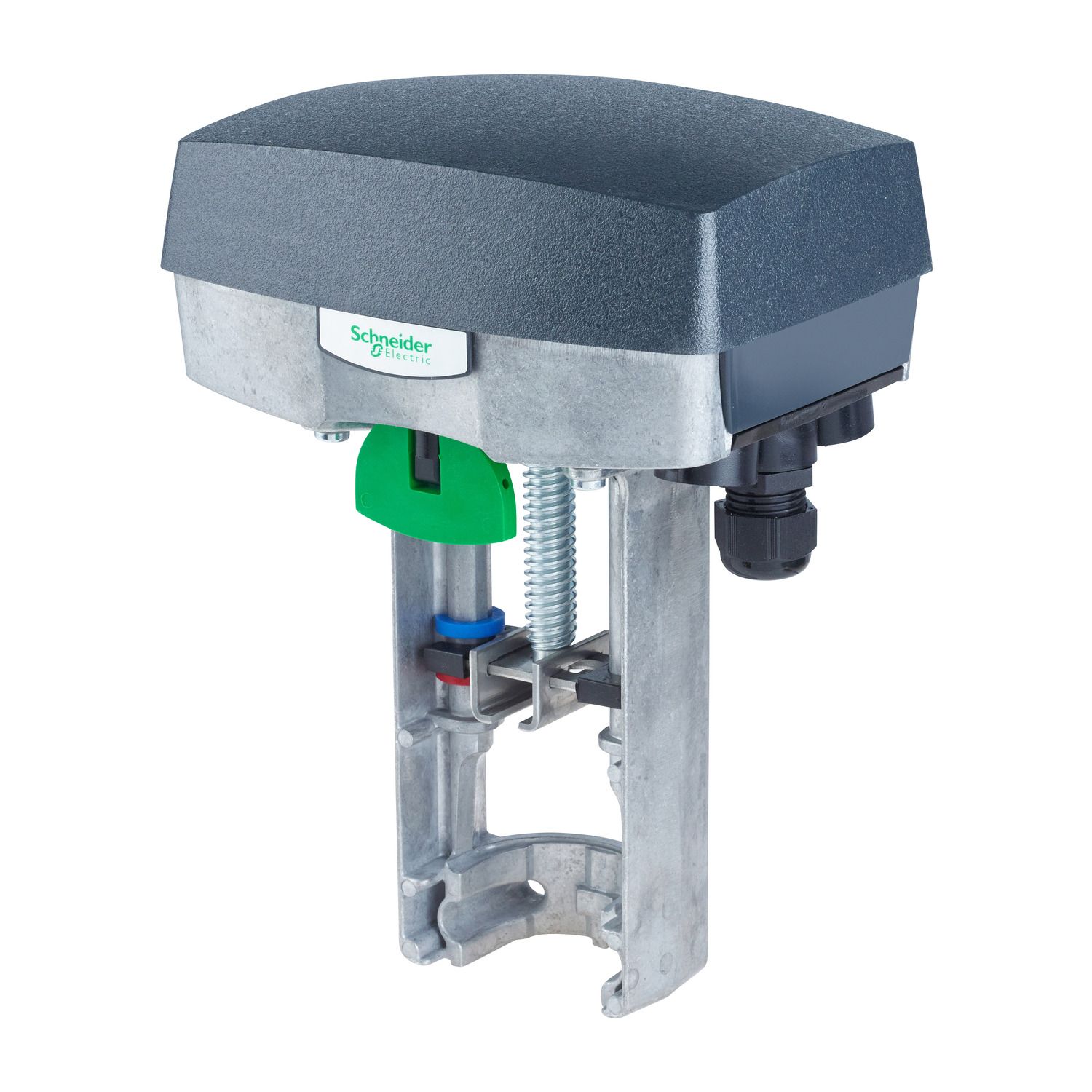

The SpaceLogic is a family actuators for the control of 2-way and 3-way globe valves. It has a very fine resolution PCBA board which provides good rangeability of the valve. The manual override allows the actuator to be overriden and valve position adjusted without disconnecting the power supply. It may be configured for different flow characteristics, inverse signal or sequence control. Supply voltage: 24 Vac +25%/-35%. Analog Control Input selectable Voltages: 0…10 V, 2…10 V, 0…5 V, 5…10 V, 2…6 V, 6…10 V. Force: 400 N, IP 54 Protection class. EMC 2014/30/EU, LVD 2014/35/EU. When an end position adjustment is made, The actuator closes the valve and then opens it fully before responding to the control signal. Conduit connection 3 x M20 screwed.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Force N | 400 N |
| Switch function | 2 SPDT (optional) |
| IP degree of protection | IP54 |
| Relative humidity | 0-90 % RH, non-condensing |
| Ambient air temperature for storage | -10-50 °C |
| [Us] rated supply voltage | 24 V AC/DC |
| Electrical insulation class | class II |
| Product destination | globe valve |
| Control type | automatic reset |
| Transformer rated power in VA | 30 VA |
| Stroke length | 9-32 mm |
| Analogue input range | 0...10 V DC |
| Ambient air temperature for operation | -10-50 °C |
| Hold-in power consumption in VA | 7-7 VA AC |
| Material | ABS/PC: cover, aluminium: housing |
| Stroke running time | 60 s |
| Motor type | brushless DC motor |
| Duty cycle | 20 % |
| Product or component type | actuator |
| Power consumption in VA | 7 VA AC |
| Targeted region | Australia., Asia Pacific., Europe |
| Force lbf | 89 lbf |
| Actuator | linear |
| Actuator model | M400 |
| Control signal | floating, proportional/modulating |
| Conduit connection | gland for 6-12 mm O/D cable |
| Leads and connections | terminal block |
| Actuator type | electric |
| Actuator product range | SpaceLogic |
| Actuator product series | M400 |
| Power loss return | non-spring return |
| Feedback signal | 2...10 V DC |
| Stroke auto calibration | True |
| Position indicator | Stroke indicator on bracket |
