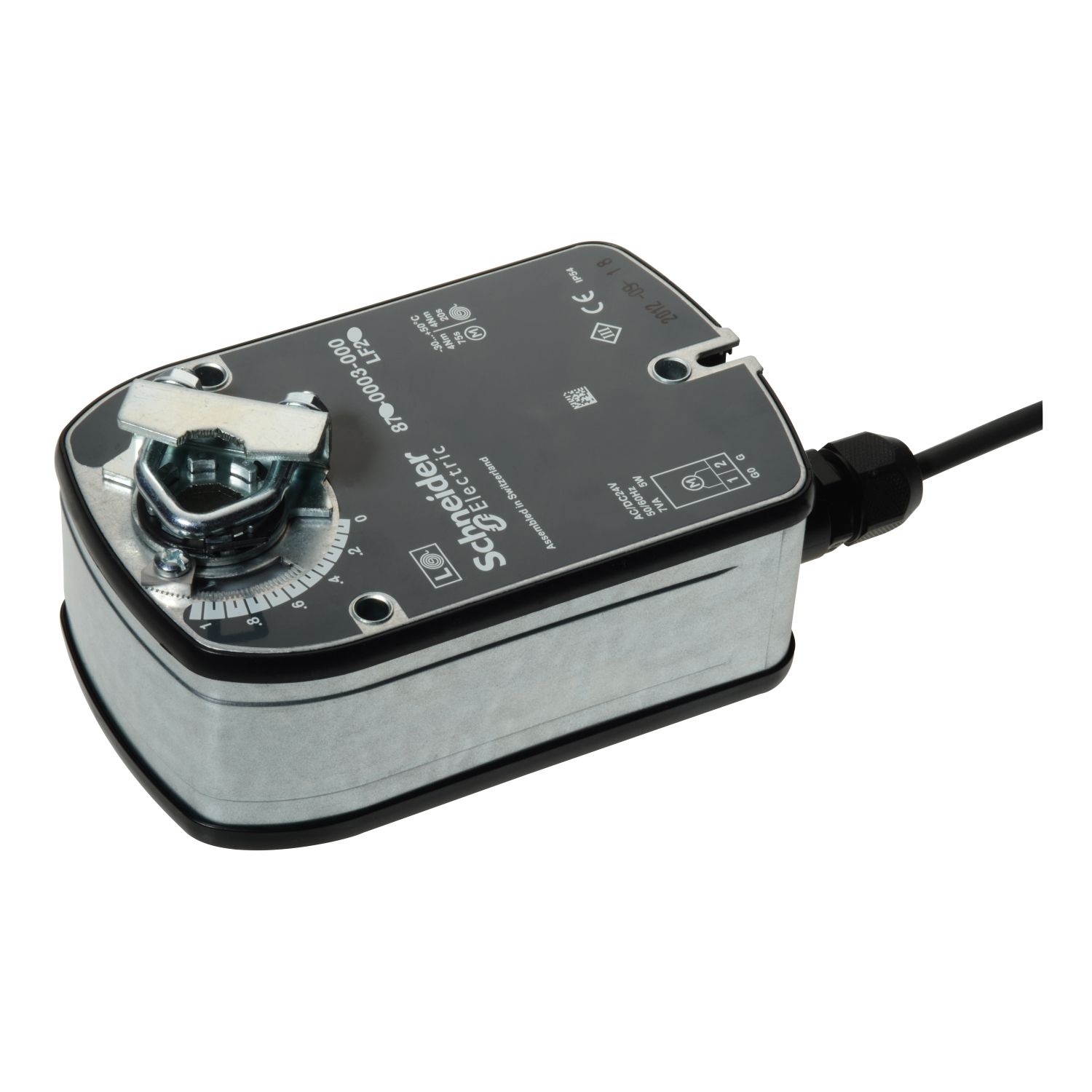

LF24 Damper Actuator, Modulating, 2-10Vdc, Spring Return, 24Vac/dc, 1m Cable, 4Nm, IP54

Motor overload protection for safe operation

Fits rounds spindles from 10…22 mm in dia.

Fits diamond spindles from 14…25.4 mm

Fits square spindles from 10..18mm

All metal construction

Manufacturer: Schneider Electric

SKU: 8770003000

GTIN: 3606489659318

Instruction sheet

Full Description

The LF actuator is a compact, low-torque, spring return damper actuator suitable for controlling air dampers up to .8 m² cross sectional area. The LF24-SR is for 0…10 V modulating with 2…10 V position feedback. The actuator is maintenance free, with mechanical position indication. Supply voltage: 24 Vac +/- 20%. 0…10 V modulating control signal. Torque: 4 Nm, IP 54 Protection class. Angle of rotation: Max. 95°, adjustable 37…100% with additional limit stop ZDB-LF. Connection cable 2 x .75 mm² (AWG 18).

Old price: $805.20 inc GST

Price: $1,064.88 inc GST
