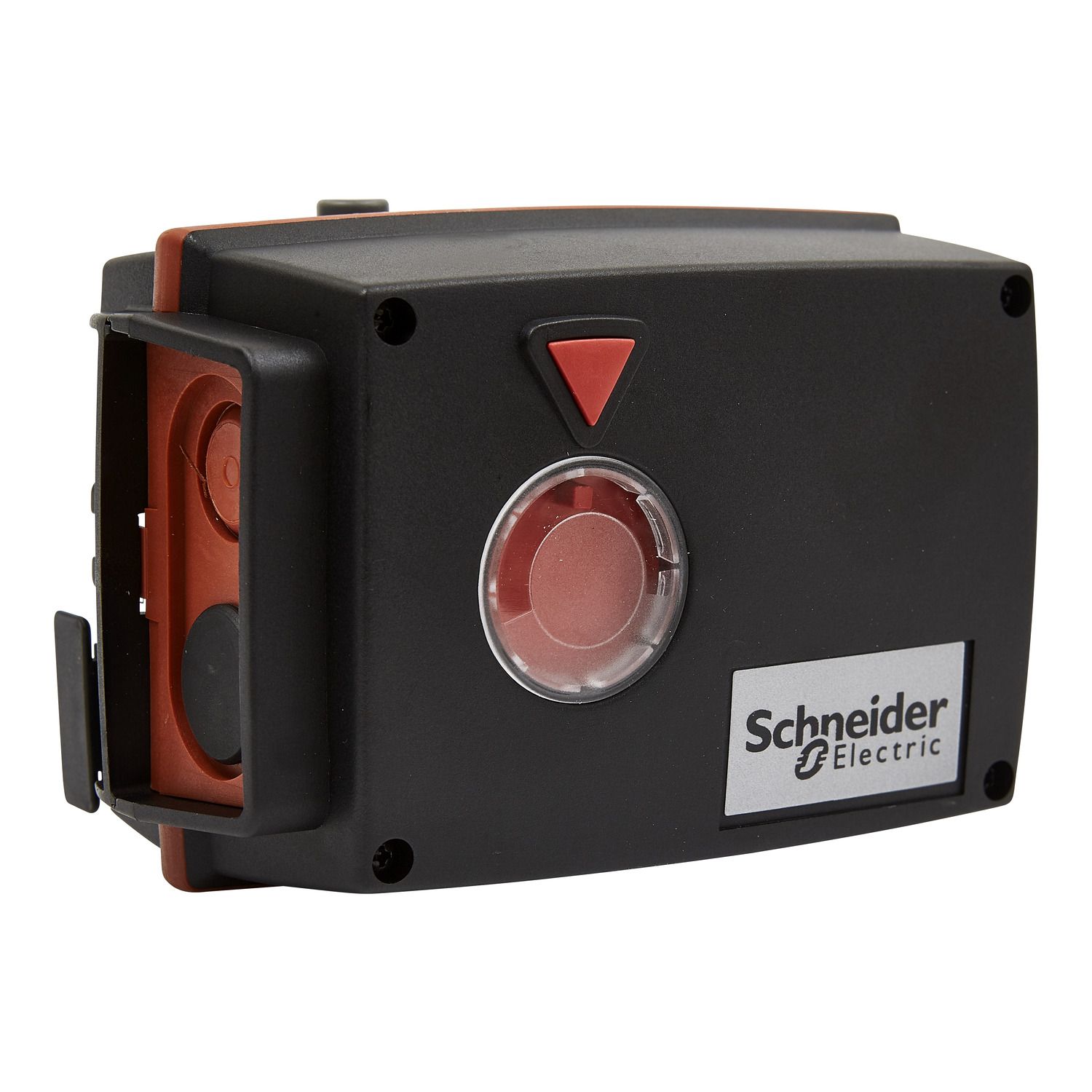

The EM9B is an electronic actuators for motorising VTRE rotary shoe valves. The actuator can be operated manually and has a valve position indicator on the front of the unit. Power consumption: 3 VA. Control signal: 3-point. Working Range: 3-18°. Running time 9° 4 min, 23 Vac +/- 1%. Torque: 15 Nm, IP 54 Protection class.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Hold-in power consumption in VA | 3-3 VA AC |
| Material | PA66 (polyamide 66) reinforced: housing |
| IP degree of protection | IP54 |
| [Us] rated supply voltage | 230 V AC |
| Product destination | shoe valves |
| Control type | electrically operated |
| Duty cycle | 10 % |
| Product or component type | actuator |
| Targeted region | Australia., Asia Pacific., Europe |
| Actuator rotation | 180 ° |
| Actuator | rotary |
| Ambient air temperature for operation | -15-55 °C |
| Tightening torque | 15 N.m, 133 lb.in |
| Power loss return | non-spring return |
| Control signal | floating |
| Actuator type | electric |
| Actuator product series | EM9, M9B |
| Position indicator | green push stem with color markers |
