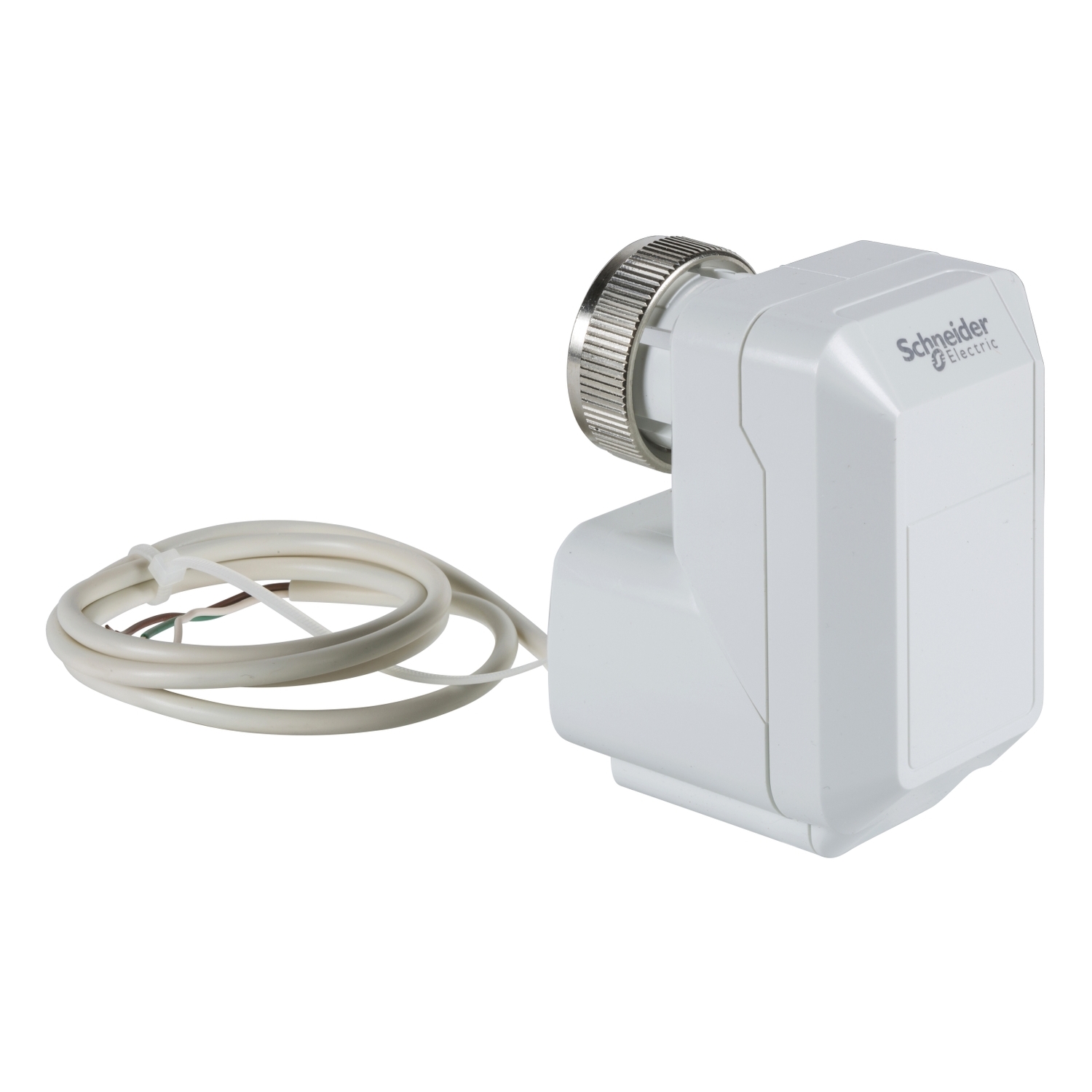

The MZ09B actuator is designed to provide 3-point control together with radiator valves. The actuator is used for radiator valves in fan coil units, induction units, small reheaters and recoolers, and for zone control applications. The abscence of end switches and feedback potentiometer provides longtime reliability. Supply voltage, 24 Vac +1% -3%. 3-point Floating. 1.6 mm controlled valve stroke, 7.9 mm complete actuator stroke. 9 N, IP 43. Connection cable: 0.9 m.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Hold-in power consumption in VA | 0.7-0.7 VA AC |
| Product destination | thermostatic radiator valves |
| Product or component type | actuator |
| Targeted region | Asia Pacific., Europe |
| Complementary | |
| Force N | 396 N |
| Switch function | 2 SPDT |
| Stroke running time | 36 s |
| Control type | manual override with 5/32 allen wrench |
| Stroke length | 1.6-7.9 mm |
| Force lbf | 89 lbf |
| Actuator | linear |
| Environment | |
| IP degree of protection | IP44 |
| Ambient air temperature for operation | 0-60 °C |
| Power loss return | non-spring return |
| Actuator model | MZ 09B 2.5mm |
| Control signal | 3-point floating |
| Lead length | 0.9 m |
| Stroke auto calibration | False |
| Actuator type | electric |
| Actuator product series | MZ09 |
| Position indicator | green push stem with color markers |
