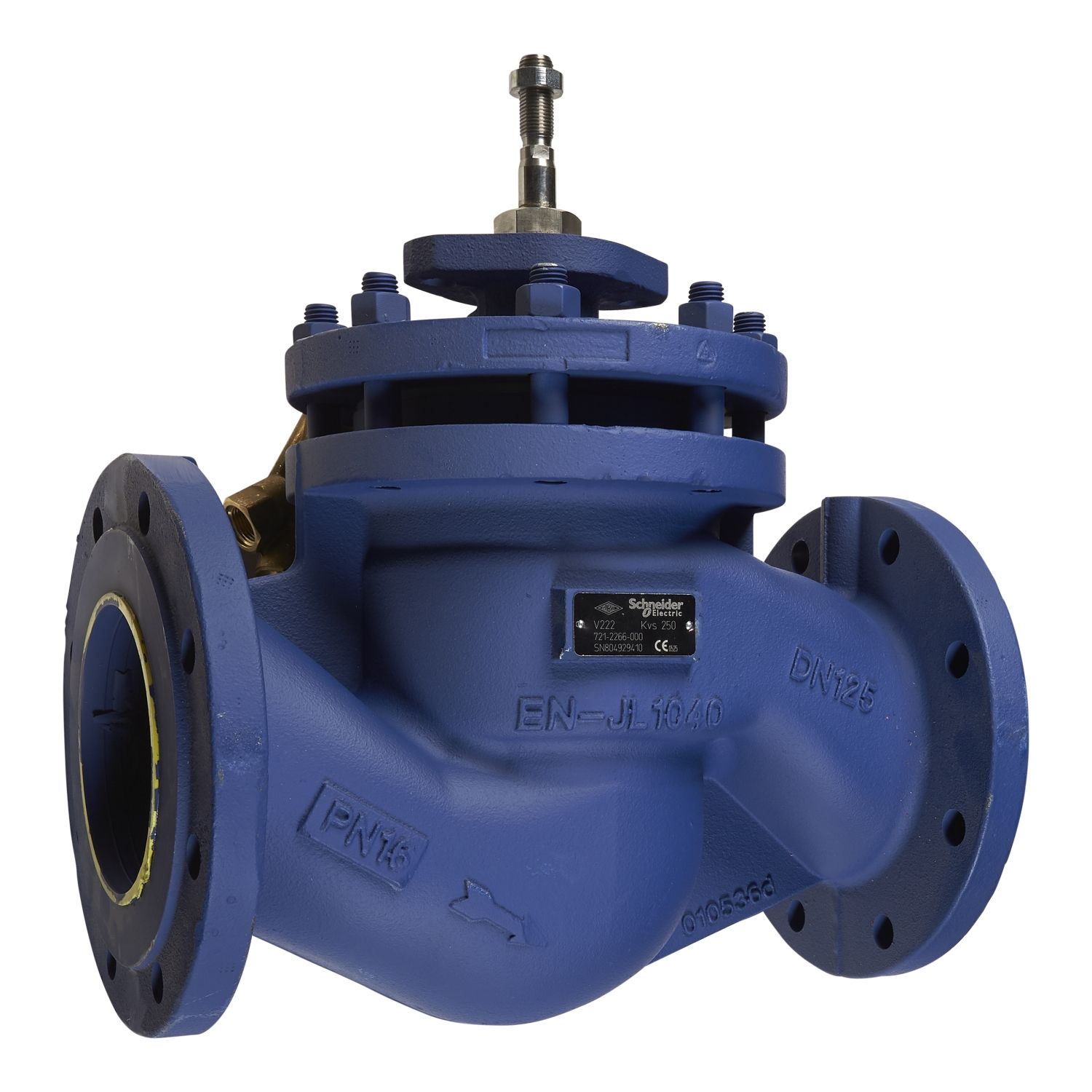

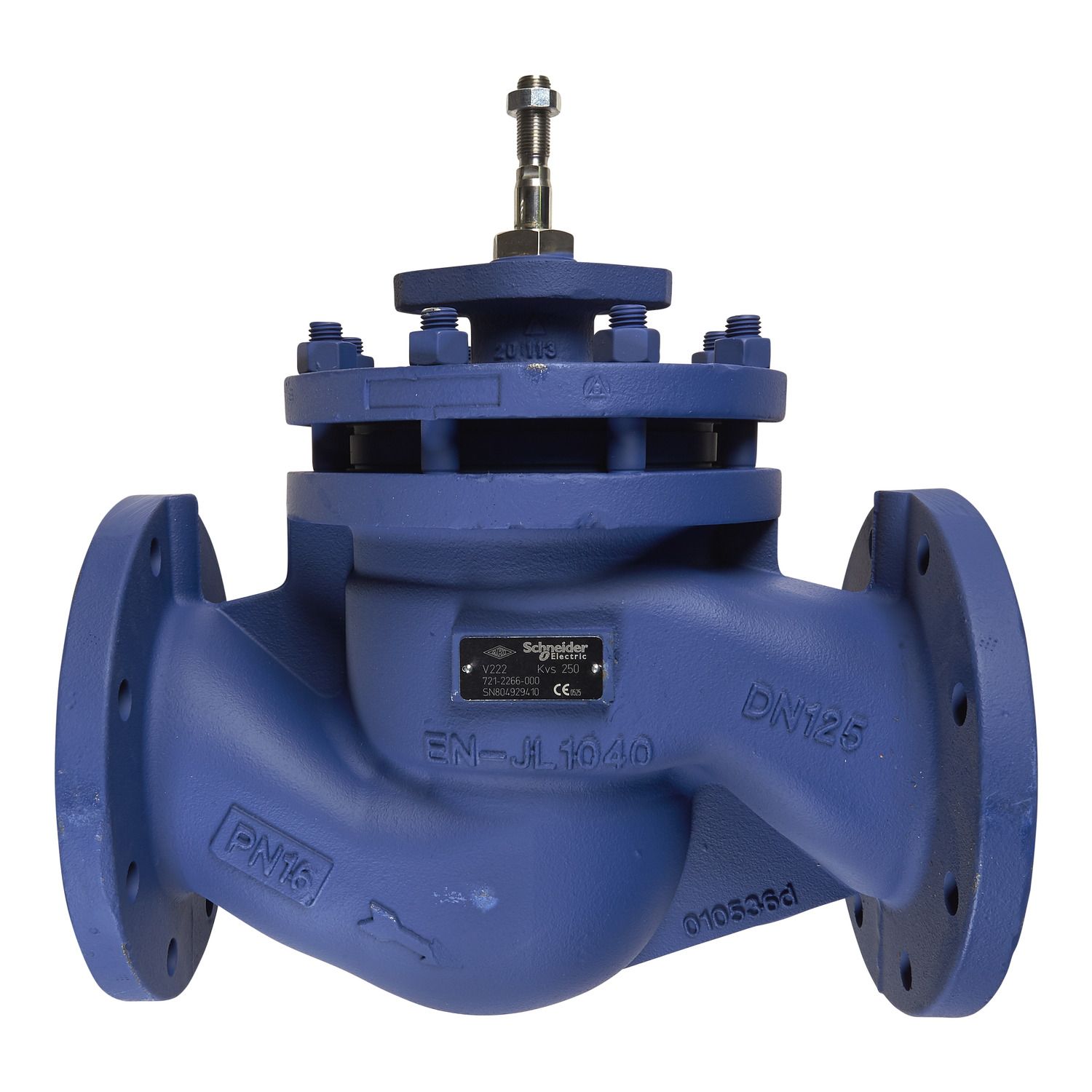

V222 Glove Valve, 2-Way, PN16, Flanged, Balanced plug, DN125, Kvs 250, Cast Iron Body, Stainless plug and seat, Max Glycol 50%, Stem up Closed
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Operating fluid temperature | -10-150 °C |
| Body material | grey cast iron GG-25 |
| Seating seal material | Port A:metal to metal |
| Seat leakage | Port A: Less than 0.05 % of kvs |
| Product or component type | valve |
| Targeted region | Australia., Asia Pacific., Europe |
| Valve connection size | DN125 (ISO 7005-2) |
| Seat material | Port A: stainless steel AISI 420 |
| Medium compatibility | Water, Glycol 50 %, Glycol 30 %, Glycol 25 % |
| Control valve rangeability | greater than 50:1 |
| Plug material | stainless steel AISI 420 |
| Valve product series | V222 |
| Flow coefficient | 250 kvs, 289.06 cv |
| Stem flow action | Stem down closed |
| Valve configuration | 2-Way |
| Stem movement | linear |
| Pressure fluid max delta P normal life | 15 psi |
| Valve type | globe |
| Valve model | V222/125/250 |
| Packing material | spring-loaded PTFE v-ring |
| Valve connection type | flanged |
| Stem seal material | EPDM (ethylene propylene diene monomer) |
| Flow characteristic | equal percentage |
| Trim material | stainless steel |
| Stroke length | 50 mm |
| Stem material | stainless steel AISI 420 |
| Pipe size | 125 mm |
| Pressure class | PN16 |
| Body size | 125 mm (5 in) |
